Morgana AeroCut — каталог запчастей

Визиткорез-биговщик Uchida AeroCut (Morgana AeroCut). Parts list Uchida Yoko, ред. 2014–2017. Устаревшая редакция перфоратора (Old edition) не выводилась.

1Margin slitter — слиттер полей
2Gutter slitter — слиттер средника
3Slitter unit — слиттерный узел
4Frame — рама
5Paper feed 1 — подача бумаги 1
6Paper feed 2 — подача бумаги 2
7Cutter — поперечный нож
8Creaser — биговальный узел

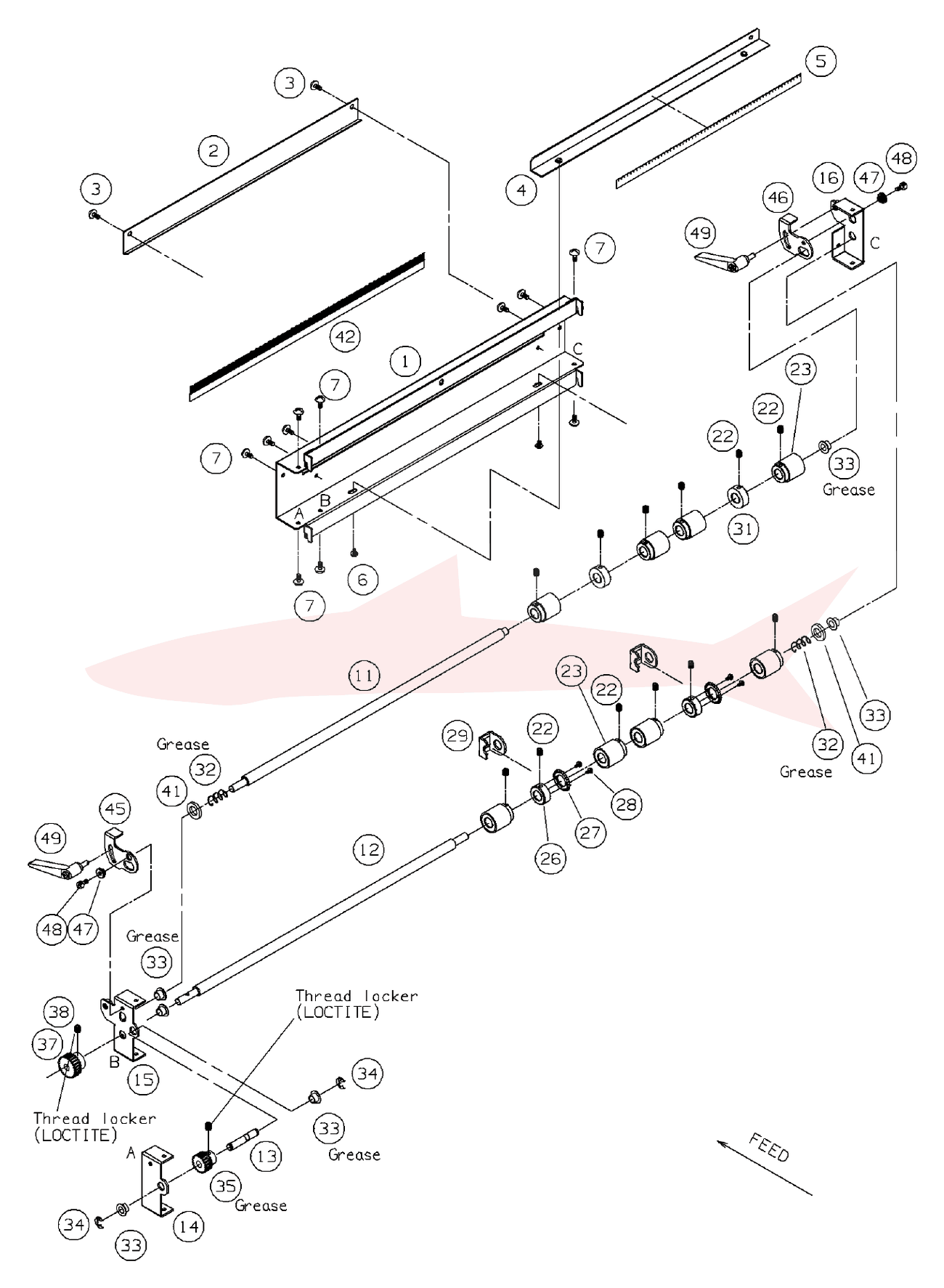

9Perforator — перфоратор

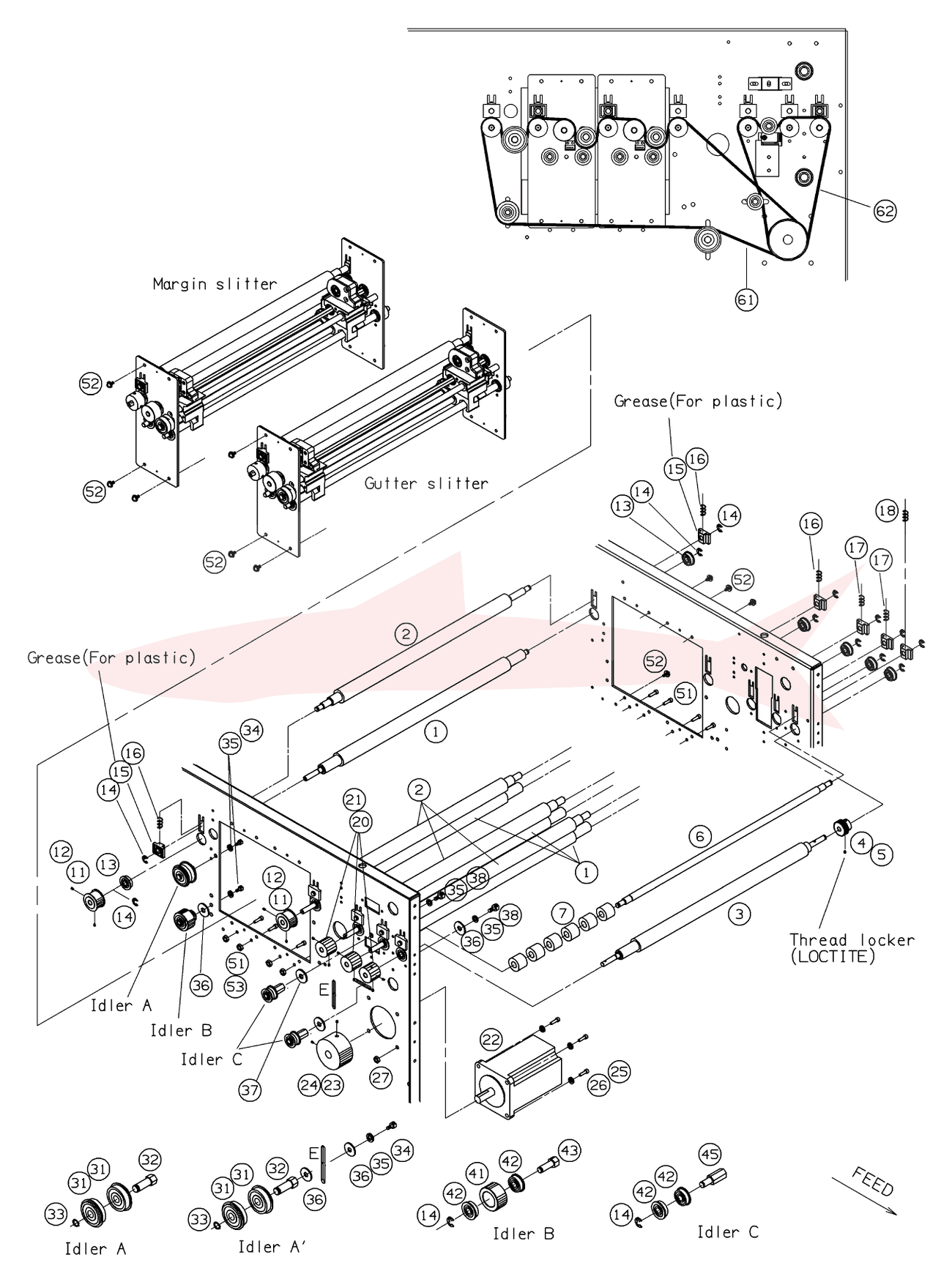

10Driving system — привод и транспорт

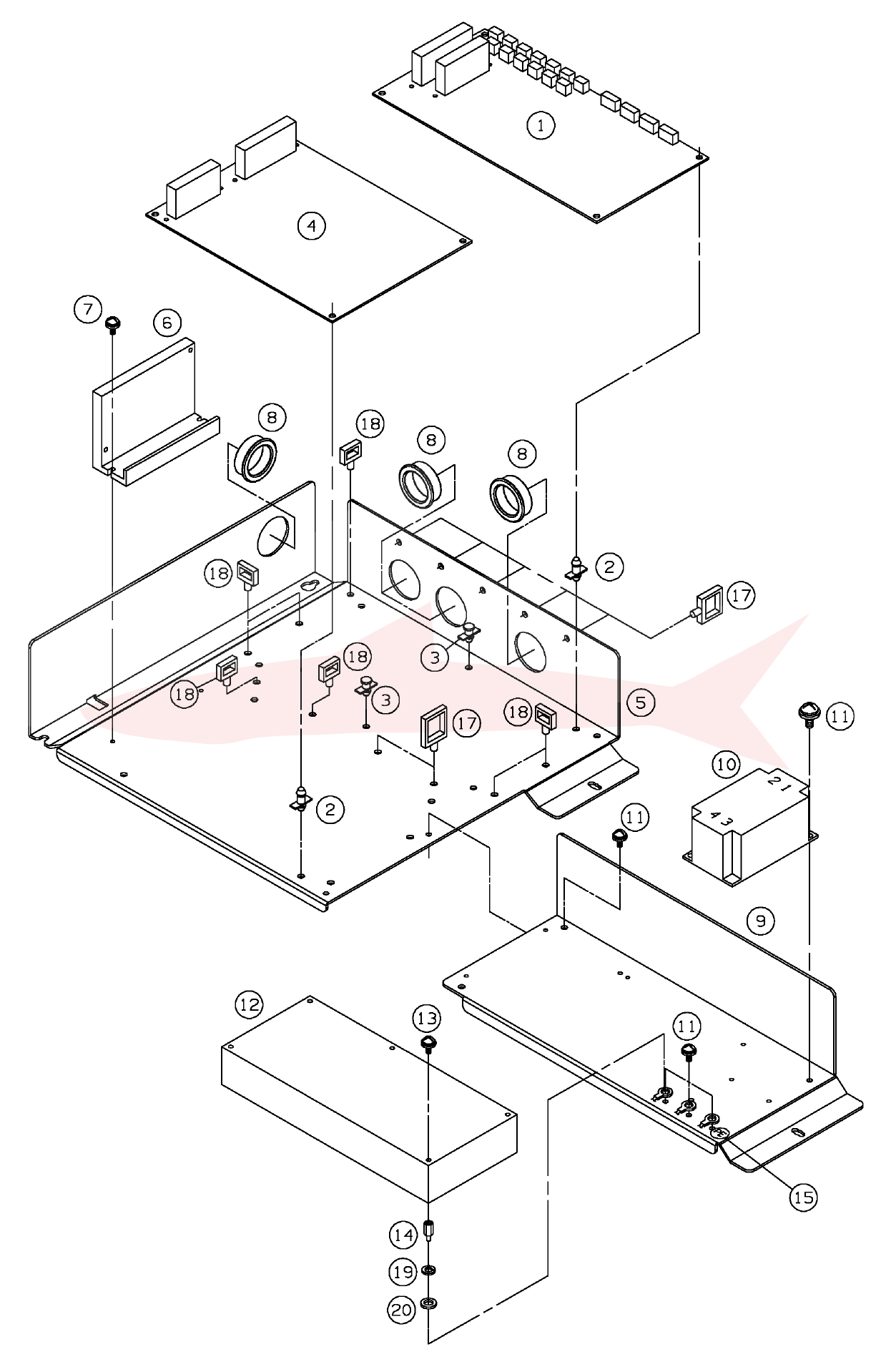

11Electric panel — электрическая плата

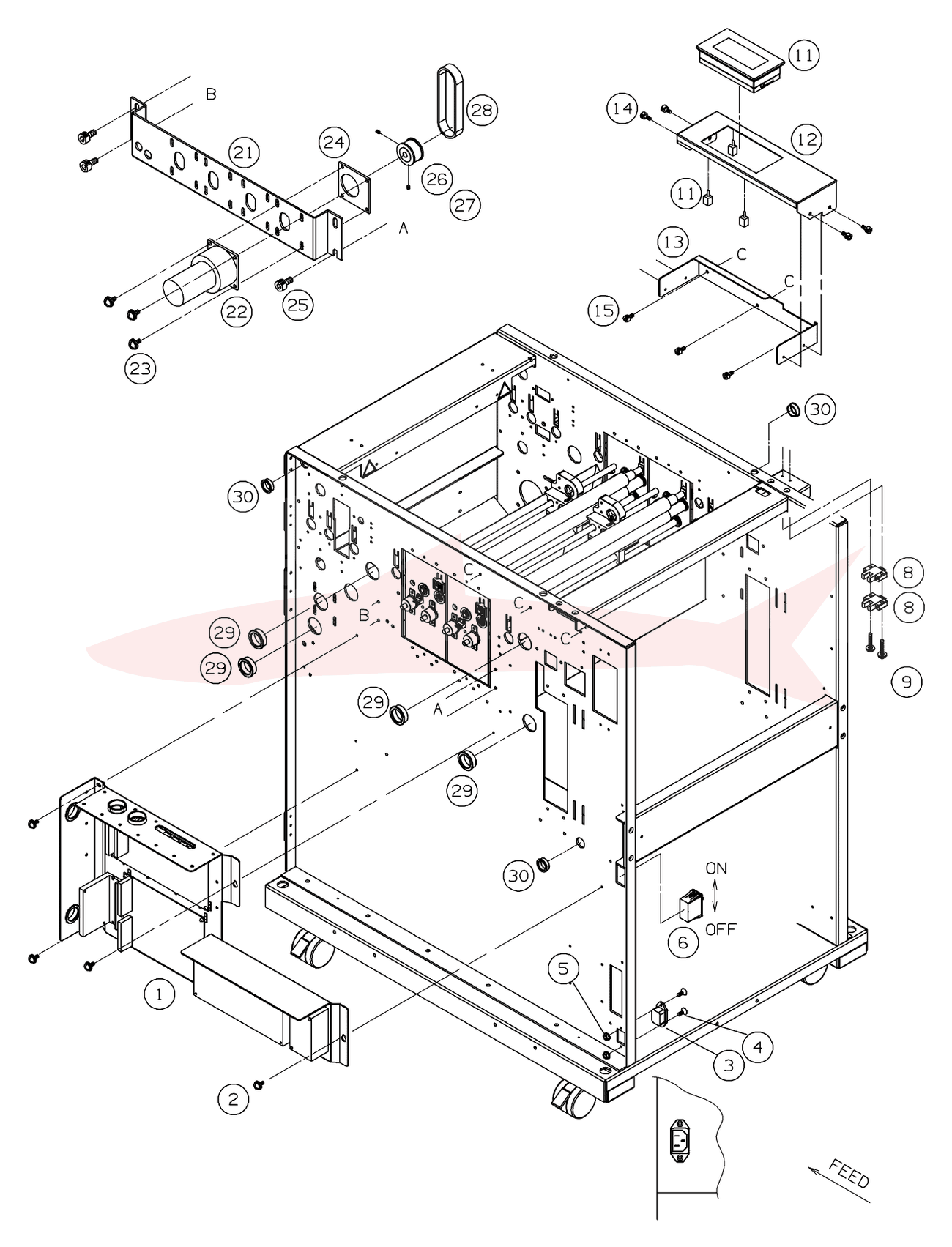

12Electric parts — электрооборудование

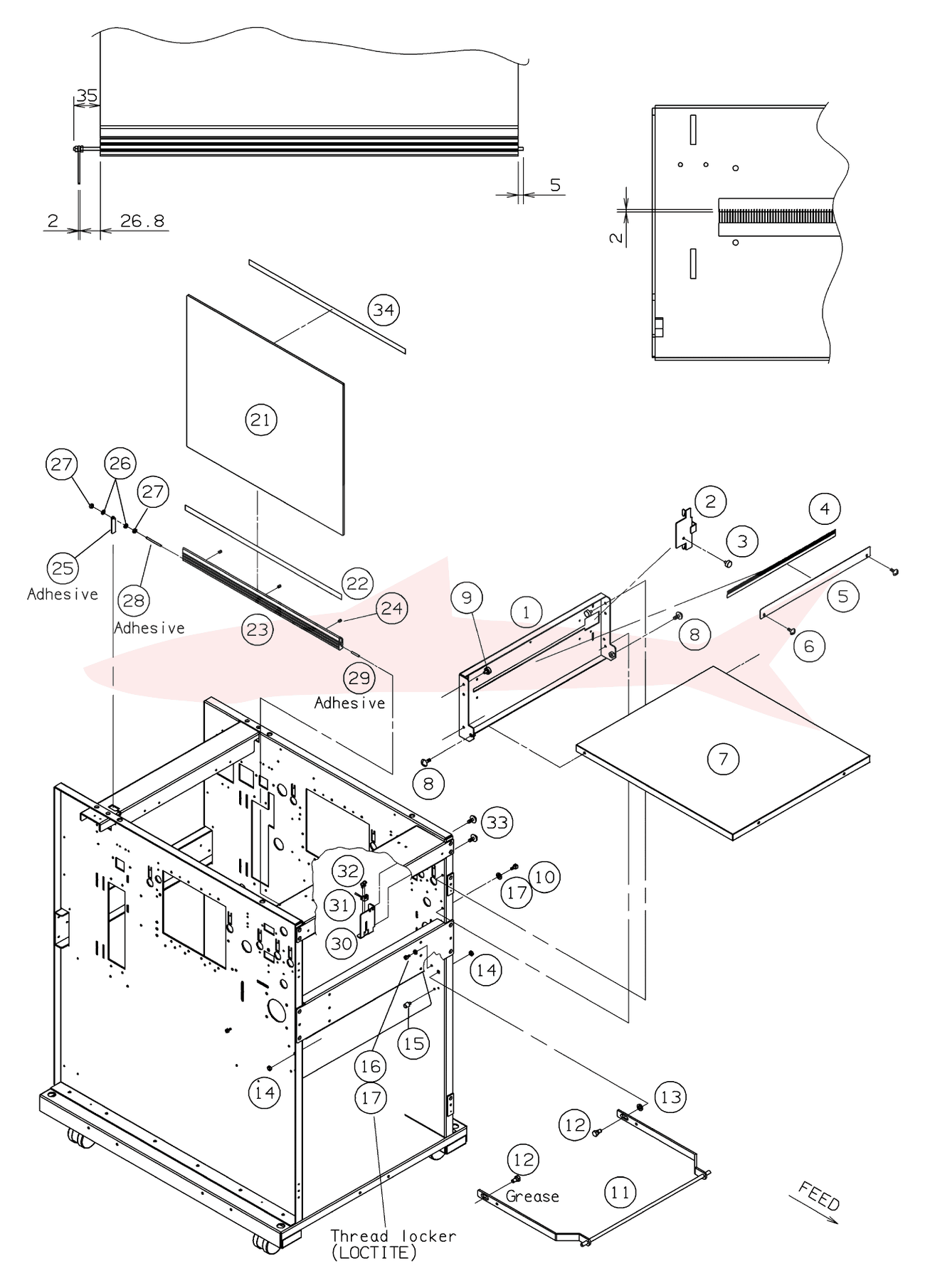

13Exterior 1 — облицовка 1

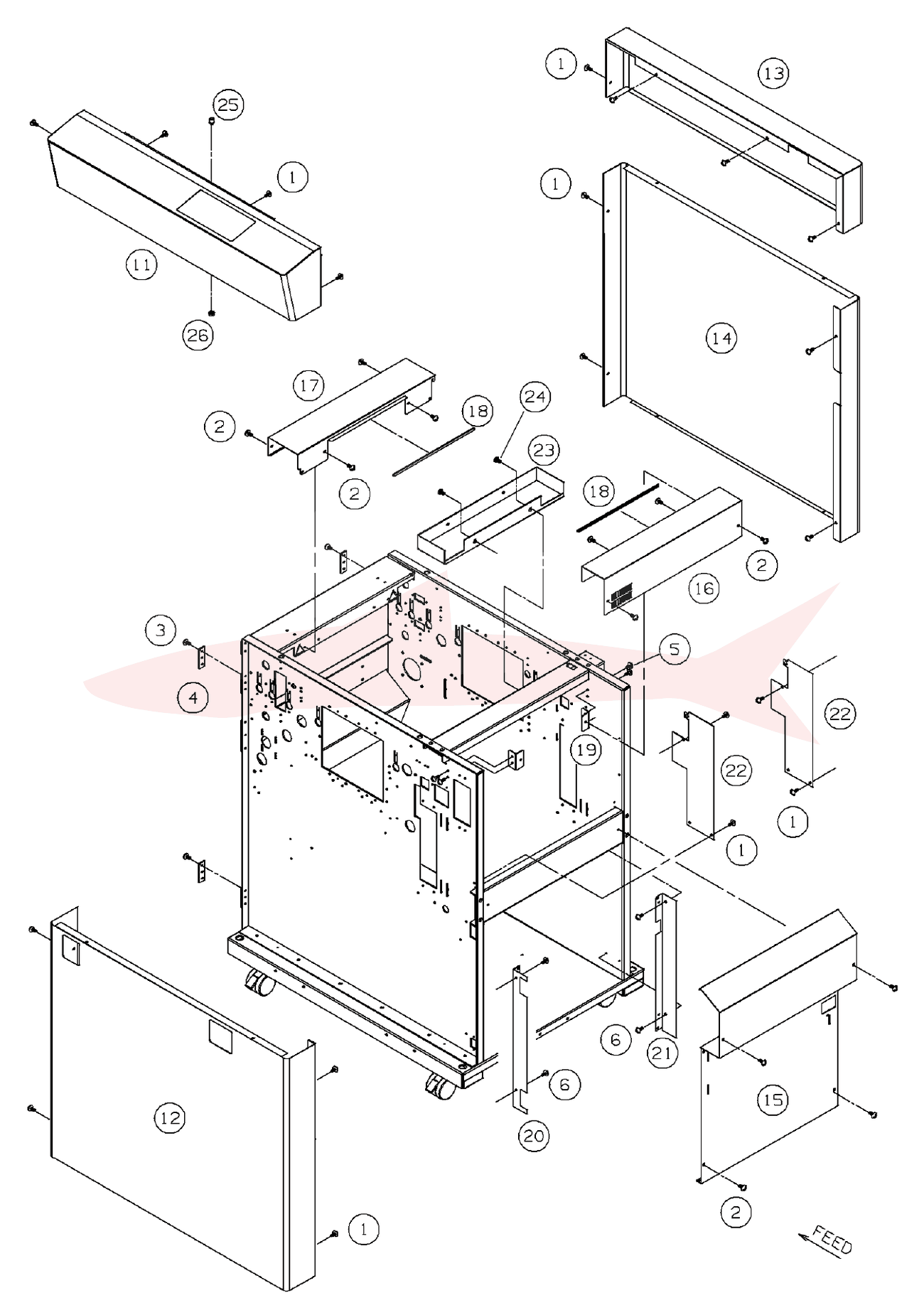

14Exterior 2 — облицовка 2

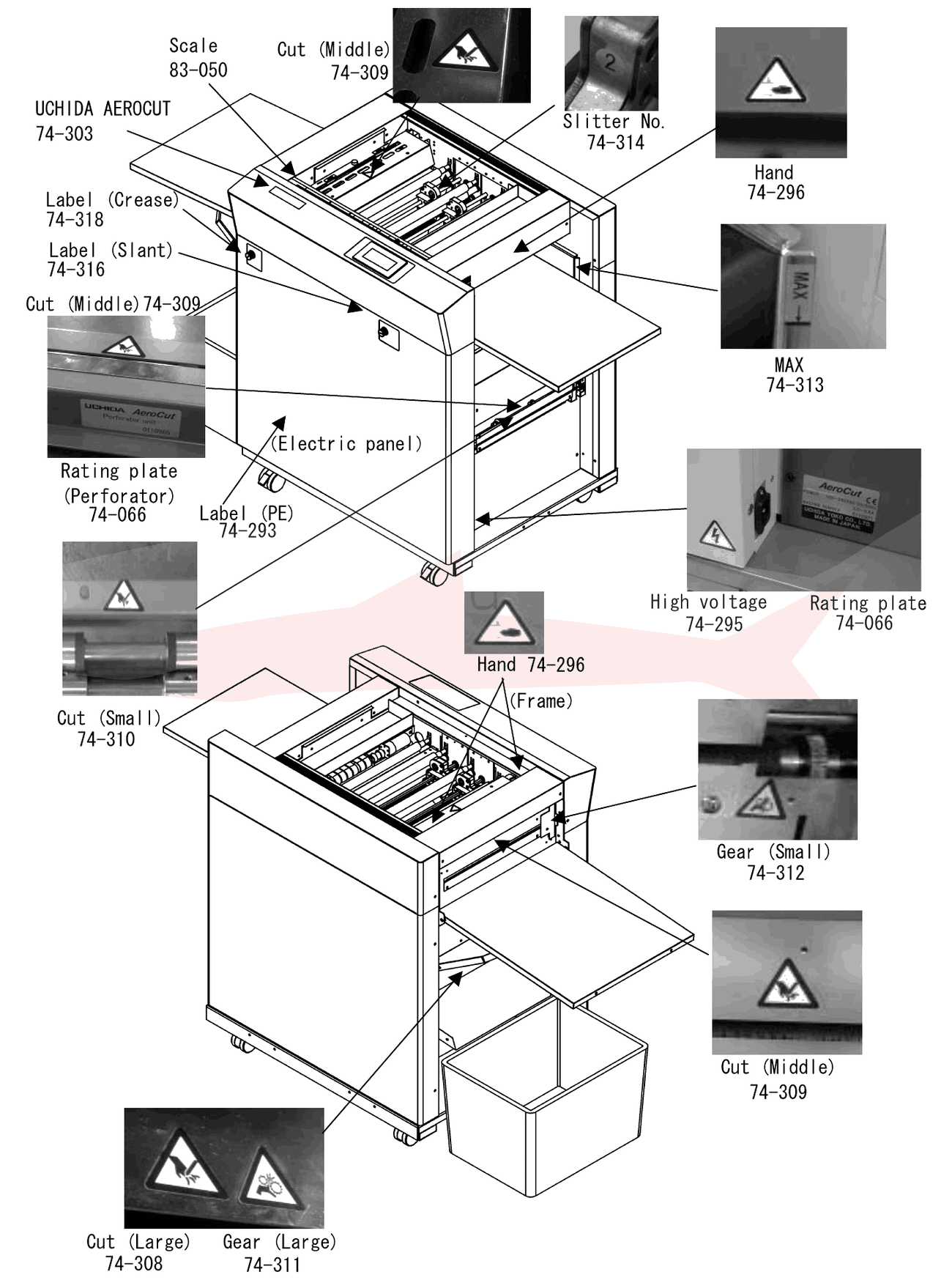

15Exterior 3 (labels) — наклейки и таблички

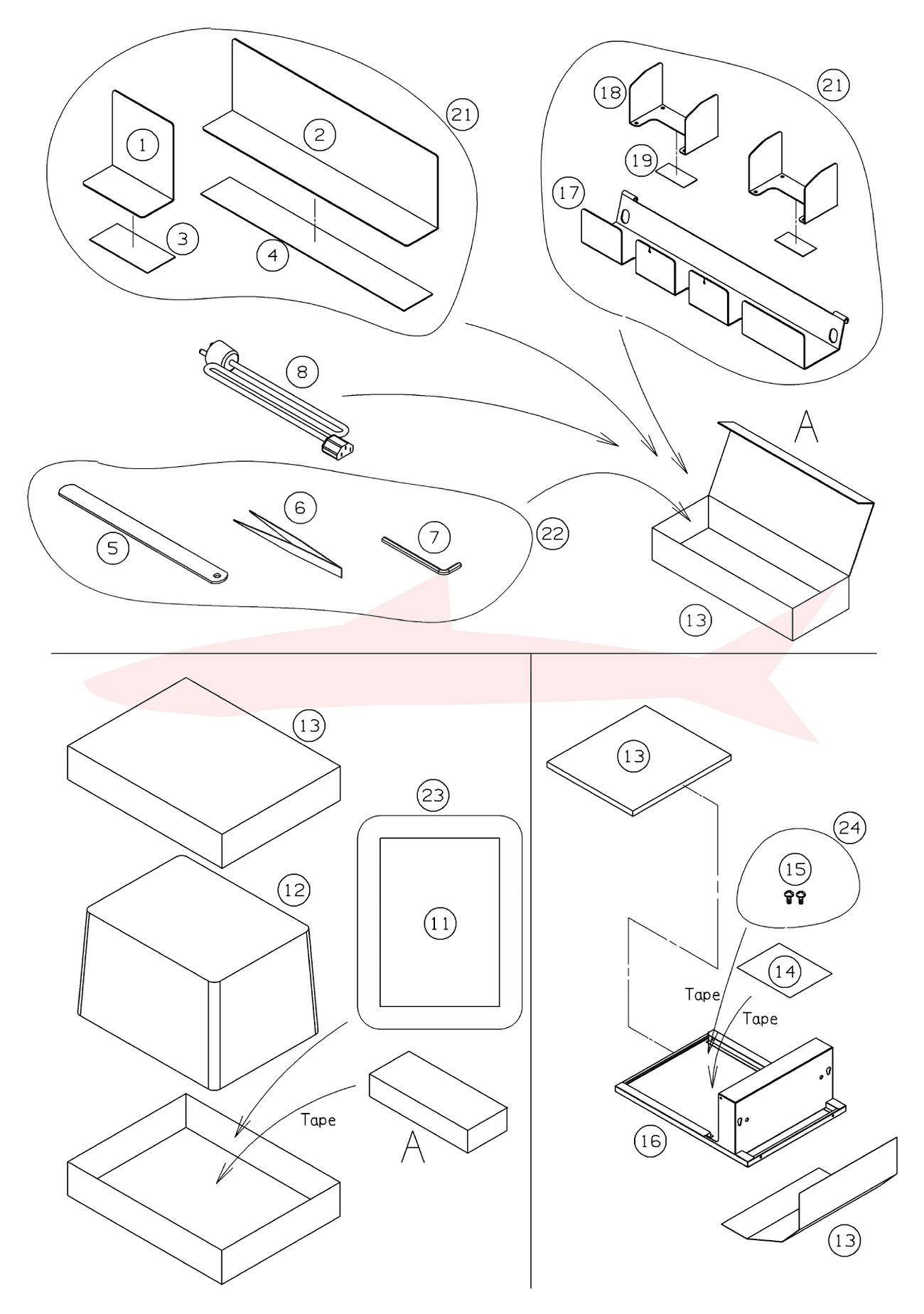

16Accessories — принадлежности

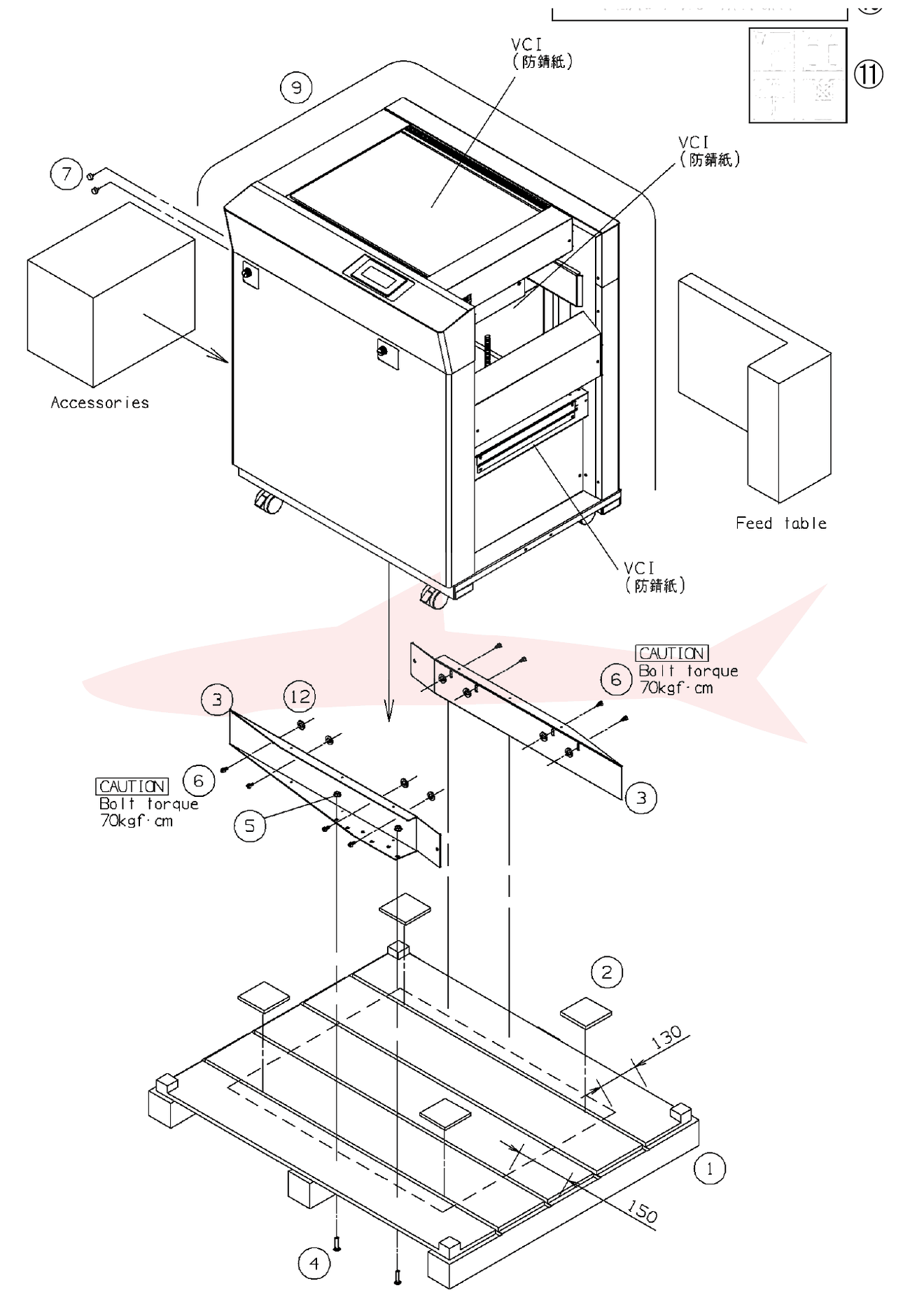

17Packing — упаковка

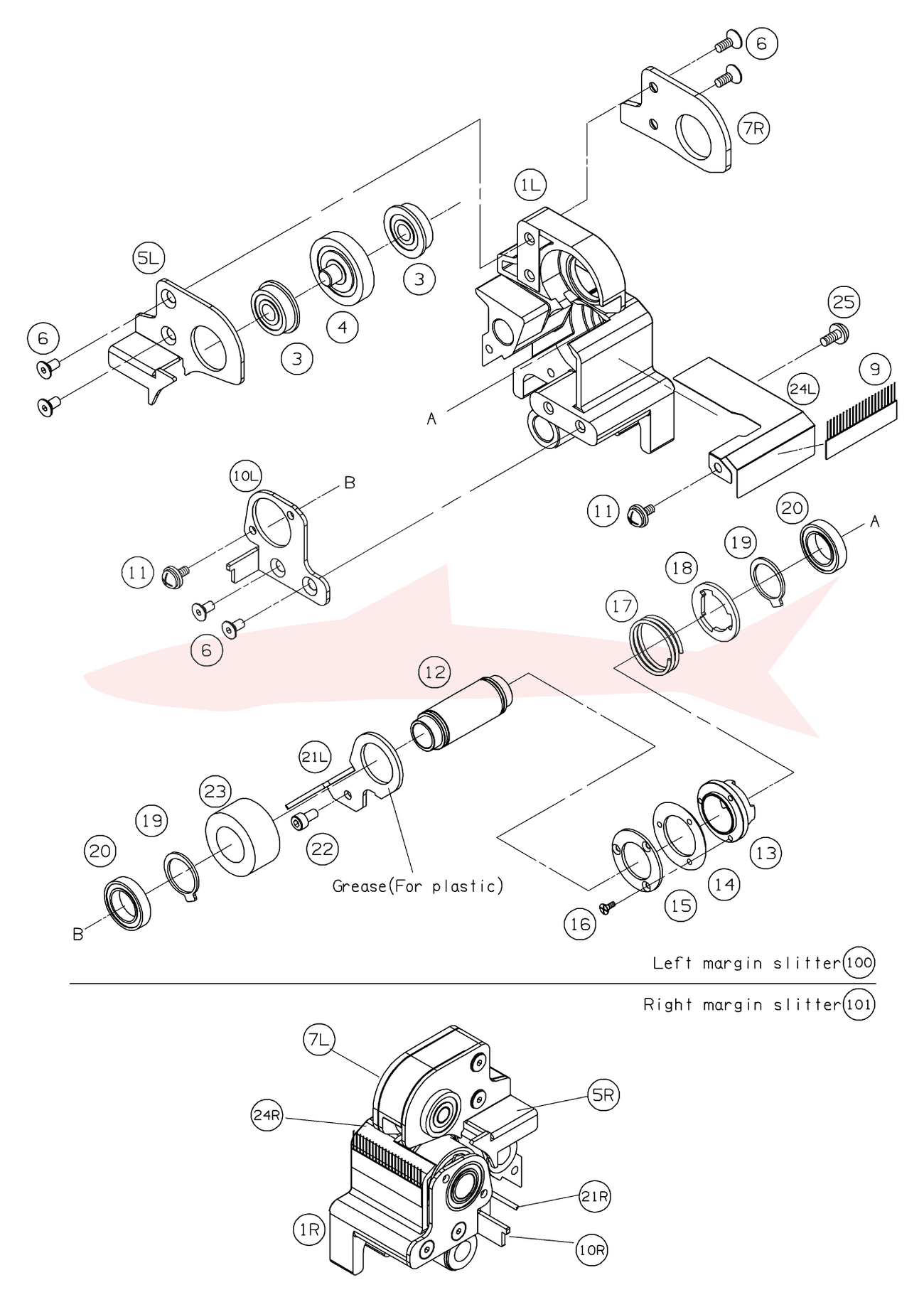

1 Margin slitter

Morgana AeroCut · Слиттер полей

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1L	Slitter block(L)	13-401
1R	Slitter block(R)	13-400
3	Ball bearing FL608ZZ	80-418
4	Slitter blade(Upper)	61-050
5L	Margin upper lid(L)	7701-0255
5R	Margin upper lid(R)	7701-0256
6	Hexagon socket countersunk head screw M4x8	08-493
7L	Slitter upper lid(L)	7701-0253
7R	Slitter upper lid(R)	7701-0254
9	Anti-static brush L47	72-871
10L	Slitter lower lid(L)	7701-0257
10R	Slitter lower lid(R)	7701-0258
11	Sems screw M4x8+SW+W	05-996
12	Slitter lower shaft	7701-0270
13	Slitter lower collar	51-591
14	Slitter blade(Lower)	61-051
15	Slitter lower blade fixed plate	51-593
16	Countersunk head screw M2.5x6	03-577
17	Slitter lower blade spring	60-199
18	Slitter lower blade stopper	7701-0261
19	Retaining Rings-C #18	65-508
20	Ball bearing 6802ZZ	80-430
21L	Slitter waste outlet(L)	7701-0265
21R	Slitter waste outlet(R)	7701-0266
22	Hexagon socket head cap screw M4x8	08-229
23	Urethane collar	55-081
24L	Slitter cover L	7701-0211
24R	Slitter cover R	7701-0212
25	Truss head screw M4x8 Cr	02-839
100	Margin slitter L
101	Margin slitter R

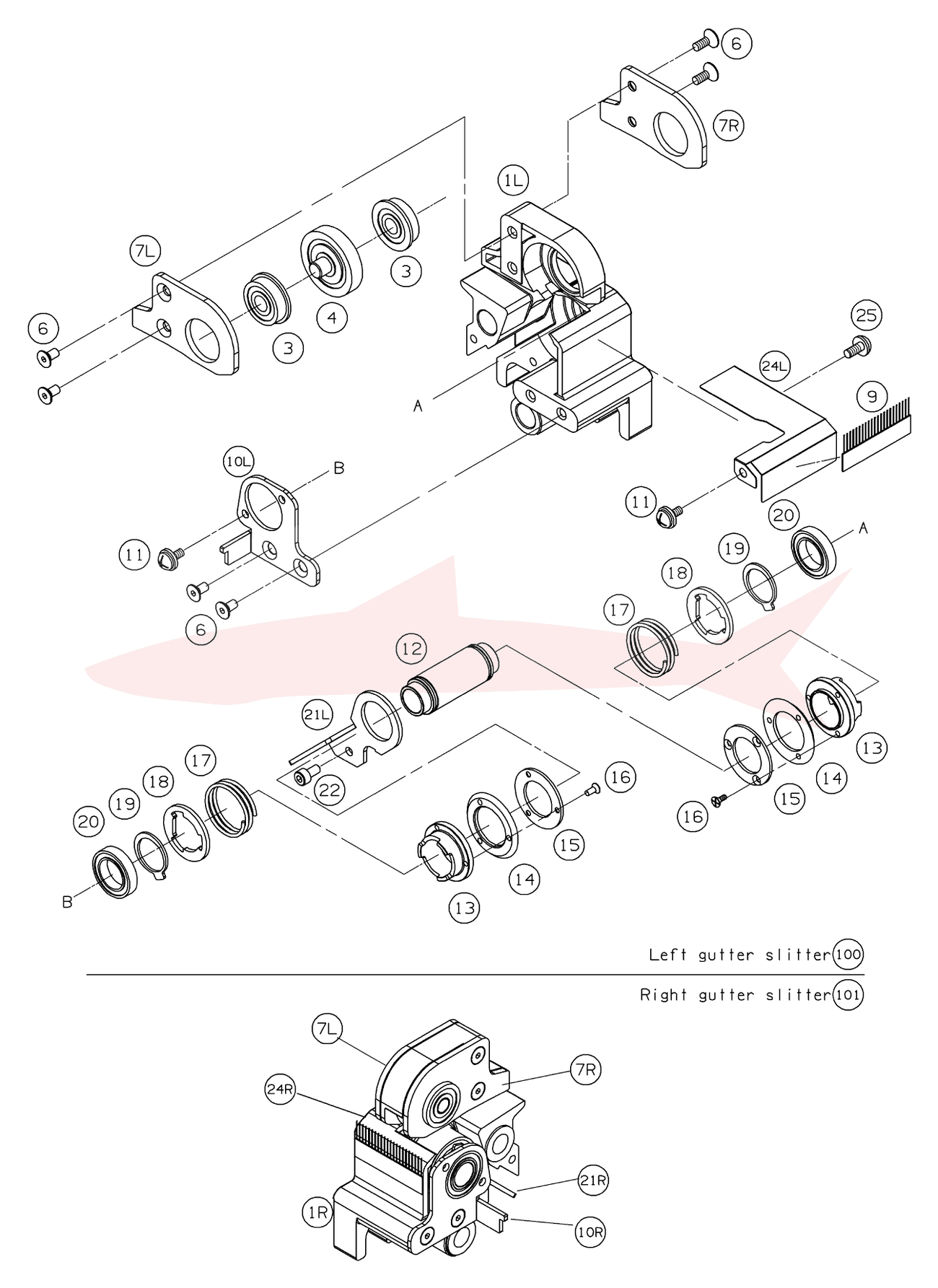

2 Gutter slitter

Morgana AeroCut · Слиттер средника

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1L	Slitter block(L)	13-401
1R	Slitter block(R)	13-400
3	Ball bearing FL608ZZ	80-418
4	Slitter blade(Upper)	61-050
6	Hexagon socket countersunk head screw M4x8	08-493
7L	Slitter upper lid(L)	7701-0253
7R	Slitter upper lid(R)	7701-0254
9	Anti-static brush	72-871
10L	Slitter lower lid(L)	7701-0257
10R	Slitter lower lid(R)	7701-0258
11	Sems screw M4x8+SW+W	05-996
12	Slitter lower shaft	7701-0270
13	Slitter lower collar	51-591
14	Slitter blade(Lower)	61-051
15	Slitter lower blade fixed plate	551-593
16	Countersunk head screw M2.5x6	03-577
17	Slitter lower blade spring	60-199
18	Slitter lower blade stopper	7701-0261
19	Retaining Rings-C #18	65-508
20	Ball bearing 6802ZZ	80-430
21L	Slitter waste outlet(L)	7701-0265
21R	Slitter waste outlet(R)	7701-0266
22	Hexagon socket head cap screw M4x8	08-229
24L	Slitter cover L	7701-0211
24R	Slitter cover	7701-0212
25	Truss head screw M4x8 Cr	02-839
100	Gutter slitter L
101	Gutter slitter R

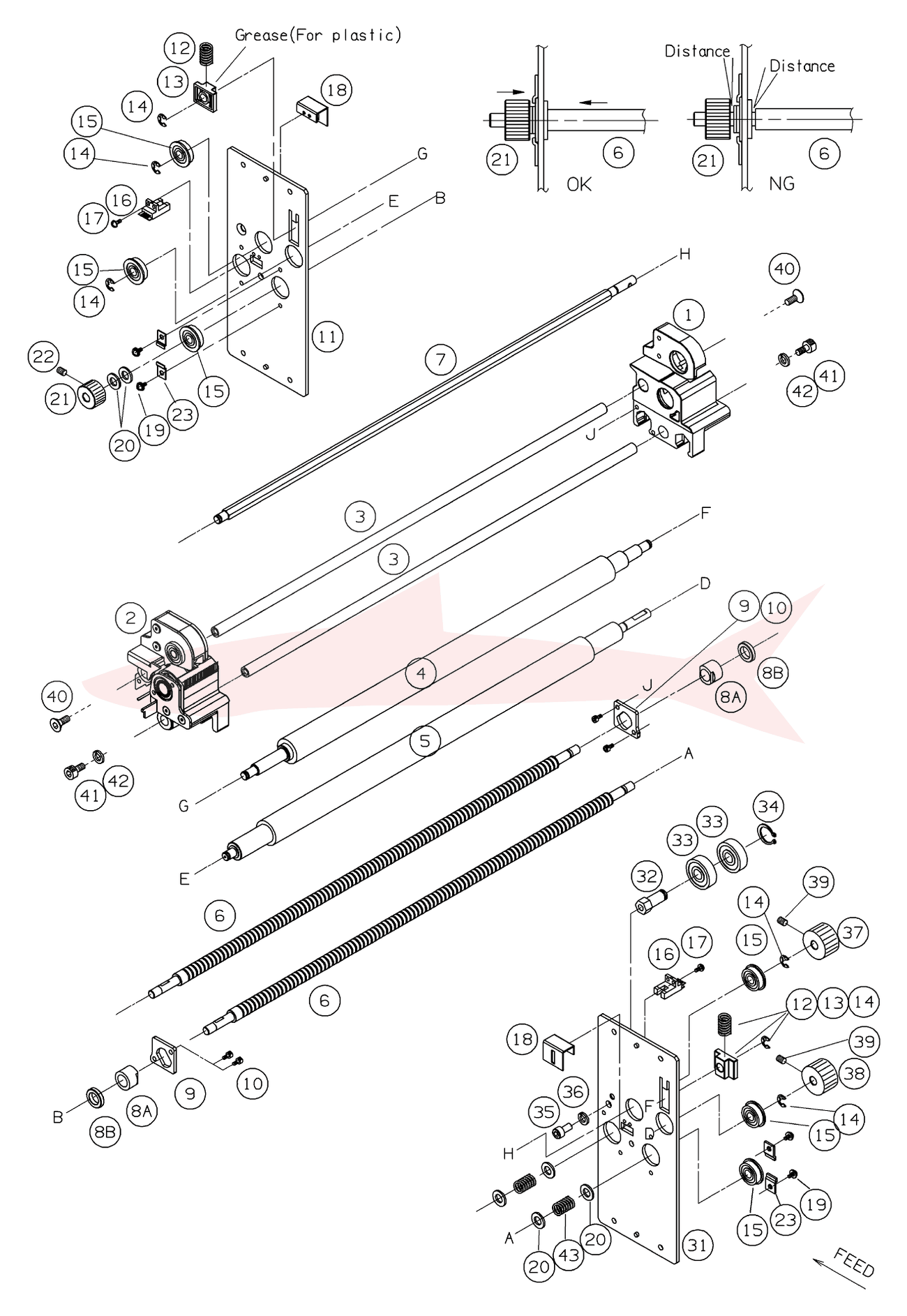

3 Slitter unit

Morgana AeroCut · Слиттерный узел

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Margin slitter(R)/ Gutter slitter(R)
2	Margin slitter(L)/ Gutter slitter(L)
3	Slitter moving shaft	7701-0223
4	Carrying roller (Soft)	7701-0602
5	Carrying roller (Hard)	7701-0601
6	Slitter moving screw	7701-0229
7	Slitter rotation shaft	7701-0238
8A	Slitter moving nut	7701-0269
8B	Slitter moving collar	7701-0268
9	Slitter nut fixed plate	7701-0264
10	Sems screw M4x10+SW	05-903
11	Slitter unit side plate (L)	7701-0271
12	Carrying roller spring	60-198
13	Carrying roller slider	51-592
14	Retaining ring-E #7	65-412
15	Ball bearing FL608ZZ	80-418
16	Slitter origin censor	72-292
17	Sems screw M3x10+SW	05-885
18	Slitter censor cover	7701-0279
19	Sems screw M4x8+SW+W	05-996
20	Plain washer M8	09-427
21	Slitter moving pulley	80-732 (7701-0615)
22	Hexagon socket set screw M4x6	08-357
23	Bearing stopper	7701-0722
31	Slitter unit side plate (R)	7701-0272
32	Idler shaft A	7701-0629
33	Ball bearing 6200ZZ	80-421
34	Retaining Rings-C #10	65-500
35	Hexagon socket head cap screw M6x12	08-255
36	Spring lock washer M6	09-387
37	Slitter rotation pulley	80-731 (7701-0614)
38	Carrying roller pulley	80-728 (7701-0611)
39	Hexagon socket set screw M4x8	08-361
40	Hexagon socket countersunk head screw M5x12	08-507
41	Hexagon socket head cap screw M5x10	08-242
42	Spring lock washer M5	09-386
43	Spring φ1.3	60-196

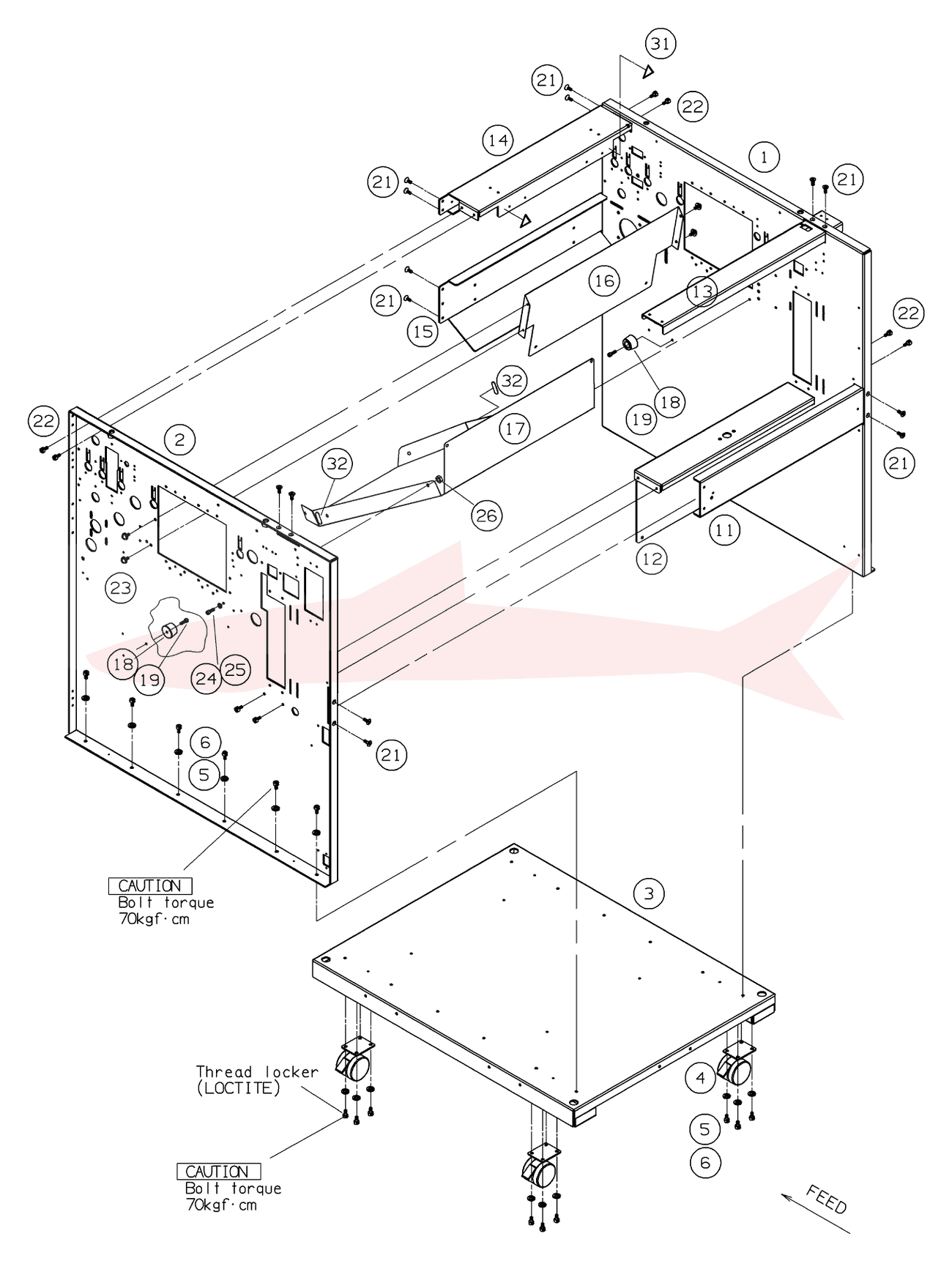

4 Frame

Morgana AeroCut · Рама

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Frame (R)	7701-0704
2	Frame (L)	7701-0703
3	Frame (Base)	7701-7701
4	Caster	60-480
5	Spring lock washer M6	09-387
6	Hexagon socket head cap screw M6x12	08-255
11	Frame bridge	7701-0742
12	Elevation motor base	7701-0137
13	Frame bridge	7701-0728
14	Frame bridge	7701-0720
15	Frame bridge	7701-0727
16	Waste slope (Front)	7701-0719
17	Waste slope (Rear)	7701-0717
18	Rubber feet	57-119
19	Hexagon socket head cap screw M5x16	08-245
21	Hexagon socket countersunk head screw M5x12	08-507
22	Hexagon socket head cap screw M5x10	08-242
23	Sems screw M4x8+SW+W	05-996
24	Hexagon socket head cap screw M5x16	08-245
25	Spring lock washer M5	09-386
26	Nylon nut M5	09-278
31	Label	74-296
32	Slider	82-338

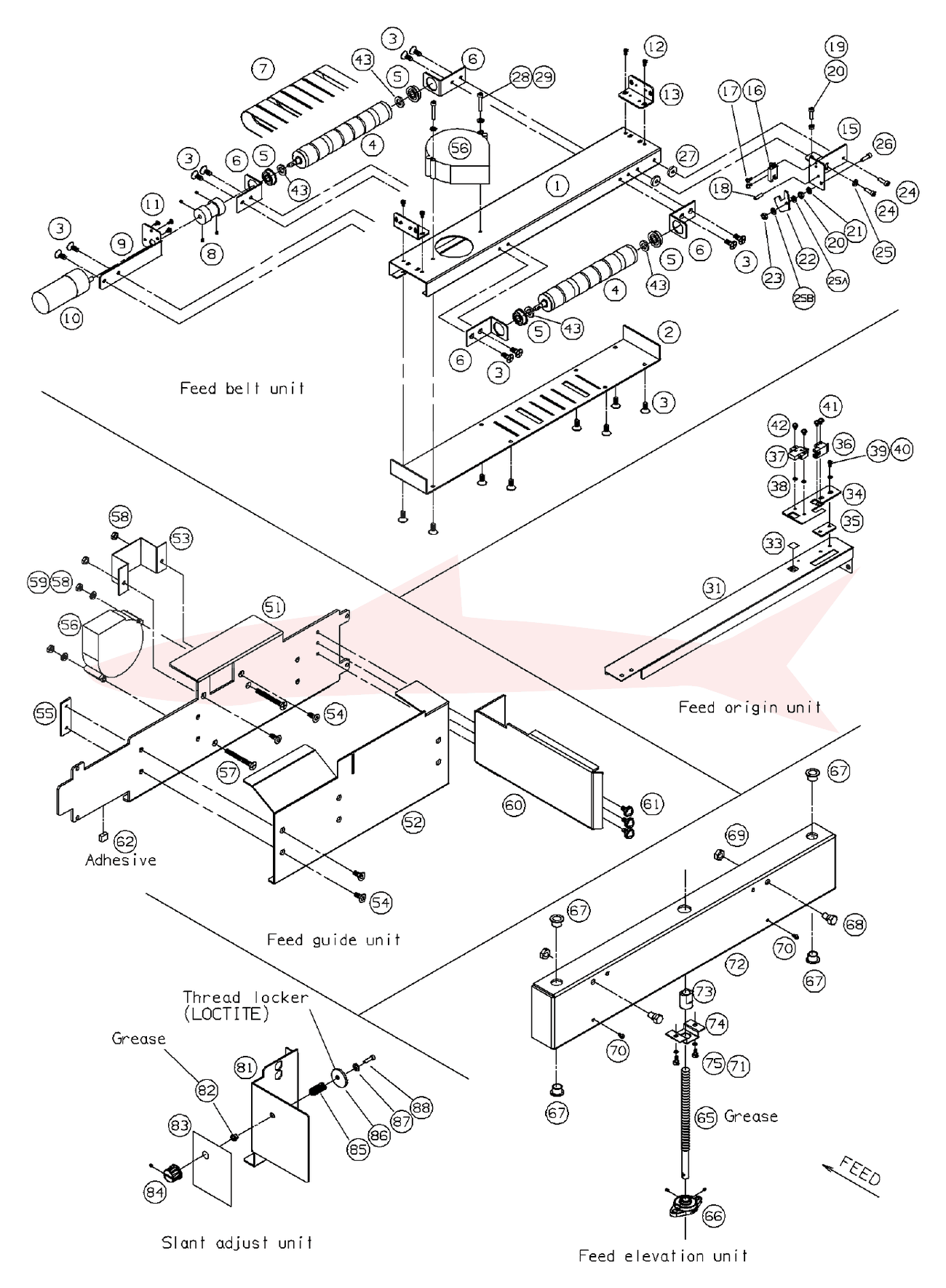

5 Paper feed 1

Morgana AeroCut · Подача бумаги 1

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Upper duct	7701-0111
2	Vacuum nozzle	7701-0147
3	Countersunk head screw (Head size 6mm) M4x8	01-188
4	Feed belt roller	7701-0121
5	Ball bearing FL608ZZ	80-418
6	Feed roller stay	7701-0176
7	Feed belt	82-571
8	Coupling	80-172
9	Feed belt motor stay	7701-0183
10	Feed belt motor	72-870
11	Sems screw M3x8+SW+W	05-978
12	Sems screw M4x8+SW+W	05-996
13	Upper duct stay	7701-0112
15	Feed sensor base	7701-0163
16	Feed sensor	72-291
17	Sems screw M3x8+SW	05-884
18	Spring pin	65-063
19	Hexagon socket head cap screw M4x20	08-234
20	Hexagon nut M4	09-054
21	Plain washer M4(t1.5)	09-466
22	Feed sensor plate	7701-0161
23	Nylon nut M4	09-264
24	Hexagon socket head cap screw M4x12	08-231
25	Plain washer M4	09-424
25A	Bush	72-351
25B	Nylon washer M4	09-735
26	Hexagon socket head cap screw M4x16	08-233
27	Plain washer M5(t3)	7499-0140
31	Origin sensor table	7701-0625
33	White datum plate	7701-0643
34	Origin sensor stay	7701-0626
35	Origin sensor spacer	7701-0628
36	Origin sensor	72-289
37	Cut mark sensor	72-290
38	Plain washer M3	09-423
39	Hexagon socket head cap screw M4x8	08-229
40	Plain washer M4	09-424
41	Sems screw M3x5+SW	05-882
42	Sems screw M3x10+SW	05-885
43	Plain washer M8 (t0.6)	09-719
51	Lower duct base	7701-0131
52	Separator	7701-0106
53	Lower duct	7701-0109
54	Hexagon socket countersunk head screw M4x8	08-493
55	Nut plate P40	7701-0108
56	Fan motor	72-872
57	Countersunk head screw M4x45	02-026
58	Hexagon nut M4	09-054
59	Spring lock washer M4	09-385
60	Feed guide	7701-0173
61	Sems screw M5x10+SW+W	06-018
62	Slider	83-048
65	Elevation screw	7701-0135
66	Flanged bearing unit Set screw	80-066 (Included in unit)
67	Bush	80-041
68	Connecting bolt	48-039
69	Hexagon nut M8+W	09-341
70	Truss head screw M4x8	02-839
71	Spring lock washer M4	09-385
72	Feed elevation base	7701-0171
73	Slitter moving nut	7701-0263
74	Elevation nut fixed plate	7701-0172
75	Hexagon socket head cap screw M4x8	08-229
81	Feed adjust panel	7701-0726
82	Bush	80-080
83	Label (Slant)	74-316
84	Dial	73-717
85	Spring	60-261
86	Slant adjust cam	7701-0190
87	Spring lock washer M6	09-387
88	Hexagon socket head cap screw M6x30	08-260

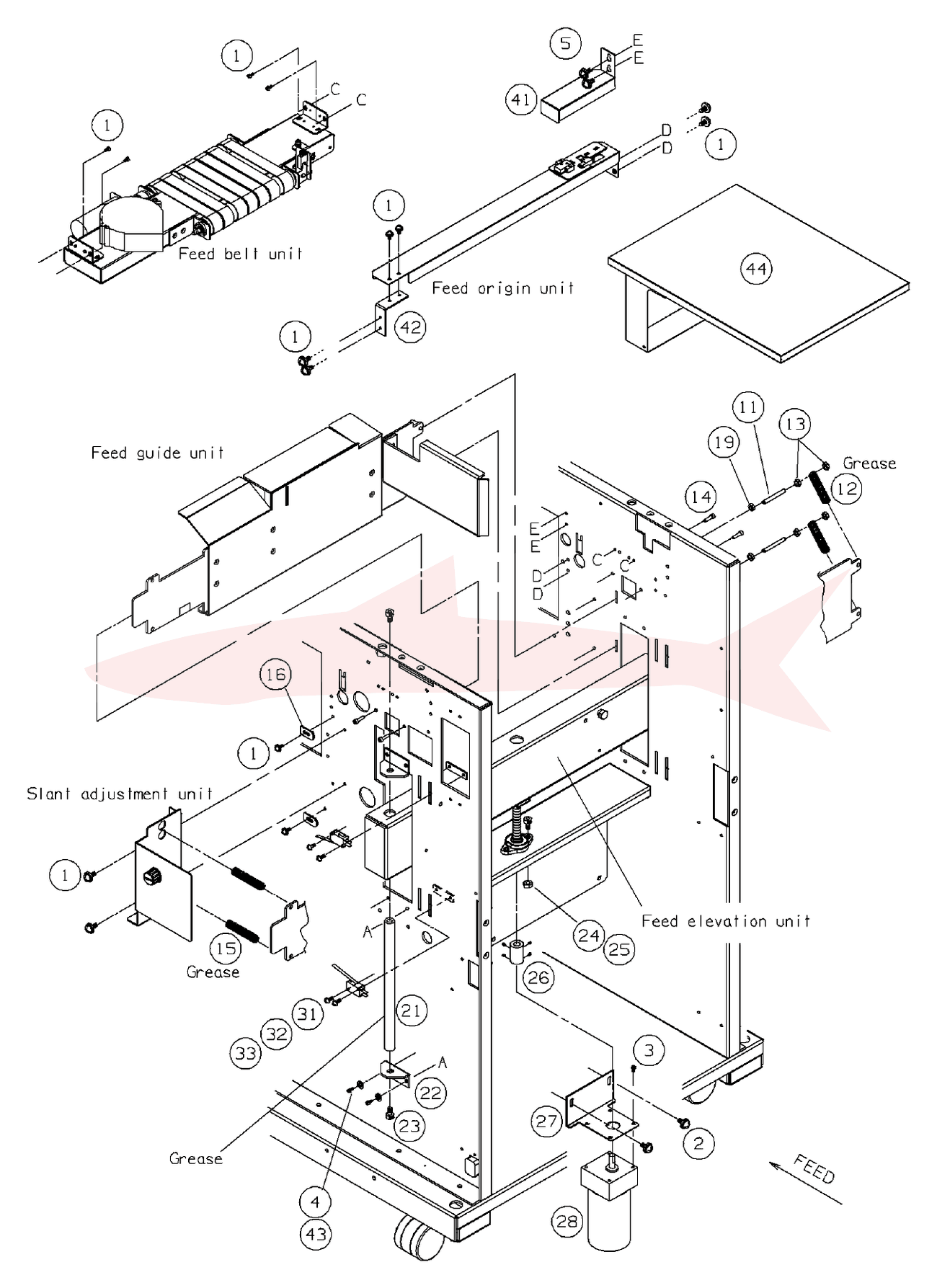

6 Paper feed 2

Morgana AeroCut · Подача бумаги 2

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Sems screw M4x8+SW+W	05-996
2	Sems screw M5x10+SW+W	06-018
3	Hexagon socket head cap screw M4x8	08-229
4	Hexagon socket head cap screw M5x10	08-242
5	Pan head screw M4x8	00-358
11	Hexagon socket set screw M5x50	08-382
12	Spring 1x8xL40	60-121
13	Nylon nut M5	09-278
14	Hexagon socket head cap screw M5x16	08-245
15	Spring 0.6x6.3x36	60-197
16	Cutter adjust stay	7701-0192
21	Elevation shaft	7701-0134
22	Elevation shaft stay	7701-0104
23	Hexagon socket head cap screw M8x16	08-272
24	Hexagon socket head cap screw M6x18	08-257
25	Hexagon nut with washer M6	09-340
26	Coupling	80-173
27	Elevation motor stay	7701-0136
28	Elevation motor	72-788
31	Nut plate P24.5	7701-0105
32	Micro switch	72-293
33	Sems screw M3x18+SW+W	05-984
41	Origin sensor cover	7701-0642
42	Origin sensor table stay	7701-0627
43	Spring lock washer M5	09-386
44	Feed table	7701-7101

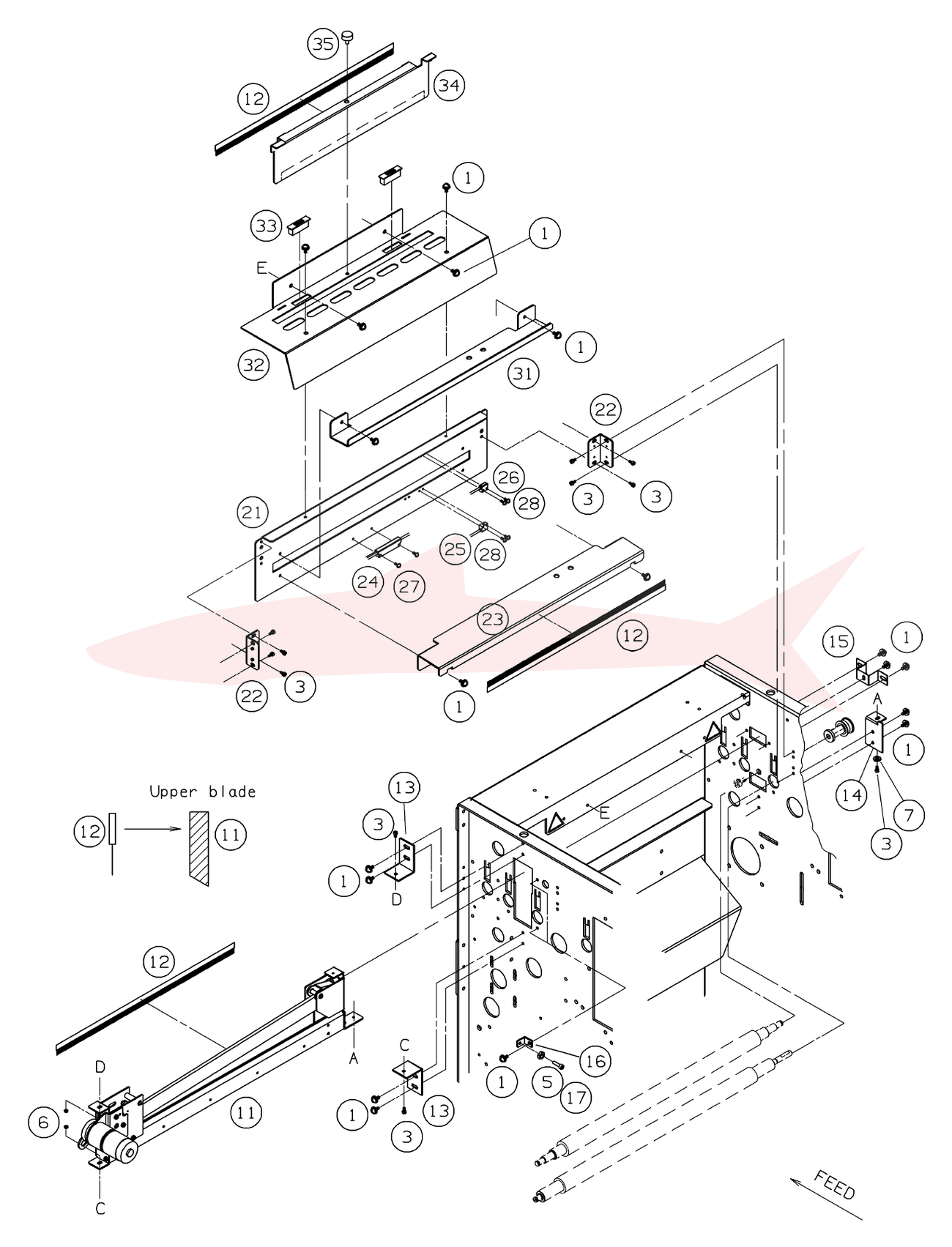

7 Cutter

Morgana AeroCut · Поперечный нож

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Sems screw M4x8+SW+W	05-996
3	Hexagon socket head cap screw M4x8	08-229
5	Hexagon nut M4	09-054
6	Hexagon nut with washer M4	09-338
7	Plain washer M4	09-424
11	Cutter unit	61-055
12	Anti-static brush	72-871
13	Cutter stay	7701-0282
14	Cutter stay	7701-0285
15	Cutter stay	7701-0283
16	Cutter adjust stay	7701-0284
17	Hexagon socket head cap screw M4x20	08-234
21	Stop sensor stay	7701-0623
22	Upper duct stay	7701-0112
23	Carrying guide (Lower)	7701-0631
24	Stop sensor (Amp)
25	Stop sensor (Passive)	72-490
26	Stop sensor (Active)
27	Sems screw M3x10+W	06-073
28	Sems screw M3x8+SW	05-884
31	Carrying guide (Upper)	7701-0632
32	Cutter cover	7701-0291
33	Magnetic catch	60-748
34	Anti-static stay	7701-0292
35	Knurled head screw M5x10 No.3	09-879

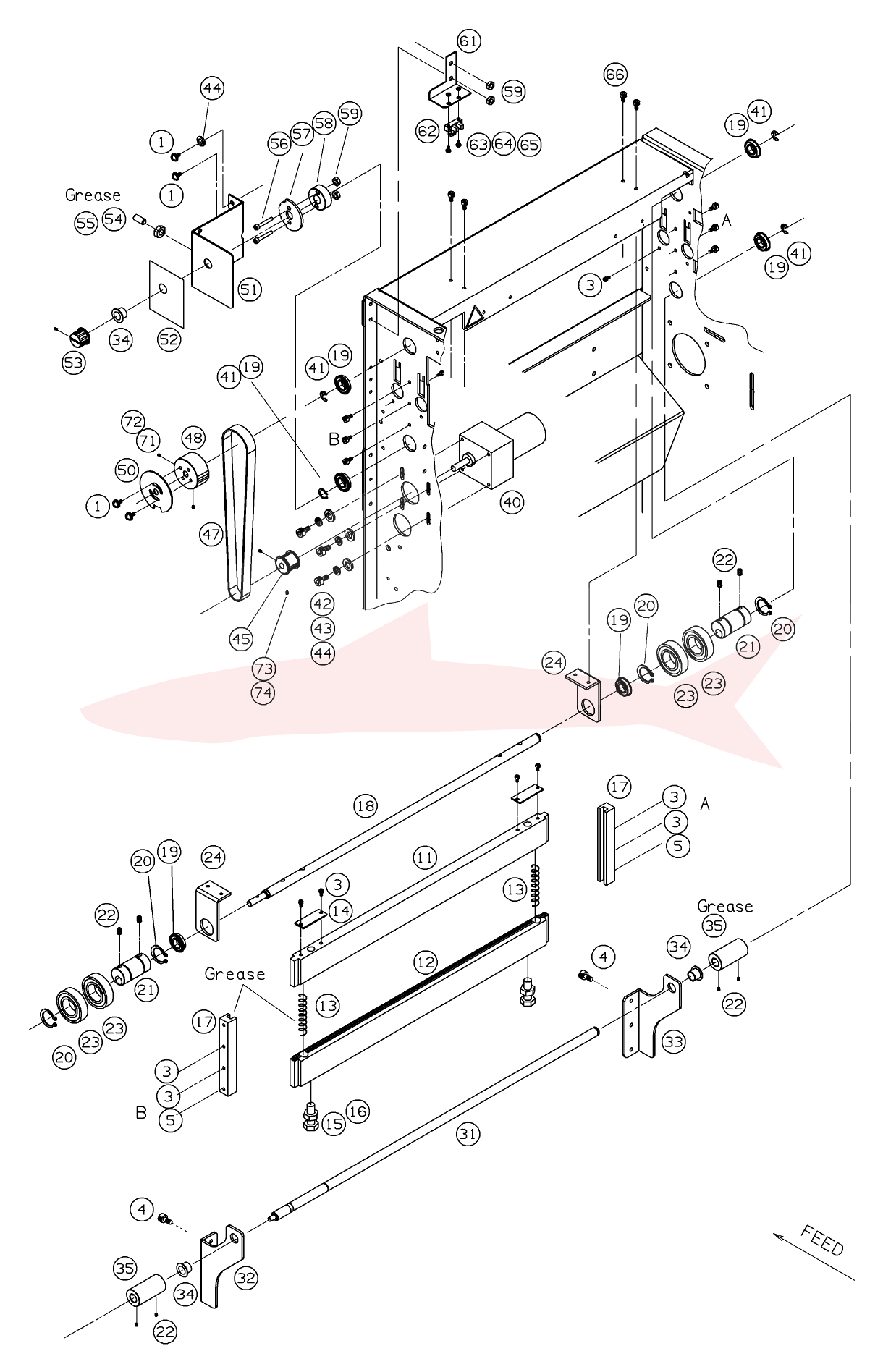

8 Creaser

Morgana AeroCut · Биговальный узел

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Sems screw M4x8+SW+W	05-996
3	Hexagon socket head cap screw M4x8	08-229
4	Hexagon socket head cap screw M5x10	08-242
5	Hexagon socket head cap screw M4x16	08-233
11	Crease blade (Upper)	7701-0302
12	Crease blade (Lower)	7701-0303
13	Spring 1.4x12xL60	83-310
14	Crease spacer	7701-0305
15	Stopper bolt M10P1x30	83-314
16	Hexagon nut M10P1	09-048
17	Crease blade guide	7701-0341
18	Crease rotation shaft	7701-0343
19	Ball bearing 6901ZZNR	80-424
20	Retaining Rings-C #25	65-514
21	Crease eccentric roller	7701-0347
22	Hexagon socket set screw M6x10	08-386
23	Ball bearing 6005ZZ	80-420
24	Crease upper shaft stay	7701-0364
31	Crease adjust shaft	7701-0344
32	Crease lower shaft stay (L)	7701-0362
33	Crease lower shaft stay (R)	7701-0363
34	Bush	80-079
35	Crease adjust roller	7701-0349
40	Crease motor	72-789
41	Retaining ring-C #12	65-502
42	Hexagon socket head cap screw M4x12	08-231
43	Spring lock washer M4	09-385
44	Plain washer M4	09-424
45	Crease drive pulley	80-735 (7701-0618)
47	Timing belt S5M590	82-575
48	Crease driven pulley	80-734 (7701-0617)
50	Crease position plate	7701-0379
51	Crease adjust panel	7701-0350
52	Label (Crease)	74-318
53	Dial	73-718
54	Ball plunger	80-083
55	Hexagon nut M8	09-057
56	Hexagon socket head cap screw M5x25	08-247
57	Crease adjust plate	7701-0359
58	Set collar	80-141
59	Hexagon nut M5	09-055
61	Crease sensor stay	7701-0380
62	Crease sensor	72-288
63	Pan head screw M3x15	00-319
64	Spring lock washer M3	09-384
65	Hexagon nut with washer M3	09-337
66	Hexagon socket head cap screw (Special low head) M4x12	08-206
71	Hexagon socket set screw M4x18	08-363
72	Hexagon socket set screw M4x16	08-365
73	Hexagon socket set screw M4x6	08-357
74	Hexagon socket set screw M4x4	08-358

9 Perforator

Morgana AeroCut · Перфоратор

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Perforator case	7701-7413
2	Perforator eject guide	7701-0443
3	Truss head screw M4x5 Cr	02-837
4	Perforator scale plate	7701-0411
5	Scale	83-313
6	Truss head screw M4x5 Cr	02-837
7	Truss head screw M4x8 BK	03-114
11	Perforator upper shaft	7701-0435
12	Perforator lower shaft	7701-0434
13	Perforator connecting shaft	7701-0436
14	Perforator frame (L)	7701-1413
15	Perforator frame (M)	7701-1415
16	Perforator frame (R)	7701-1414
22	Hexagon socket set screw with pad M4x6	80-175
23	Perforator support roller	7701-0440
26	Perforator blade holder	7701-0407
27	Perforator blade	61-052
28	Pan head screw M3x6	00-313
29	Perforator remover	7701-0445
31	Perforator blade	61-056
32	Spring	60-198
33	Bush	80-077
34	Retaining ring-E #7	65-412
35	Perforator connecting gear Set screw M4x4	80-215 (Included in gear)
37	Perforator gear	80-199
38	Hexagon socket set screw M4x6	08-357
41	Plain washer M8	09-427
42	Anti-static brush	72-871
43	Anti-static brush cover	7701-0771
45	Perfo adjust lever L	7701-0426
46	Perfo adjust lever R	7701-0424
47	Perfo adjust pin	7701-0423
48	Hexagon socket head cap screw M4x8	08-229
49	Clamp lever	80-176

10 Driving system

Morgana AeroCut · Привод и транспорт

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Carrying roller (Hard)	7701-0601
2	Carrying roller (Soft)	7701-0602
3	Eject roller	7701-0605
4	Perforator gear	80-199
5	Hexagon socket set screw M4x6	08-357
6	Eject roller shaft φ12	7701-0382
7	Eject roller washer D25xD12xt20	55-080
11	Carrying roller pulley	80-730 (7701-0613)
12	Hexagon socket set screw M4x8	08-361
13	Ball bearing FL608ZZ	80-418
14	Retaining ring-E #7	65-412
15	Carrying roller slider	51-592
16	Spring φ1.1	60-198
17	Spring φ1.3	60-196
18	Spring φ1.3	60-196
20	Carrying roller pulley	80-727 (7701-0610)
21	Hexagon socket set screw M4x8	08-361
22	Drive motor	72-733
23	Drive pulley	80-729 (7701-0612)
24	Hexagon socket set screw M4x16	08-365
25	Hexagon socket head cap screw M6x25	08-259
26	Spring lock washer M6	09-387
27	Spring lock hexagon nut M6	09-340
31	Ball bearing 6300ZZNR	80-422
32	Idler shaft B	7701-0621
33	Retaining Rings-C #10	65-500
34	Hexagon socket head cap screw M6x12	08-255
35	Spring lock washer M6	09-387
36	Plain washer M6(t1.6)	09-449
37	Plain washer M6(t4)	48-806
38	Hexagon socket head cap screw M6x18	08-257
41	Idler roller	80-736 (7701-0619)
42	Ball bearing FL608ZZ	80-418
43	Idler shaft C	7701-0630
45	Idler shaft D	7701-0622
51	Hexagon socket head cap screw M5x16	08-245
52	Sems screw M5x10+SW+W	06-018
53	Nylon nut M5	09-278
61	Timing belt S3M1374	82-574
62	Timing belt S3M609	82-573

11 Electric panel

Morgana AeroCut · Электрическая плата

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	I/Oboard	72-938
2	Spacer A KGLS-4S	72-281
3	Spacer B KGPS-4S	72-282
4	CPU board	72-937
5	Electric panel A	7701-0800
6	Pulse motor driver Included in motor (72-733)
7	Sems screw M3x10+W	06-073
8	Bush TB-2533	72-248
9	Electric panel B	7701-0801
10	Noise filter	72-517
11	Sems screw M4x8+SW+W	05-996
12	DC Power supply	72-514
13	Sems screw M3x8+SW+W	05-978
14	Spacer BB-310E	72-342
15	Label(PE)	74-293
17	Fixture code A LWS-5S-2W	72-285
18	Fixture code B LWS-1S	72-284
19	Spring lock washer M3	09-384
20	Plain washer M3	09-423

12 Electric parts

Morgana AeroCut · Электрооборудование

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Electric panel
2	Sems screw M4x8+SW+W	05-996
3	Inlet	72-486
4	Countersunk head screw M3x12	01-967
5	Hexagon nut with washer M3	09-337
6	Power switch	72-502
8	Cover sensor	72-399
9	Sems screw M3x18+SW+W	05-984
11	Touch panel	72-491
12	Operation panel	7701-0751
13	Operation panel stay	7701-0752
14	Hexagon socket head cap screw M4x8	08-229
15	Sems screw M5x10+SW+W	06-018
21	Slitter motor stay	7701-0277
22	Slitter motor	72-790
23	Sems screw M3x8+SW	05-884
24	Nut plate	7701-0278
25	Hexagon socket head cap screw M5x10	08-242
26	Slitter pulley	80-733 (7701-0616)
27	Hexagon socket set screw M4x6	08-357
28	Timing belt S3M 192	82-572
29	Bush TB-2533	72-248
30	Bush TB-1520	72-283

13 Exterior 1

Morgana AeroCut · Облицовка 1

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Stacker panel	7701-0770
2	Stacker cover	7701-0418
3	Knurled head screw M4x8 No.2	09-809
4	Anti-static brush	72-871
5	Anti-static brush cover	7701-0771
6	Truss head screw M4x8 Cr	02-839
7	Stacker	7701-0763
8	Hexagon socket head cap screw (Special low head) M6x16 Ni	08-552
9	Knurled head screw M5x10 No.3	09-879
10	Pan head screw M5x8	00-389
11	Stacker stay	7701-7766
12	Connecting bolt	7701-0769
13	Plain washer M8	09-427
14	Hexagon nut M8	09-057
15	Stopper	57-071
16	Hexagon socket head cap screw M5x10	08-242
17	Spring lock washer M5	09-386
21	Top cover	54-908
22	Cover hinge spacer	7701-0775
23	Cover hinge	7701-0730
24	Hexagon socket set screw M4x4	08-358
25	Cover sensor lever	7701-0772
26	Spring lock washer M4	09-385
27	Hexagon nut M4	09-054
28	Hexagon socket set screw M4x50	08-364
29	Hexagon socket set screw M4x20	08-366
30	Stacker sensor stay	7701-0774
31	Stacker sensor	(72-852)
32	Sems screw M3x8+SW	05-884
33	Sems screw M4x8+SW+W	05-996
34	Scale	83-050

14 Exterior 2

Morgana AeroCut · Облицовка 2

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Truss head screw M4x8 Cr	02-839
2	Truss head screw M4x8 BK	03-114
3	Countersunk head screw M4x8	02-013
4	Cover spacer	7701-0710
5	Sems screw M4x8+SW+W	05-996
6	Countersunk head screw (Head size 6mm) M4x8	01-188
11	Cover (Upper L)	7701-0748
12	Cover (Lower L)	7701-0755
13	Cover (Upper R)	7701-0754
14	Cover (Lower R)	7701-0756
15	Cover (Lower Feeder)	7701-0761
16	Cover (Upper Feeder)	7701-0758
17	Cover (Upper Ejector)	7701-0757
18	Edge rubber	56-098
19	Cover stay (Upper)	7701-0762
20	Cover stay (L)	7701-0764
21	Cover stay (R)	7701-0765
22	Inner cover	7701-0776
23	Tool tray	7701-0779
24	Pan head screw M4x8	00-358
25	Stopper	57-071
26	Nylon nut M5	09-278

15 Exterior 3 (labels)

Morgana AeroCut · Наклейки и таблички

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Label: Scale	83-050
2	Label: Cut (Middle)	74-309
3	Label: UCHIDA AEROCUT	74-303
4	Label: Slitter No	74-314
5	Label: Hand	74-296
6	Label (Crease)	74-318
7	Label (Slant)	74-316
8	Label: MAX	74-313
9	Rating plate	74-066
10	Label (PE)	74-293
11	Label: High voltage	74-295
12	Label: Cut (Small)	74-310
13	Label: Gear (Small)	74-312
14	Label: Cut (Large)	74-308
15	Label: Gear (Large)	74-311

16 Accessories

Morgana AeroCut · Принадлежности

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Paper guide (S)	7701-0129
2	Paper guide (L)	7701-0128
3	Magnet (S) 50x100xt1.5	60-921
4	Magnet (L) 50x350xt1	60-920
5	Waste ejector	7701-0780
6	Tweezers	80-996
7	Hexagonal wrench 2mm	80-947
8	AC cable	72-802
11	Operation manual	77-926
12	Waste box	54-493
13	Accessories box	96-937
14	Setting manual	77-928
15	Pan head screw M6x10	00-421
16	Feed table	7701-7101
17	BC stacker	7701-0836
18	BC stacker	7701-0837
19	Magnet 25x60xt1	60-810
21	Plastic bag 300x500	96-172
22	Plastic bag 150x250	96-091
23	Plastic bag 250x350	96-143
24	Plastic bag 65x80	96-013

17 Packing

Morgana AeroCut · Упаковка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Pallet	96-936
2	Rubber	82-425
3	Packing stay	7701-0783
4	Hexagon socket head cap screw (Special low head) M8x40	08-131
5	Hexagon nut with washer M8	09-341
6	Hexagon socket head cap screw M6x16+SW+W	06-604
7	Knurled head screw M4x8 No.2	09-809
9	Plastic bag 2000x2000	96-437
10	Care mark	77-929
11	Care mark	77-927
12	Cushion	73-971
