Morgana Square Back System — каталог запчастей

Система квадрачения корешка буклетов Documaster (Square Back System, Auto SpineMaster). Illustrated Parts Manual 70-073, issue 1 (ноябрь 2005).

Fig 1Automatic Square Back System — система в сборе
Fig 2Main Frame Stacker — основная рама с приёмником
Fig 3Main Frame & Fan — основная рама и вентилятор
Fig 4Main Frame Electrics — электрика основной рамы
Fig 5Divert & Upfeed — отклонитель и подъём
Fig 6Secondary Drive — вторичный привод
Fig 7Primary Drive — первичный привод

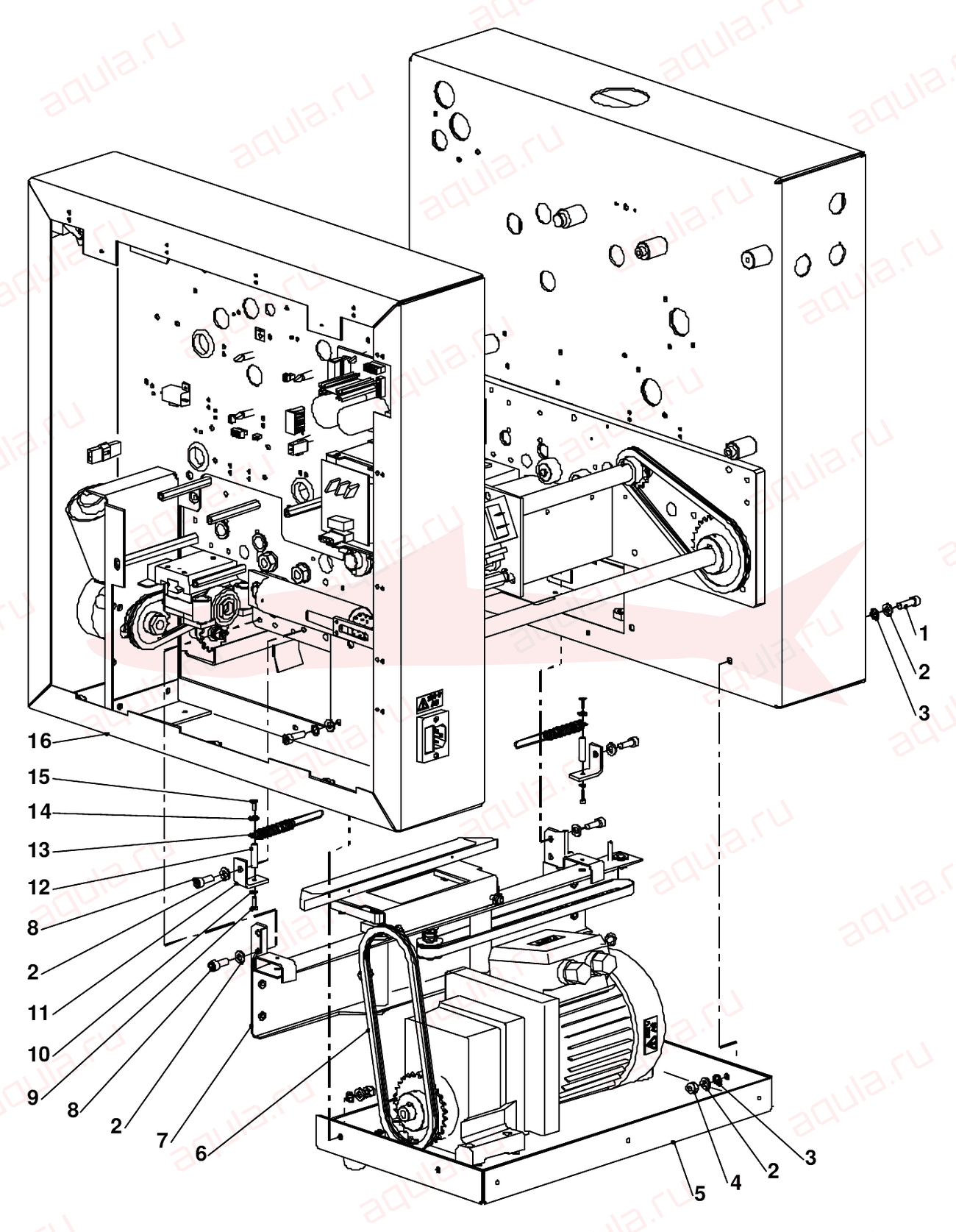

Fig 8Main Drive & Stop — главный привод и упор

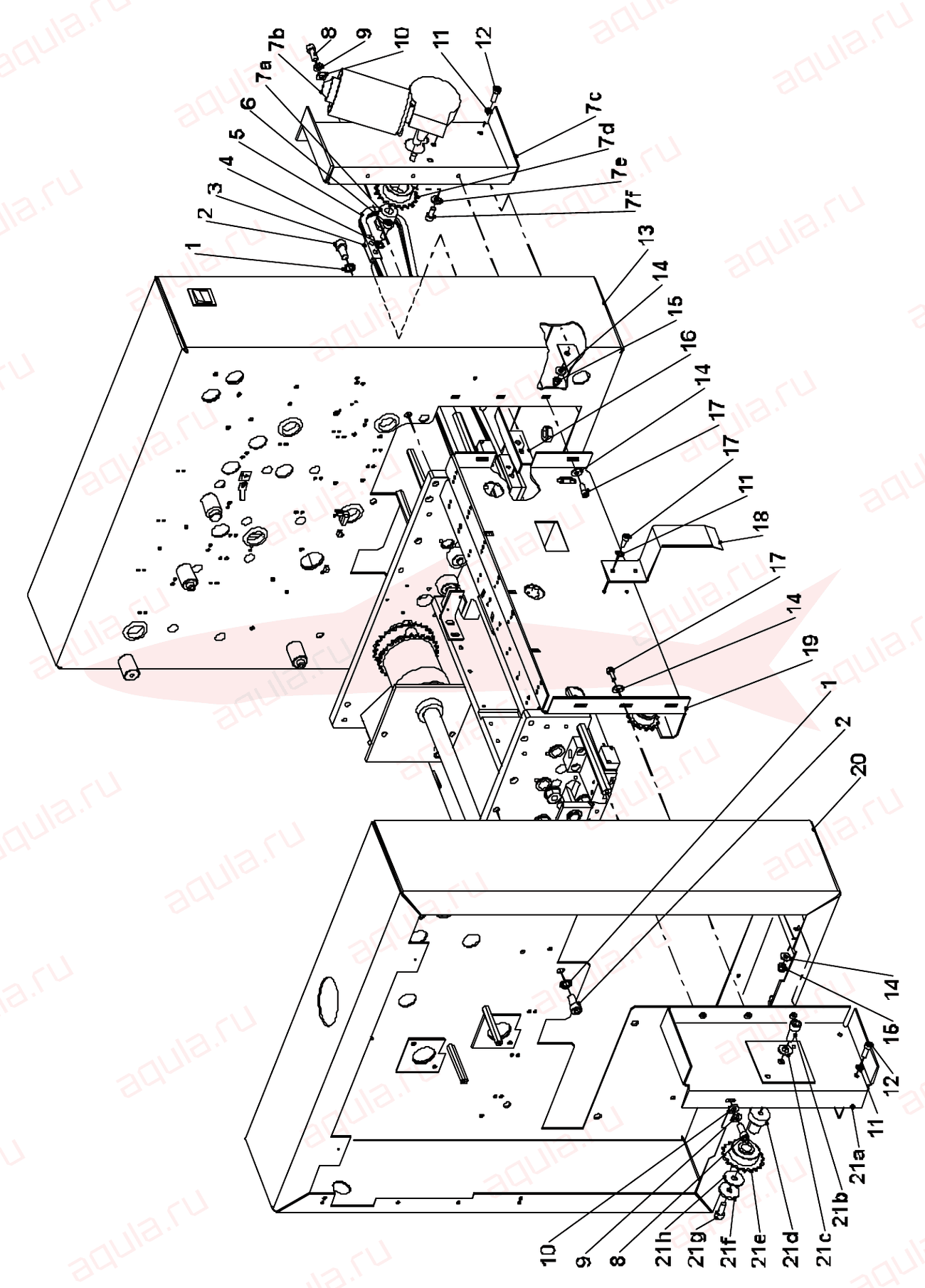

Fig 9Crush & Side Plates — узел обжима и боковины

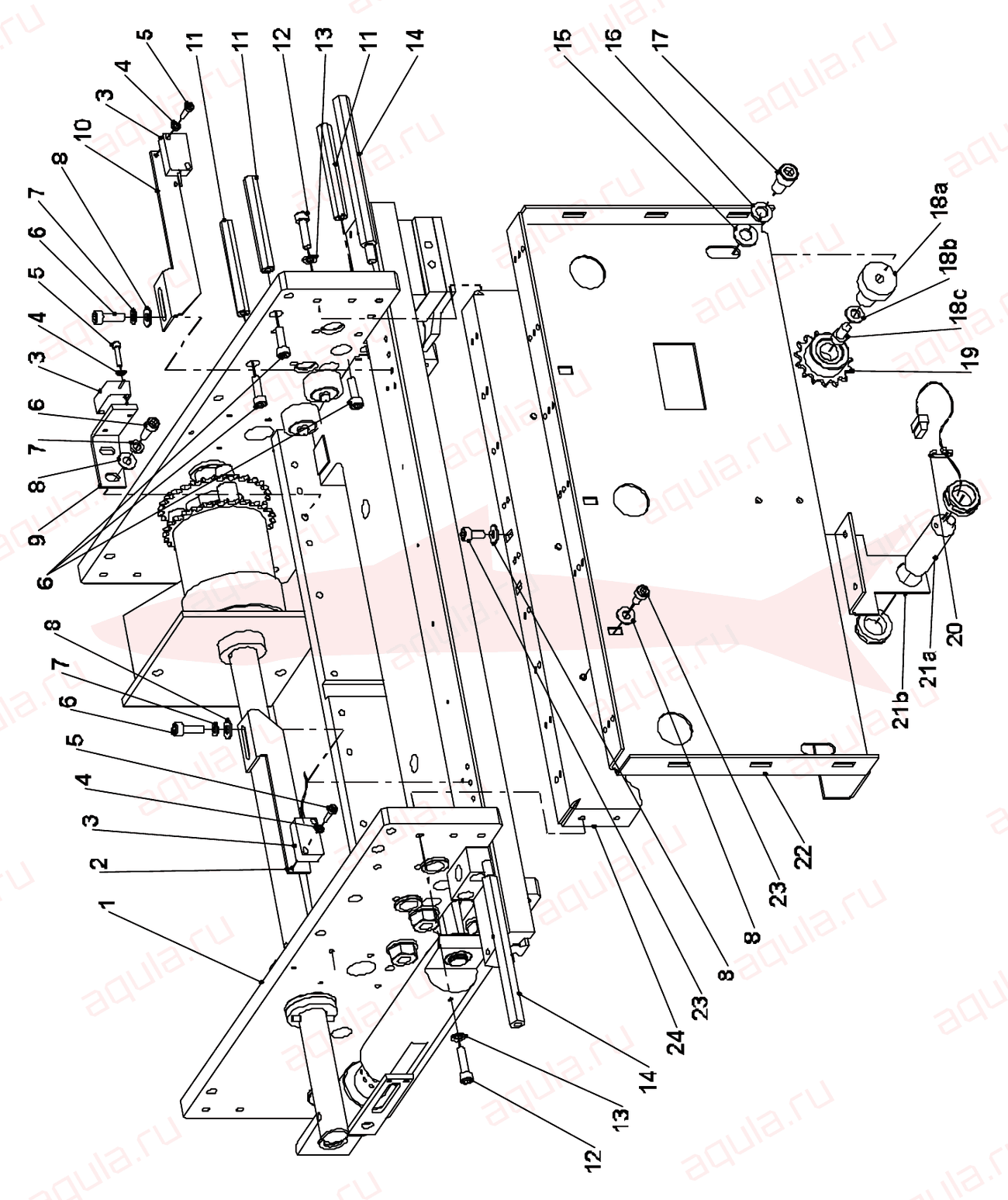

Fig 10Crush Assembly — узел обжима корешка

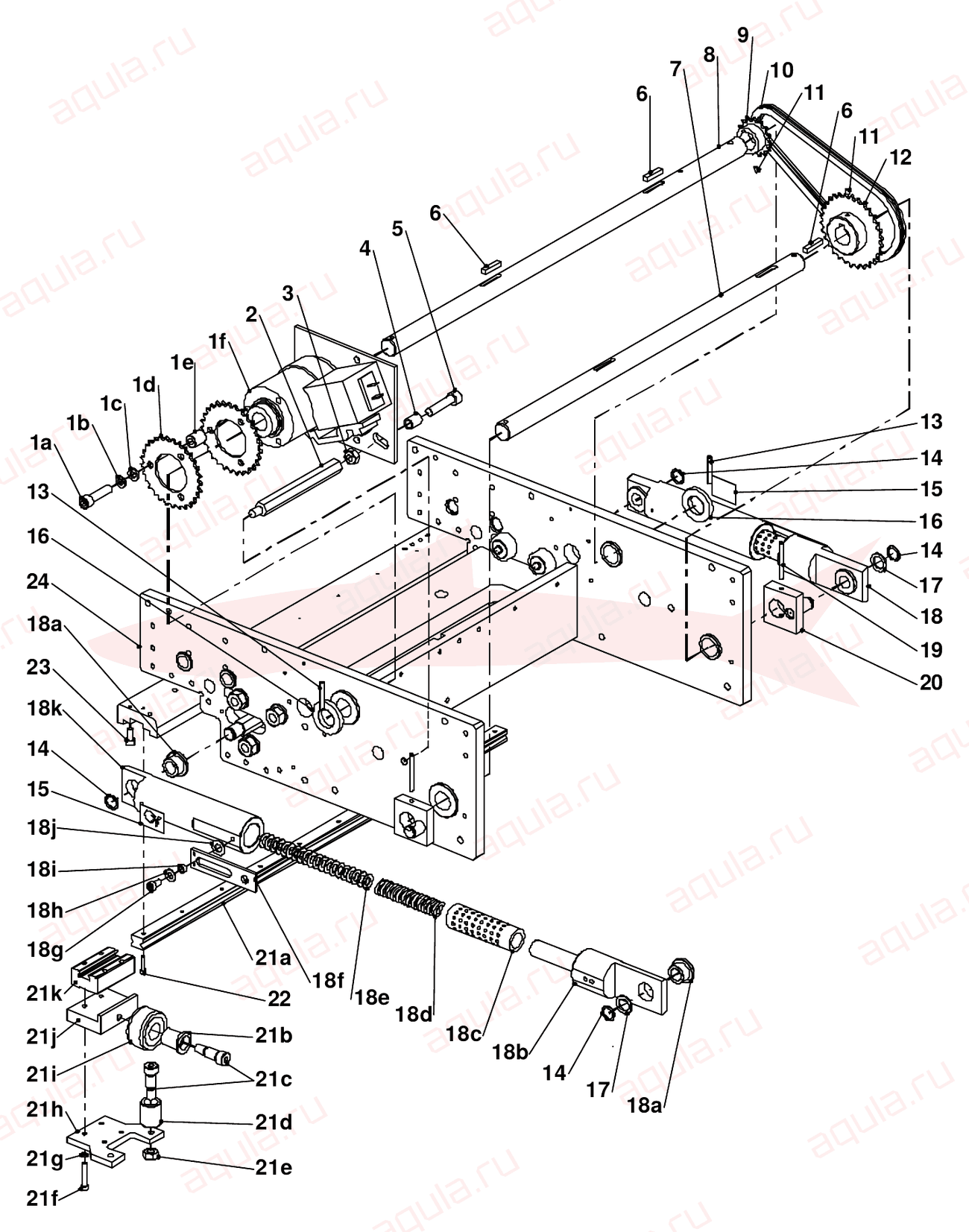

Fig 11Bolster Drive Assembly — привод опоры

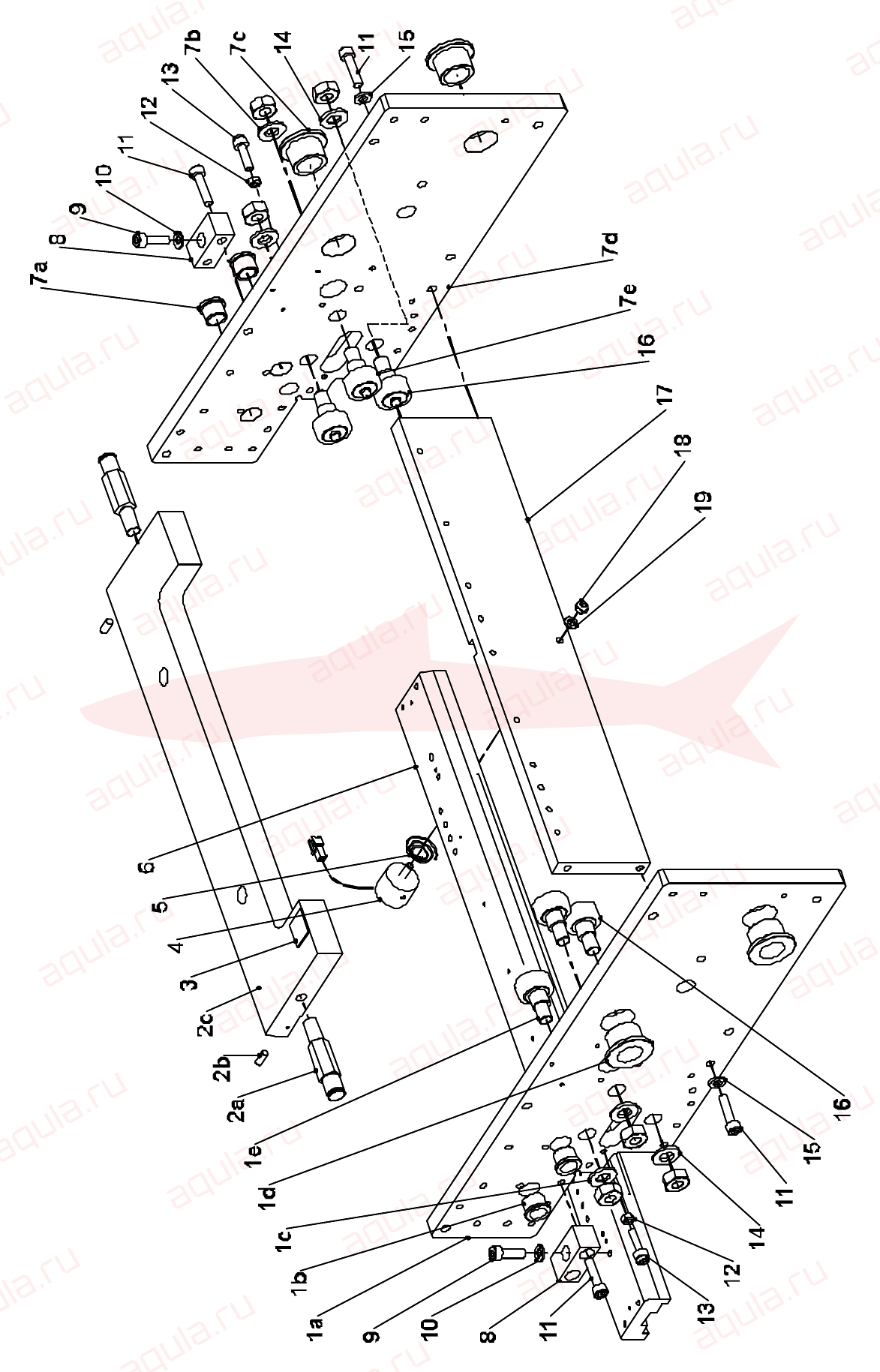

Fig 12Bolster Side Plates — боковины опоры

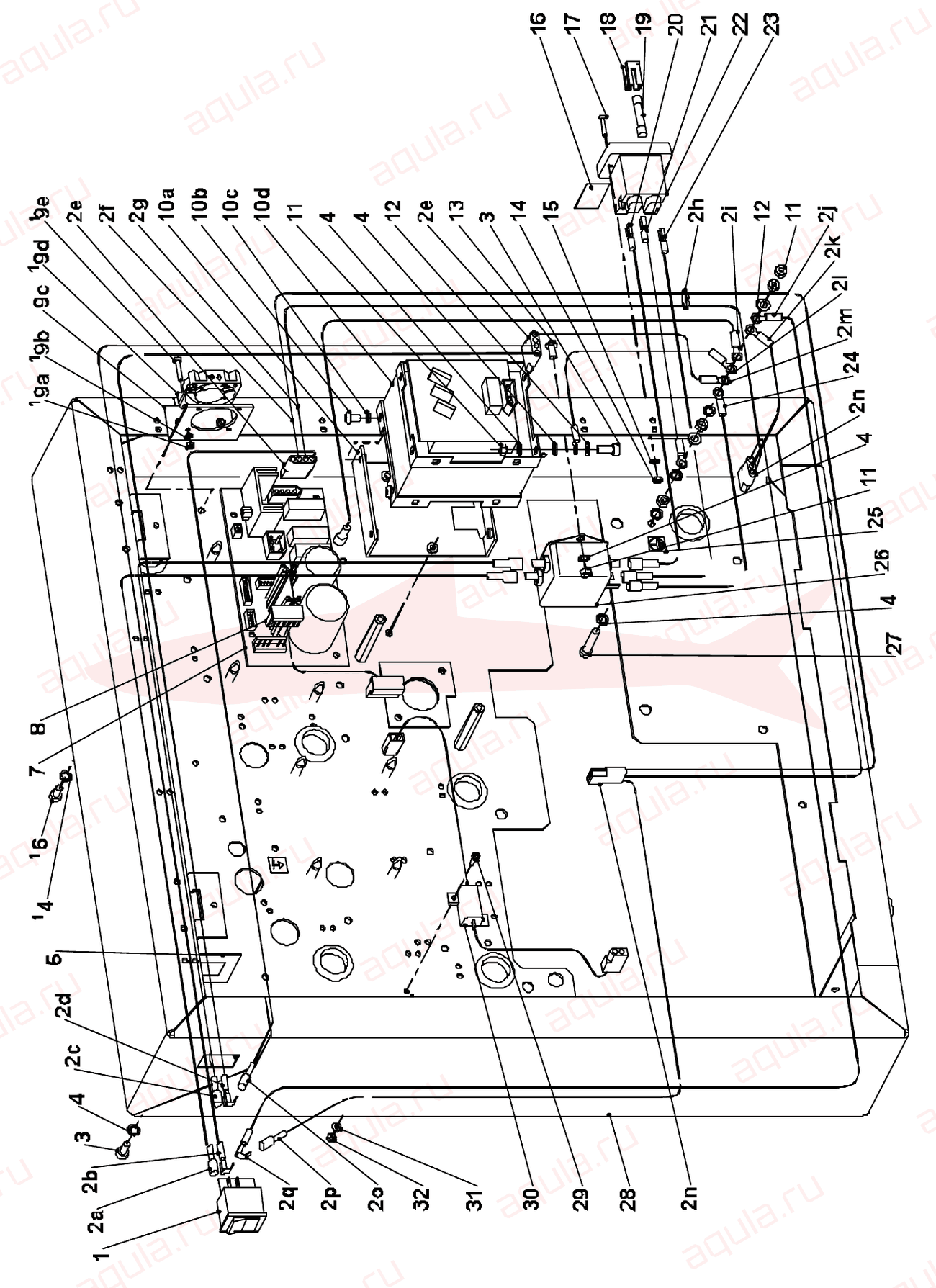

Fig 13Side Plate R/H Electrics — электрика правой боковины

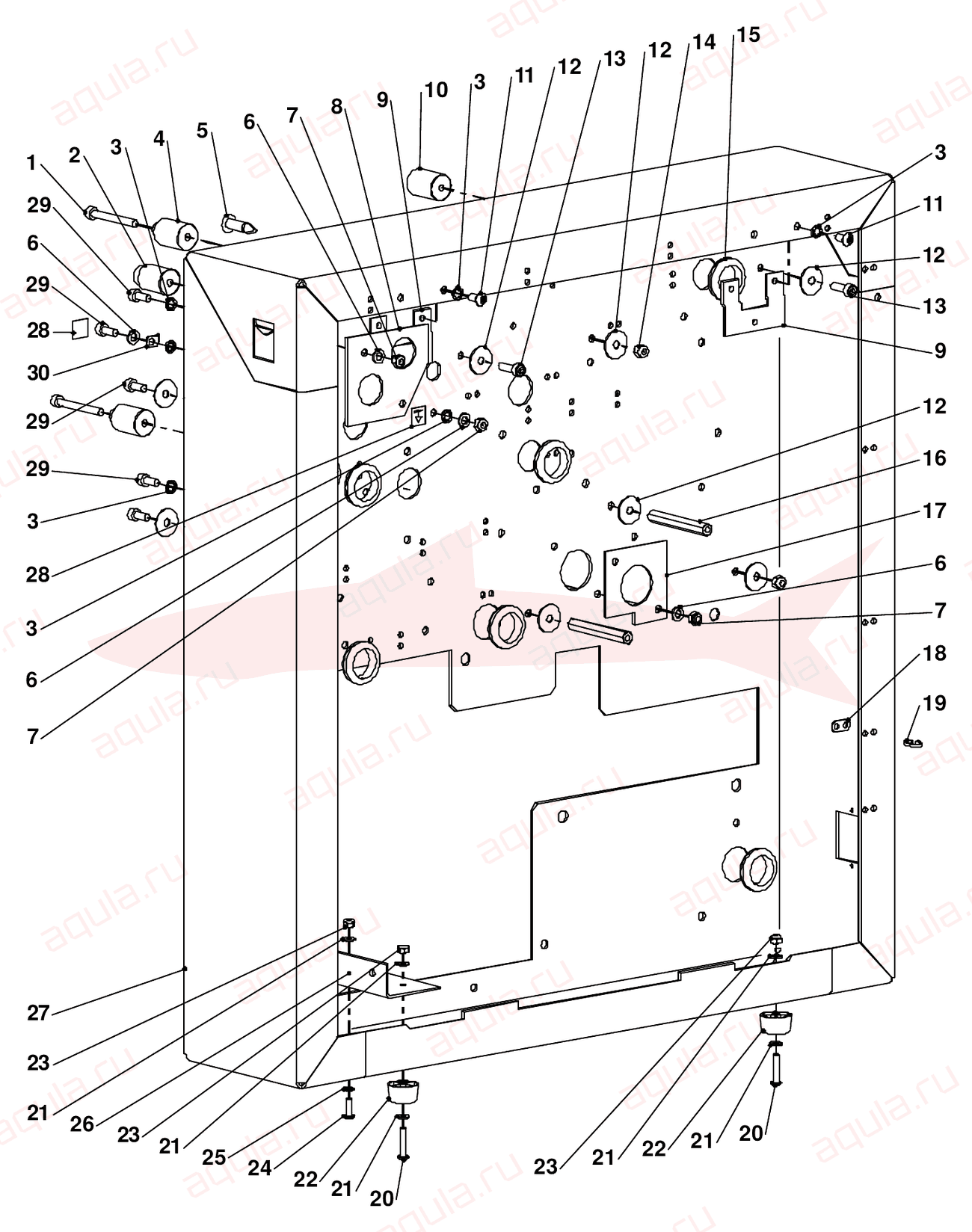

Fig 14Side Plate R/H — правая боковина

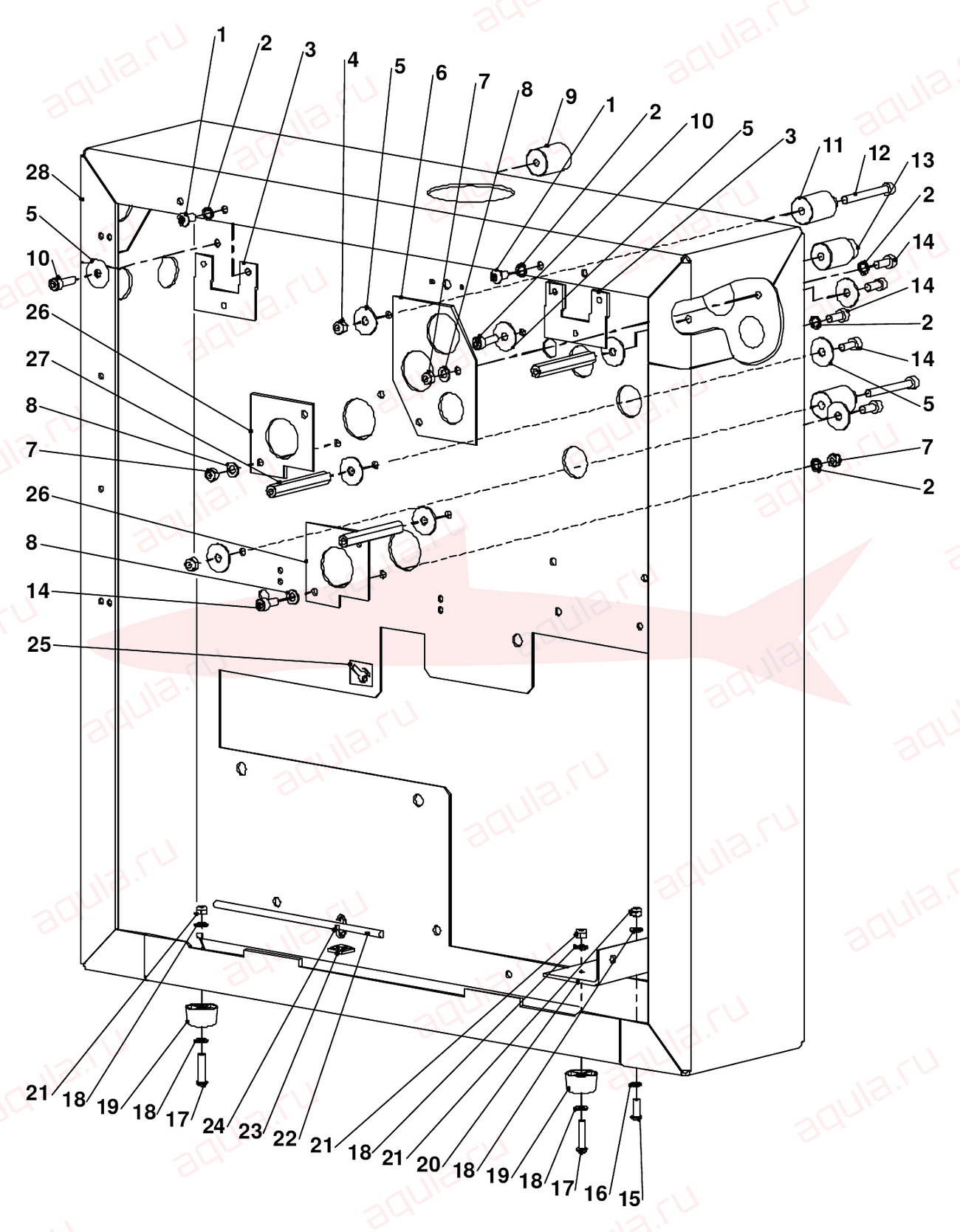

Fig 15Side Plate L/H — левая боковина

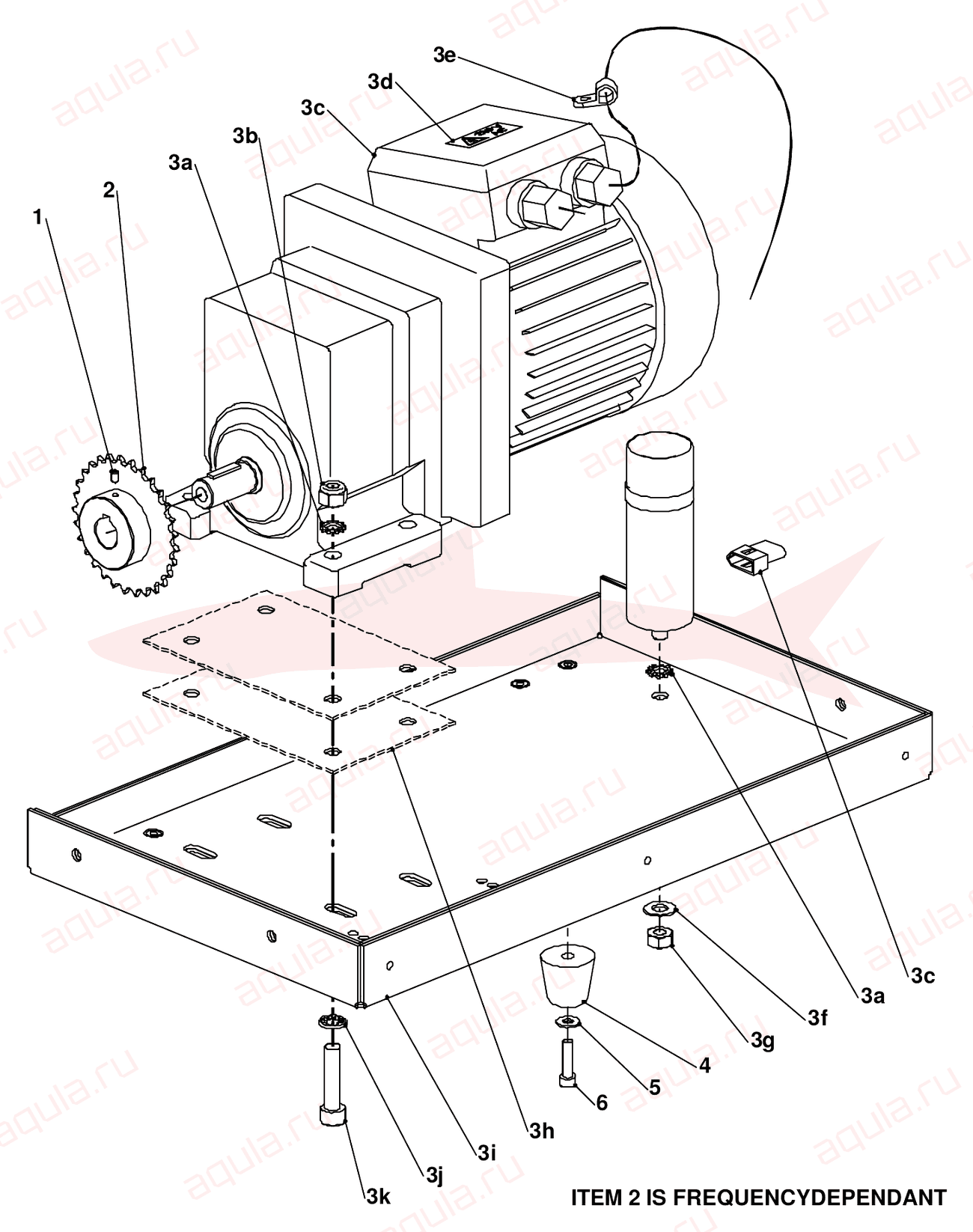

Fig 16Main Drive Assembly — главный привод

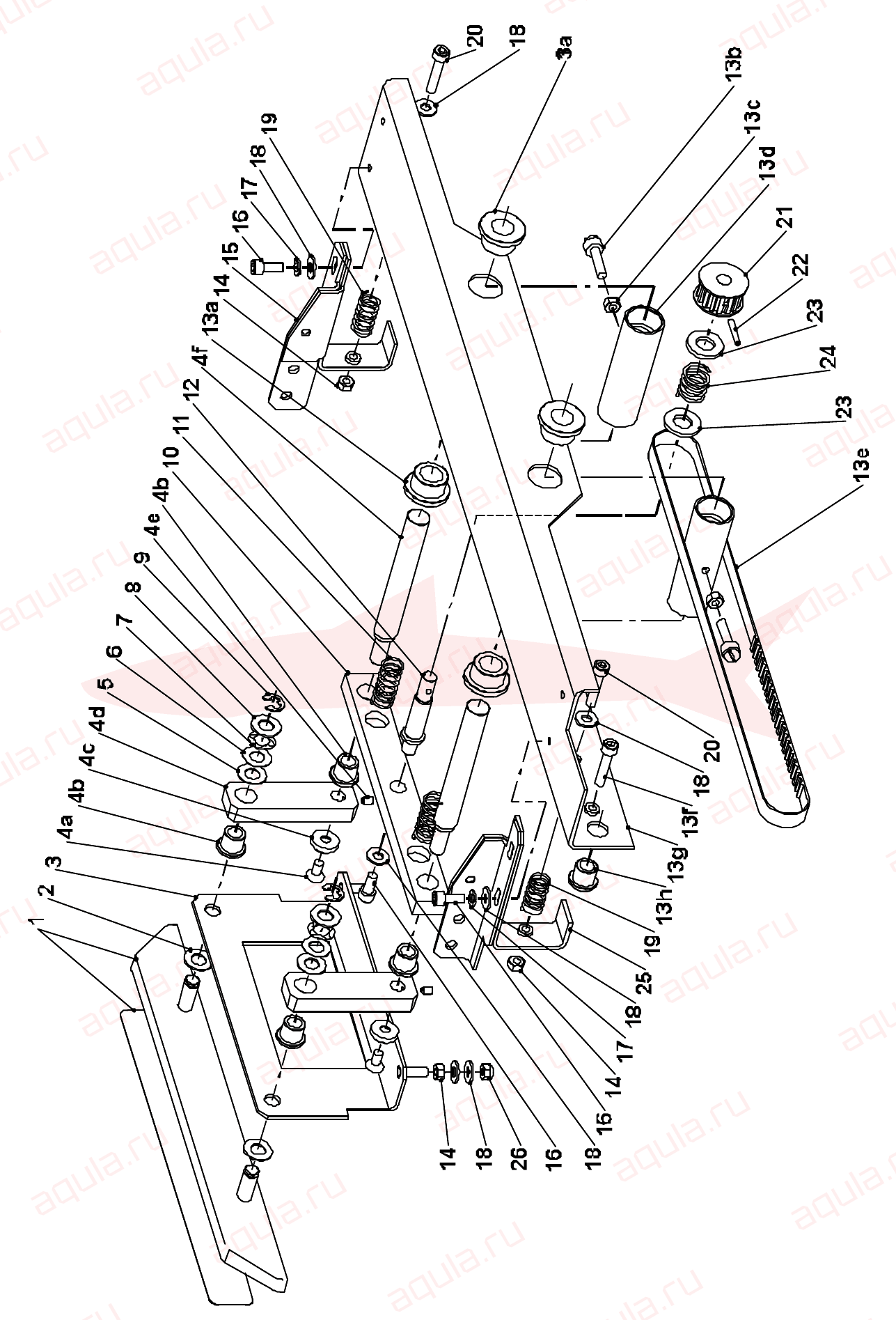

Fig 17Stop Mechanism — механизм упора

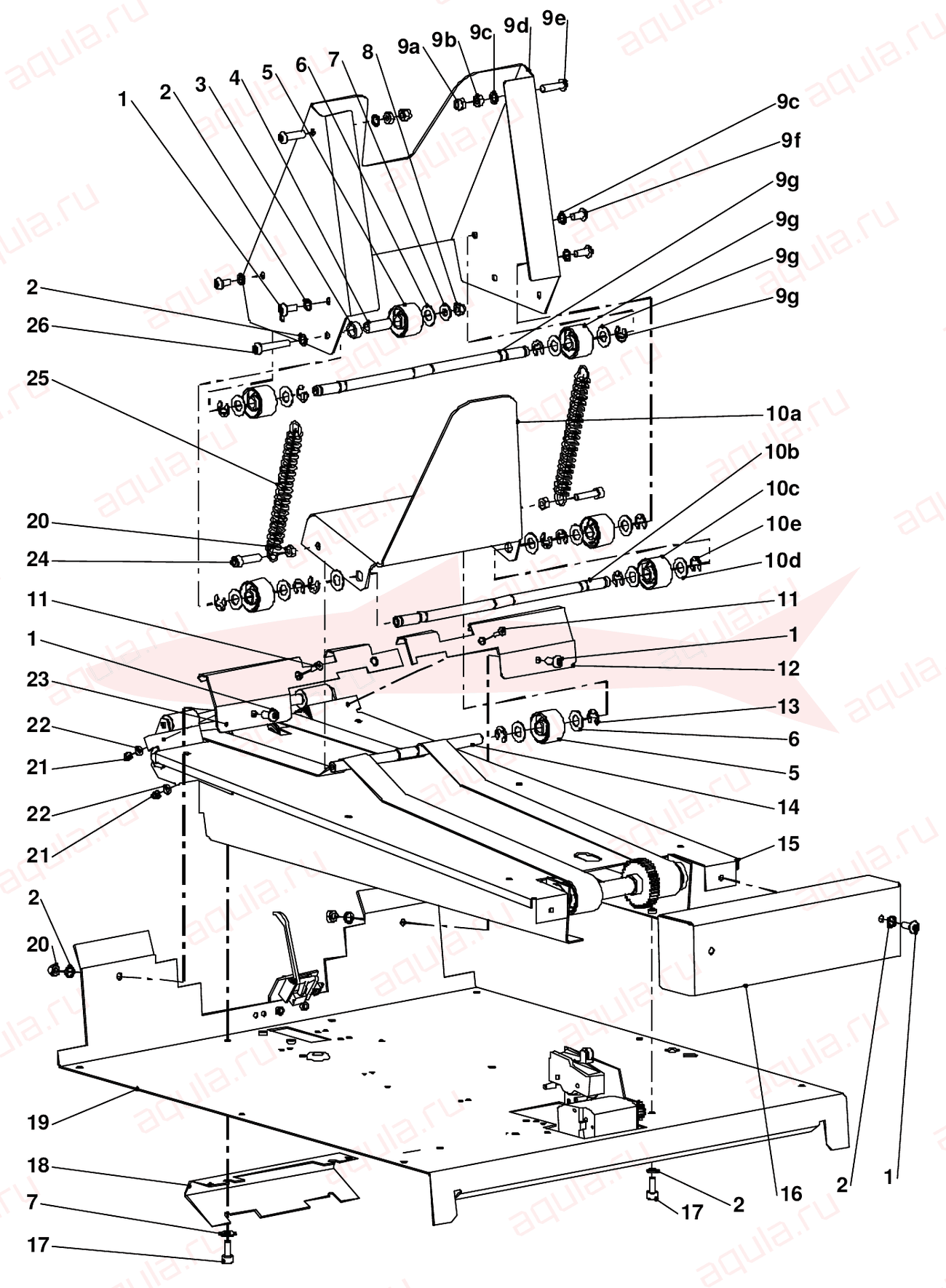

Fig 18Stacker Assembly — приёмник

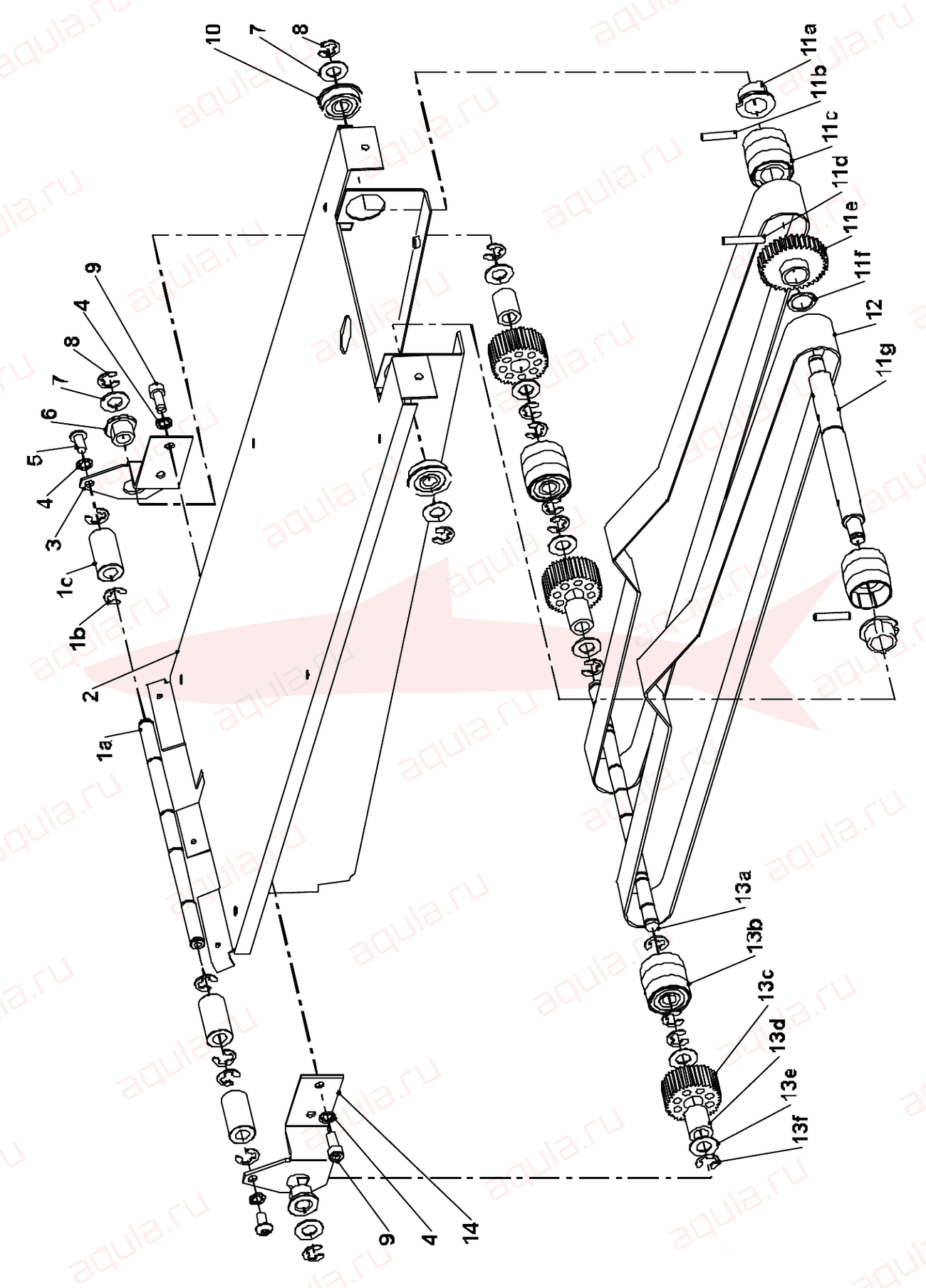

Fig 19Stacker Drive Assembly — привод приёмника

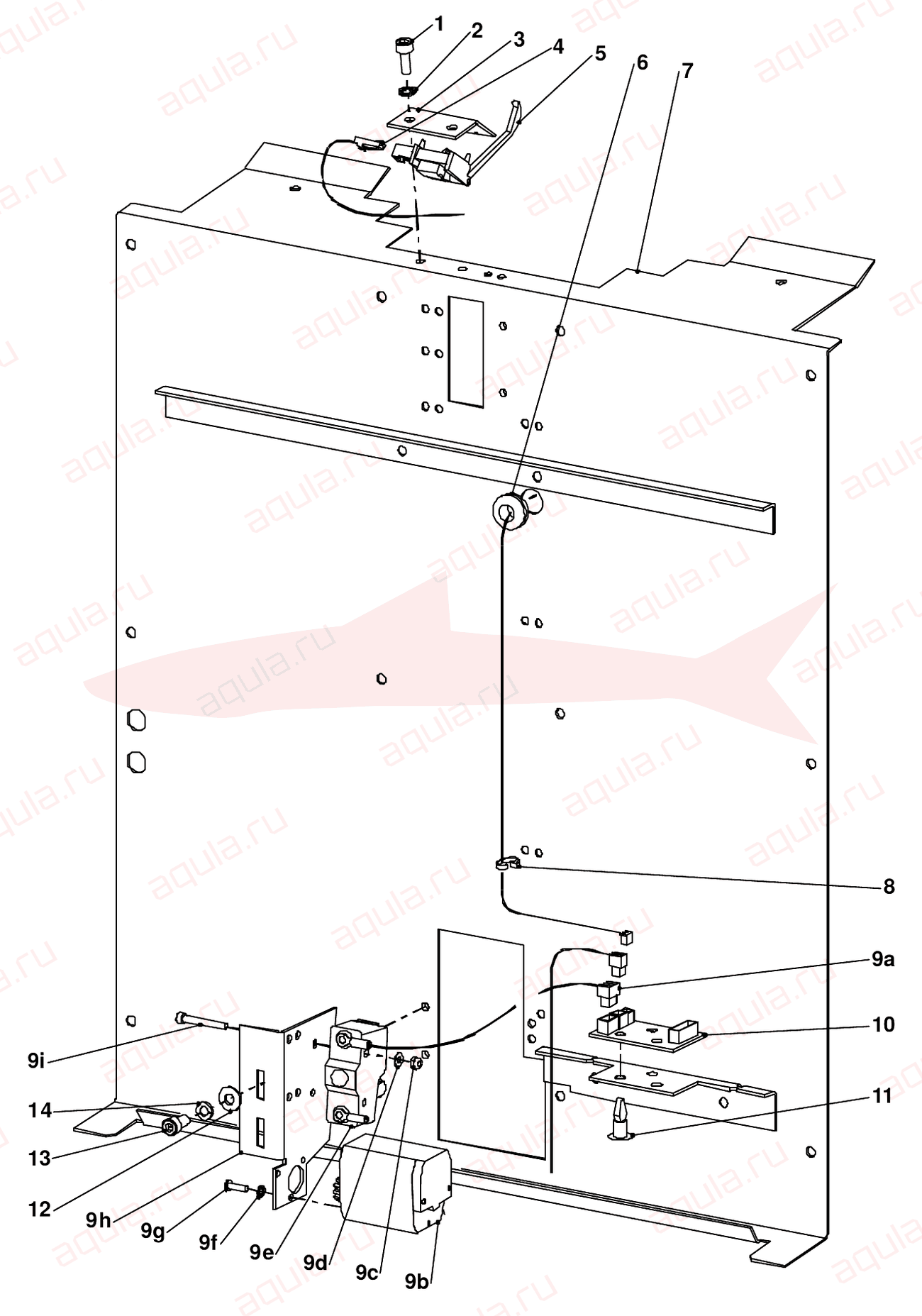

Fig 20Top Electrical Plate — верхняя электрическая панель

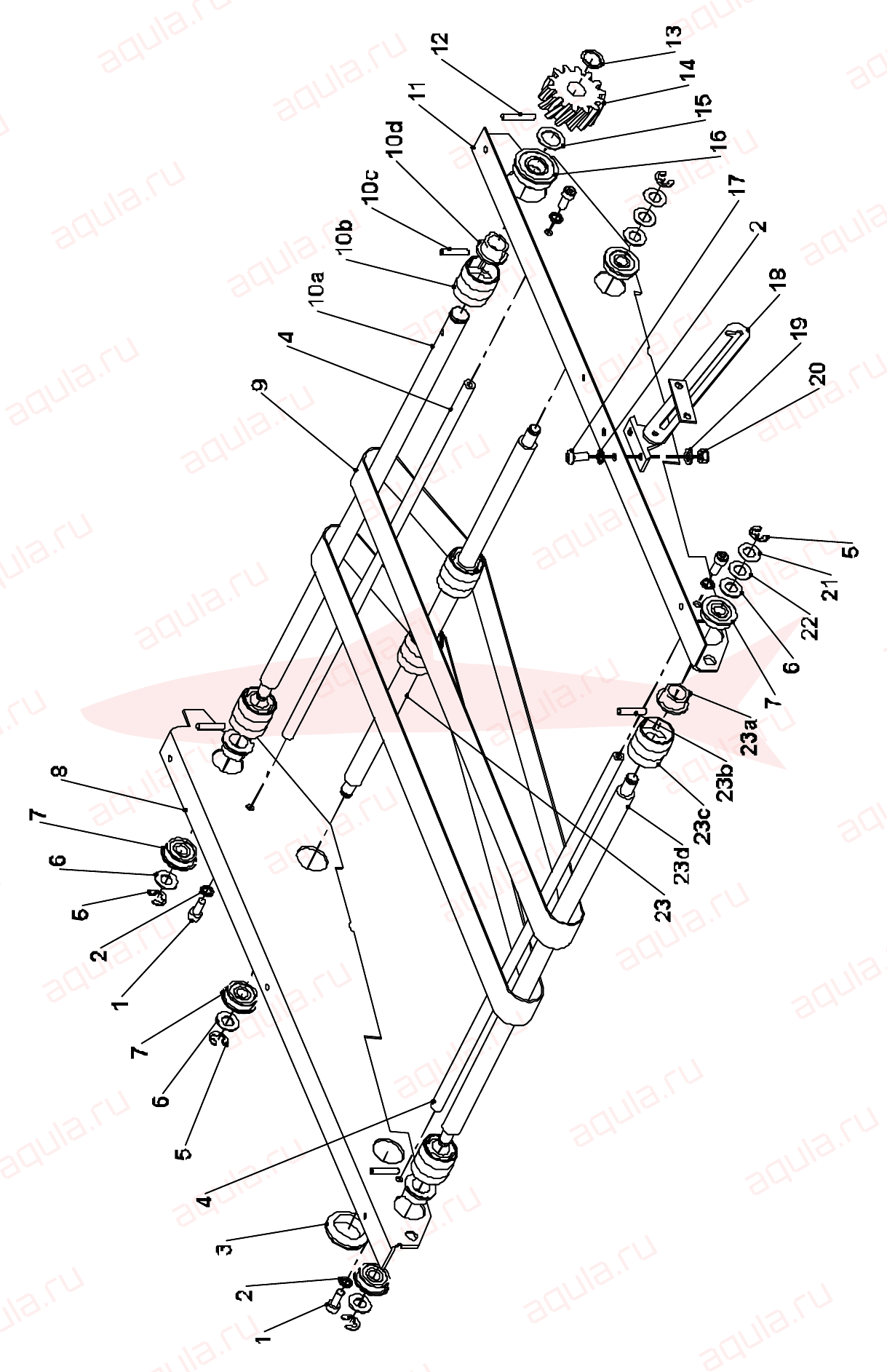

Fig 21Input Conveyor — входной транспортёр

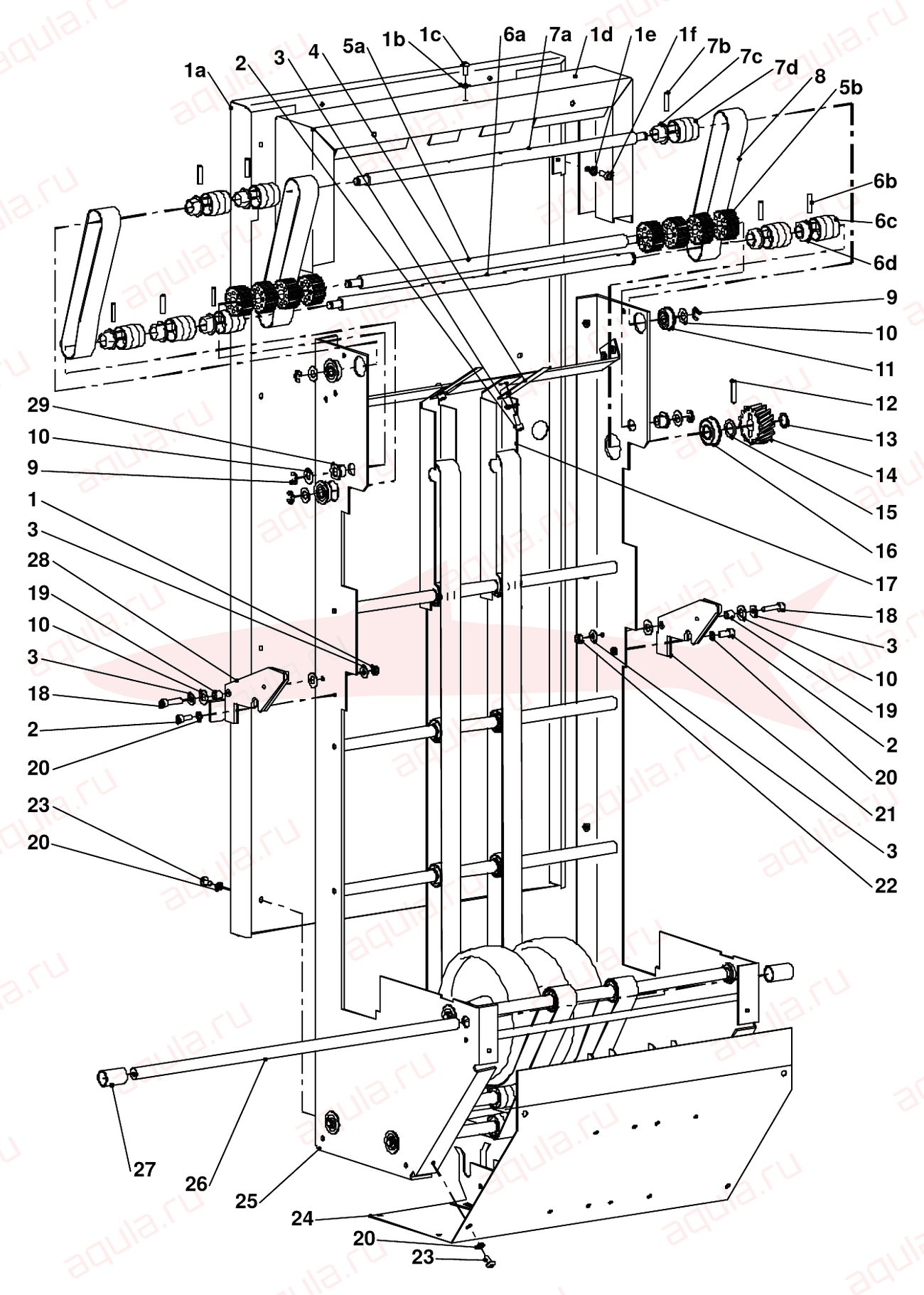

Fig 22Top Delivery Assembly — верхний вывод

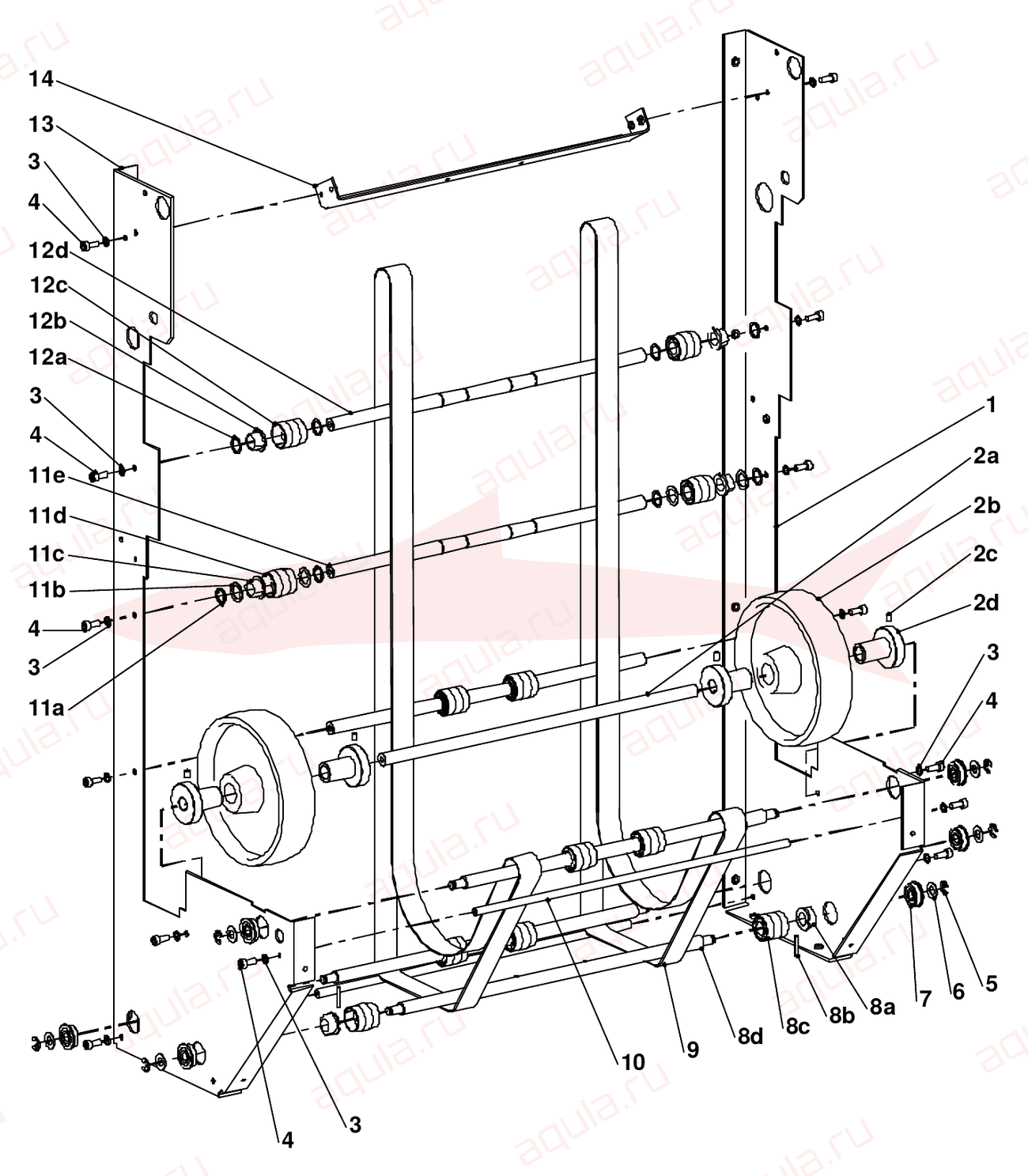

Fig 23Upfeed Conveyor — подъёмный транспортёр

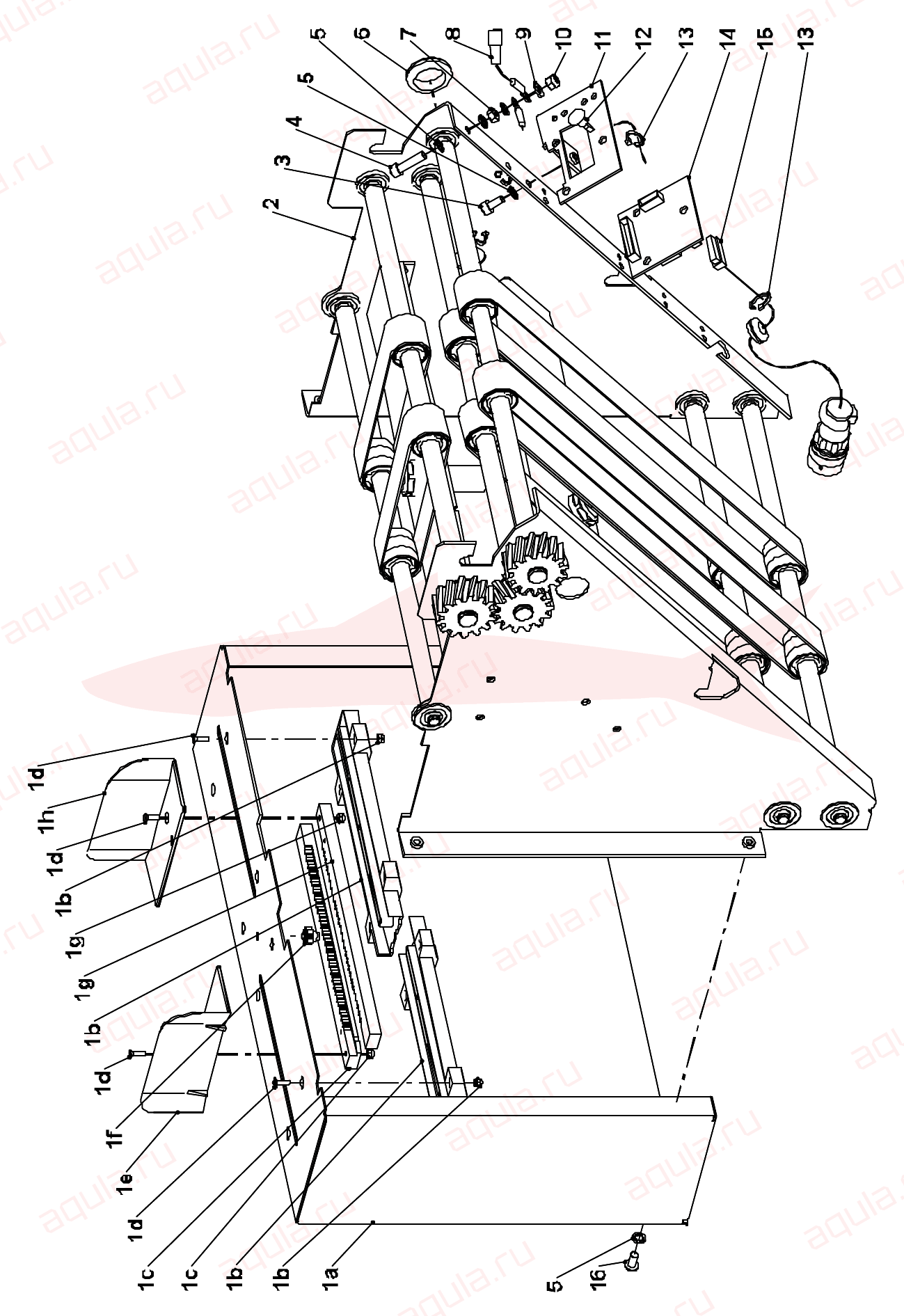

Fig 24Infeed — узел подачи

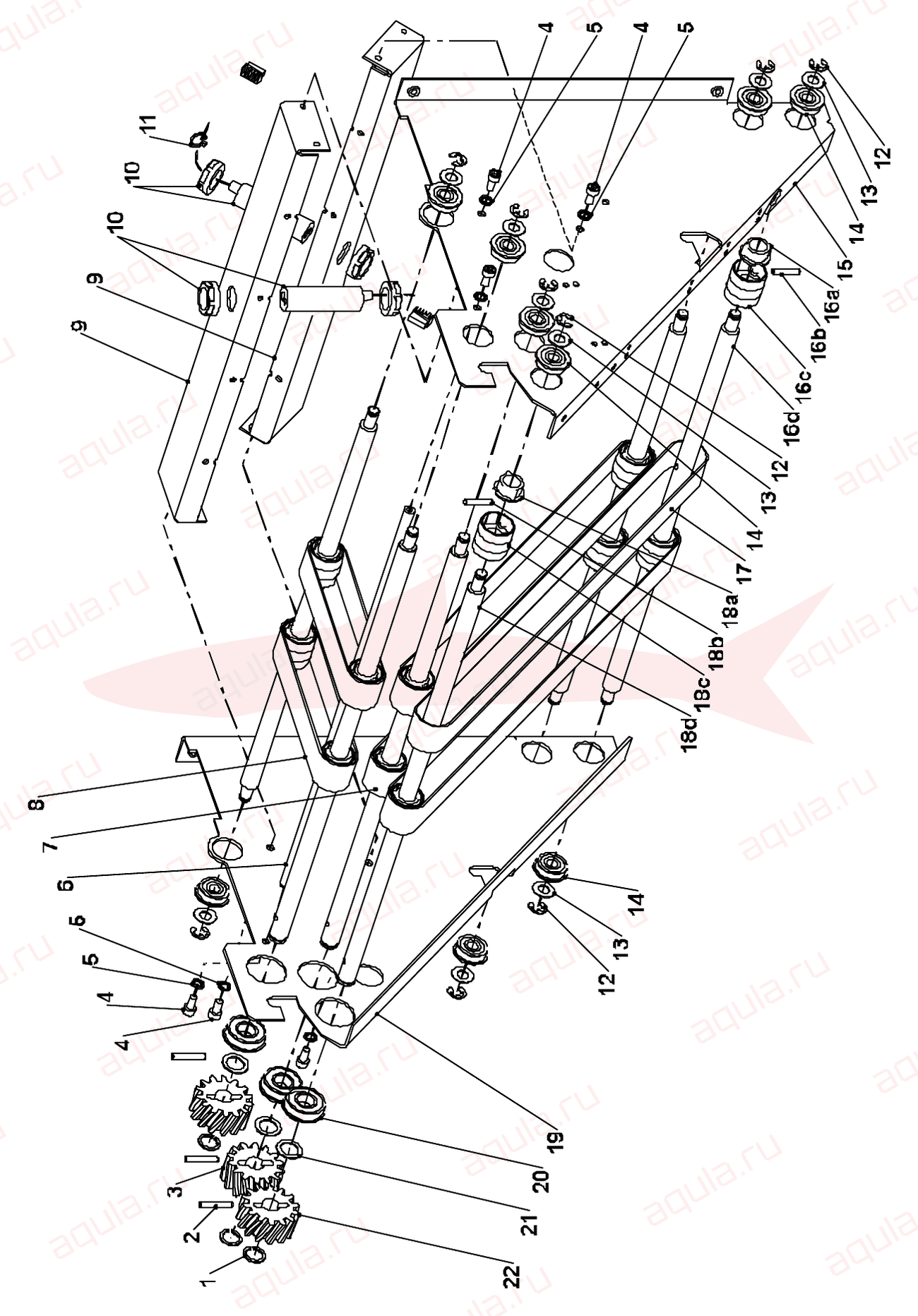

Fig 25Infeed Drive — привод подачи

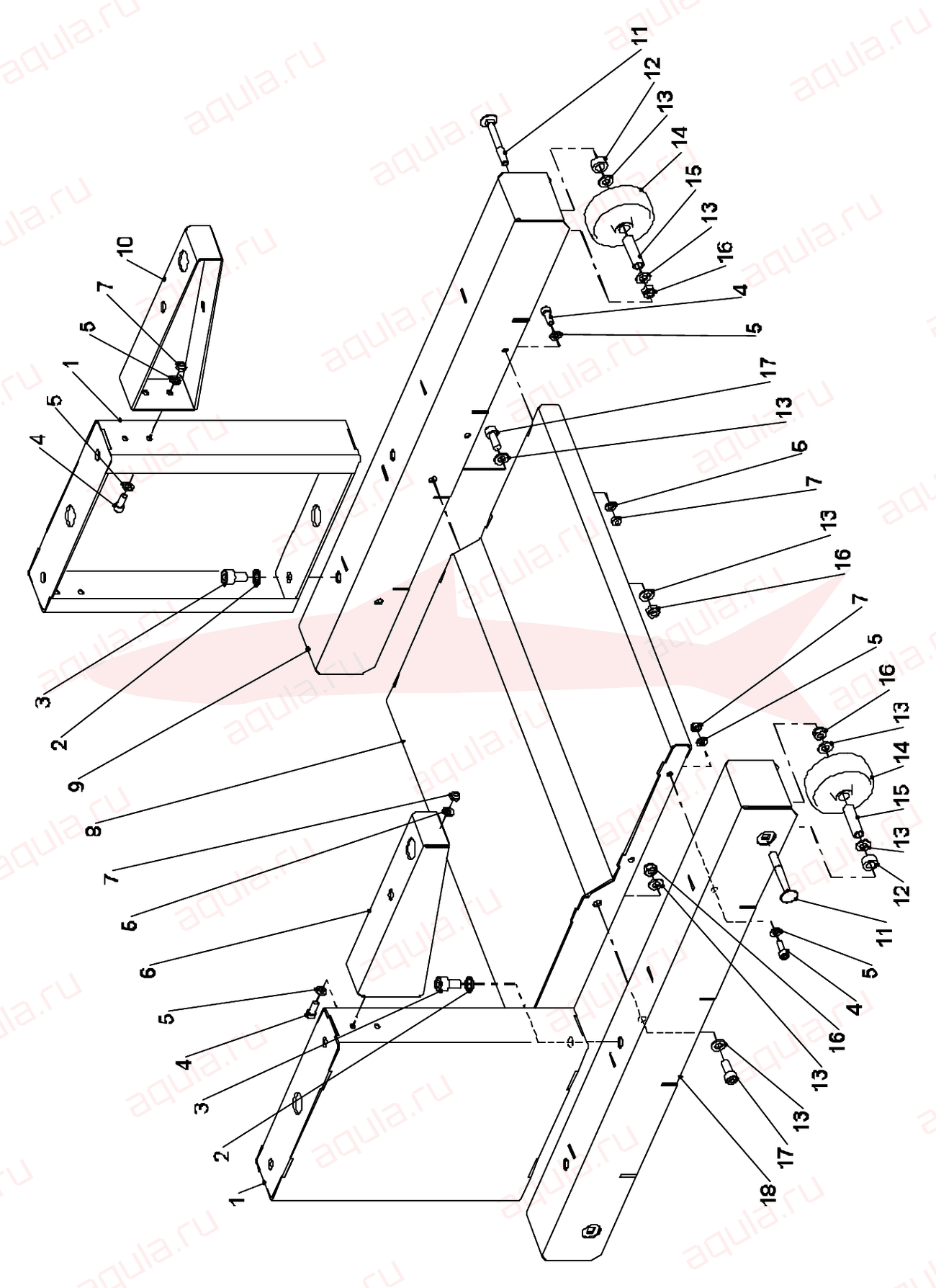

Fig 26Pedestal Base — опорная стойка

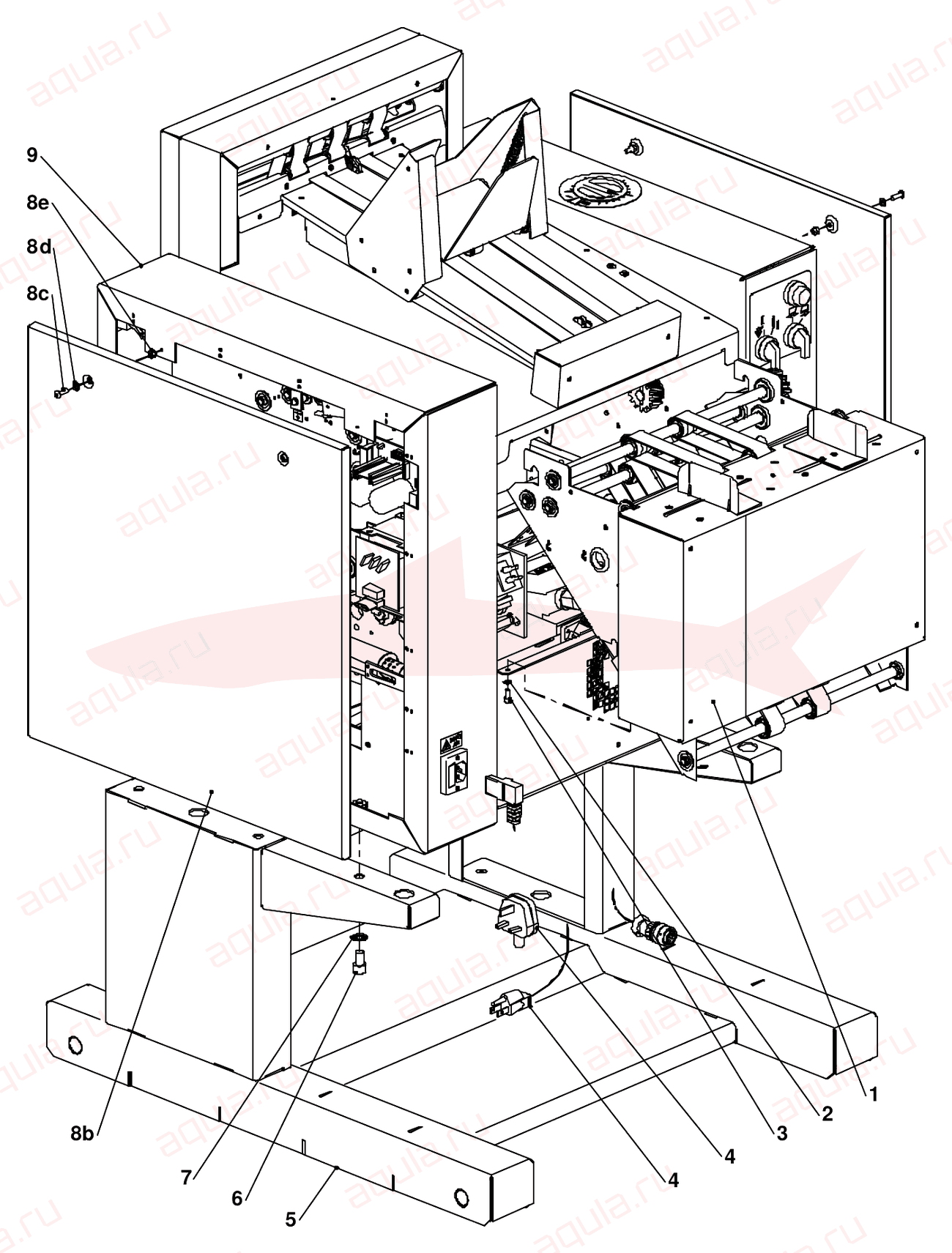

Fig 1 Automatic Square Back System

Morgana Square Back System · Система в сборе

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	AUTO SPINEMASTER 115V	62-005
—	AUTO SPINEMASTER 230V	62-006
1	P.ASSY, (ASM) INFEED → рис. 24	907-807
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
4	WIRE, MAINS,UK PL UG/2M5/IEC R/A SOCKET	740-003
4	WIRE, MAINS,USA PLUG/2M5/IEC R/A SOCK	740-006
5	P.ASSY, (ASM) FRAME ASSY PEDESTAL → рис. 26	907-930
6	SCREW, SKT HD CAP, M10x16 BZP	100-374
7	SHAKEPROOF WASHER, M10 INTERNAL BZP	165-004
8	P.ASSY, (ASM) SIDE PANEL & FIXINGS	907-957
8b	STEEL, (ASM) SIDE COVER	253-858
8c	SCREW, SKT HD BU TTON,M5x16mm STAINLESS	101-307
8d	WASHER, M5 FORM A BZP	160-003
8e	NUT, M5 NYLOC-TYPE P BZP	150-035
9	P.ASSY, (ASM) MAIN FRAME STACKER 115V → рис. 2	890-007
9	P.ASSY, (ASM) MAIN FRAME STACKER 230V → рис. 2	907-997

Номера в кружке — сборочные узлы (поставляются в сборе).

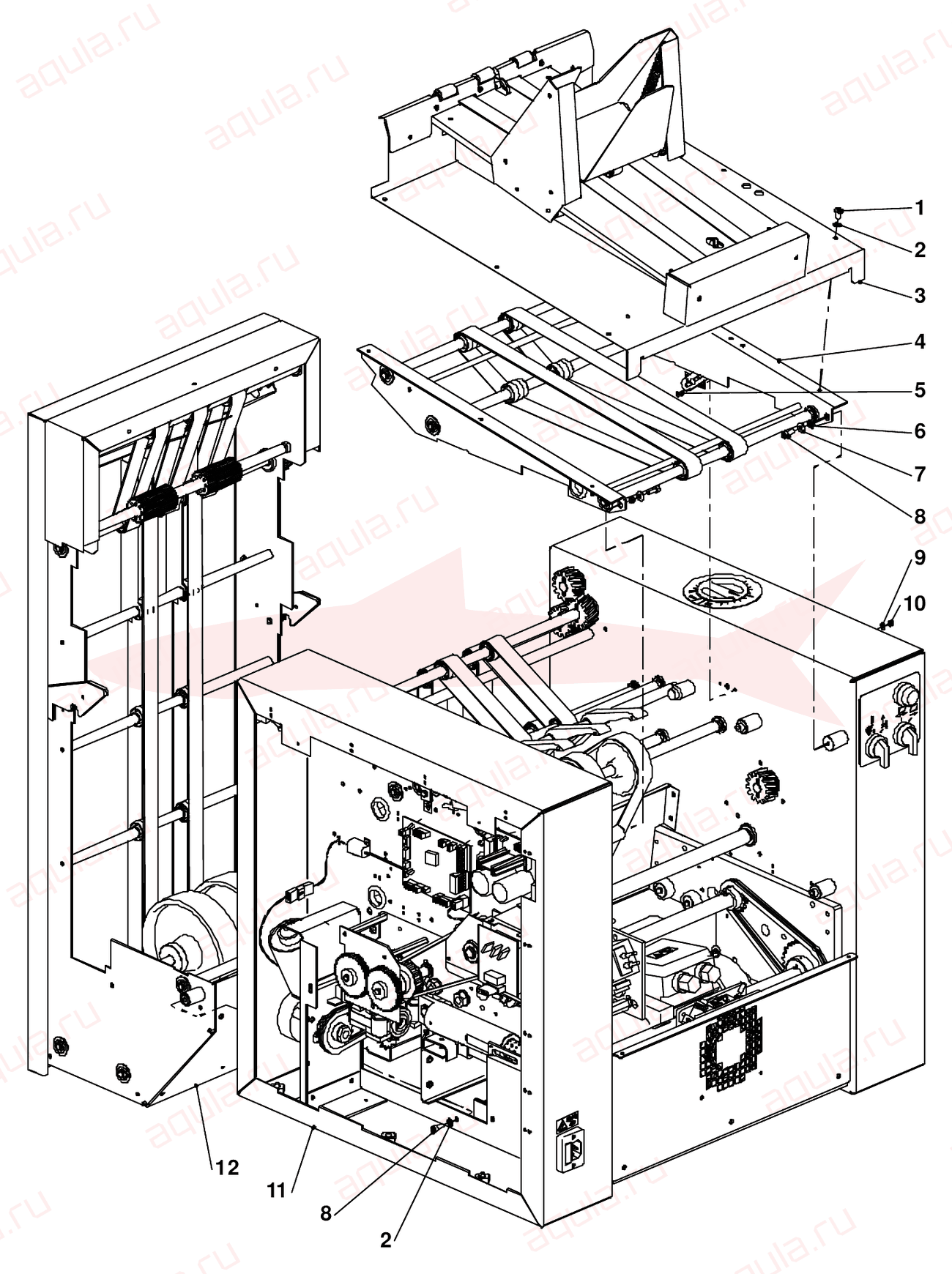

Fig 2 Main Frame Stacker

Morgana Square Back System · Основная рама с приёмником

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) MAIN FRAME STACKER 115V	890-007
—	P.ASSY, (ASM) MAIN FRAME STACKER 230V	907-997
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	P.ASSY, (ASM) STACKER → рис. 18	907-819
4	P.ASSY, (ASM) SAMPLE CONVEYOR → рис. 21	907-818
5	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
6	ST. STEEL,SPACER OD8mm xID5.1mm x2.7mm	257-357
7	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
8	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
9	WASHER, M3 FORM A BZP	160-002
10	NUT, M3 NYLOC-TYPE T BZP	150-033
11	P.ASSY, MAIN FRAME & FAN 115V → рис. 3	890-006
11	P.ASSY, MAIN FRAME & FAN 230V → рис. 3	907-998
12	P.ASSY, (ASM) TOP DELIVERY ASSY → рис. 22	907-796

Номера в кружке — сборочные узлы (поставляются в сборе).

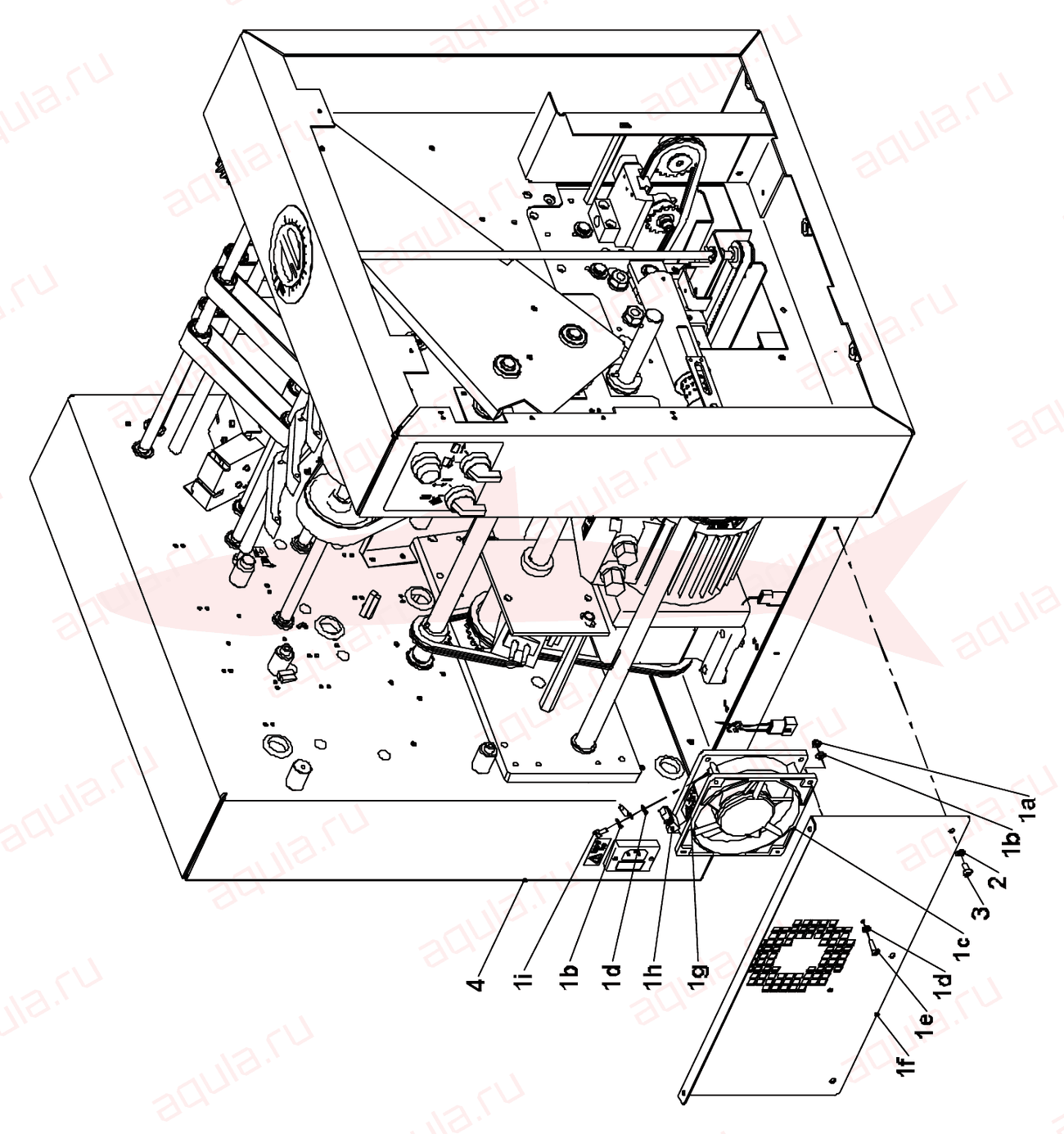

Fig 3 Main Frame & Fan

Morgana Square Back System · Основная рама и вентилятор

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, MAIN FRAME & FAN 115V	890-006
—	P.ASSY, MAIN FRAME & FAN 230V	907-998
1	P.ASSY, (ASM) FAN 115V	890-061
1	P.ASSY, (ASM) FAN 230V	907-817
1a	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
1b	WASHER, M4 FORM A BZP	160-001
1c	ELEC HARDWARE, 120mm 240V FAN	710-057
1c	ELEC HARDWARE, 120mm 115V FAN	710-058
1d	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
1e	SCREW, SKT HD BU TTON,M4x16mm STAINLESS	101-323
1f	STEEL, (ASM) FAN MOUNTING BRACKET	253-840
1g	LABEL, 230V	500-009
1g	LABEL, 115V	500-252
1h	CABLEASSY, (VSPM) FAN SUPPLY LEAD	742-406
1i	SCREW, SKT HD C AP, M4 x 8mm STAINLESS	100-306
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
4	P.ASSY, ASM MAIN FRAME ELECTRICS 230V → рис. 4	907-948
4	P.ASSY, ASM MAIN FRAME ELECTRICS 115V → рис. 4	907-996

Номера в кружке — сборочные узлы (поставляются в сборе).

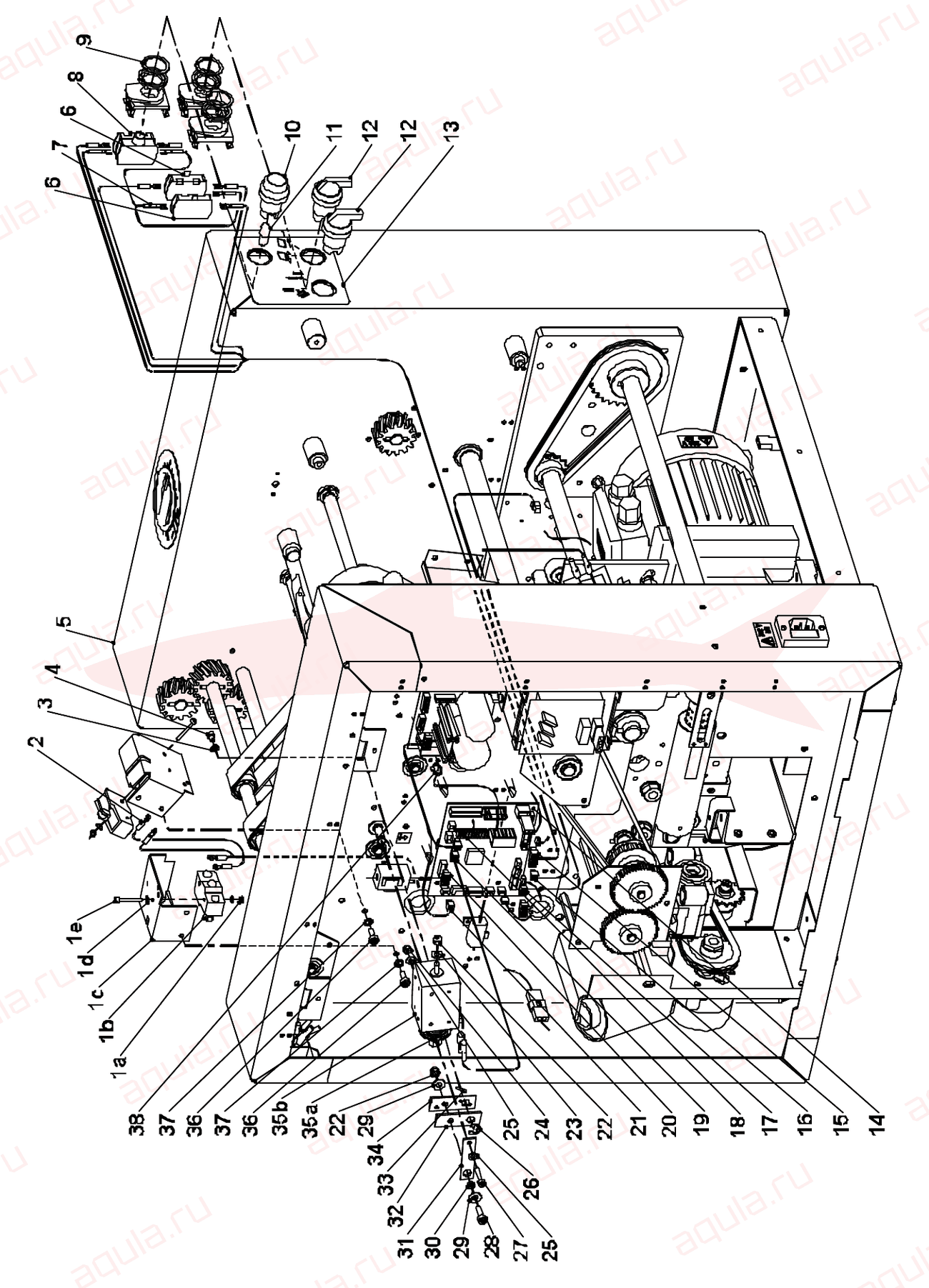

Fig 4 Main Frame Electrics

Morgana Square Back System · Электрика основной рамы

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, ASM MAIN FRAME ELECTRICS 230V	907-948
—	P.ASSY, ASM MAIN FRAME ELECTRICS 115V	907-996
1	P.ASSY, (ASM) SWITCH BRACKET	907-822
1a	NUT, M3 NYLOC-TYPE T BZP	150-033
1b	SWITCH, (VTRM) BIN GUARD	700-088
1c	STEEL, (ASM) SWITCH BRACKET (SAFETY)	253-855
1d	WASHER, M3 FORM A BZP	160-002
1e	SCREW, SKT HD CAP, M3 x 25mm STAINLESS	100-311
2	CABLE ASSEMBLY, (ASM) GUARD TOP COVER	742-492
3	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
4	SCREW, SKT HD C AP, M4 x 6mm STAINLESS	100-305
5	P.ASSY, (ASM) DIVERT & UPFEED 230V → рис. 5	907-816
5	P.ASSY, (ASM) DIVERT & UPFEED 115V → рис. 5	907-993
6	SWITCH, CONTACT BLOCK N/C	700-104
7	CABLEASSY, (ASM) FUNCTION SWITCH LINK	742-518
8	SWITCH, 3 MOD CLIP/NC CONTACT/L.HOLDER	700-422
9	PLASTIC, (VSPM) ANTI ROTATION RING	315-603
10	SWITCH, ILLUM.PUSH BUTTON GREEN	700-421
11	SWITCH, 30V 2W BULB	700-420
12	P.ASSY, (VSPM) 2- POSN NON-ILLUM SWITCH	907-426
13	LABEL, (ASM) SWITCH	500-275
14	PCB ASSEMBLY, SPINEMASTER CONTROL PCB	900-197
15	CABLE ASSEMBLY, (ASM) FUNCTION SWITCHES	742-495
16	CABLE ASSEMBLY, (ASM) MAGNET ASSY	742-489
17	CABLE ASSEMBLY, (ASM) DRIVE CLUTCH	742-487
18	CABLE ASSEMBLY, (ASM) CASSETTE BU S 12W	742-494
19	CABLE ASSEMBLY, (ASM) BYPASS SOLENOID	742-490
20	CABLEASSY, (ASM) PAYOUT BU S ASSY	742-501
21	CABLEASSY, (ASM) GUARD REAR DOOR & DRIVE	742-521
22	NUT, M5 NYLOC-TYPE P BZP	150-035
23	NYLON, M5 WASHER	320-304
24	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
25	WASHER, M4 FORM A BZP	160-001
26	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
27	SCREW, SKT HD C AP, M4 X 20 STAINLESS	100-342
28	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
29	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
30	ST. STEEL,SPACER OD8mm xID5.1mm x2.7mm	257-357
31	STEEL, (ASM) SOLENOID LINK	253-848
32	STEEL, (ASM) LINK	253-829
33	PIN, NEEDLE ROLLER 2.388 dia x 12.55mm LG	400-384
34	STEEL, (ASM) ACTUATOR LINK	253-828
35	P.ASSY,(VBM)E/STITCH SOLENOID & SPRING	907-200
35a	SPRING,(VSF) COMP 2N-15N E/STITCH	180-355
35b	SOLENOID, GE-40.08 80% 24 FLANGED	760-339
36	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
37	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
38	ELEC-HARDWARE, CABLE TIE-small	710-016

Номера в кружке — сборочные узлы (поставляются в сборе).

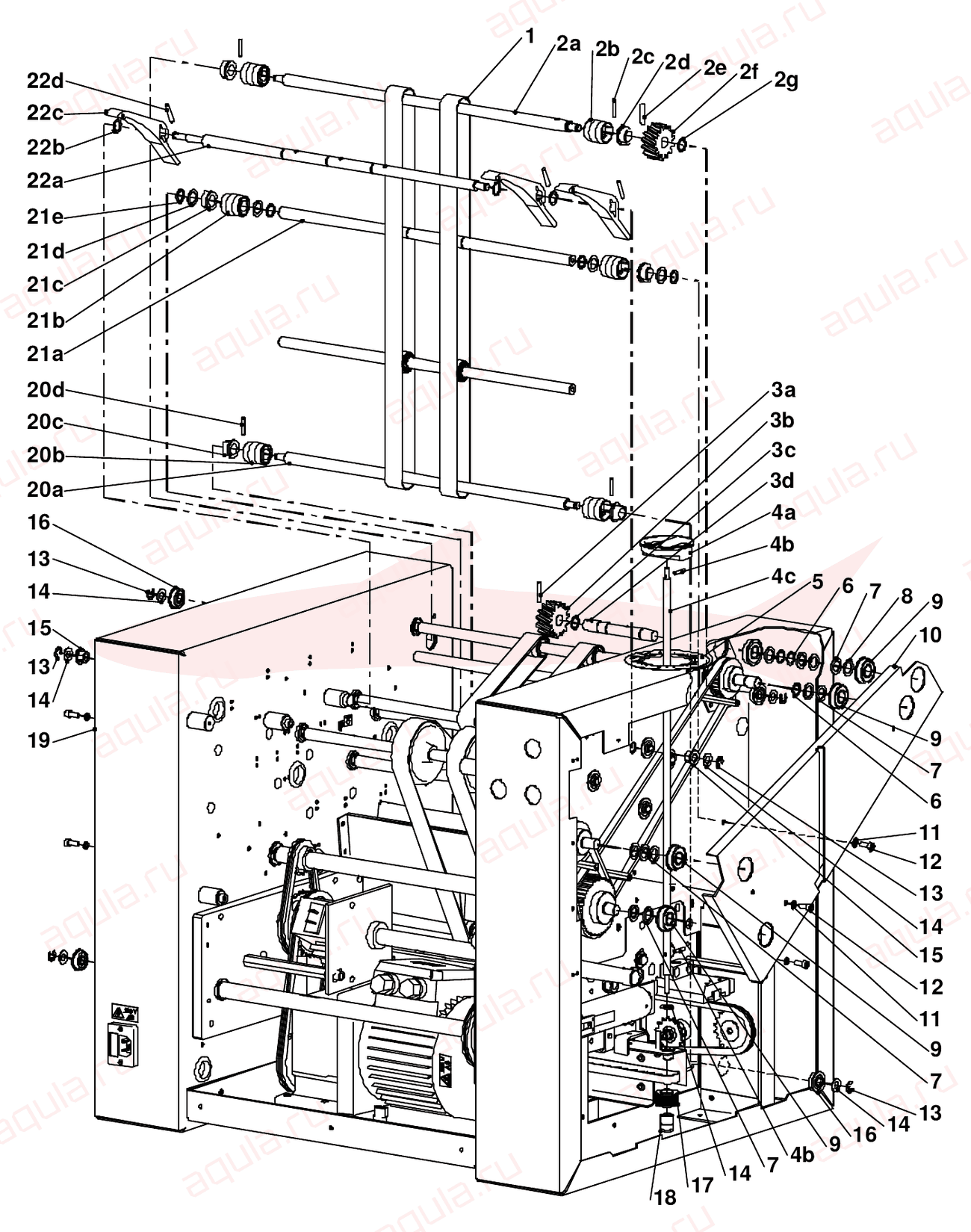

Fig 5 Divert & Upfeed

Morgana Square Back System · Отклонитель и подъём

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) DIVERT & UPFEED 230V	907-816
—	P.ASSY, (ASM) DIVERT & UPFEED 115V	907-993
1	BELT, MAT-02 H x 25x965 LONG	914-495
2	P.ASSY, (ASM) INTERMEDIATE DRIVE ASSY	907-803
2a	SHAFT, (ASM) INTERMEDIATE DRIVE	265-825
2b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
2c	PIN, DIA 4mm x 20mm DOWEL	400-405
2d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
2e	PIN, DIA 4mm x 24mm DOWEL	400-355
2f	GEAR, R/H HELICAL 14 T 10 D P ACETAL	192-497
2g	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
3	P.ASSY, (ASM) STUB SHAFT ASSY	907-953
3a	PIN, DIA 4mm x 24mm DOWEL	400-355
3b	GEAR, R/H HELICAL 14 T 10 D P ACETAL	192-497
3c	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
3d	SHAFT, (ASM) STUB SHAFT	265-823
4	P.ASSY, (ASM) ADJUSTER SHAFT	907-994
4a	PLASTIC, (VSPM) TOP COVER HANDLE	315-598
4b	PIN, M3 x 20 SPIROL	400-391
4c	SHAFT, (ASM) ADJUSTABLE SHAFT	265-835
5	LABEL, SPINEMASTER M IN./MAX	500-258
6	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
7	NYLON, WASHER OD 19mmxID13mmx1.5mmTHICK	320-323
8	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
9	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
10	STEEL, (ASM) BRACKET BELT SUPPORT	253-814
11	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
12	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
13	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
14	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
15	PL MOULDING, ANTI-STATIC BEARING BUSH	310-610
16	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
17	PULLEY, FLANGED T 5-16 T	192-456
18	BEARING, TRAN TORQUE BUSH-6mm	190-332
19	P.ASSY, (ASM) SECONDARY DRIVE 230V → рис. 6	907-985
19	P.ASSY, (ASM) SECONDARY DRIVE 115V → рис. 6	907-992
20	P.ASSY, (ASM) IDLER SHAFT ASSY	907-804
20a	SHAFT, (ASM) IDLER SHAFT	265-826
20b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
20c	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
20d	PIN, DIA 4mm x 20mm DOWEL	400-405
21	P.ASSY, (ASM) TIE BAR ASSY	907-805
21a	SHAFT, (ASM) TIE BAR 12.7x423 LONG	265-827
21b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
21c	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
21d	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
21e	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
22	P.ASSY, (ASM) DIVERT SHAFT	907-951
22a	SHAFT, (ASM) DIVERT SHAFT	265-830
22b	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
22c	PLASTIC MOULDING, (ASM) DIVERTER	310-708
22d	PIN, DIA 4mm x 24mm DOWEL	400-355

Номера в кружке — сборочные узлы (поставляются в сборе).

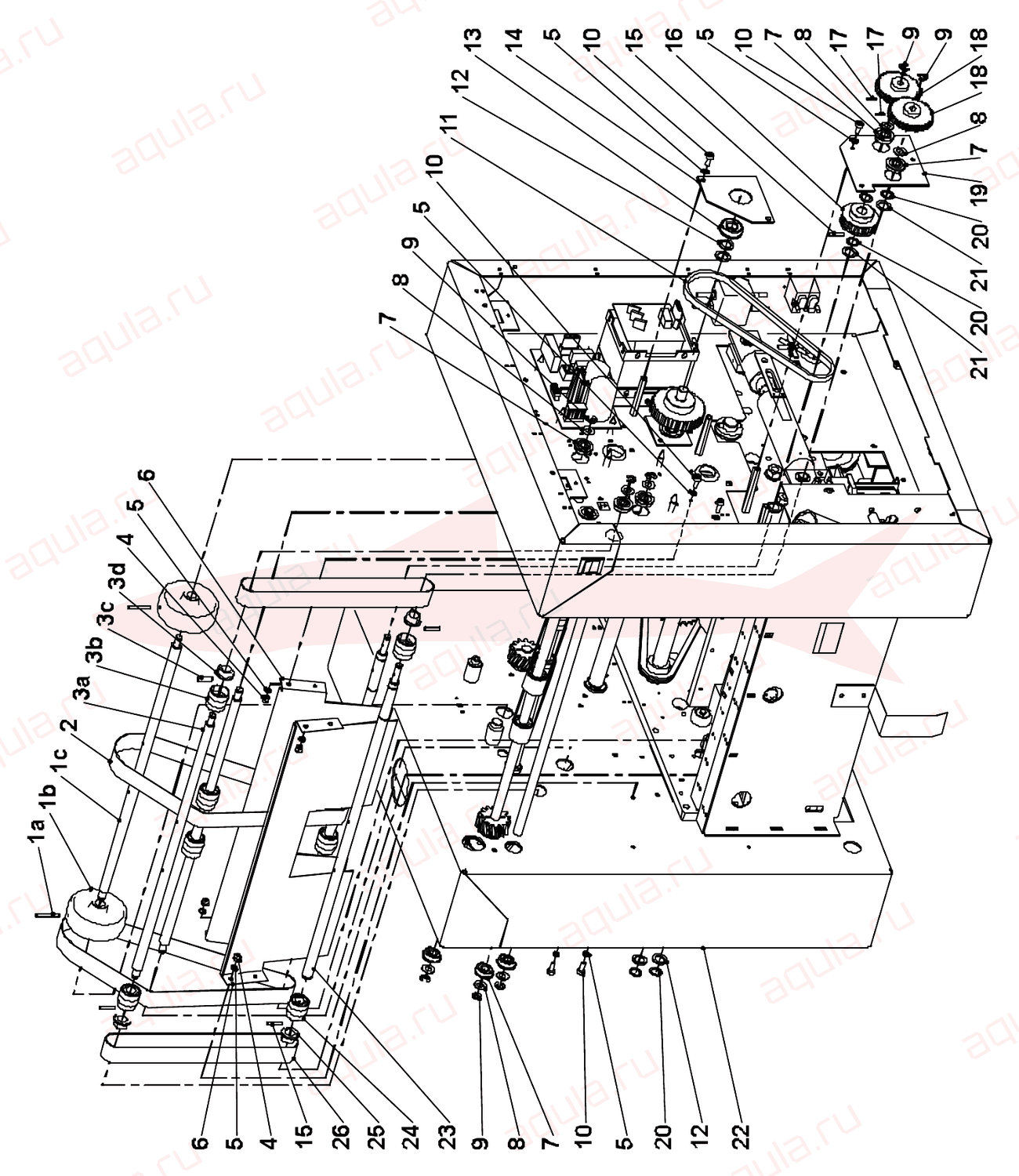

Fig 6 Secondary Drive

Morgana Square Back System · Вторичный привод

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) SECONDARY DRIVE 230V	907-985
—	P.ASSY, (ASM) SECONDARY DRIVE 115V	907-992
1	P.ASSY, (ASM) IDLER SHAFT 75mm WHEELS	907-952
1a	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
1b	NYLON, (ASM) WHEEL MODIFIED 320-311	320-409
1c	SHAFT, (ASM) IDLER SHAFT	265-826
2	BELT, MAM-04 H x 25x686 LONG	914-498
3	P.ASSY, (ASM) IDLER SHAFT ASSY	907-804
3a	SHAFT, (ASM) IDLER SHAFT	265-826
3b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
3c	PIN, DIA 4mm x 20mm DOWEL	400-405
3d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
4	NUT, M5 NYLOC-TYPE P BZP	150-035
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	STAINLESS STEEL, (AS PM) BOOK DEFLECTOR	257-501
7	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
8	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
9	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
10	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
11	BELT, (ASM) HTD-535-5 M-9mm WIDE	914-511
12	NYLON, WASHER OD 19mmxID13mmx1.5mmTHICK	320-323
13	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
14	STEEL, (ASM) BEARING PLATE	253-826
15	PIN, DIA 4mm x 20mm DOWEL	400-405
16	PULLEY, FLANGED 28 T HTD 5M12.7 BORE	192-494
17	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
18	GEAR, 56 T ACETAL WITH BOSS	192-489
19	STEEL, (ASM) BEARING PLATE	253-876
20	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
21	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
22	P.ASSY, (ASM) PRIMARY DRIVE 230V → рис. 7	907-984
22	P.ASSY, (ASM) PRIMARY DRIVE 115V → рис. 7	907-991
23	SHAFT, (ASM) INFEED DRIVE SHAFT CRUSH	265-844
24	PLASTIC MOULDING, ROLLER 25.4mm	310-690
25	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
26	BELT, STACKER MAM-04 H x 25x536 LONG	914-504

Номера в кружке — сборочные узлы (поставляются в сборе).

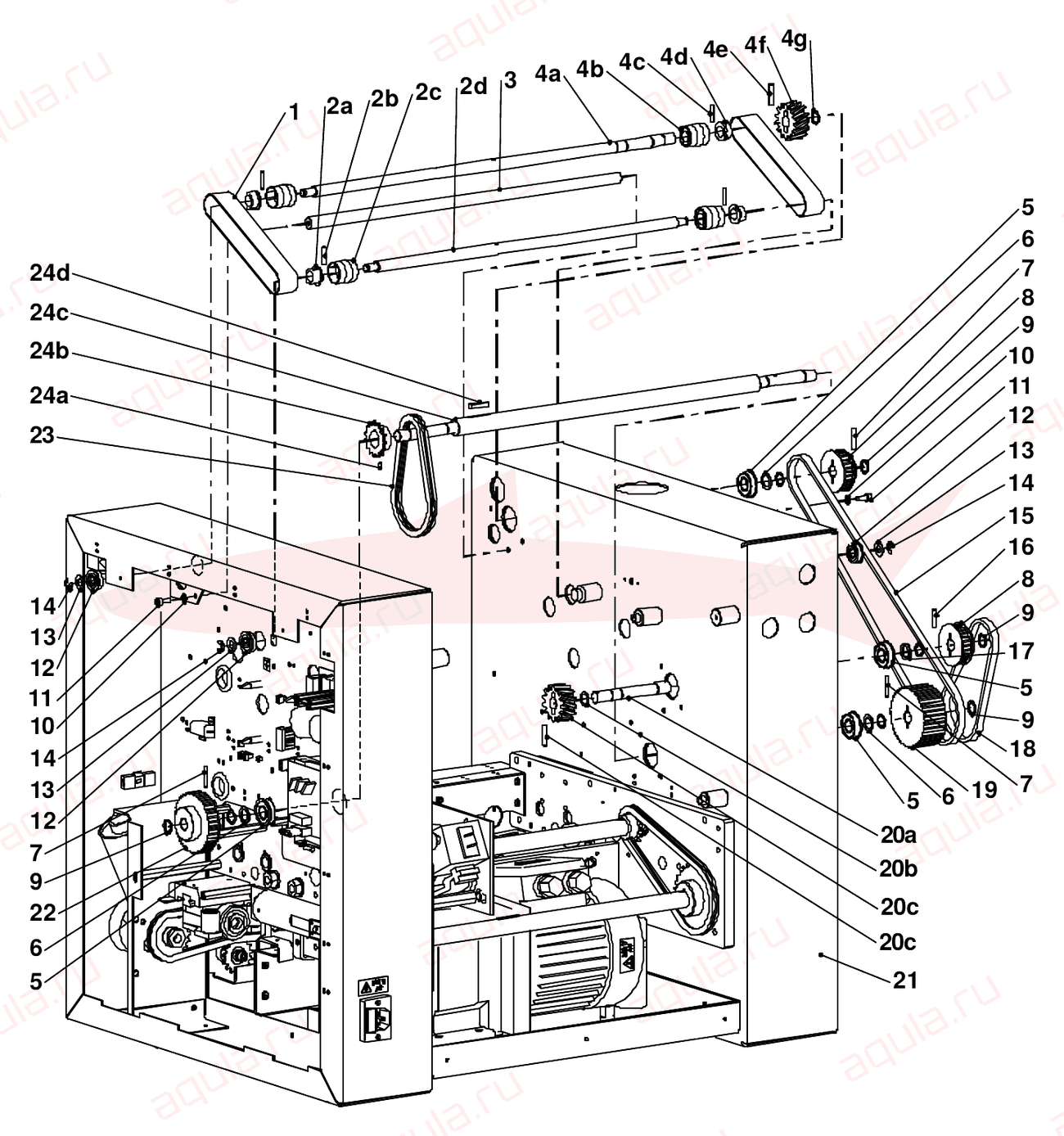

Fig 7 Primary Drive

Morgana Square Back System · Первичный привод

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) PRIMARY DRIVE 230V	907-984
—	P.ASSY, (ASM) PRIMARY DRIVE 115V	907-991
1	BELT, MAT-02 H x 25x350 LONG	914-496
2	P.ASSY, (ASM) IDLER SHAFT ASSY	907-804
2a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
2b	PIN, DIA 4mm x 20mm DOWEL	400-405
2c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
2d	SHAFT, (ASM) IDLER SHAFT	265-826
3	SHAFT, (ASM) TIE BAR 12.7x423 LONG	265-843
4	P.ASSY, (ASM) DRIVE SHAFT ASSY	907-802
4a	SHAFT, (ASM) 12.7mm x 501 LONG	265-841
4b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
4c	PIN, DIA 4mm x 20mm DOWEL	400-405
4d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
4e	PIN, DIA 4mm x 24mm DOWEL	400-355
4f	GEAR, L/H HELICAL 14 T 10 D P ACETAL	192-498
4g	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
5	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
6	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
7	PIN, DIA 4mm x 24mm DOWEL	400-355
8	PULLEY, FLANGED 28 T HTD 5M12.7 BORE	192-494
9	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
10	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
11	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
12	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
13	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
14	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
15	BELT, (ASM) HTD-900-5 M-9mm WIDE	914-508
16	PIN, DIA 4mm x 20mm DOWEL	400-405
17	NYLON, WASHER OD 19mmxID13mmx1.5mmTHICK	320-323
18	BELT, (ASM) HTD-375-5 M-9mm WIDE	914-507
19	PULLEY, (ASM) HTD 44-5 M-25	192-495
20	P.ASSY, (ASM) STUB SHAFT ASSY	907-953
20a	SHAFT, (ASM) STUB SHAFT	265-823
20b	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
20c	GEAR, R/H HELICAL 14 T 10 D P ACETAL	192-497
20d	PIN, DIA 4mm x 24mm DOWEL	400-355
21	P.ASSY, (ASM) MAIN DRIVE & STOP 230V → рис. 8	907-983
21	P.ASSY, (ASM) MAIN DRIVE & STOP 115V → рис. 8	907-987
22	PULLEY, (ASM) HTD 44-5 M-09	192-491
23	CHAIN,(VECO)8mmx42 PITCH INC. CON LINK	192-395
24	P.ASSY, (ASM) DRIVE SHAFT	907-795
24a	GRUB SCREW, M4 x 6mm CUP POINT	149-201
24b	SPROCKET, (VSPM) INTERMEDIATE DRIVE 15 T	192-458
24c	SHAFT, (ASM) DRIVE SHAFT 19.5mm Dia	265-816
24d	STEEL,KEY 3/16" SQ x24/25mm LG FLAT END	254-502

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 8 Main Drive & Stop

Morgana Square Back System · Главный привод и упор

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) MAIN DRIVE & STOP 230V	907-983
—	P.ASSY, (ASM) MAIN DRIVE & STOP 115V	907-987
1	SCREW, SKT HD CAP, M6x20 H.TENSILE BZP	100-351
2	WASHER, M6 FORM A BZP	160-004
3	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
4	NUT, M6 NYLOC-TYPE P BZP	150-036
5	P.ASSY, (ASM) MAIN DRIVE 230V → рис. 16	907-814
5	P.ASSY, (ASM) MAIN DRIVE 115V → рис. 16	907-988
6	CHAIN, DRIVE 8mm x 69 PITCH INC.CON LINK	192-455
6	CHAIN, (ASM) 115V 66 PITCHES 8mm	192-502
7	P.ASSY, (VSPM) STOP MECHANISM → рис. 17	907-404
8	SCREW,SKT HD CAP, M6xM16 H/T BZP	100-369
9	SCREW, SKT HD CAP, M3 x 10mm STAINLESS	100-326
10	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
11	STEEL, (VSPM) MOUNTING BRACKET-SPRING	253-352
12	SHAFT, (VSPM) SPACER x 25mm LONG	265-673
13	SPRING, (VSPM) STOP RETURN SPRING	180-383
14	WASHER, M4 FORM A BZP	160-001
15	SCREW, SKT HD C/S, M3x10mm STAINLESS	105-301
16	P.ASSY, (ASM) CRUSH & SIDEPLATE S 230 → рис. 9	907-982
16	P.ASSY, (ASM) CRUSH & SIDEPLATE S 115V → рис. 9	907-990

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 9 Crush & Side Plates

Morgana Square Back System · Узел обжима и боковины

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) CRUSH & SIDEPLATE S 230	907-982
—	P.ASSY, (ASM) CRUSH & SIDEPLATE S 115V	907-990
1	SHAKEPROOF WASHER, M8 INTERNAL BZP	165-005
2	SCREW, SKT HD CAP, M8x16mm BZP	100-359
3	SHAFT, (VSPM) CHAIN LINK	265-683
4	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
5	CHAIN, (ASM) 8mm x 157 PITCHES 2 CON	192-500
6	SCREW, SKT HD CAP, M6x20 H.TENSILE BZP	100-351
7	P.ASSY, (ASM) MOTOR ASSY	907-840
7a	BEARING, TRAN TORQUE BUSH-10mm	190-333
7b	EL ASSY, (VSPM) WIPER MOTOR 24V DC	905-343
7c	STEEL, (ASM) MOTOR MOUNTING BRACKET	253-883
7d	SPROCKET, (VSPM) DRIVE 20 T	192-461
7e	WASHER, M6 FORM A BZP	160-004
7f	SCREW, SKT HD CAP, M6x12mm BZP	100-355
8	SCREW,SKT HD CAP, M6xM16 H/T BZP	100-369
9	WASHER, M6 SQ. SECT.SPRING BZP	160-203
10	WASHER, M6 FORM A BZP	160-004
11	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
12	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
13	P.ASSY, SIDEPLATE RH ELECTRICS 230V → рис. 13	890-048
13	P.ASSY, SIDEPLATE R/H ELECTRICS 115V → рис. 13	907-989
14	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
15	NUT, M5 NYLOC-TYPE P BZP	150-035
16	STEEL, (VSPM) SENSOR FLAG	253-347
17	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
18	ST STEEL, (ASM) BOOK GUIDE UPFEED	257-503
19	P.ASSY, (ASM) CRUSH → рис. 10	907-958
20	P.ASSY, (ASM) SIDEPLATE L/H → рис. 15	907-981
21	P.ASSY, (ASM) SPIGOT SUPPORT	907-839
21a	P.ASSY, (ASM) SPIGOT BRACKET	907-838
21b	SCREW, SKT HD CAP, M8x20 BZP	100-373
21c	WASHER, M8 FORM C BZP	160-212
21d	SHAFT, (VSPM) IDLER	265-682
21e	P.ASSY, IDLER SPROCKET 20 T & OILITE	890-046
21f	STEEL, WASHER 25mm OD x 6.5mm ID	255-395
21g	SCREW,SKT HD CAP, M6xM16 H/T BZP	100-369
21h	WASHER, REPAIR (M6 x 25mm OD) BZP	160-014

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 10 Crush Assembly

Morgana Square Back System · Узел обжима корешка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) CRUSH	907-958
1	P.ASSY, (ASM) BOLSTER DRIVE → рис. 11	907-959
2	STEEL, (ASM) SENSOR MOUNT L/H	253-859
3	ELECT ASSY, (ASM) PRO X SENSOR 800mm	905-376
4	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
5	SCREW, SKT HD CAP, M3x14mm BLACK	100-360
6	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
7	WASHER, M5 SQ. SECT.SPRING BZP	160-204
8	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9	STEEL, (VSPM) SENSOR MOUNT	253-349
10	STEEL, (ASM) SENSOR MOUNT R/H	253-860
11	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
12	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
13	WASHER, M5 FORM A BZP	160-003
14	SPACER, (VSPM) M6x111.5mm 10A F	265-659
15	WASHER, M8 FORM C BZP	160-212
16	WASHER, M8 SQ. SECT.SPRING BZP	160-206
17	SCREW, SKT HD CAP, M8x16mm BZP	100-359
18	P.ASSY, (ASM) IDLER SHAFT	907-986
18a	SHAFT, (VSPM) IDLER	265-682
18b	WASHER, M6 FORM A BZP	160-004
18c	SCREW, SKT HD CAP, M6x12mm BZP	100-355
19	P.ASSY, (VSPM) TENSION SPROCKET	907-432
20	ELEC-HARDWARE, CABLE TIE-small	710-016
21	P.ASSY, (ASM) SENSOR BRACKET	907-955
21a	EL ASSY, VARIO FIXED FOCUS SENSOR-STR	905-287
21b	STEEL, (ASM) SENSOR BRACKET	253-908
22	STEEL, DRIVE MOUNTING PLATE	253-906
23	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
24	STEEL, (VSPM) MOUNTING BAR	253-348

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 11 Bolster Drive Assembly

Morgana Square Back System · Привод опоры

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) BOLSTER DRIVE	907-959
1	P.ASSY, CB-6 CLUTCH ANTI CLOCKWISE	907-977
1a	SCREW, SKT HD CAP,1/4"20UNCx1 1/4" S/S	100-320
1b	WASHER, M6 SQ. SECT.SPRING BZP	160-203
1c	WASHER, M6 FORM A BZP	160-004
1d	SPROCKET, 29T x 8mm PLATE WHEEL	192-439
1e	ST STEEL, (VTM) SPACER 12.7x6.4x16 LG	257-408
1f	CLUTCH, CB 6ANTI-CLOCKWISE 3/4"BORE	760-342
2	SPACER, (VSPM) HEX M 8x120mm 13A F	265-661
3	NUT, M8 HEX FULL BZP	150-007
4	TUBE, (VTM) 11mmO/D x 8mmI/D x 14mm LG	360-408
5	SCREW, SKT HD CAP, M8 x 35mm BZP	100-327
6	STEEL,KEY 3/16" SQ x24/25mm LG FLAT END	254-502
7	SHAFT, DRIVE 19mm dia x 455mm LONG	265-660
8	SHAFT, (ASM) HAND CRANK	265-851
9	SPROCKET, (VSPM) INTERMEDIATE DRIVE 15 T	192-458
10	CHAIN, DRIVE 8mm x 57 PITCH (+CON LINK)	192-459
11	GRUB SCREW, M4 x 6mm CUP POINT	149-201
12	SPROCKET, (VSPM) FINAL DRIVE-30 T	192-457
13	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
14	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
15	LABEL, (VTM) SAFETY BLADE GUARD	500-248
16	NYLON, (VSPM) SPACER x 5mm THICK	315-599
17	NYLON, WASHER OD 19mmxID13mmx1.5mmTHICK	320-323
18	P.ASSY, (ASM) CAM LINK	907-979
18a	BEAR,OILITE FLAN GED ID1/2"xOD3/4"x1/2"	190-311
18b	P.ASSY, (ASM) LINK ARM PILLAR	907-978
18c	SHAFT, (VSPM) BALL BUSH	265-664
18d	SPRING, (VSPM) DIE	180-381
18e	SPRING, DISC 15x8.2x0.8 thick	180-384
18f	STEEL, (ASM) RETURN PLATE	253-911
18g	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
18h	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
18i	SPACER, (VSPM) STAND-OFF POST 4mm LG	265-666
18j	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
18k	SHAFT, (VSPM) LINK ARM-UPPER	265-662
19	PIN, DIA 4mm x 40mm SPIROL PIN	400-357
20	PART ASSY,(VTRM) CAM BLADE RETURN	909-684
21	P.ASSY, (VSPM) CARRIAGE GUIDE	907-388
21a	SHAFT, (VSPM) CARRIAGE GUIDE	265-667
21b	SHAFT, (VSPM) ECCENTRIC COLLAR	265-670
21c	SCREW, SKT HD SHLDER, M8x16mm (MOD)	110-207
21d	SHAFT, (VSPM) CAM ROLLER-DELRIN	265-671
21e	NUT, M8 HEX FULL BZP	150-007
21f	SCREW, SKT HD CAP, M4x25 HIGH TENSILE	100-349
21g	WASHER, M4 SQ. SECT.SPRING BZP	160-205
21h	STEEL, (VSPM) WHEEL PLATE	253-351
21i	BEARING, (VSPM) ROLLER FOLLOWER	190-334
21j	SHAFT, (VSPM) CARRIAGE MOUNT	265-669
21k	SHAFT, (VSPM) CARRIAGE	265-668
22	SCREW, SKT HD CAP, M3x16mm STAINLESS	100-361
23	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
24	P.ASSY, (ASM) BOLSTER SIDEPLATE S → рис. 12	907-961

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 12 Bolster Side Plates

Morgana Square Back System · Боковины опоры

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) BOLSTER SIDEPLATE S	907-961
1	P.ASSY, (ASM) SIDEPLATE R/H	907-962
1a	ALUMINIUM, (VSPM) SIDEPLATE	251-435
1b	BEARING, FLANGED OILITE 1/2" x 5/8"x 1/2"	190-346
1c	WASHER, M10 FORM A BZP	160-006
1d	BEAR, OILITE FLANGED ID3/4"xOD1"x3/4"	190-310
1e	BEARING, CAM ECCENTRIC 26mm	190-317
2	P.ASSY, (VSPM) BOLSTER	907-389
2a	SHAFT, (VSPM) SPIGOT BLADE RETURN	265-674
2b	PIN, NEEDLE ROLLER 5mm x 11.8mm	400-315
2c	ALUMINIUM, (VSPM) BOLSTER	251-437
3	ST STEEL, (VSPM) BOLSTER SENSOR FLAG	257-443
4	P.ASSY, (ASM) MAGNET ASSEMBLY	890-298
5	SPRING, (ASM) CONICAL	180-403
6	ALUMINIUM, (VSPM) ANVIL CLAMP BAR	251-438
7	P.ASSY, (ASM) SIDEPLATE L/H	907-963
7a	BEARING, FLANGED OILITE 1/2" x 5/8"x 1/2"	190-346
7b	WASHER, M10 FORM A BZP	160-006
7c	BEAR, OILITE FLANGED ID3/4"xOD1"x3/4"	190-310
7d	ALUMINIUM, (VSPM) SIDEPLATE	251-435
7e	BEARING, CAM ECCENTRIC 26mm	190-317
8	SHAFT, (VSPM) MOUNTING BLOCK	265-672
9	SCREW, SKT HD CAP, M6x20 H.TENSILE BZP	100-351
10	WASHER, M6 SQ. SECT.SPRING BZP	160-203
11	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
12	NUT, M5 HEX FULL BZP	150-005
13	PLASTIC, THUMB SCREW M5 x 20mm	315-447
14	WASHER, M10 FORM A BZP	160-006
15	WASHER, M6 FORM A BZP	160-004
16	BEARING, CAM ECCENTRIC 26mm	190-317
17	ALUMINIUM, (VSPM) TIE PLATE x 397mm LG	251-436
18	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
19	WASHER, M5 FORM A BZP	160-003

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 13 Side Plate R/H Electrics

Morgana Square Back System · Электрика правой боковины

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, SIDEPLATE RH ELECTRICS 230V	890-048
—	P.ASSY, SIDEPLATE R/H ELECTRICS 115V	907-989
1	SWITCH, ILLUM 230V GREEN, 16A/150A p k	700-012
1	SWITCH, ILLUM 115V RED HIGH INRUSH	700-013
2	CABLE ASSEMBLY, (ASM) HIGH VOLTS	742-486
2a	WIRE ASSY, PUSH-ON/BLUE/PUSH-ON	740-292
2b	WIRE, P-BK PUSH-ON/1.0mm2 BLUE/720-070	740-274
2c	WIRE ASSY, PUSH -ON/BROWN/PUSH-ON	740-293
2d	WIRE, P-BK PUSH-ON/1.0mm2 BROWN/720-070	740-273
2e	SOCKET, ML X 4W A Y BODY	722-074
2f	WIRE, 720-070/1.0mm2 VIOLET/720-070	740-279
2g	WIRE, 720-070/1.0mm2 VIOLET/720-070	740-278
2h	ELEC-HARDWARE, CABLE TIE-small	710-016
2i	WIRE, 2 BA EYELET/1.0mm2 G N-Y/PUSH-ON	740-276
2j	WIRE, 2 BA-EYELET/1.0mm2 G N-Y/720-070	740-283
2k	WIRE, 2 BA-EYELET/1.0mm2 G N-Y/720-070	740-282
2l	WIRE, 2 BA-EYELET/1.0mm2 G N-Y/2 BA-EYELET	740-284
2m	WIRE, 2 BA EYELET/1.0mm2 G N-Y/720-070	740-275
2n	SOCKET, ML X 3W A Y BODY	722-073
2o	WIRE, PUSH-ON/1.0mm2 BROWN/720-070	740-277
2p	WIRE, PUSH-ON/1.0mm2 BLUE/720-070	740-281
2q	WIRE, P-BK PUSH-ON/1.0mm2 BLUE/720-070	740-280
3	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	STAINLESS STEEL, MAIN SWITCH PLATE	257-302
6	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
7	PCB ASSEMBLY, POWER INTERFACE (ECO)	900-141
8	CABLE ASSEMBLY, (ASM) LOW VOLTS POWER	742-493
9	P.ASSY, (ASM) FAN & BRACKET	890-302
9a	NUT, M3 HEX FULL BZP	150-002
9b	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
9c	STEEL, FAN BRACKET	252-199
9d	ELECTRICAL ASSEMBLY, (ASM) 12V DC FAN	905-389
9e	SCREW, SKT HD CAP, M3x16mm STAINLESS	100-361
10	P.ASSY, (VBM) TRANSFORMER & BRACKET	908-882
10a	STEEL, (VBM) TRANSFORMER BRACKET	253-089
10b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10c	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
10d	ELECT.ASSY, VARIO INPUT TRANS.100-240V	905-154
11	NUT, M5 HEX FULL BZP	150-005
12	WASHER, M5 FORM A BZP	160-003
13	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
14	NUT, M3 HEX FULL BZP	150-002
15	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
16	LABEL, 230V	500-009
16	LABEL, 115V	500-252
17	SCREW, POZI Mach C/S, M3 x 16mm BZP	145-006
18	FUSE,1.25" HOLDER (FOR 720-016/019)	730-008
19	FUSE, 1.25", 5.0A, HRC-QUICK ACTING, F	730-016
19	FUSE, 1.25", 10.0A, HRC-QUICK ACTING, F	730-020
20	WIRE, PUSH-ON 0.187/1.0mm2 BROWN/PUSH-ON	740-291
21	WIRE, PUSH-ON 0.187/1.0mm2 G N/Y/2 BA EYELET	740-272
22	PLUG, MAINS ENTRY - 10A	720-019
23	WIRE, PUSH-ON 0.187/1.0mm2 BLUE/PUSH-ON	740-290
24	WIRE, PUSH-ON 1.0mm2 G N/Y/2 BA-EYELET	740-289
25	LABEL, (VDRV) PRIMARY EARTH	500-254
26	FILTER, MAINS-100-250V 10A 50/60Hz	640-076
27	HEX HEAD SCREW, M5x30 HIGH TENSILE	113-309
28	P.ASSY, (ASM) SIDEPLATE R/H → рис. 14	907-980
29	SCREW, SKT HD CAP, M3 x 10mm STAINLESS	100-326
30	ELECT ASSY, (ASM) CARRIAGE MTR 0R 6825W	905-377
31	WASHER, M3 FORM A BZP	160-002
32	NUT, M3 NYLOC-TYPE T BZP	150-033

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 14 Side Plate R/H

Morgana Square Back System · Правая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) SIDEPLATE R/H	907-980
1	SCREW,SKT HD CAP,M5x45 HIGH TENSILE ZP	100-350
2	SHAFT, (ASM) LOCATION POST	265-814
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	SHAFT, (ASM) LOCATION SPIGOT	265-829
5	ELEC-HARDWARE, PCB PILLAR 15.9mm	710-341
6	WASHER, M5 FORM A BZP	160-003
7	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
8	STEEL, (ASM) BEARING PLATE 22mm OD	253-874
9	STEEL, (ASM) COVER BRACKET	252-089
10	SHAFT, (ASM) SPACER M 5x19 OD x 26.5 L	265-839
11	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
12	WASHER, M5 x 20mm OD	160-052
13	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
14	NUT, M5 NYLOC-TYPE P BZP	150-035
15	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
16	SHAFT, (ASM) HEX SPACER 8A F xM 5x60	265-822
17	STEEL, (ASM) BEARING PLATE	253-815
18	PLASTIC, MAINS TIE WRAP SPACER	315-580
19	ELEC-HARDWARE, CABLE TIE-small	710-016
20	SCREW, SKT HD BUTTON,M4x20mm STAINLESS	101-047
21	WASHER, M4 FORM A BZP	160-001
22	PLASTIC, (VTM) BUMP STOP	315-561
23	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
24	SCREW, SKT HD BU TTON,M4x12mm STAINLESS	101-331
25	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
26	STEEL, (ASM) MOTOR SUPPORT BRACKET	253-886
27	P.ASSY, (ASM) SIDE FRAME R/H WELDED	907-950
28	LABEL, EARTH SYMBOL	500-006
29	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
30	CRIMP CONNECTOR, M5-0.25"SPADE 45 DEG	711-091

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 15 Side Plate L/H

Morgana Square Back System · Левая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) SIDEPLATE L/H	907-981
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	STEEL, (ASM) COVER BRACKET	252-089
4	NUT, M5 NYLOC-TYPE P BZP	150-035
5	WASHER, M5 x 20mm OD	160-052
6	STEEL, (ASM) DOUBLE BEARING PLATE	253-816
7	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
8	WASHER, M5 FORM A BZP	160-003
9	SHAFT, (ASM) SPACER M 5x19 OD x 26.5 L	265-839
10	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
11	SHAFT, (ASM) LOCATION SPIGOT	265-829
12	SCREW,SKT HD CAP,M5x45 HIGH TENSILE ZP	100-350
13	SHAFT, (ASM) LOCATION POST	265-814
14	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
15	SCREW, SKT HD BU TTON,M4x12mm STAINLESS	101-331
16	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
17	SCREW, SKT HD BUTTON,M4x20mm STAINLESS	101-047
18	WASHER, M4 FORM A BZP	160-001
19	PLASTIC, (VTM) BUMP STOP	315-561
20	STEEL, (ASM) MOTOR SUPPORT BRACKET	253-886
21	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
22	SERVICE AID, (ASM) CRANK BAR	955-014
23	ELEC-HARDWARE, S/A CABLE TIE PAD (SMALL)	710-327
24	ELEC-HARDWARE, CABLE TIE-small	710-016
25	LABEL, (VBM) HAND CRANK DIRECTION	500-236
26	STEEL, (ASM) BEARING PLATE	253-815
27	SHAFT, (ASM) HEX SPACER 8A F xM 5x60	265-822
28	P.ASSY, (ASM) SIDE FRAME L/H WELDED	907-949

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 16 Main Drive Assembly

Morgana Square Back System · Главный привод

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) MAIN DRIVE 230V	907-814
—	P.ASSY, (ASM) MAIN DRIVE 115V	907-988
1	GRUB SCREW, M4 x 6mm CUP POINT	149-201
2	SPROCKET, (VSPM) MOTOR 29 T 230V	192-464
2	SPROCKET, (VSPM) MOTOR 24 T 115V	192-466
3	EL ASSY, (ASM) BASE PAN & MOTOR 230V	905-380
3a	SHAKEPROOF WASHER, M8 EXTERNAL	165-204
3b	NUT, M8 NYLOC-TYPE P BZP	150-038
3c	EL ASSY, (VSPM) MOTOR 230V	905-345
3c	EL ASSY, (VSPM) MOTOR 115V	905-351
3d	LABEL, 230V	500-009
3d	LABEL, 115V	500-252
3e	ELEC-HARDWARE, CABLE CLAMP 7.9 dia	710-308
3f	WASHER, M8 FORM B BZP	160-011
3g	NUT, M8 HEX FULL BZP	150-007
3h	STEEL, (VSPM) SPACER PLATE	253-389
3i	P.ASSY, (ASM) BASE PAN	907-815
3j	SHAKEPROOF WASHER, M8 INTERNAL BZP	165-005
3k	SCREW, SKT HD CAP, M8 x 35mm BZP	100-327
4	PLASTIC, (VBM) BUMP STOP	315-556
5	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
6	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
13	EL ASSY, (ASM) BASE PAN & MOTOR 115V	905-379

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 17 Stop Mechanism

Morgana Square Back System · Механизм упора

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VSPM) STOP MECHANISM	907-404
1	P.ASSY, (VSPM) STOP	907-395
2	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
3	P.ASSY, (VSPM) STOP MOUNT	907-396
4	P.ASSY, (VSPM) STOP ARM	907-397
4a	SCREW, SKT HD C/S, M5x10 (+NYLON)	105-317
4b	BEARING, FLANGED OILITE BUSH 8x12x12	190-335
4c	WASHER, (VSPM) M5 SKT C’SK	265-677
4d	SHAFT, (VSPM) STOP ARM	265-678
4e	GRUB SCREW, M4 x 6mm CUP POINT	149-201
4f	SHAFT, (VSPM) STOP ARM STUB x 90mm LG	265-679
5	ST STEEL, WASHER OD 16mm xID 8.2mm x 0.5mm	257-365
6	ST STEEL, WASHER OD16mmxID8.2mmx0.25mm	257-366
7	S/PROOF WASHER, M8 STAINLESS CRINKLE	165-205
8	WASHER, M8 FORM B BZP	160-011
9	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
10	SHAFT, ADJUSTER BAR x 180mm LG	265-680
11	SPRING, (VSPM) COMPRESSION	180-382
12	SHAFT, ADJUSTER STUB x 62mm LONG	265-681
13	P.ASSY, (VSPM) ADJUSTER SUPPORT	907-398
13a	BEAR,OILITE FLAN GED ID1/2"xOD3/4"x1/2"	190-311
13b	PLASTIC, THUMB SCREW M5 x 20mm	315-447
13c	NUT, M5 HEX FULL BZP	150-005
13d	SHAFT, (VSPM) SUPPORT SLEEVE (TAPPED)	265-684
13e	BELT, TIMING T 5-127 tx 10mm WIDE	914-427
13f	SCREW,SKT HD CAP,M5x25 HIGH TENSILE ZP	100-357
13g	P.ASSY, (VSPM) ADJUSTER STOP SUPPORT	907-399
13h	BEARING, FLANGED OILITE BUSH 8x12x12	190-335
14	NUT, M5 HEX FULL BZP	150-005
15	P.ASSY, (VSPM) ADJ.SUPPORT R/H	907-425
16	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
17	WASHER, M5 SQ. SECT.SPRING BZP	160-204
18	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
19	SPRING, COMPRESSION, 25.4mm x 11.5mm	180-012
20	SCREW,SKT HD CAP,M5x25 HIGH TENSILE ZP	100-357
21	PULLEY, FLANGED T 5-16 T	192-460
22	PIN, M3 x 18mm LG SPIROL	400-393
23	WASHER, M10 FORM A BZP	160-006
24	SPRING, 15mm x 20mm, 33lb/in	180-001
25	P.ASSY, (VSPM) ADJ.SUPPORT L/H	907-424
26	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 18 Stacker Assembly

Morgana Square Back System · Приёмник

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) STACKER	907-819
1	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	NYLON, SPACER OD 12mm xID 8.2mm x 5mm LONG	320-321
4	SHAFT,(VOSC) SPACER 8mmODx5mmIDx22mm	265-445
5	PLASTIC MOULD, (V) PINCH WHEEL	310-377
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
8	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
9	P.ASSY, (ASM) STACKER SUPPORT	907-821
9a	NUT, M5 NYLOC-TYPE P BZP	150-035
9b	NUT, M5 HEX FULL BZP	150-005
9c	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9d	STEEL, (ASM) STACKER TOP	253-853
9e	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
9f	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
9g	P.ASSY, (ASM) FRONT SHAFT	907-935
10	P.ASSY, (ASM) STACKER LOCK ASSY	907-946
10a	STEEL, (ASM) STACKER RELEASE LEVER	253-854
10b	SHAFT, (ASM) TIE BAR 8x213.5	265-833
10c	PLASTIC MOULD, (V) PINCH WHEEL	310-377
10d	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
10e	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
11	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
12	STEEL, (ASM) BRACKET STACKER GUIDE RH	253-887
13	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
14	SHAFT, (ASM) TIE BAR 8x149.4mm	265-850
15	P.ASSY, (ASM) STACKER DRIVE → рис. 19	907-975
16	STEEL, (ASM) BACKSTOP STACKER	253-856
17	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
18	STEEL, (ASM) DEFLECTOR BRACKET	253-879
19	P.ASSY, (ASM) TOP ELECTRICAL PLATE → рис. 20	907-976
20	NUT, M5 HEX FULL BZP	150-005
21	NUT, M3 NYLOC-TYPE T BZP	150-033
22	WASHER, M3 FORM A BZP	160-002
23	STEEL, (ASM) BRACKET STACKER GUIDE LH	253-888
24	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
25	SPRING, (VFCN) BALANCE	180-322
26	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 19 Stacker Drive Assembly

Morgana Square Back System · Привод приёмника

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) STACKER DRIVE	907-975
1	P.ASSY, (ASM) STACKER PINCH DRIVE	907-944
1a	SHAFT, SPACER M 5x8 OD x 166+GROOVES	265-840
1b	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
1c	PLASTIC, (ASM) NI P ROLLER 8x15x27Lg	315-660
2	P.ASSY, (ASM) STACKER TOP	907-820
2a	STEEL, (ASM) STACKER TOP	253-846
2b	STEEL, (ASM) SIDEPLATE R/H	253-844
2c	STEEL, (ASM) SIDEPLATE L/H	253-845
3	STEEL, (ASM) STACKER SUPPORT L/H	253-852
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
6	PL MOULDING, ANTI -STATIC BEARING BUSH	310-610
7	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
8	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
9	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
10	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
11	P.ASSY, (ASM) STACKER DRIVE SHAFT	907-940
11a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
11b	PIN, DIA 4mm x 20mm DOWEL	400-405
11c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
11d	PIN, DIA 4mm x 24mm DOWEL	400-355
11e	GEAR, (ASM) 37 T WITH BOSS 1/2"BORE	192-496
11f	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
11g	SHAFT, (ASM) DRIVE SHAFT	265-832
12	BELT, (ASM) STACKER MAM-04 H x 25x1012	914-503
13	P.ASSY, (ASM) STACKER IDLER SHAFT	907-945
13a	SHAFT, (ASM) IDLER SHAFT	265-834
13b	P.ASSY, (V O G B) PULLEY ASSY	907-596
13c	RUBBER MOULDING, FEED WHEEL (WHITE)	330-301
13d	PL MLDING, PINCH WHEEL BUSHx16.5mm LG	310-600
13e	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
13f	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
14	STEEL, (ASM) STACKER SUPPORT R/H	253-851

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 20 Top Electrical Plate

Morgana Square Back System · Верхняя электрическая панель

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) TOP ELECTRICAL PLATE	907-976
1	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	STEEL, HAMLIN SENSOR BRACKET	253-865
4	CABLE ASSEMBLY, (ASM) PAYOUT FEED SW	742-499
5	SWITCH, LEVER ARM - HAMLIN	700-402
6	RUBBER, GROMMET 3/8"BORE 16 SWG PANEL	330-049
7	P.ASSY, (ASM) TOP PLATE	907-825
8	ELEC-HARDWARE, CABLE TIE-small	710-016
9	P.ASSY, STACKER DRIVE MOTOR SWITCH	907-943
9a	CABLEASSY, (ASM) PAYOUT FEED FULL SW	742-500
9b	P.ASSY, (ASM) TRAY LIFT MOTOR & GEAR	907-954
9c	NUT, M3 NYLOC-TYPE T BZP	150-033
9d	WASHER, M3 FORM A BZP	160-002
9e	SWITCH, (VTRM) BIN GUARD	700-088
9f	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
9g	SCREW, SKT HD BUTTON, M3x10mm BLACK	101-002
9h	STEEL, (ASM) MOTOR BRACKET	253-849
9i	SCREW, SKT HD CAP, M3 x 25mm STAINLESS	100-311
10	PCB ASSEMBLY, ASM PAYOUT CONNECT	900-201
11	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
12	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
13	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
14	WASHER, M5 SQ. SECT.SPRING BZP	160-204

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 21 Input Conveyor

Morgana Square Back System · Входной транспортёр

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) SAMPLE CONVEYOR	907-818
1	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
4	SHAFT, (VSF) Dia 8mm x 365mm CON V TIE ROD	265-271
5	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
8	STEEL, (ASM) SAMPLE CONVEYOR BRKT R/H	253-841
9	BELT, SAMPLE CONVEYOR MAT-02 H x 25x855	914-502
10	P.ASSY, (ASM) PICKUP DRIVE	907-810
10a	SHAFT, (ASM) INFEED SHAFT 12.7x398	265-819
10b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
10c	PIN, DIA 4mm x 20mm DOWEL	400-405
10d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
11	STEEL, (ASM) SAMPLE CONVEYOR BRKT L/H	253-842
12	PIN, DIA 4mm x 24mm DOWEL	400-355
13	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
14	GEAR, R/H HELICAL 14 T 10 D P ACETAL	192-497
15	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
16	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
17	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
18	SPRING STRUT, (VBM) LID STAY	180-374
19	WASHER, M5 FORM A BZP	160-003
20	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
21	ST STEEL, WASHER OD16mmxID8.2mmx0.25mm	257-366
22	ST STEEL, WASHER OD 16mm xID 8.2mm x 0.5mm	257-365
23	P.ASSY, (ASM) IDLER SHAFT	907-797
23a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
23b	PIN, DIA 4mm x 20mm DOWEL	400-405
23c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
23d	SHAFT, (ASM) INFEED IDLER SHAFT	265-818

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 22 Top Delivery Assembly

Morgana Square Back System · Верхний вывод

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) TOP DELIVERY ASSY	907-796
1	P.ASSY, (ASM) COVER	907-974
1a	STEEL, (ASM) COVER	253-823
1b	WASHER, M5 FORM A BZP	160-003
1c	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
1d	P.ASSY, (ASM) TOP COVER	907-947
1e	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
1f	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
2	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
3	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
4	STAINLESS STEEL, (ASM) LEAF SPRING	257-511
5	P.ASSY, (ASM) FEED WHEEL	907-937
5a	SHAFT, (ASM) IDLER FEED SHAFT	265-817
5b	RUBBER MOULDING, FEED WHEEL (WHITE)	330-301
6	P.ASSY, (ASM) OUTFEED 5W HEEL SHAFT	907-938
6a	SHAFT, (ASM) UPFEED SHAFT 12.7x398	265-837
6b	PIN, DIA 4mm x 20mm DOWEL	400-405
6c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
6d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
7	P.ASSY, (ASM) TOP SHAFT OUTFEED	907-936
7a	SHAFT, (ASM) TOP DEFLECTOR SHAFT	265-838
7b	PIN, DIA 4mm x 20mm DOWEL	400-405
7c	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
7d	PLASTIC MOULDING, ROLLER 25.4mm	310-690
8	BELT, (ASM) MAT-02 H-25-382 LONG	914-493
9	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
10	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
11	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
12	PIN, DIA 4mm x 24mm DOWEL	400-355
13	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
14	GEAR, L/H HELICAL 14 T 10 D P ACETAL	192-498
15	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
16	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
17	ST STEEL, (ASM) CHANNEL BELT GUIDE	257-546
18	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
19	SHAFT, (VATR) SPACER DIA 8mmx5.1x8mmLG	265-522
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	P.ASSY, (ASM) LATCH ASSY L/H	907-798
22	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
23	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
24	P.ASSY, (ASM) UNDERCOVER	890-091
25	P.ASSY, (ASM) UPFEED CONVEYOR → рис. 23	907-995
26	SHAFT, (ASM) TIE BAR 12.7x423 LONG	265-843
27	TUBE, (ASM) 17.2 OD x 1.5W ALL x 26.5	360-661
28	P.ASSY, (ASM) LATCH ASSY R/H	907-799
29	PL MOULDING, ANTI-STATIC BEARING BUSH	310-610

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 23 Upfeed Conveyor

Morgana Square Back System · Подъёмный транспортёр

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) UPFEED CONVEYOR	907-995
1	STEEL, (ASM) TOP DELIVERY FRAME L/H	253-819
2	P.ASSY, (ASM) NYLON WHEEL	907-826
2a	SHAFT, (ASM) TIE BAR 12.7x365	265-820
2b	NYLON, (ASM) WHEEL 150mm OD x 20mm ID	320-407
2c	GRUBSCREW, M5x8mm CONE POINT	149-011
2d	SHAFT, (ASM) WHEEL COLLAR	265-821
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
5	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
8	P.ASSY, (ASM) IDLER SHAFT	907-797
8a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
8b	PIN, DIA 4mm x 20mm DOWEL	400-405
8c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
8d	SHAFT, (ASM) INFEED IDLER SHAFT	265-818
9	BELT, (ASM) MAT 02 H x 25x1925 LONG	914-494
10	SHAFT, (VSF) Dia 8mm x 365mm CON V TIE ROD	265-271
11	P.ASSY, (ASM) TIE BAR 25.4mm ROLLERS	907-939
11a	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
11b	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
11c	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
11d	PLASTIC MOULDING, ROLLER 25.4mm	310-690
11e	SHAFT, (ASM) TIE BAR 12.7x365	265-842
12	P.ASSY, (ASM) TIE BAR 25.4R O L LE RS	907-622
12a	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
12b	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
12c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
12d	SHAFT, (ASM) TIE BAR 12.7x365	265-842
13	STEEL, (ASM) TOP DELIVERY FRAME R/H	253-818
14	STEEL, (ASM) BRACKET LEAF SPRING	253-872

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 24 Infeed

Morgana Square Back System · Узел подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) INFEED	907-807
1	P.ASSY, (ASM) INFEED COVER	907-813
1a	STEEL, (ASM) INFEED COVER	253-837
1b	PART ASSY, SIDELAY RACK GUIDE	909-302
1c	PART ASSY, SIDELAY RACK	909-303
1d	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
1e	PLASTIC MOULDING, SIDELAY MOD L/H	310-710
1f	PLASTIC MLDG, SIDELAY PINION	310-106
1g	PART ASSY, SIDELAY RACK (MODIFIED)	909-304
1h	PLASTIC MOULDING, SIDELAY MOD R/H	310-711
2	P.ASSY, (ASM) INFEED DRIVE → рис. 25	907-971
3	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
4	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
7	NUT, M5 HEX FULL BZP	150-005
8	WIRE, (AS PM) CASSETTE EARTH	740-266
9	WASHER, M5 FORM A BZP	160-003
10	NUT, M5 NYLOC-TYPE P BZP	150-035
11	STEEL, (ASM) PCB MOUNTING PLATE	253-847
12	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
13	ELEC-HARDWARE, CABLE TIE-small	710-016
14	PCB ASSEMBLY, SPINEMASTER AUTO I/F	900-198
15	CABLE ASSEMBLY, ASM I/FACE ATM & TMP	742-480
16	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 25 Infeed Drive

Morgana Square Back System · Привод подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) INFEED DRIVE	907-971
1	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
2	PIN, DIA 4mm x 24mm DOWEL	400-355
3	GEAR, L/H HELICAL 14 T 10 D P ACETAL	192-498
4	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	SHAFT, (VSF) Dia 8mm x 365mm CON V TIE ROD	265-271
7	BELT, INFEED TOP MAT-02 H-697 LONG	914-499
8	BELT, HAND FEED MAT-02 H x 25x315 LONG	914-501
9	STEEL, (ASM) SENSOR PLATE	253-836
10	ELECT.ASSY, VARIO FIX.FOCUS SENSOR-STR	905-162
11	ELEC-HARDWARE, CABLE TIE-small	710-016
12	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
13	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
14	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
15	STEEL, (ASM) INFEED SIDEPLATE R/H	253-831
16	P.ASSY, (ASM) IDLER SHAFT	907-797
16a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
16b	PIN, DIA 4mm x 20mm DOWEL	400-405
16c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
16d	SHAFT, (ASM) INFEED IDLER SHAFT	265-818
17	BELT, INFEED LOWER MAT-02 H x 25x797 LONG	914-500
18	P.ASSY, (ASM) PICKUP DRIVE	907-810
18a	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
18b	PIN, DIA 4mm x 20mm DOWEL	400-405
18c	PLASTIC MOULDING, ROLLER 25.4mm	310-690
18d	SHAFT, (ASM) INFEED SHAFT 12.7x398	265-819
19	STEEL, (ASM) INFEED SIDEPLATE L/H	253-830
20	BEARING, (DIG) FLANGED ROLLER BEARING	190-341
21	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
22	GEAR, R/H HELICAL 14 T 10 D P ACETAL	192-497

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 26 Pedestal Base

Morgana Square Back System · Опорная стойка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (ASM) FRAME ASSY PEDESTAL	907-930
1	P.ASSY, (ASM) LEG	907-931
2	SHAKEPROOF WASHER, M10 INTERNAL BZP	165-004
3	SCREW, SKT HD CAP, M10x16 BZP	100-374
4	SCREW,SKT HD CAP, M6xM16 H/T BZP	100-369
5	WASHER, M6 FORM A BZP	160-004
6	STEEL, (ASM) SUPPORT BRACKET R/H	253-902
7	NUT, M6 NYLOC-TYPE T HALF HEIGHT BZP	150-039
8	P.ASSY, (ASM) CROSS BRACE	907-932
9	P.ASSY, (ASM) PEDESTAL	907-934
10	STEEL, (ASM) SUPPORT BRACKET L/H	253-903
11	COACH BOLT, M8 x 65mm ZINC PLATED	115-021
12	PLASTIC,(XBA)SPAC ER 17.5 X 10.2 IDX8LG	315-503
13	WASHER, M8 FORM C BZP	160-212
14	NYLON, (VFLR) WHEEL O/D 75mm	320-311
15	SHAFT, BUSH 12mmODx8.6mmIDx41.2mm LG	265-220
16	NUT, M8 NYLOC-TYPE T HALF HEIGHT	150-324
17	SCREW, SKT HD CAP, M8x20 BZP	100-373
18	P.ASSY, (ASM) PEDESTAL	907-933

Номера в кружке — сборочные узлы (поставляются в сборе).
