Morgana TrimMaster Pro — каталог запчастей

Триммер Documaster (TrimMaster Pro) для обрезки буклетов. Illustrated Parts Manual 70-075, issue 1 (ноябрь 2005).

Fig 1TrimMaster Pro Complete — машина в сборе
Fig 2TrimMaster Pro & Covers — корпус и облицовка
Fig 3Infeed & Electrics Assembly — подача и электрика
Fig 4Outfeed Assy — узел вывода
Fig 5Infeed Pick Up Drive Assy — привод захвата подачи
Fig 6Waste Conveyor Assembly — транспортёр обрезков

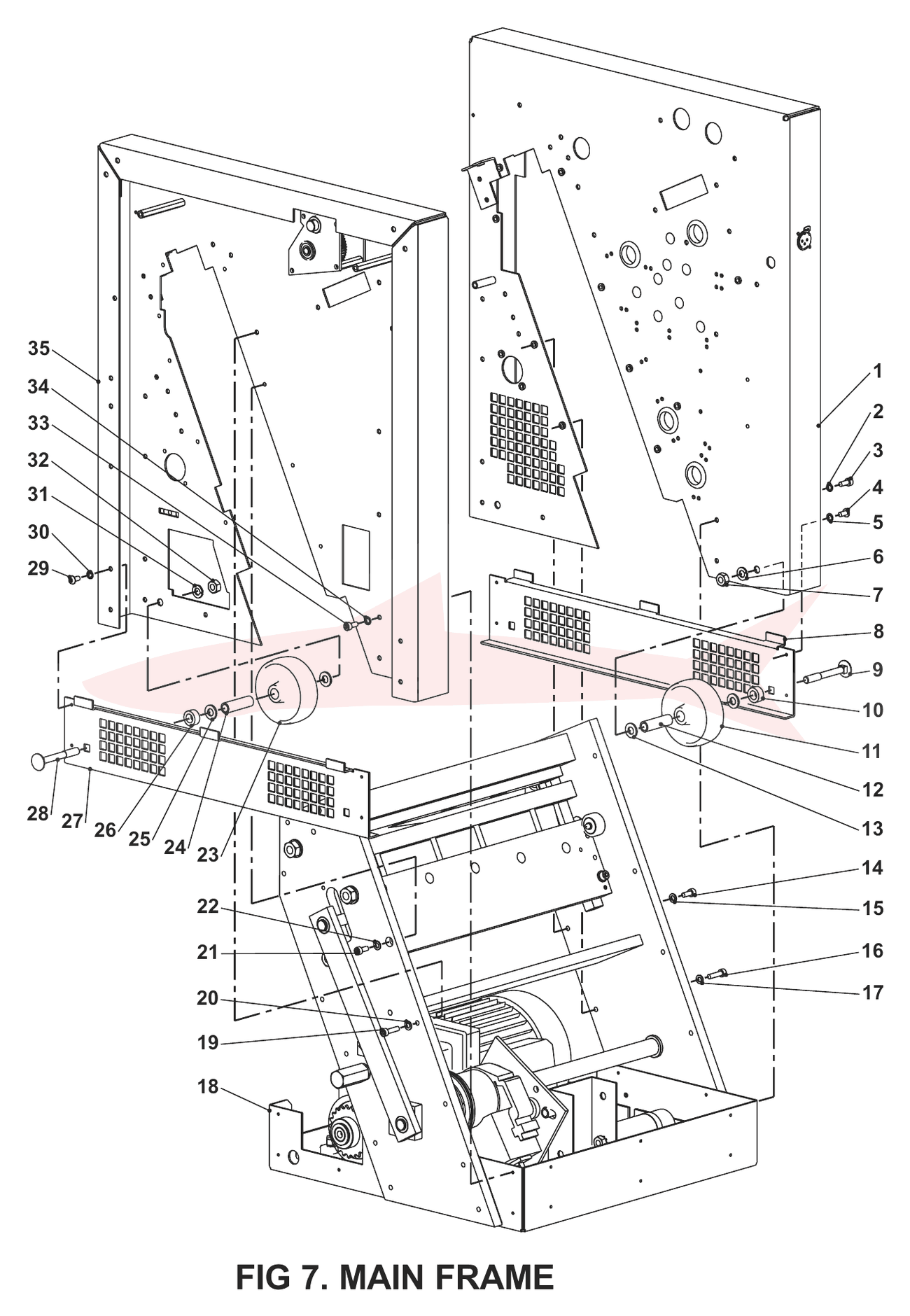

Fig 7Main Frame Assembly — основная рама

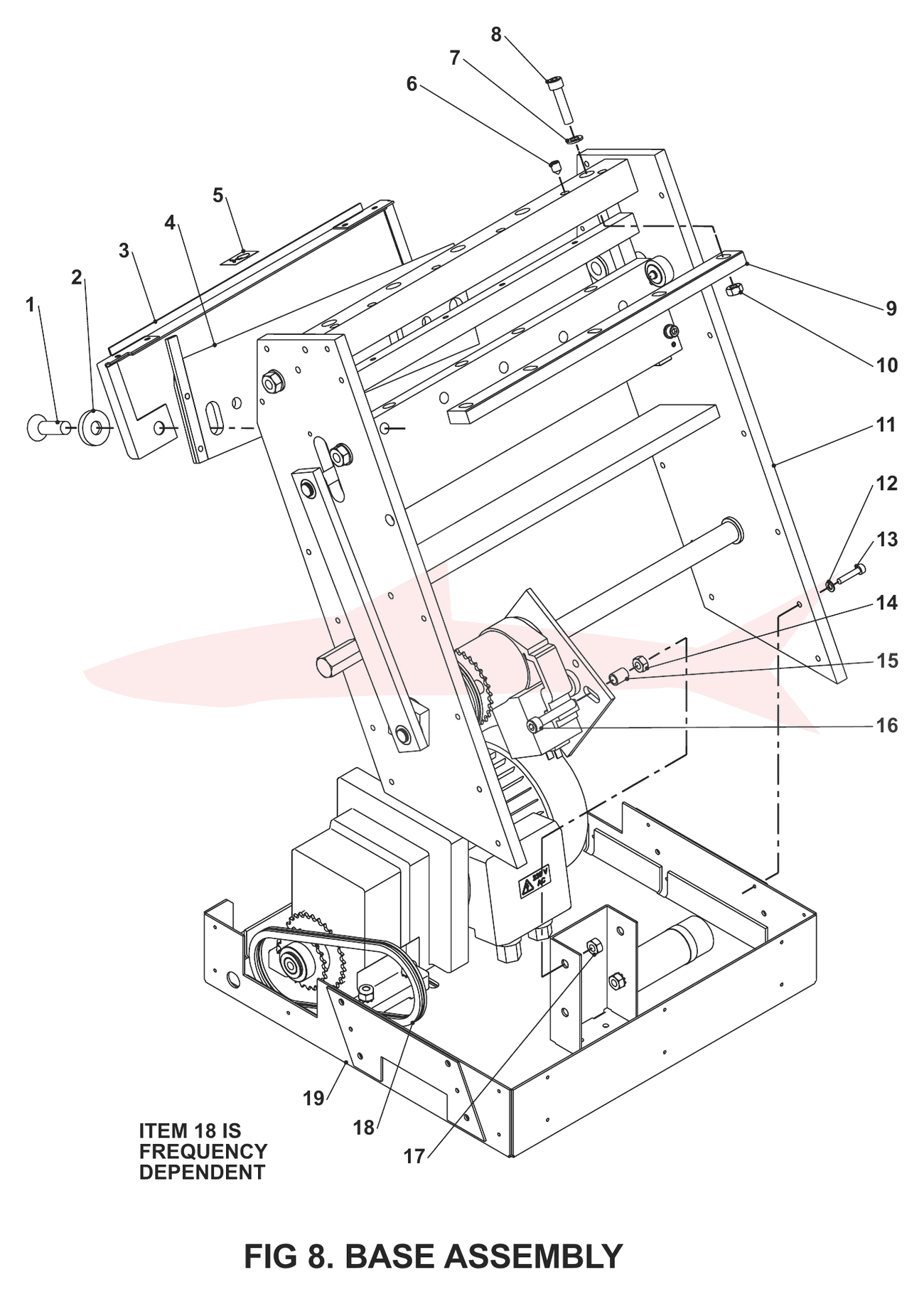

Fig 8Base Assembly — основание

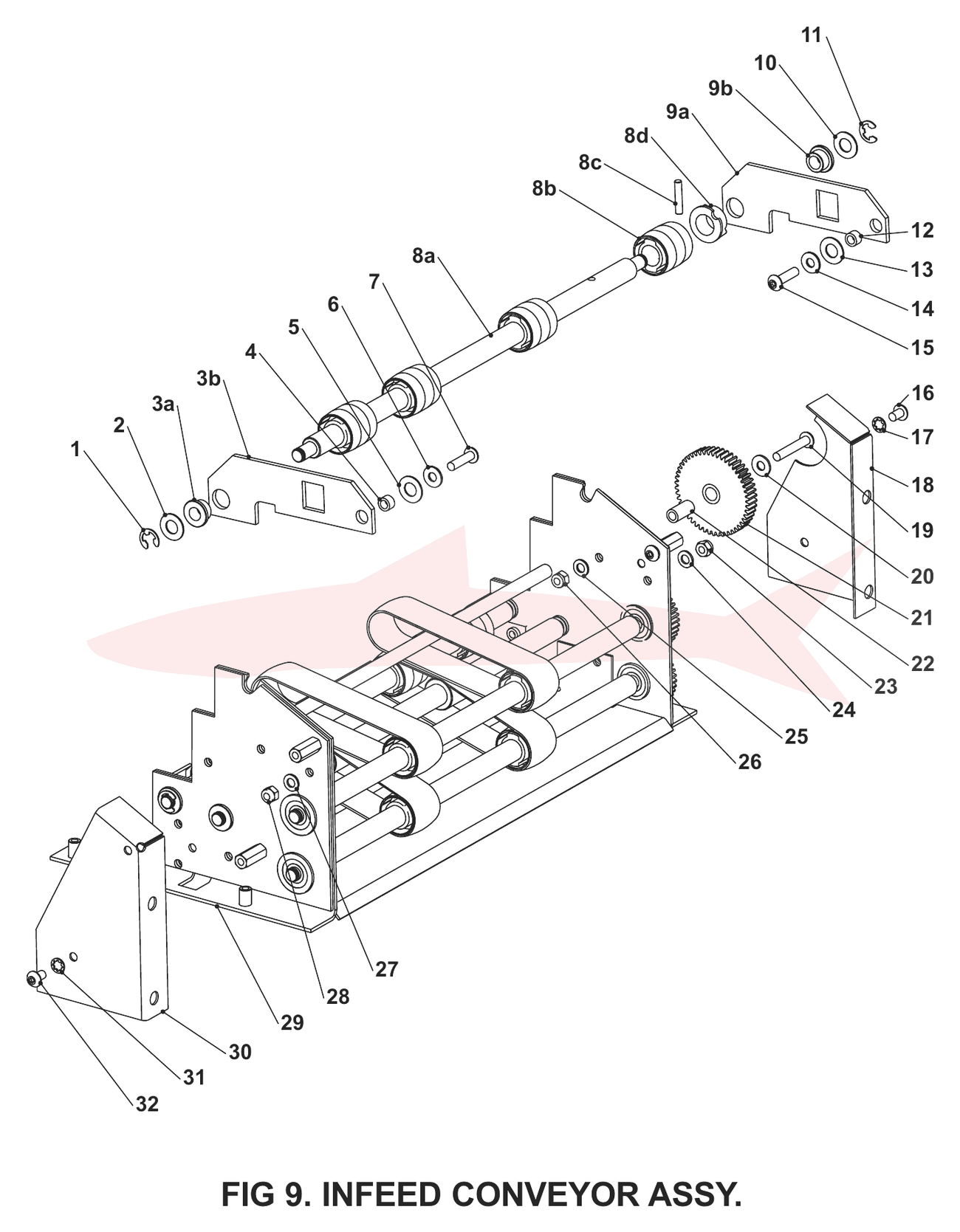

Fig 9Infeed Conveyor Assembly — транспортёр подачи

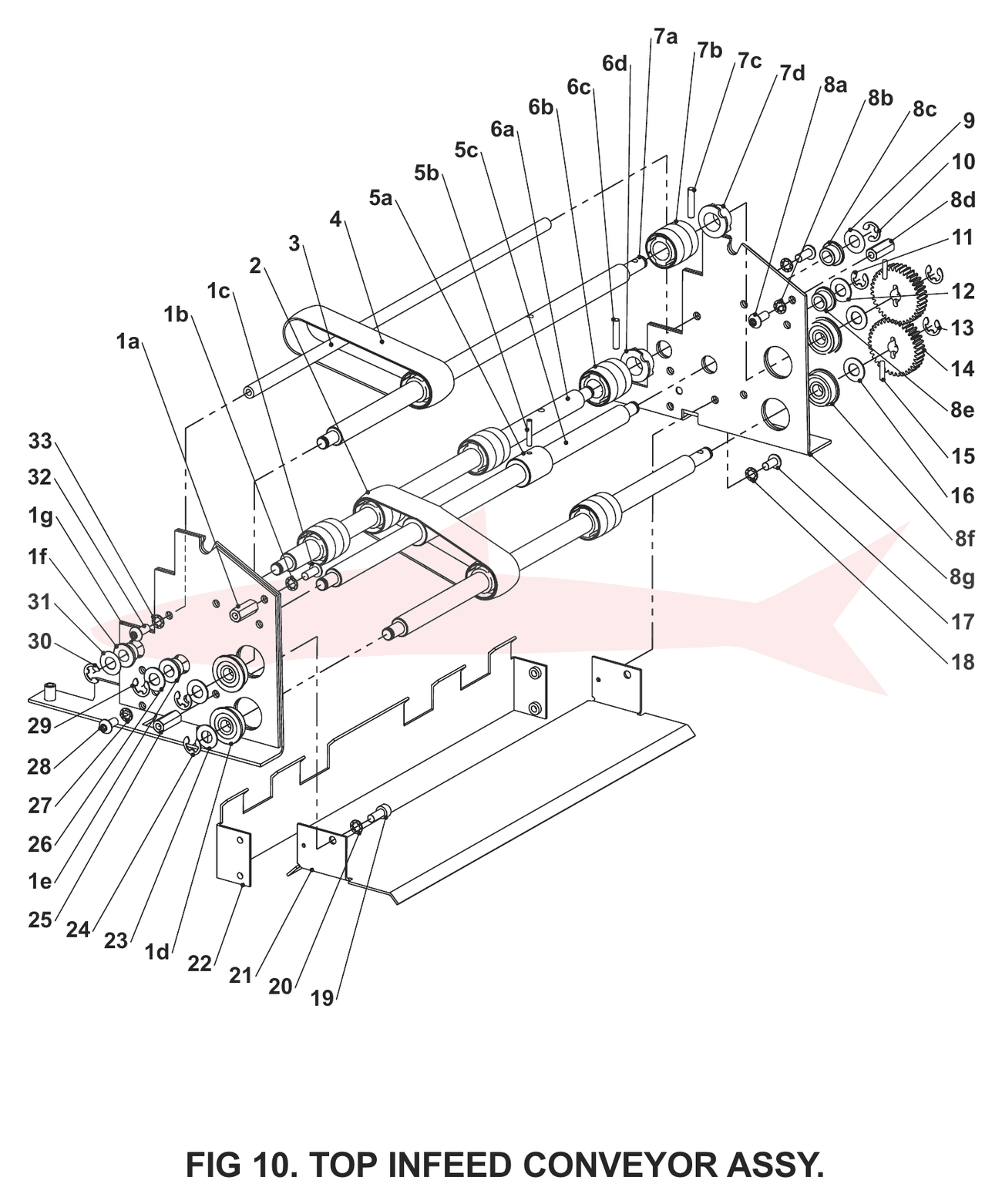

Fig 10Top Infeed Conveyor Assembly — верхний транспортёр подачи

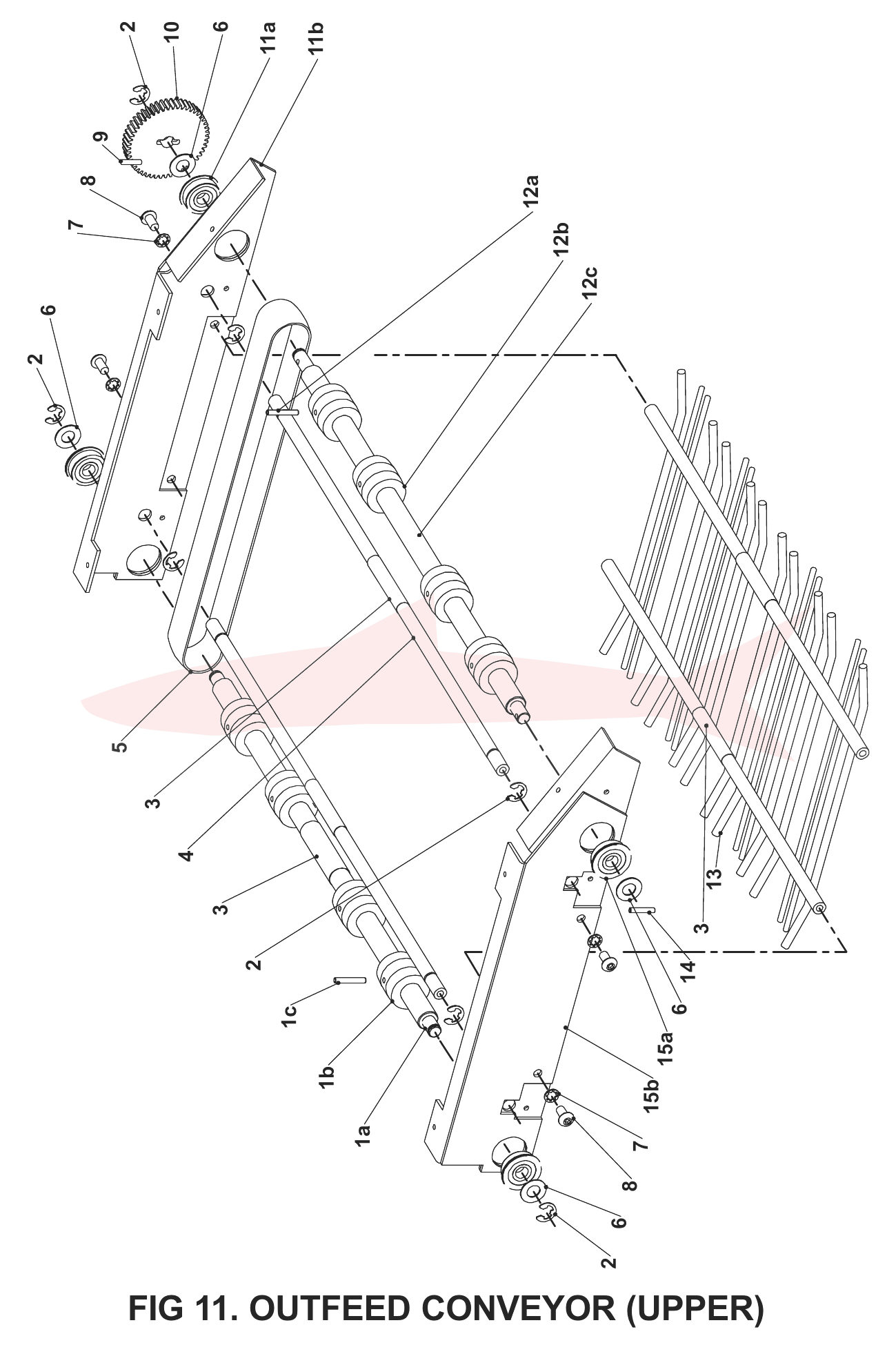

Fig 11Outfeed Conveyor Upper Assy — транспортёр вывода, верхний

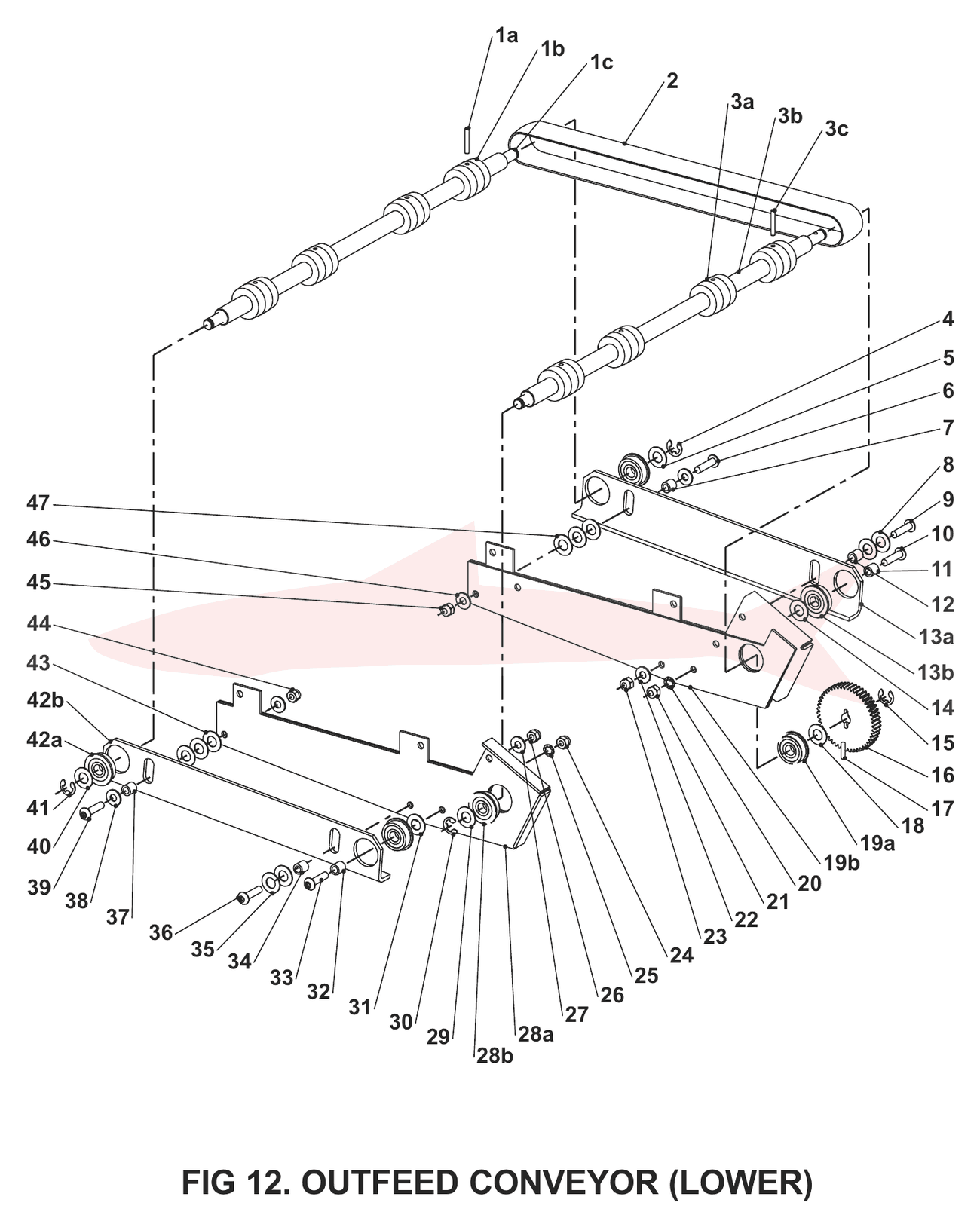

Fig 12Outfeed Conveyor Lower Assy — транспортёр вывода, нижний

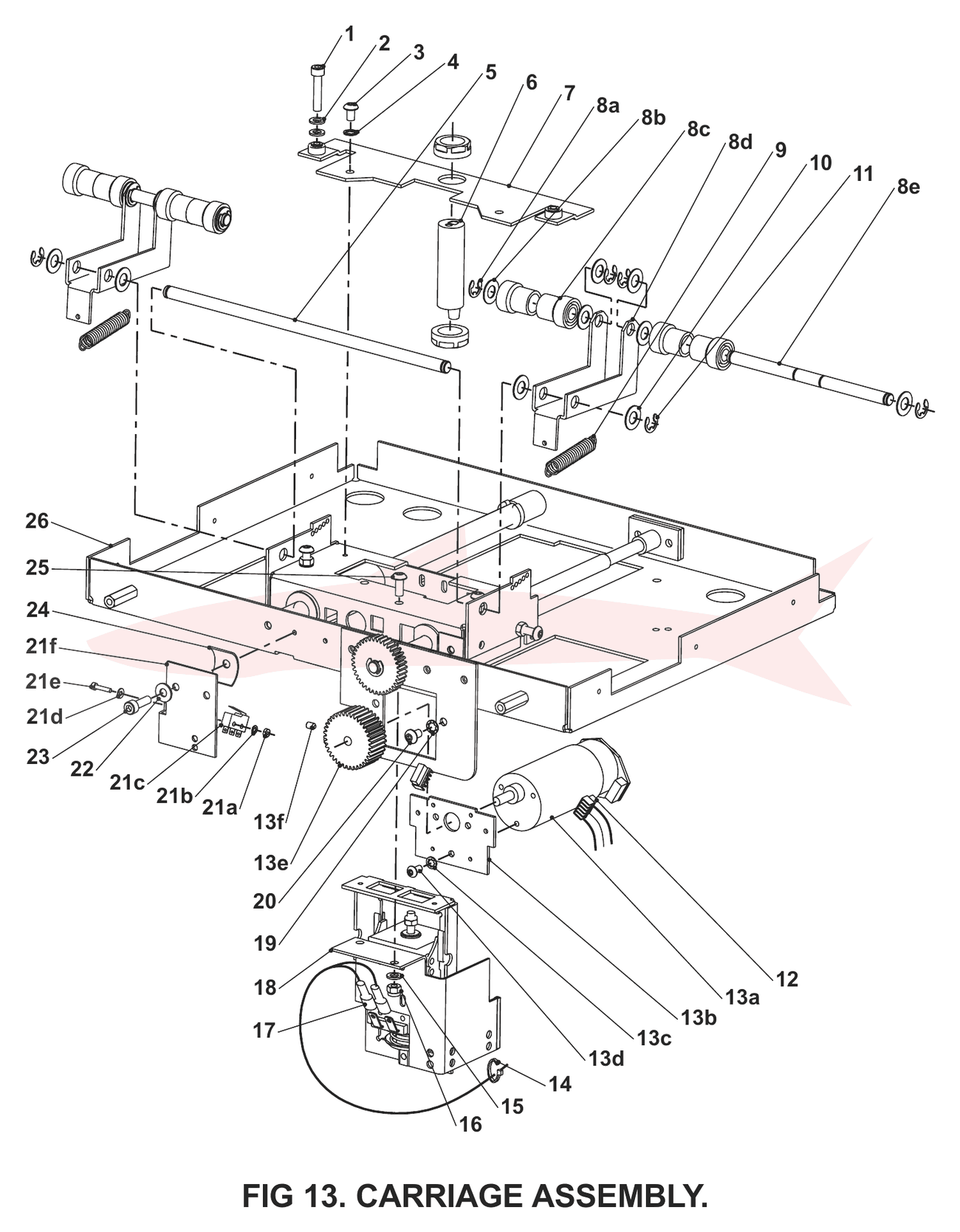

Fig 13Carriage Assembly — каретка

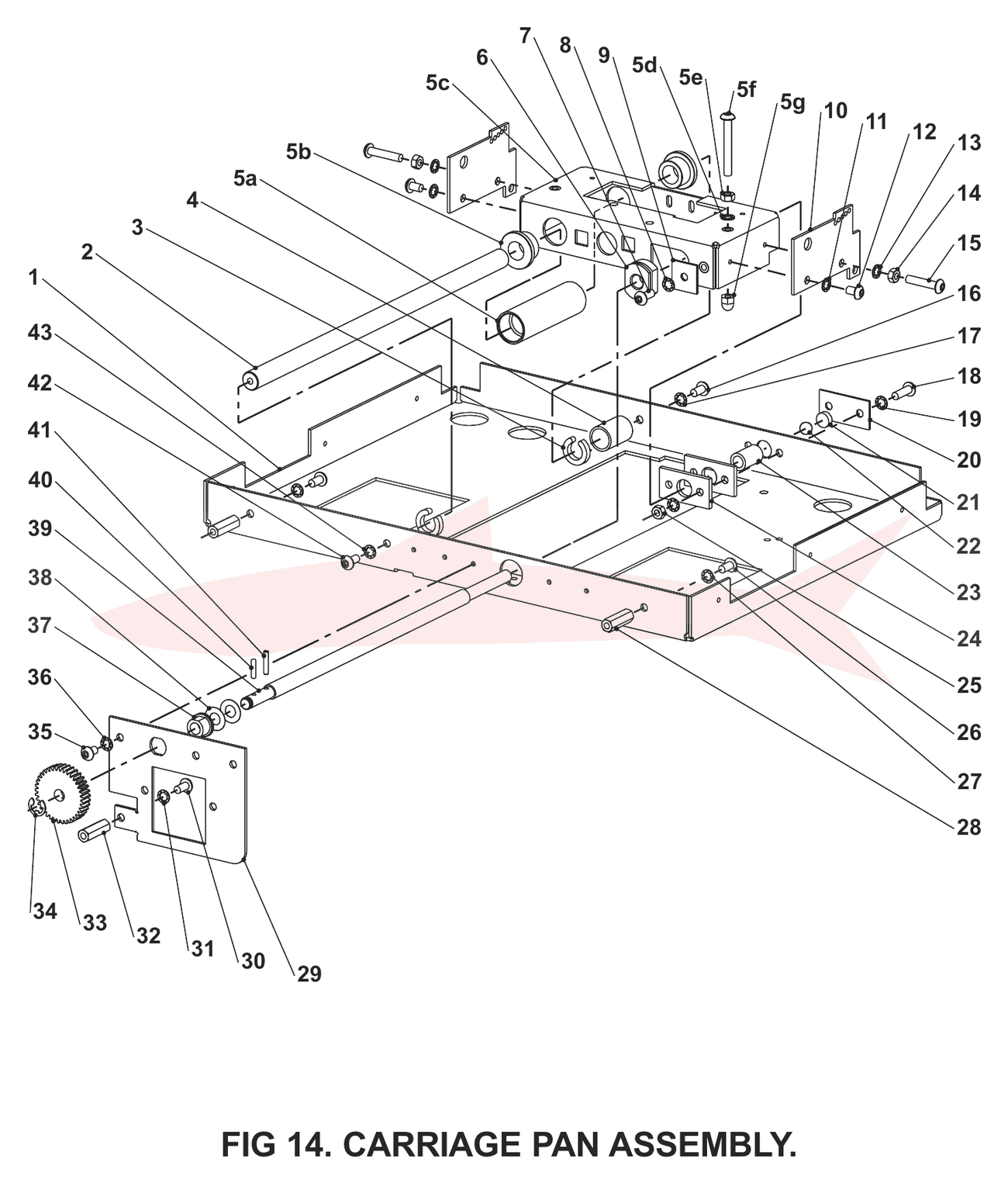

Fig 14Carriage Pan Assembly — поддон каретки

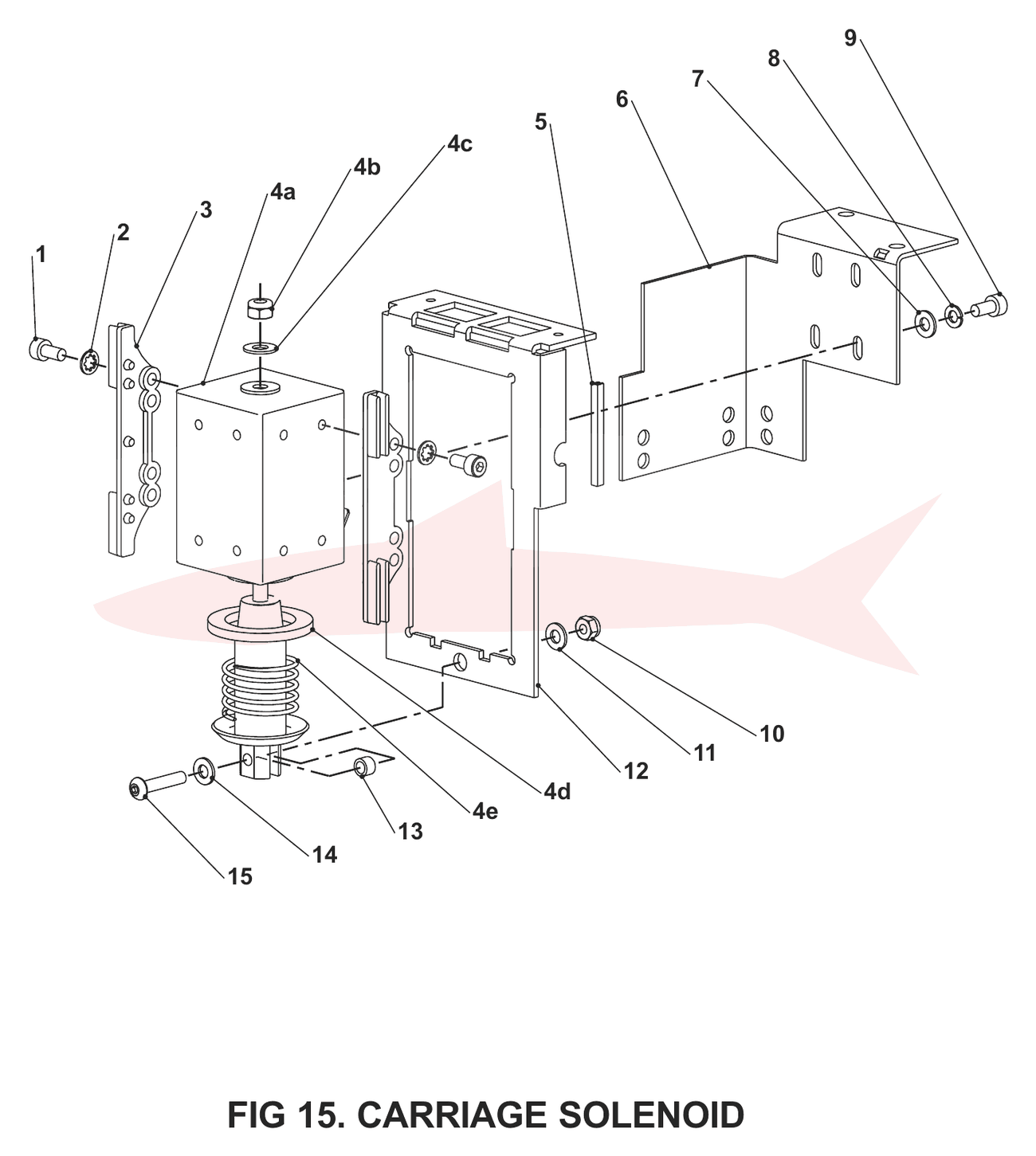

Fig 15Carriage Solenoid Assembly — соленоид каретки

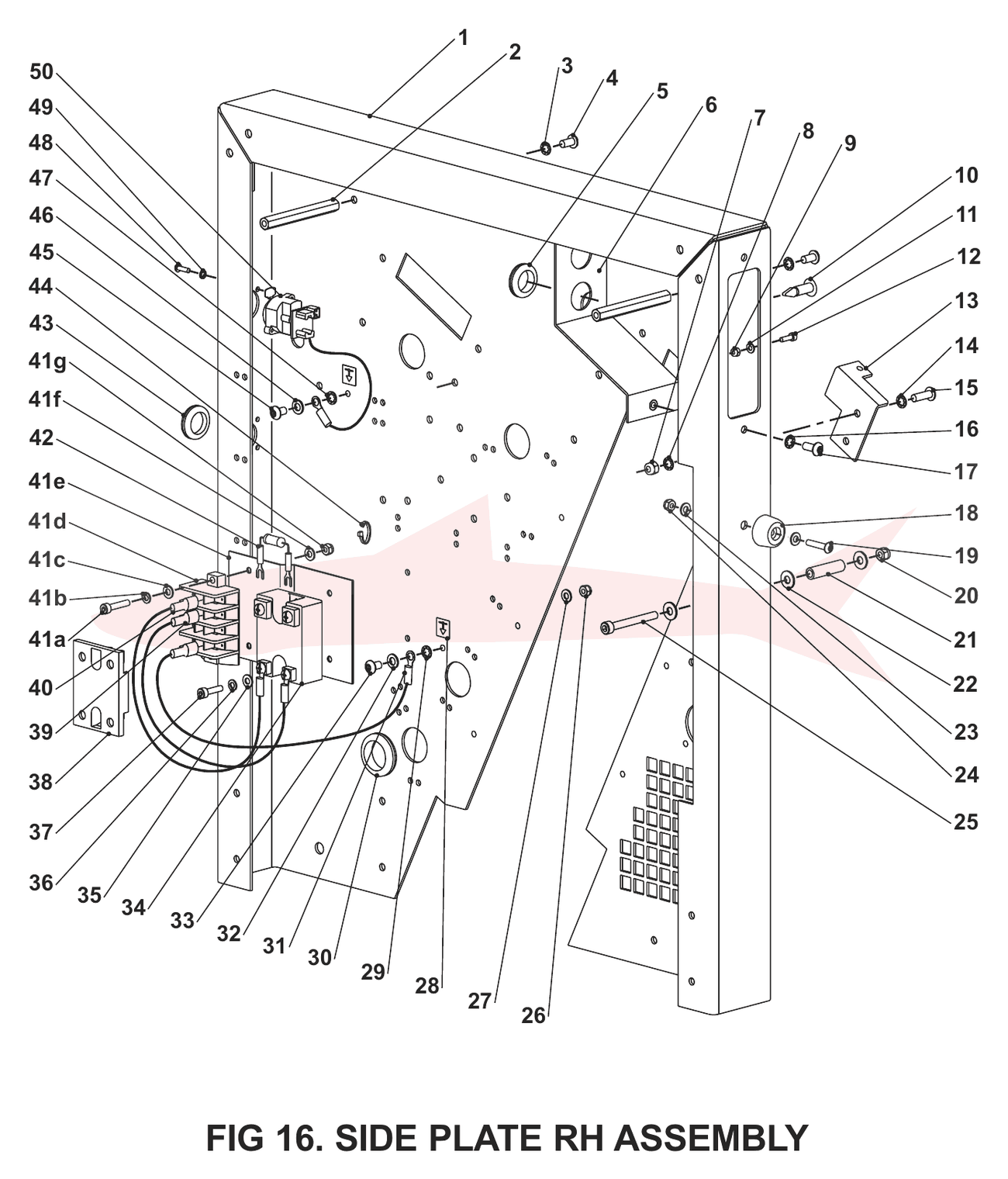

Fig 16Side Plate R/H Assembly — правая боковина

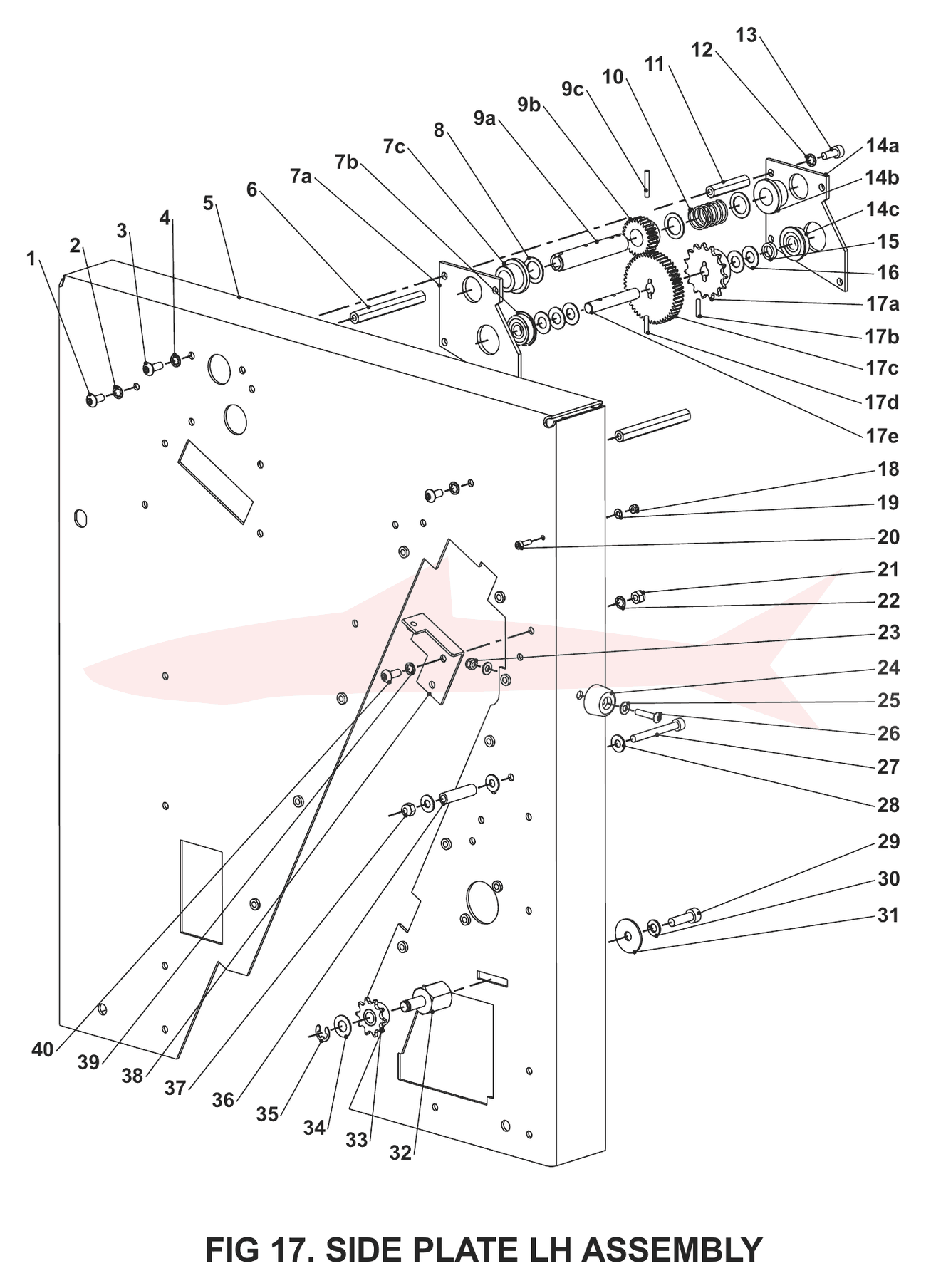

Fig 17Side Plate L/H Assembly — левая боковина

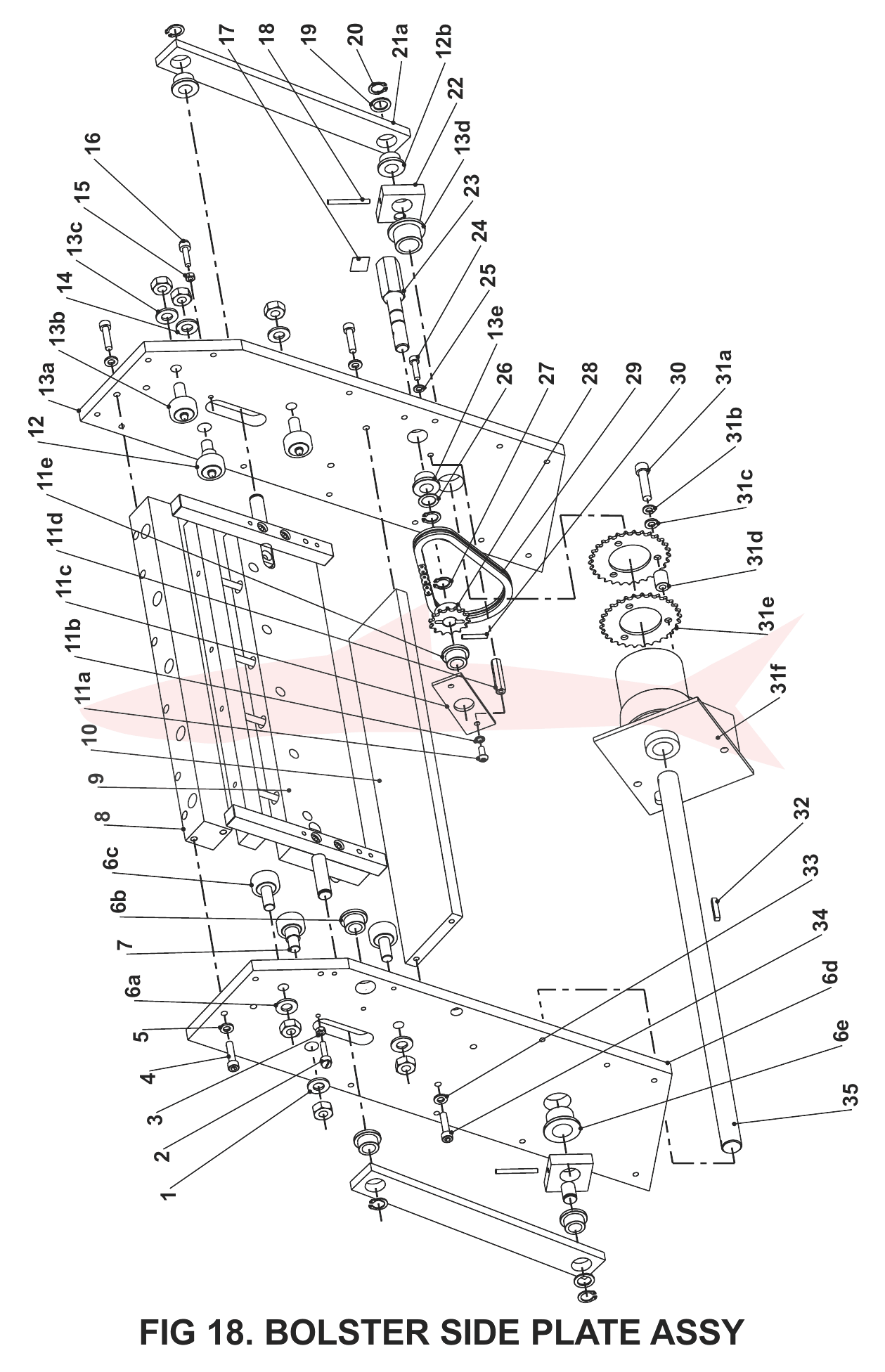

Fig 18Bolster Side Plate Assembly — боковина опоры ножа

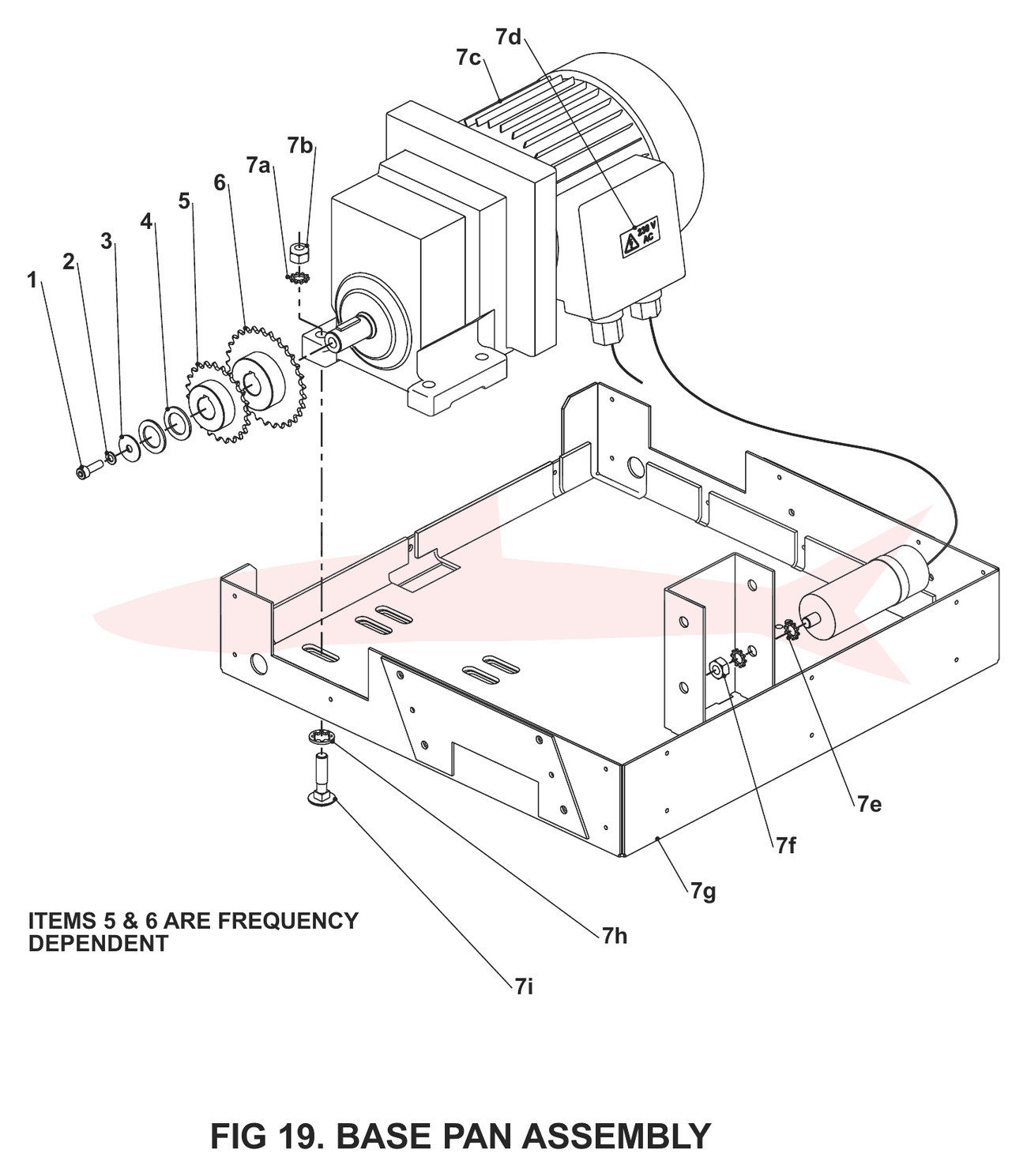

Fig 19Base Pan Assembly — поддон основания

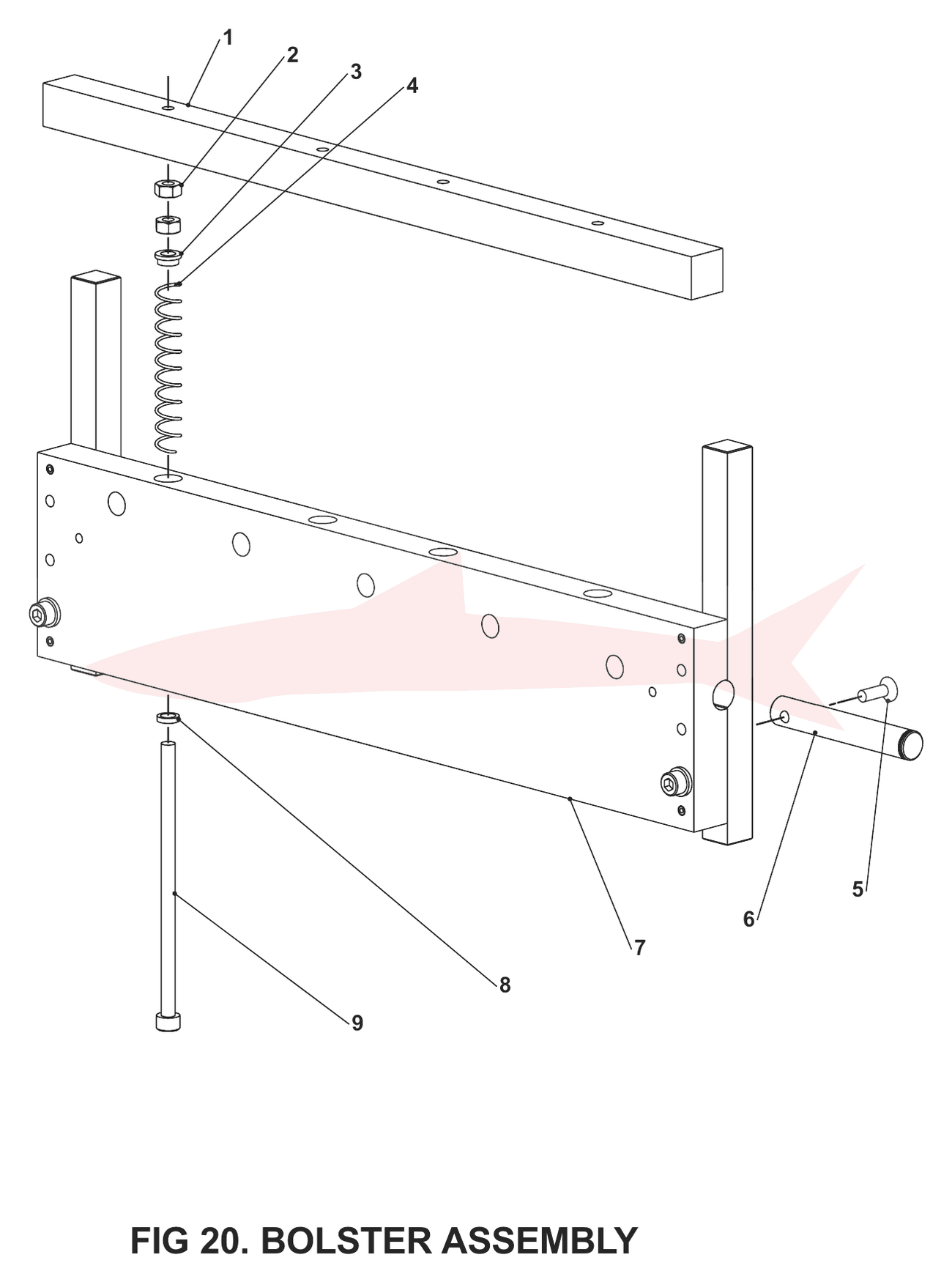

Fig 20Bolster Assy — опора ножа

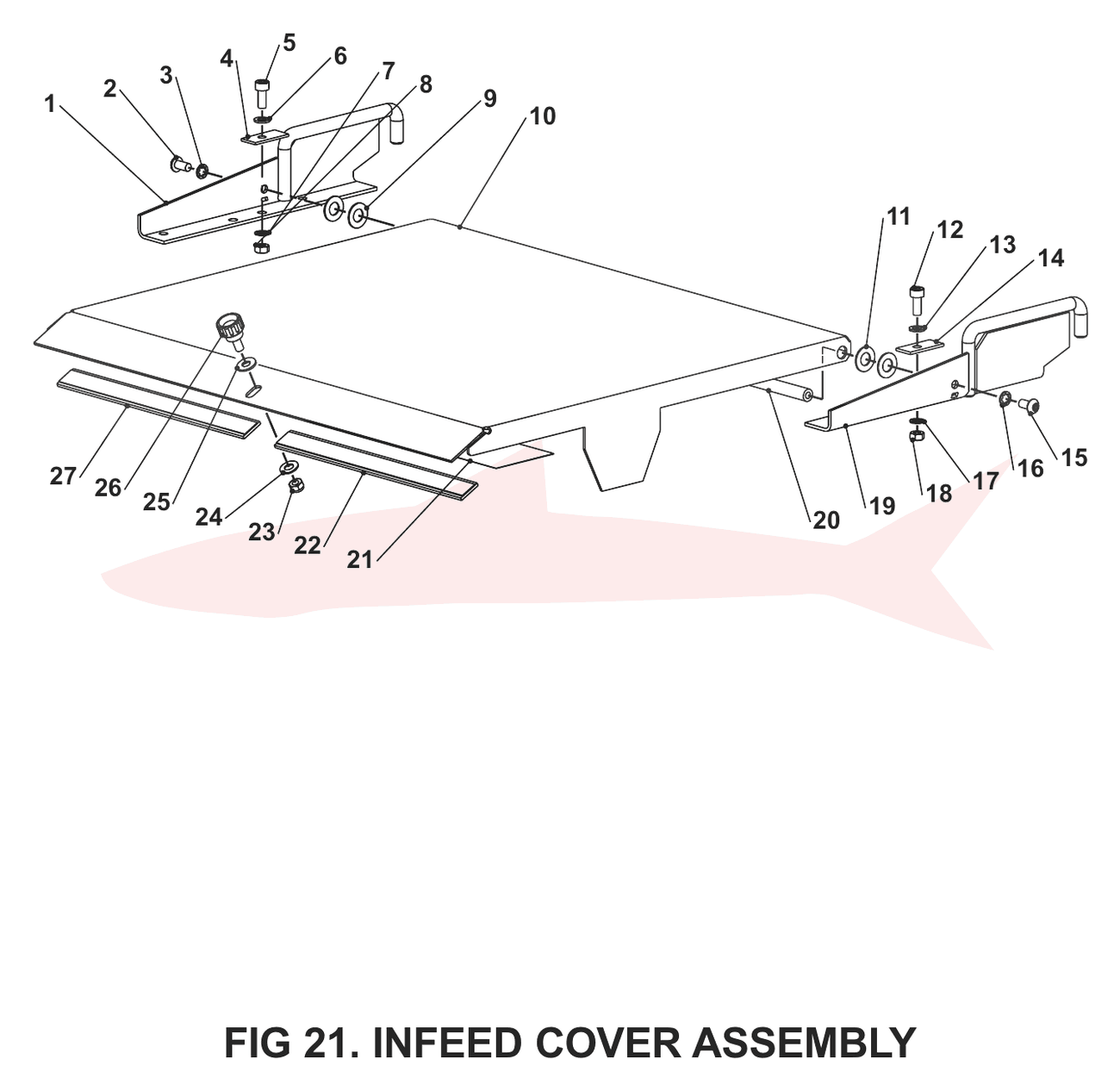

Fig 21Infeed Cover Assembly — крышка подачи

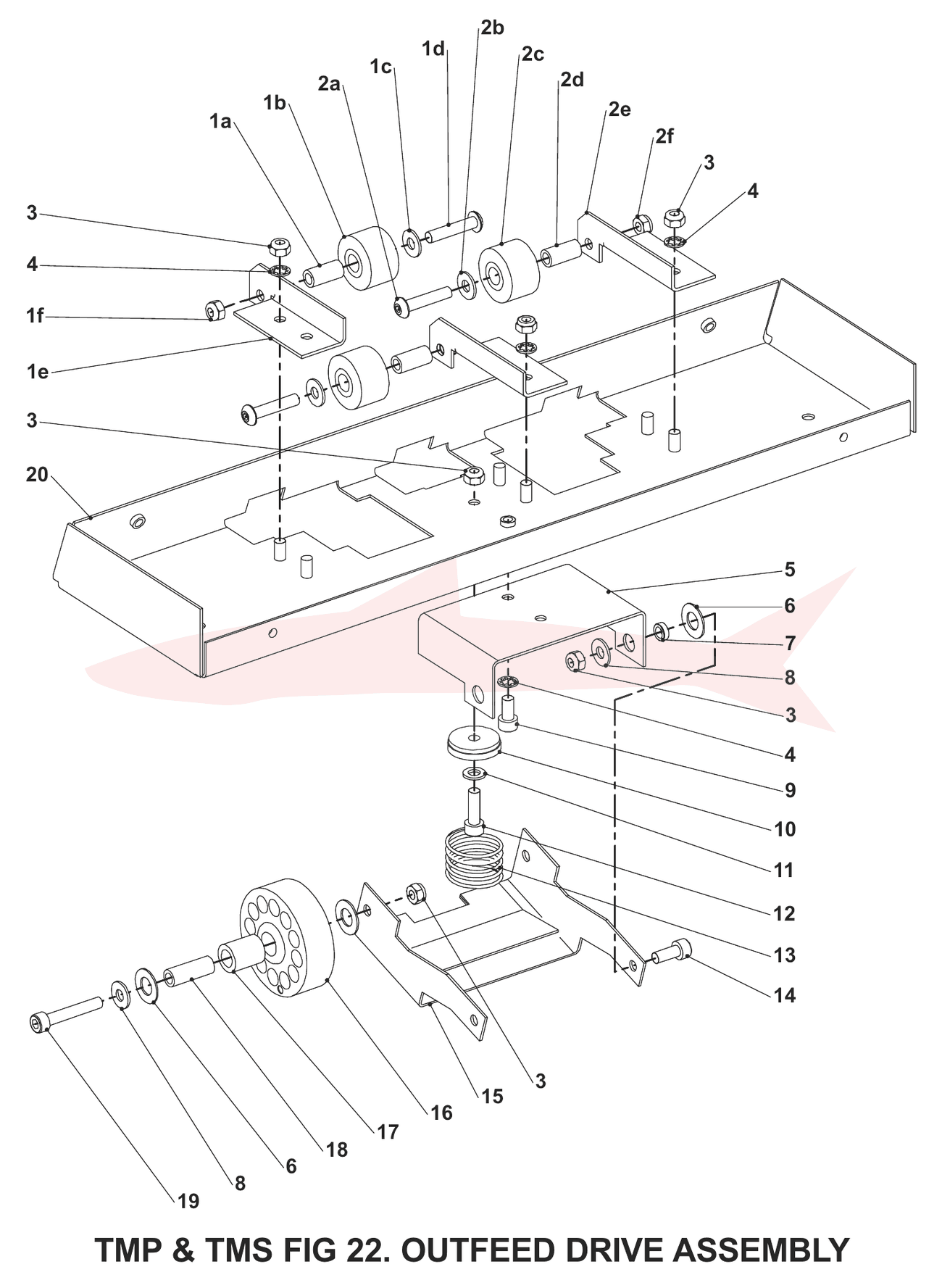

Fig 22Outfeed Drive Assembly — привод вывода

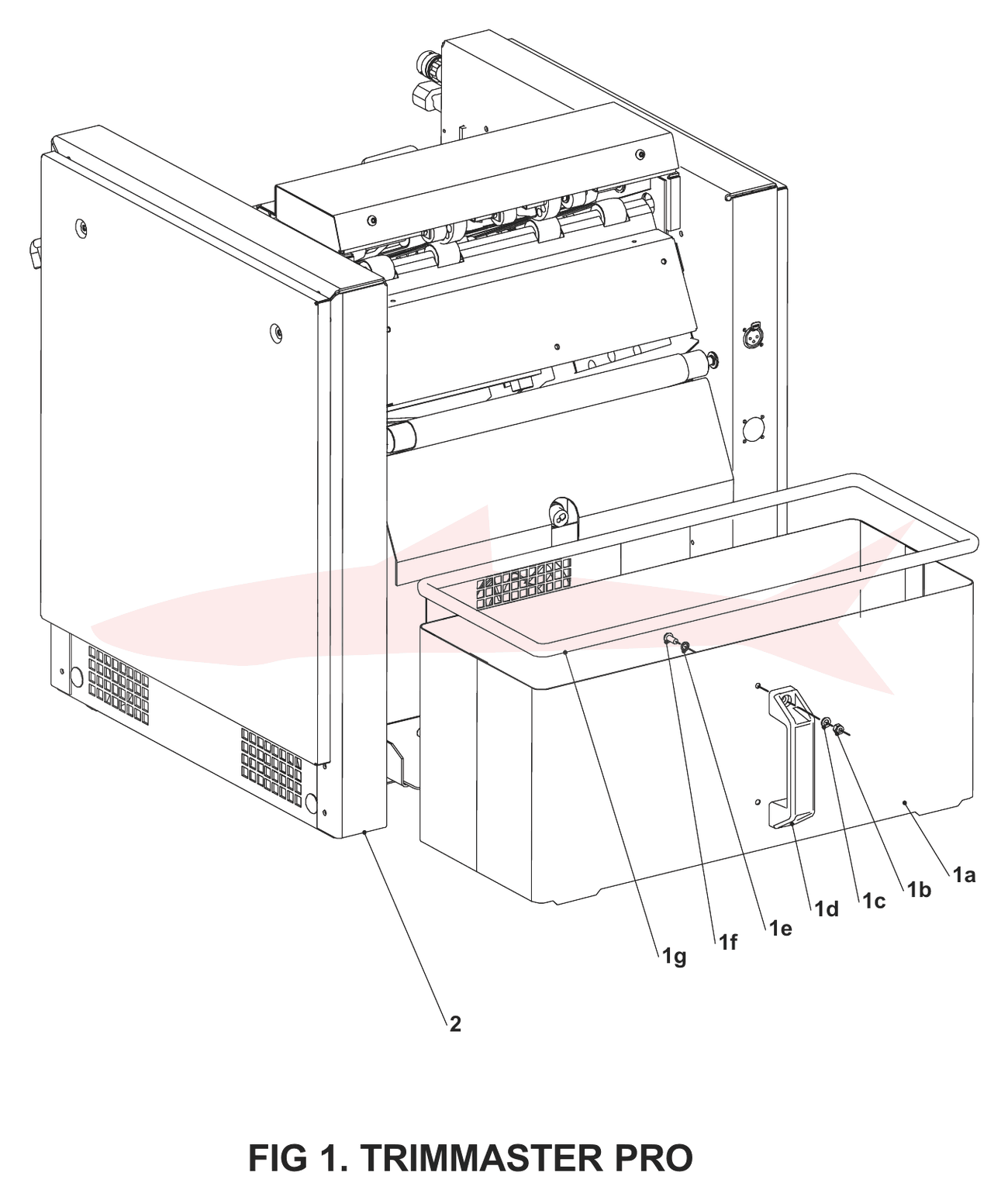

Fig 1 TrimMaster Pro Complete

Morgana TrimMaster Pro · Машина в сборе

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	VARIO, TRIMMASTER PRO 115V 60Hz	41-591
—	VARIO, TRIMMASTER PRO 230V 50Hz	41-592
1	P.ASSY, TRIMMASTER WASTE BIN COMPLETE	890-122
1a	P.ASSY, (VTM) WASTE BIN WELDED	890-121
1b	NUT, M5 NYLOC-TYPE P BZP	150-035
1c	WASHER, M5 FORM A BZP	160-003
1d	HAND SCREW,(VDPS) PLASTIC HANDLE	148-316
1e	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
1f	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
1g	EDGING STRIP, (VTM) 1425mm LONG	335-009
2	P.ASSY, TRIMMASTER PRO & COVERS 115V → рис. 2	907-305
2	P.ASSY, TRIMMASTER PRO & COVERS 230V → рис. 2	907-306

Номера в кружке — сборочные узлы (поставляются в сборе).

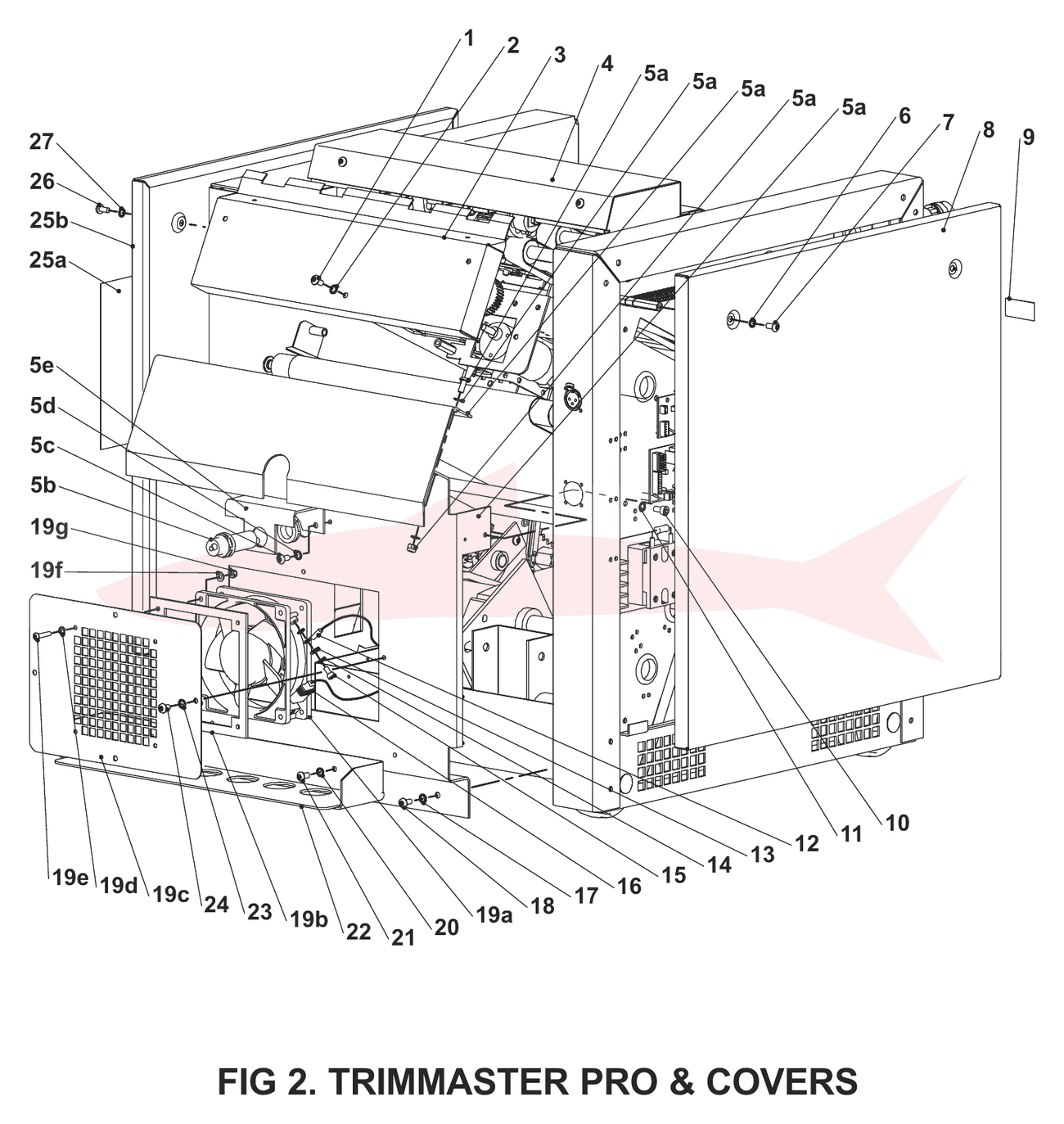

Fig 2 TrimMaster Pro & Covers

Morgana TrimMaster Pro · Корпус и облицовка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, TRIMMASTER PRO & COVERS 115V	907-305
—	P.ASSY, TRIMMASTER PRO & COVERS 230V	907-306
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	STEEL, (VTM) REAR MOTOR GUARD	253-200
4	P.ASSY, (VTM) INFEED & ELECTRICS 115V → рис. 3	907-307
4	P.ASSY, (VTM) INFEED & ELECTRICS 230V → рис. 3	907-308
5	P.ASSY, (VTMP) REAR COVER & SENSOR	890-119
5a	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
5a	NUT, M5 NYLOC-TYPE P BZP	150-035
5a	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5a	STEEL, (VTM) TRIMMINGS DEFLECTOR	252-007
5a	STEEL, (VTM) REAR COVER	253-993
5a	P.ASSY, (VTM) REAR COVER	890-120
5b	ELECT.ASSY, VARIO FIX.FOCUS SENSOR-STR	905-162
5c	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
5d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5e	STEEL, (VTM) BIN SENSOR MOUNT	252-044
6	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
7	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
8	STEEL, (VBM) SIDE COVER PANEL	253-079
9	LABEL, 230V	500-009
9	LABEL, 115V	500-252
10	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
11	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
12	WIRE ASSY, PUSH -ON/660mmEARTH1.0/2BA	740-193
13	WASHER, M4 FORM A BZP	160-001
14	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
15	SCREW, SKT HD C AP, M4 x 8mm STAINLESS	100-306
16	CABLE ASSY, (VTM) FAN LEAD	742-397
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
19	P.ASSY,(VTM) FAN & MOUNTING PLATE 230V	907-290
19	P.ASSY,(VTM) FAN & MOUNTING PLATE 115V	907-335
19a	ELEC HARDWARE, 120mm 240V FAN	710-057
19a	ELEC HARDWARE, 120mm 115V FAN	710-058
19b	ALU, (VTM) FAN SPACER PLATE	251-421
19c	STEEL, (VTM) FAN MOUNTING PLATE	253-280
19d	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
19e	SCREW, SKT HD BUTTON,M4x20mm STAINLESS	101-047
19f	WASHER, M4 FORM A BZP	160-001
19g	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
22	STEEL, (VTM) BIN SUPPORT	252-043
23	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
24	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
25	P.ASSY, (VBM) SIDE COVER & LABEL	907-069
25a	LABEL, VARIO WATKISS LOGO 15cm	500-226
25b	STEEL, (VBM) SIDE COVER PANEL	253-079
26	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
27	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003

Номера в кружке — сборочные узлы (поставляются в сборе).

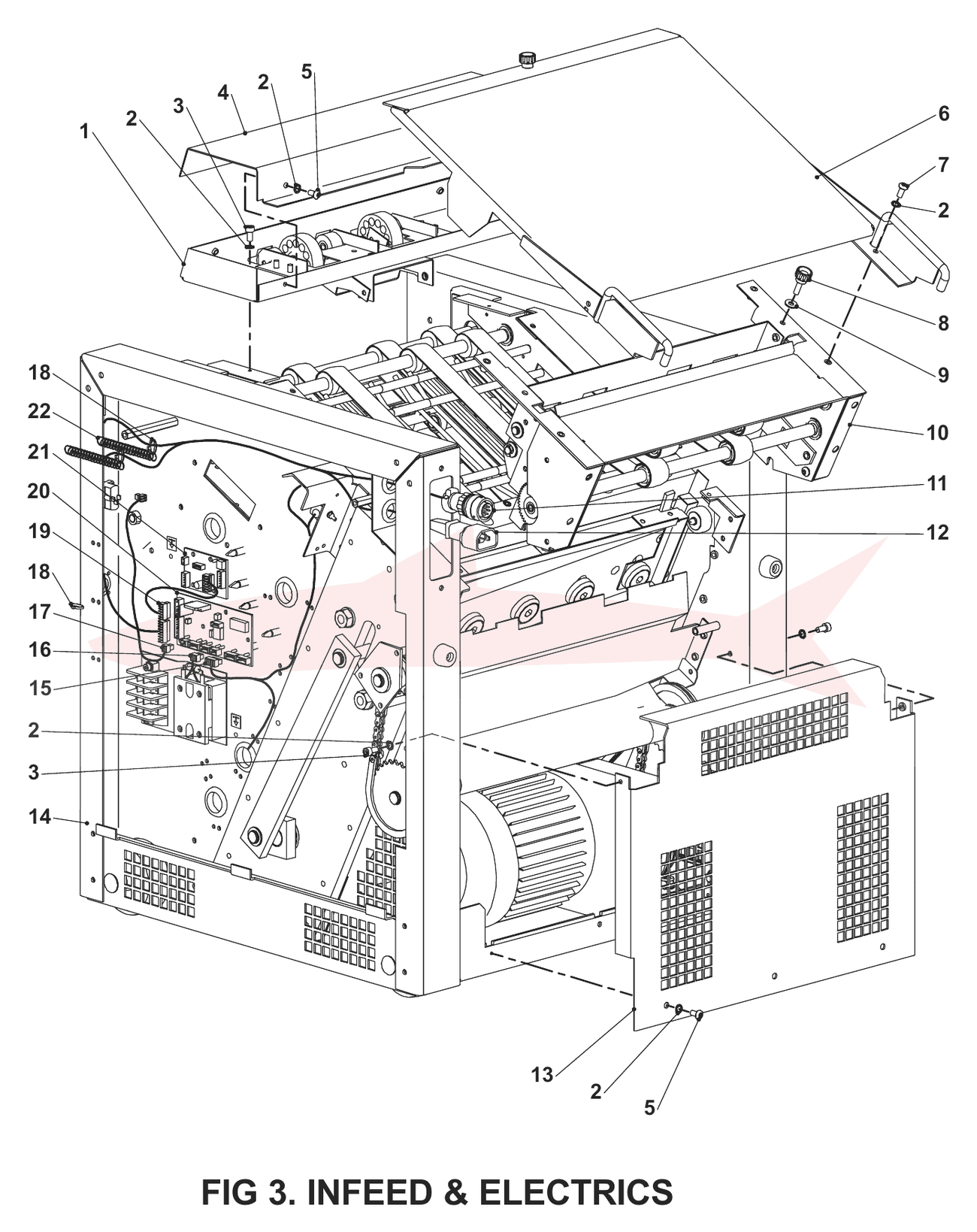

Fig 3 Infeed & Electrics Assembly

Morgana TrimMaster Pro · Подача и электрика

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) INFEED & ELECTRICS 115V	907-307
—	P.ASSY, (VTM) INFEED & ELECTRICS 230V	907-308
1	P.ASSY, (TMP) OUTFEED DRIVE → рис. 22	890-283
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
4	STEEL, (VTM) TOP COVER	252-119
5	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
6	P.ASSY, (VTM) TOP CONVEYOR COVER → рис. 21	907-309
7	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
8	HAND SCREW, M5x16mm GRIP KNOB-ORANGE	148-307
9	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
10	P.ASSY, (VTM) INFEED CONVEYOR → рис. 9	907-311
11	CABLEASSY, BOOKMASTER-> TRIMMASTER	742-362
12	CABLEASSY, TRIMMASTERMAINS INPUT	742-364
13	STEEL,(VTM) STRENGTH ENING PLATE	253-203
14	P.ASSY,(VTMP) TRIMMASTER OUTFEED 115V → рис. 4	907-312
14	P.ASSY,(VTMP) TRIMMASTER OUTFEED 230V → рис. 4	907-313
15	CABLE ASSY,(TMP) TRIM CLUTCH/GUARD SW	742-404
16	CABLE ASSY, SSR CONTROL	742-352
17	CABLE ASSY, 2WAY 300MM LINK	742-351
18	ELEC-HARDWARE, CABLE TIE-small	710-016
19	CABLE ASSY, AUTO TRIMMER COMMS LINK	742-357
20	PCB ASSEMBLY, AUTO VTR CONTROL	900-155
21	PCB ASSEMBLY, POSI TION MOTOR CONTROL	900-152
22	SPRING, (VTM) CABLE RETURN x 88mm LG	180-378

Номера в кружке — сборочные узлы (поставляются в сборе).

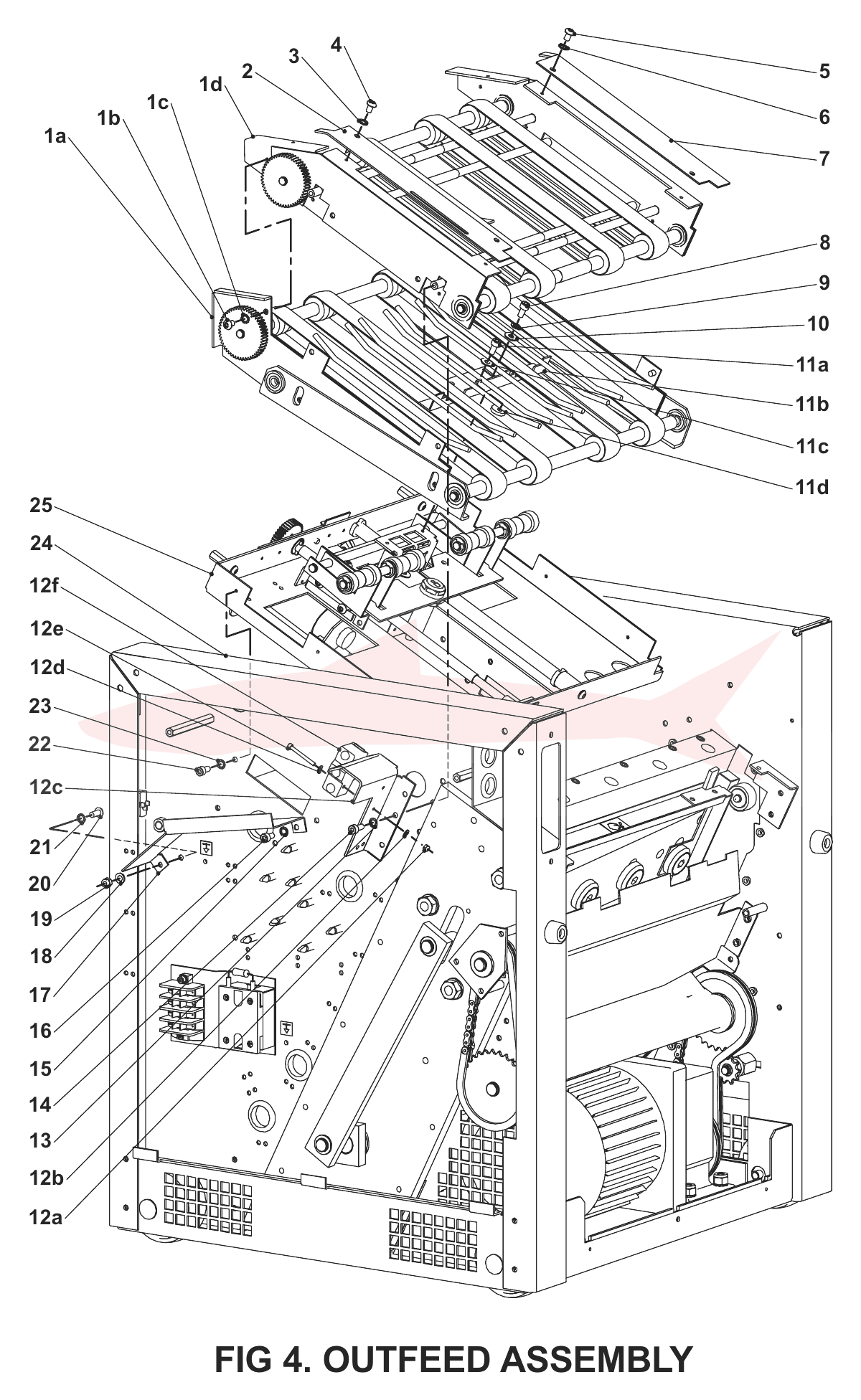

Fig 4 Outfeed Assy

Morgana TrimMaster Pro · Узел вывода

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VTMP) TRI MMASTER OUTFEED 115V	907-312
—	P.ASSY,(VTMP) TRI MMASTER OUTFEED 230V	907-313
1	P.ASSY, (VTM) CONVEYOR COMPLETE	890-316
1a	P.ASSY,(VTM) OUTFEED CONVEYOR (LOWER ) → рис. 12	907-314
1b	SCREW, SKT HD BUTTON,M5x 8mm STAINLESS	101-300
1c	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
1d	P.ASSY, (VTM) OUTFEED CONVEYOR UPPER → рис. 11	890-313
2	STEEL,(VTM) TOP COVER SAFETY GUARD R/H	253-204
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
5	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
6	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
7	STEEL,(VTM) TOP COVER SAFETY GUARD L/H	253-205
8	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
9	WASHER, M5 SQ.SECT.SPRING BZP	160-204
10	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
11	P.ASSY, (VTM) PAPER STOP	907-054
11a	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
11b	ST STEEL, (VATR) PAPER STOP	257-430
11c	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
11d	STEEL, (VATR) CAM	254-995
12	P.ASSY, (VTM) SAFETY SWITCH BRACKET	907-055
12a	NUT, M3 NYLOC-TYPE T BZP	150-033
12b	WASHER, M3 FORM A BZP	160-002
12c	STEEL, (VTM)SAFETY SWITCH BRACKET	253-206
12d	WASHER, M3 FORM A BZP	160-002
12e	SCREW, SKT HD CAP, M3 x 30mm STAINLESS	100-312
12f	SWITCH, (VTRM) BIN GUARD	700-088
13	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
14	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
15	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
16	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
17	STEEL, (VTM) CABLE SHIELD PLATE	253-207
18	WASHER, M5 FORM A BZP	160-003
19	NUT, M5 NYLOC-TYPE P BZP	150-035
20	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
21	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
22	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
23	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
24	P.ASSY,(VTM) INF EED PICK-UP DRIVE 115V → рис. 5	907-316
24	P.ASSY,(VTM) INF EED PICK-UP DRIVE 230V → рис. 5	907-317
25	P.ASSY, (VTM) CARRIAGE PAN → рис. 13	907-318

Номера в кружке — сборочные узлы (поставляются в сборе).

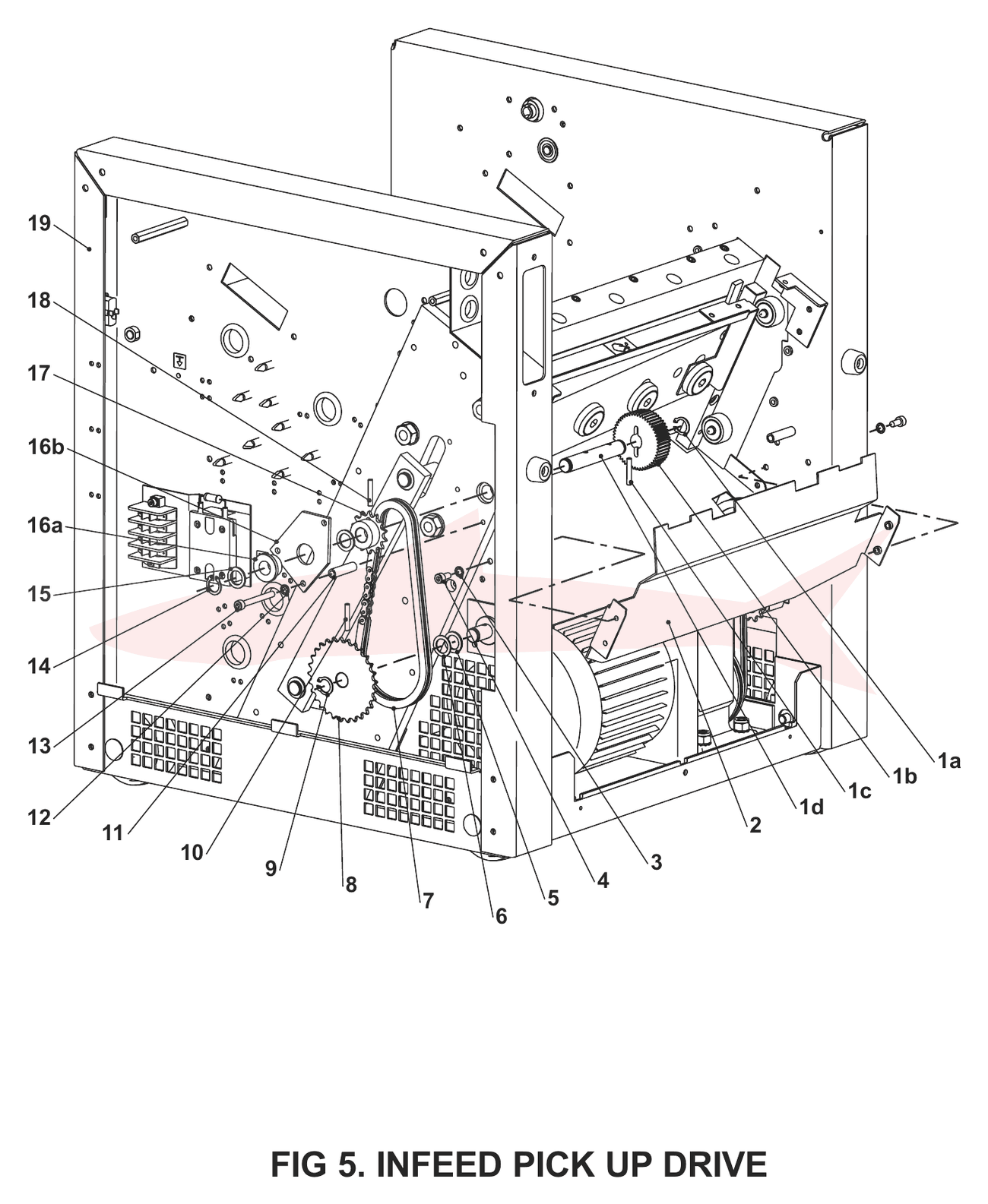

Fig 5 Infeed Pick Up Drive Assy

Morgana TrimMaster Pro · Привод захвата подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VTM) INFEED PICK-UP DRIVE 115V	907-316
—	P.ASSY,(VTM) INFEED PICK-UP DRIVE 230V	907-317
1	P.ASSY, (VTM) STUB AXLE	908-980
1a	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
1b	GEAR, (VTM) CONVEYOR PICK-UP 50T	192-443
1c	PIN, DIA 4mm x 24mm DOWEL	400-355
1d	SHAFT, (VTM) STUB AXLE	265-613
2	STEEL, (VTM) WASTE DEFLECTOR	252-045
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
5	NYLON, WASHER OD 19mmxID13mmx1.5mmTHICK	320-323
6	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
7	CHAIN,(VDRV)8mmPx53 PITCH & LINK-ENDLESS	192-058
8	SPROCKET, (VTM) 8mm PITCH x 29T	192-446
9	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
10	PIN, DIA 4mm x 24mm DOWEL	400-355
11	SHAFT,(VDPS)S/L SPACER 8 X 5.2 X30.5MM	265-402
12	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
13	SCREW,SKT HD CAP,M5x45 HIGH TENSILE ZP	100-350
14	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
15	NYLON, WASHER OD19mmxID13mmx1.5mmTHICK	320-323
16	P.ASSY, (VTM) SUPPORT PLATE	908-981
16a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
16b	STEEL, (VTM) SUPPORT PLATE	253-166
17	SPROCKET, (VTRM) 14T 12.7mm BORE	192-378
18	PIN, DIA 4mm x 24mm DOWEL	400-355
19	P.ASSY, (VTM) WASTE CONVEYOR 115V → рис. 6	907-319
19	P.ASSY, (VTM) WASTE CONVEYOR 230V → рис. 6	907-320

Номера в кружке — сборочные узлы (поставляются в сборе).

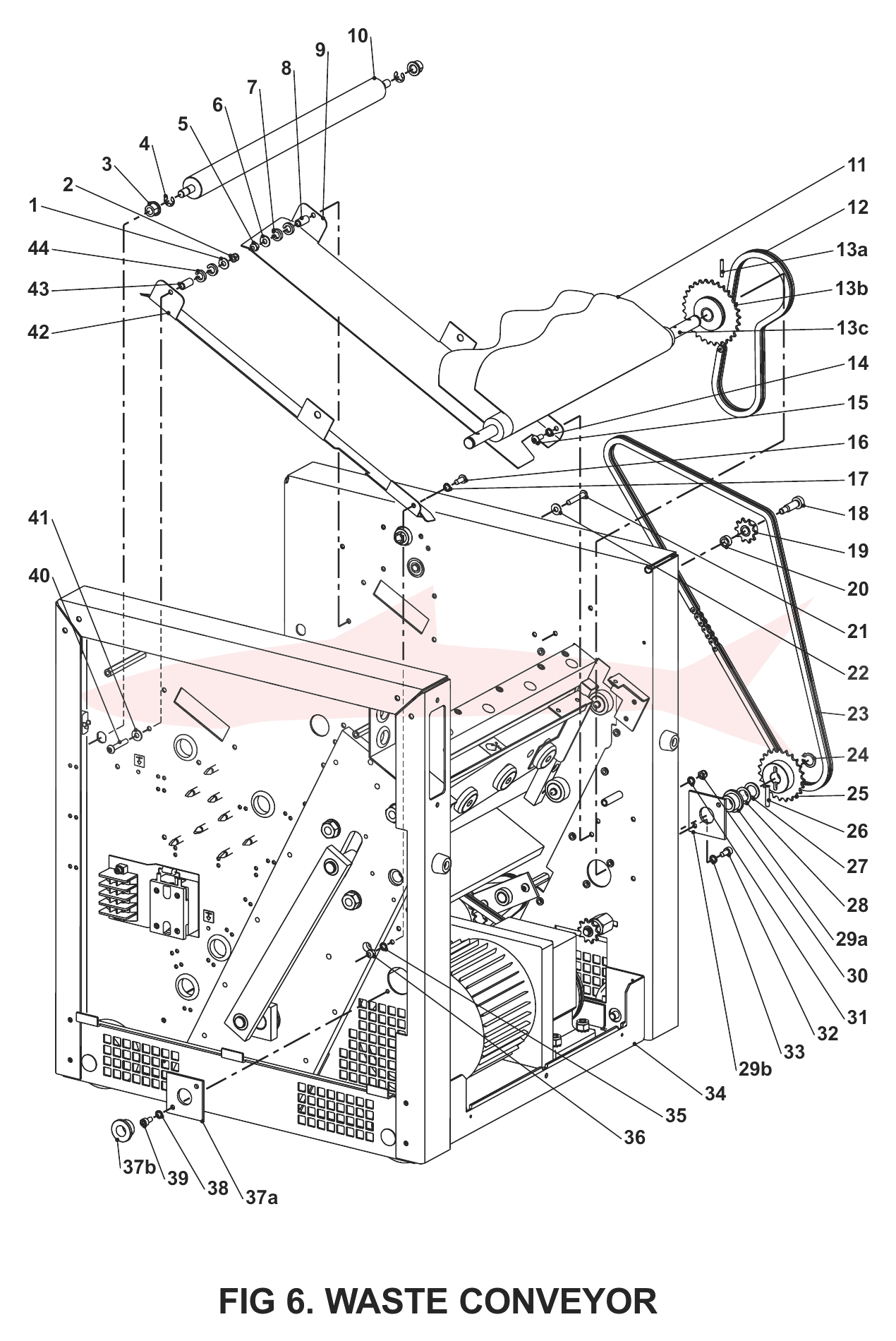

Fig 6 Waste Conveyor Assembly

Morgana TrimMaster Pro · Транспортёр обрезков

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) WASTE CONVEYOR 115V	907-319
—	P.ASSY, (VTM) WASTE CONVEYOR 230V	907-320
1	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
2	NUT, M5 NYLOC-TYPE P BZP	150-035
3	PLASTIC MLDG,BEAR ING BUSH (8mm SHAFT)	310-351
4	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
5	NUT, M5 NYLOC-TYPE P BZP	150-035
6	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
7	PLASTIC, FIXING RING dia 8mm SHAFT	315-462
8	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
9	ST STEEL, (VTM) WASTE DEFLECTOR L/H	257-422
10	SHAFT, (VTM) WASTE CONVEYOR OUTFEED	265-648
11	BELT,(VTM) WASTE CONVEYOR 330 x 930LG	914-410
12	CHAIN, 8mm x 59 PITCHES (& CON LINK)	192-442
13	P.ASSY,(VTM)WAST E CONVEYOR DRIVE SHAFT	908-982
13a	PIN, M3 x 20 SPIROL	400-391
13b	P.ASSY, (VTM) TORQUE LIMITER & SPROCKET	907-346
13c	SHAFT, (VTM) CLUTCH DRIVE	265-647
14	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
15	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
16	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	SCREW, SKT HD SHLDER, M8 x 20mm x M6	110-007
19	PART ASSY,(VDRV)CHAIN TENSION SPROCKET	909-346
20	NYLON, SPACER OD 12mmxID8.2mmx3mm LONG	320-322
21	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
22	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
23	CHAIN, 8mm x 125 PITCHES (& CON LINK)	192-441
24	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
25	SPROCKET, (VTM) 8mm PITCH x 23T	192-445
26	PIN, DIA 4mm x 24mm DOWEL	400-355
27	NYLON, WASHER OD19mmxID13mmx1.5mmTHICK	320-323
27	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
29	P.ASSY,(VTM) BEARING PLATE - FRONT	908-984
29a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
29b	STEEL, (VTM) BEARING SUPPORT PLATE	253-175
30	NUT, M5 NYLOC-TYPE P BZP	150-035
31	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
32	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
33	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
34	P.ASSY, TRIMMASTER PRO MAIN FRAME 115V → рис. 7	907-321
34	P.ASSY, TRIMMASTER PRO MAIN FRAME 230V → рис. 7	907-322
35	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
36	NUT, M5 NYLOC-TYPE P BZP	150-035
37	P.ASSY,(VTM) BEARING PLATE - FRONT	908-984
37a	STEEL, (VTM) BEARING SUPPORT PLATE	253-175
37b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
38	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
39	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
40	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
41	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
42	ST STEEL, (VTM) WASTE DEFLECTOR R/H	257-423
43	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
44	PLASTIC, FIXING RING dia 8mm SHAFT	315-462

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 7 Main Frame Assembly

Morgana TrimMaster Pro · Основная рама

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, TRIMMASTER PRO MAIN FRAME 115V	907-321
—	P.ASSY, TRIMMASTER PRO MAIN FRAME 230V	907-322
1	P.ASSY, (VTM) RIGHT HAND SIDE PLATE → рис. 16	907-326
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
4	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	WASHER, M8 SQ.SECT.SPRING BZP	160-206
7	NUT, M8 HEX FULL BZP	150-007
8	STEEL, (VTM) WHEEL BRAC KET	253-208
9	COACH BOLT, M8 x 65mm ZINC PLATED	115-021
10	PLASTIC,(XBA)SPAC ER 17.5 X 10.2 IDX8LG	315-503
11	NYLON, (VFLR) WHEEL O/D 75mm	320-311
12	SHAFT, BUSH 12mmODx8.6mmIDx41.2mm LG	265-220
13	WASHER, M8 FORM C BZP	160-212
14	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
15	WASHER, M5 FORM A BZP	160-003
16	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
17	WASHER, M5 FORM A BZP	160-003
18	P.ASSY, TRIMMASTER PRO BASE 115V → рис. 8	907-324
18	P.ASSY, TRIMMASTER PRO BASE 230V → рис. 8	907-325
19	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
20	WASHER, M5 FORM A BZP	160-003
21	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
22	WASHER, M5 FORM A BZP	160-003
23	NYLON, (VFLR) WHEEL O/D 75mm	320-311
24	SHAFT, BUSH 12mmODx8.6mmIDx41.2mm LG	265-220
25	WASHER, M8 FORM C BZP	160-212
26	PLASTIC,(XBA)SPAC ER 17.5 X 10.2 IDX8LG	315-503
27	STEEL, (VTM) WHEEL BRACKET	253-208
28	COACH BOLT, M8 x 65mm ZINC PLATED	115-021
29	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
30	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
31	WASHER, M8 SQ. SECT.SPRING BZP	160-206
32	NUT, M8 HEX FULL BZP	150-007
33	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
34	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
35	P.ASSY, (VTM) LEFT HAND SIDE PLATE → рис. 17	907-323

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 8 Base Assembly

Morgana TrimMaster Pro · Основание

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, TRIMMASTER PRO BASE 115V	907-324
—	P.ASSY, TRIMMASTER PRO BASE 230V	907-325
1	SCREW, SKT HD C/S, M12 x 35 BZP	105-315
2	STEEL, (VTM) BLADE CLAMP WASHER	253-055
3	P.ASSY, (VTM) INFEED GUIDE	907-186
4	STEEL, (VTM) TRIMMER BLADE WITH GUIDE	253-835
5	LABEL, (VTM) SAFETY BLADE GUARD	500-248
6	GRUB SCREW, M8 x 12mm CONE POINT	149-204
7	WASHER, M8 SQ.SECT.SPRING BZP	160-206
8	SCREW, SKT HD CAP, M8 x 35mm BZP	100-327
9	STEEL, (VTM) ANVIL TRIMMER BLADE	253-174
10	NUT, M8 HEX FULL BZP	150-007
11	P.ASSY, (VTM) BOLSTER SIDE PLATE → рис. 18	907-327
12	WASHER, M5 FORM A BZP	160-003
13	SCREW,SKT HD CAP,M5x25 HIGH TENSILE ZP	100-357
14	NUT, M8 HEX FULL BZP	150-007
15	TUBE, (VTM) 11mmO/D x 8mmI/D x 14mm LG	360-408
16	SCREW, SKT HD CAP, M8 x 45mm BLACK	100-322
17	NUT, M8 HEX FULL BZP	150-007
18	CHAIN, 8mm x 65 PITCHES (& CON LINK)	192-440
18	CHAIN, 8mm x 63 PITCHES (& CON LINK)	192-451
19	P.ASSY, (VTM) BASE PAN 115V → рис. 19	907-328
19	P.ASSY, (VTM) BASE PAN 230V → рис. 19	907-329

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 9 Infeed Conveyor Assembly

Morgana TrimMaster Pro · Транспортёр подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) INFEED CONVEYOR	907-311
1	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
2	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
3	P.ASSY,(VTM) INF EED CONVEYOR LEVER L/H	908-973
3a	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
3b	STEEL, (VTM)INFEED CONVEYOR LEVER	253-281
4	SHAFT,(VSF)CONVEYOR CLAMP SPACER	265-371
5	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
6	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
7	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
8	P.ASSY, (VTM) INF EED CONVEYOR SHAFT	890-042
8a	SHAFT, (VTM) CONVEYOR DRIVE SHAFT	265-863
8b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
8c	PIN, DIA 4mm x 20mm DOWEL	400-405
8d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
9	P.ASSY,(VTM) INF EED CONVEYOR LEVER R/H	908-975
9a	STEEL, (VTM) INFEED CONVEYOR LEVER	253-281
9b	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
10	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
11	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
12	SHAFT,(VSF)CONVEYO R CLAMP SPACER	265-371
13	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
14	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
15	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
16	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	STEEL, (VTM) SIDE GUARD L/H	253-157
19	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
20	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
21	PART ASSY, 50T GEAR & OILITE - DELRIN	909-452
22	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
23	NUT, M5 NYLOC-TYPE P BZP	150-035
24	WASHER, M5 FORM A BZP	160-003
25	WASHER, M5 FORM A BZP	160-003
26	NUT, M5 NYLOC-TYPE P BZP	150-035
27	WASHER, M5 FORM A BZP	160-003
28	NUT, M5 NYLOC-TYPE P BZP	150-035
29	P.ASSY, (VTM) TOP INFEED CONVEYOR → рис. 10	907-330
30	STEEL, (VTM) SIDE GUARD R/H	253-158
31	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
32	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 10 Top Infeed Conveyor Assembly

Morgana TrimMaster Pro · Верхний транспортёр подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) TOP INFEED CONVEYOR	907-330
1	P.ASSY, INFEED CONVEYOR L/H & OILITES	908-356
1a	SHAFT,(VTM) 8mm A/F HEX.SPACER M5x20	265-607
1b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
1c	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
1d	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
1e	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
1f	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
1g	P.ASSY, (VTM) INFEED CONVEYOR L/H SIDE	907-074
2	BELT, CONVEYOR 25mm WIDE x 258mm LONG	914-409
3	SHAFT,(VTM) TIE BAR 8mm x 335mm LONG	265-606
4	BELT, CONVEYOR 25mm WIDE x 258mm LONG	914-409
5	P.ASSY, (VTM) DEFLECTOR SHAFT	907-188
5a	ALUMINIUM, (VTM) ROLLER DIA 19.5mm	251-422
5b	PIN, M3 x 18mm LG SPIROL	400-393
5c	SHAFT, (VTM) IDLER CONVEYOR SHAFT	265-608
6	P.ASSY, (VTM) IDLER CONVEYOR SHAFT	890-043
6a	SHAFT, (VTM) IDLER CONVEYOR SHAFT	265-864
6b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
6c	PIN, DIA 4mm x 20mm DOWEL	400-405
6d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
7	P.ASSY, (VTM) CONVEYOR DRIVE SHAFT	890-044
7a	SHAFT,(VTM) CONVEYOR DRIVE SHAFT	265-865
7b	PLASTIC MOULDING, ROLLER 25.4mm	310-690
7c	PIN, DIA 4mm x 20mm DOWEL	400-405
7d	PLASTIC MLDG, ROLLER RETAINER 25.4mm	310-691
8	P.ASSY, INFEED CONVEYOR R/H & OILITES	908-492
8a	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
8b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
8c	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
8d	SHAFT,(VTM) 8mm A/F HEX.SPACER M5x20	265-607
8e	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
8f	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
8g	P.ASSY, (VTM) INFEED CONVEYOR R/H SIDE	907-073
9	ST STEEL, WASHER OD16mmxID8.2mmx0.25mm	257-366
10	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
11	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
12	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
13	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
14	GEAR, 1 MOD 37T PLAIN SLOTTED (DELRIN)	192-319
15	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
16	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
17	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
18	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
19	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	STEEL, (VTM) INFEED CONVEYOR GUARD	253-156
22	STEEL, (VTM) DROSS DEFLECTOR	253-075
23	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
24	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
25	SHAFT,(VTM) 8mm A/F HEX.SPACER M5x20	265-607
26	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
27	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
28	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
29	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
30	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
31	ST STEEL, WASHER OD16mmxID8.2mmx0.25mm	257-366
32	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
33	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 11 Outfeed Conveyor Upper Assy

Morgana TrimMaster Pro · Транспортёр вывода, верхний

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) OUTF EED CONVEYOR UPPER	890-313
1	P.ASSY, (VTM) FRONT TOP SHAFT	908-970
1a	SHAFT,(VTM) CONVEYOR DRIVE FRONT UPPER	265-605
1b	ALUMINIUM,(XBR) ROLLER 025.4	251-332
1c	PIN, M3 x 20 SPIROL	400-391
2	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
3	CONSUMABLE,ASSY AID,GAFFA TAPE 50mm	951-128
4	SHAFT, (VTM) TIE BAR 8mmx393mm LONG	265-602
5	BELT, CONVEYOR TOP MAM04H x 514mm LG	914-405
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
8	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
9	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
10	GEAR, 50T 8mm BORE NO BOSS - DELRIN	192-350
11	P.ASSY, (VTM) CONVEYOR R/H (TOP )	908-944
11a	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
11b	P.ASSY, (VTM) CONVEYOR TOP R/H	908-637
12	P.ASSY, (VTM) TO P OUTFEED ROLLER SHAFT	890-315
12a	PIN, M3 x 20 SPIROL	400-391
12b	ALUMINIUM,(XBR) ROLLER 025.4	251-332
12c	SHAFT,(VTM)CONVEYOR DRIVE ROLLER UPPER	265-603
13	ROD, (VTM) CLAMP FRAME CONVEYOR	262-283
14	PIN, DIA 3mm x 16mm SELLOCK	400-368
15	P.ASSY, (VTM) CONVEYOR L/H (TOP)	908-943
15a	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
15b	P.ASSY, (VTM) CONVEYOR TOP L/H	908-460

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 12 Outfeed Conveyor Lower Assy

Morgana TrimMaster Pro · Транспортёр вывода, нижний

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VTM) OUTF EED CONVEYOR (LOWER)	907-314
1	P.ASSY, (VTM) FRONT LOWER SHAFT	908-941
1a	PIN, M3 x 20 SPIROL	400-391
1b	ALUMINIUM,(XBR) ROLLER 025.4	251-332
1c	SHAFT,(VTM) CONVEYOR DRIVE LOWER FRONT	265-599
2	BELT, CONVEYOR LOWER MAM04H x 618mm LG	914-404
3	P.ASSY, (VTM) LOWER OUTFEED	908-938
3a	ALUMINIUM,(XBR) ROLLER 025.4	251-332
3b	SHAFT, (VTM) CONVEYOR DRIVE LOWER	265-598
3c	PIN, M3 x 20 SPIROL	400-391
4	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
5	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
6	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
7	NYLON,SPACER 7.94 mm x4.93mm x7.94mm LG	320-384
8	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
9	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
10	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
11	SHAFT, (VATR) SPACER DIA 8mmx5.1x8mmLG	265-522
12	NYLON,SPACER 7. 94mm x4.93mm x7.94mm LG	320-384
13	P.ASSY, (VTM) CONVEYOR ARM R/H	908-933
13a	STEEL, (VATR) LEVER CONVEYOR	254-976
13b	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
14	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
15	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
16	GEAR, 50T 8mm BORE NO BOSS - DELRIN	192-350
17	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
18	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
19	P.ASSY, (VTM) LOWER CONVEYOR R/H	907-075
19a	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
19b	P.ASSY, (VTM) CONVEYOR R/H (BOTTOM)	908-937
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	NUT, M5 NYLOC-TYPE P BZP	150-035
22	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
23	NUT, M5 NYLOC-TYPE P BZP	150-035
24	NUT, M5 NYLOC-TYPE P BZP	150-035
25	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
26	NUT, M5 NYLOC-TYPE P BZP	150-035
27	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
28	P.ASSY, (VTM) LOWER CONVEYOR L/H	907-076
28a	P.ASSY,(VTM) CONVEYOR L/H (BOTTOM)	908-936
28b	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
29	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
30	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
31	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
32	SHAFT, (VATR) SPACER DIA 8mmx5.1x8mmLG	265-522
33	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
34	NYLON,SPACER 7. 94mm x4.93mm x7.94mm LG	320-384
35	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
36	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
37	NYLON,SPACER 7. 94mm x4.93mm x7.94mm LG	320-384
38	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
39	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
40	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
41	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
42	P.ASSY, (VTM) CONVEYOR ARM L/H	908-939
42a	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
42b	STEEL, (VATR) LEVER CONVEYOR	254-976
43	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
44	NUT, M5 NYLOC-TYPE P BZP	150-035
45	NUT, M5 NYLOC-TYPE P BZP	150-035
46	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
47	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 13 Carriage Assembly

Morgana TrimMaster Pro · Каретка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) CARRIAGE PAN	907-318
1	SCREW,SKT HD CAP,M5x25 HIGH TENSILE ZP	100-357
2	WASHER, M5 FORM A BZP	160-003
3	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	SHAFT, (VATR) CARRIAGE	265-537
6	ELECT.ASSY, VARIO FIX.FOCUS SENSOR-STR	905-162
7	P.ASSY, (VATR) SENSOR PLATE CARRIAGE	907-146
8	P.ASSY, (VTM) CLAMP ROLLER	907-283
8a	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
8b	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
8c	PL MLDING, ROLLER	310-636
8d	STEEL, (VATR) CLAMP BRACKET	253-018
8e	SHAFT, (VATR) CLAMP ROLLER	265-538
9	SPRING, 9.52mm x 38.1mm Ext, strong	180-079
10	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
11	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
12	CABLE ASSY, AUTO TRIMMER MOTOR LINK	742-358
13	P.ASSY, (VATR) CARRIAGE AXIS MOTOR	908-859
13a	ELEC ASSY, MOTOR, AXIS DRIVE	905-126
13b	STEEL, (VASF) MOTOR MOUNTING PLATE	254-610
13c	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
13d	SCREW, SKT HD BUTTON,M4x 8mm STAINLESS	101-320
13e	GEAR,(VASF) 37T & M4 TAPPED HOLE DELRIN	192-413
13f	GRUB SCREW, M4 x 6mm CUP POINT	149-201
14	ELEC-HARDWARE, CABLE TIE-small	710-016
15	WASHER, M5 FORM A BZP	160-003
16	NUT, M5 NYLOC-TYPE P BZP	150-035
17	CABLE ASSY, (ATR) LATCH SOLENOID	742-363
18	P.ASSY, (VTM) CARRIAGE SOLENOID → рис. 15	907-331
19	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
20	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
21	P.ASSY, (VTM) CARRIAGE MICROSWITCH	907-141
21a	NUT, M2.5 HEX FULL BZP	150-302
21b	SHAKEPROOF WASHER, M2.5 INTERNAL BZP	165-201
21c	CABLE ASSY, AUTO TRIMMER MICROSWITCH	742-359
21d	WASHER, M2.5 FORM A BZP	160-202
21e	SCREW, SKT HD CAP, M2.5x12mm STAINLESS	100-341
21f	STEEL, (VATR) SENSOR BRACKET CARRIAGE	254-988
22	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
23	SCREW, SKT HD CAP, M5 x 16mm STAINLESS	100-319
24	SPRING,(VS/F) LEAF SPRING	180-328
25	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
26	P.ASSY, (VTM) CARRIAGE PAN → рис. 14	907-332

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 14 Carriage Pan Assembly

Morgana TrimMaster Pro · Поддон каретки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) CARRIAGE PAN	907-332
1	STEEL, (VTM) CARRIAGE PAN	254-851
2	SHAFT,(VATR) SLIDE BAR DIA 12.7x272lg	265-523
3	PLASTIC, FIXING RING dia 12mm ID	315-467
4	TUBE, (V) 3/8"dia AIR TUBE 25mm LONG	360-311
5	P.ASSY, (VTM) CARRIAGE BRACKET	908-089
5a	SHAFT, (VATR) SLEEVE	265-525
5b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
5c	P.ASSY, (VATR) CARRIAGE BRACKET	908-866
5d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5e	NUT, M5 HEX FULL BZP	150-005
5f	SCREW, SKT HD BUTTON,M5x40mm STAINLESS	101-327
5g	PLASTIC, (VATR) M5 DOME NUT	315-552
6	NUT, (VASF) ADJUSTER M10	150-316
7	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
8	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9	ST STEEL, (VBM) NUT LOCK PLATE	257-410
10	STEEL, (VATR) CLAMP PLATE	253-019
11	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
12	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
13	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
14	NUT, M5 HEX FULL BZP	150-005
15	SCREW, SKT HD BU TTON,M5x25mm STAINLESS	101-306
16	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	SCREW, SKT HD BU TTON,M5x16mm STAINLESS	101-307
19	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
20	ST STEEL, (VATR) BLANKING PLATE	257-403
21	RUBBER, (VATR) TOLERANCE PAD	330-454
22	BEARING,(VSLM) STEEL 8mm BALL BEARING	190-323
23	BEARING, OILITE PLAIN 8mmx12mmx20mm LG	190-327
24	STEEL, (VATR) CARRIAGE SPACER PLATE	254-971
25	NUT, M5 HEX FULL BZP	150-005
26	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
27	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
28	SHAFT, HEX.SPACER BRASS N/PLAT M5x25mm	265-251
29	STEEL, (VATR) MOTOR PLATE	254-984
30	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
31	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
32	SHAFT, HEX.SPACER BRASS N/PLAT M5x25mm	265-251
33	GEAR, 1 MOD 37T PLAIN SLOTTED (DELRIN)	192-319
34	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
35	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
36	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
37	PLASTIC MLDG,BEAR ING BUSH (8mm SHAFT)	310-351
38	ST STEEL, WASHER OD16mmxID8.2mmx0.25mm	257-366
39	SHAFT,(VATR) ADJUSTER M10 x 1.5	265-524
40	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
41	PIN, DIA 3mm x 16mm SELLOCK	400-368
42	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
43	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 15 Carriage Solenoid Assembly

Morgana TrimMaster Pro · Соленоид каретки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) CARRIAGE SOLENOID	907-331
1	SCREW, SKT HD CAP, M4 x 8mm STAINLESS	100-306
2	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
3	PL MLDING, (VGBM) PAPER CATCH GUIDE	310-630
4	P.ASSY, (VTM) SOLENOID	908-193
4a	SOLENOID, GE-40-08-40%-24V FLANGED	760-333
4b	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
4c	NYLON, M5 WASHER	320-304
4d	ALU,WASHER 35mmO/D x 23.6mmI/D x 3mm	251-387
4e	SPRING,(VSF) COMP 2N-15N E/STITCH	180-355
5	PLASTIC, GROMMIT STRIP x 35mm LONG	315-564
6	STEEL, (VATR) SOLENOID BRACKET	254-987
7	WASHER, M4 FORM A BZP	160-001
8	WASHER, M4 SQ.SECT.SPRING BZP	160-205
9	SCREW, SKT HD CAP, M4 x 8mm STAINLESS	100-306
10	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
11	WASHER, M4 FORM A BZP	160-001
12	STEEL, (VATR) SOLENOID SLIDE BRACKET	254-990
13	NYLON, (VGBM) PAPER CATCH SLEEVE	320-100
14	WASHER, M4 FORM A BZP	160-001
15	SCREW, SKT HD BU TTON,M4x20mm STAINLESS	101-047

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 16 Side Plate R/H Assembly

Morgana TrimMaster Pro · Правая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) RIGHT HAND SIDE PLATE	907-326
1	P.ASSY, (VTM) SIDE FRAME R/H	907-079
2	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
5	RUBBER,(VDPS) GROMMET FOR CYLINDER	330-339
6	P.ASSY, (VTM) MAINS CABLE SUPPORT BRKT	908-932
7	NUT, M5 NYLOC-TYPE P BZP	150-035
8	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9	NUT, M3 NYLOC-TYPE T BZP	150-033
10	ELEC-HARDWARE, PCB PILLAR 12.7mm HEIGHT	710-301
11	WASHER, M4 FORM A BZP	160-001
12	SCREW, SKT HD CAP, M3 x 10mm STAINLESS	100-326
13	STEEL, (VTM) CONVEYOR BRACKET R/H	253-282
14	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
15	SCREW, SKT HD BU TTON,M5x16mm STAINLESS	101-307
16	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
17	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
18	PLASTIC, (VTM) BUMP STOP	315-561
19	SCREW, SKT HD BU TTON,M4x20mm STAINLESS	101-047
20	NUT, M5 NYLOC-TYPE P BZP	150-035
21	SHAFT,(VDPS)S/L SPACER 8 X 5.2 X30.5MM	265-402
22	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
23	WASHER, M4 FORM A BZP	160-001
24	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
25	SCREW,SKT HD CAP,M5x45 HIGH TENSILE ZP	100-350
26	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
27	WASHER, M4 FORM A BZP	160-001
28	LABEL, EARTH SYMBOL	500-006
29	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
30	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
31	WIRE, PUSH-ON/ EARTH 1.0mm 180mm/ 2BA	740-192
32	WASHER, M5 FORM A BZP	160-003
33	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
34	RELAY, 25A 240 VAC OUTPUT, SSR, S/Mount	705-062
35	WASHER, M4 FORM A BZP	160-001
36	WASHER, M4 SQ. SECT.SPRING BZP	160-205
37	SCREW, SKT HD CAP, M4 x 16mm STAINLESS	100-317
38	PLASTIC, RELAY COVER - FOR 705-061/62	315-437
39	WIRE, PUSH-ON/ BLACK 1.0mm 180mm/ 2BA	740-191
40	WIRE, PUSH-ON/ BROWN 1.0mm 180mm/ 2BA	740-190
41	P.ASSY, (VTM) MAINS CONNECTOR BRACKET	908-931
41a	SCREW, SKT HD CAP, M4 X 20 STAINLESS	100-342
41b	WASHER, M4 SQ.SECT.SPRING BZP	160-205
41c	WASHER, M4 FORM A BZP	160-001
41d	ELEC-HARDWARE, 4way 16A MULTI-TAB TBLK	710-041
41e	STEEL, (VTM) MAINS BRACKET	253-142
41f	WASHER, M4 FORM A BZP	160-001
41g	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
42	ELECT ASSY, (VTM) RESISTOR	905-332
43	RUBBER, PVC BLANKING PLUG 20mm DIA	330-483
44	ELEC-HARDWARE, CABLE TIE-small	710-016
45	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
46	WASHER, M5 FORM A BZP	160-003
47	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
48	SCREW, SKT HD BU TTON,M3x10mm STAINLESS	101-314
49	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
50	PCB ASSEMBLY, FILT ERED 3PIN XLR SKT	900-169

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 17 Side Plate L/H Assembly

Morgana TrimMaster Pro · Левая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) LEFT HAND SIDE PLATE	907-323
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	P.ASSY, (VTM) SIDE FRAME L/H	908-928
6	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
7	P.ASSY,(VTM) IDLER SUPPORT PLATE INNER	908-930
7a	STEEL, (VTM) IDLER SUPPORT PLATE	253-141
7b	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
7c	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
8	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
9	P.ASSY,(VTM) QUICK RELEASE SHAFT	908-985
9a	SHAFT, (VTM) QUICK RELEASE IDLER	265-615
9b	GEAR, (VTM) 8mm PITCH x 26T	192-447
9c	PIN, M3 x 20 SPIROL	400-391
10	SPRING, (VTM) COMPRESSION	180-376
11	SHAFT, HEX.SPACER BRASS N/PLAT M5x37mm	265-236
12	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
13	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
14	P.ASSY,(VTM) IDLER SUPPORT PLATE OUTER	907-080
14a	STEEL, (VTM) IDLER SUPPORT PLATE	253-141
14b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
14c	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
15	NYLON, SPACER OD 12mmxID8.2mmx3mm LONG	320-322
16	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
17	P.ASSY, (VTM) IDLER SHAFT	907-081
17a	SPROCKET, 15Tx8mmP 8mmBORE COMPLETE	192-008
17b	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
17c	GEAR, 1 MOD 50 TEETH (DELRIN)	192-307
17d	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
17e	SHAFT, (VTM) IDLER SHAFT	265-616
18	NUT, M3 NYLOC-TYPE T BZP	150-033
19	WASHER, M3 FORM A BZP	160-002
20	SCREW, SKT HD CAP, M3 x 10mm STAINLESS	100-326
21	NUT, M5 NYLOC-TYPE P BZP	150-035
22	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
23	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
24	PLASTIC, (VTM) BUMP STOP	315-561
25	WASHER, M4 FORM A BZP	160-001
26	SCREW, SKT HD BU TTON,M4x20mm STAINLESS	101-047
27	SCREW,SKT HD CAP,M5x45 HIGH TENSILE ZP	100-350
28	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
29	SCREW,SKT HD CAP, M6xM16 H/T BZP	100-369
30	WASHER, M6 SQ. SECT.SPRING BZP	160-203
31	WASHER, REPAIR (M6 x 25mm OD) BZP	160-014
32	SHAFT, (VTM) CHAIN TENSIONER	265-617
33	PART ASSY,(VDRV)CHAIN TENSION SPROCKET	909-346
34	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
35	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
36	SHAFT,(VDPS)S/L SPACER 8 X 5.2 X30.5MM	265-402
37	NUT, M5 NYLOC-TYPE P BZP	150-035
38	STEEL, (VTM) CONVEYOR BRACKET L/H	253-283
39	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
40	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 18 Bolster Side Plate Assembly

Morgana TrimMaster Pro · Боковина опоры ножа

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) BOLSTER SIDE PLATE	907-327
1	WASHER, M10 FORM A BZP	160-006
2	PLASTIC, THUMB SCREW M5 x 20mm	315-447
3	NUT, M5 HEX FULL BZP	150-005
4	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
5	WASHER, M6 FORM A BZP	160-004
6	P.ASSY, (VTM) BOLSTER SIDE PLATE R/H	908-919
6a	WASHER, M10 FORM A BZP	160-006
6b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
6c	BEARING, CAM 26mm	190-318
6d	ALUMINIUM, (VTM) SIDE PLATE R/H	251-413
6e	BEAR, OILITE FLANGED ID3/4"xOD1"x3/4"	190-310
7	BEARING, CAM ECCENTRIC 26mm	190-317
8	STEEL, (VTM) ANVIL CLAMP BAR	253-135
9	P.ASSY, (VTM) BOLSTER COMPLETE → рис. 20	907-333
10	STEEL, (VTM) TIE PLATE TRIMMER FRAME	253-108
11	P.ASSY, (VTM) HAND CRANK SUPPORT PLATE	908-925
11a	SCREW, SKT HD BUTTON,M5x12mm STAINLESS	101-302
11b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
11c	STEEL, (VTM) HAND CRANK SUPPORT PLATE	253-137
11d	SHAFT, HEX.SPACER BRASS N/PLAT M5x37mm	265-236
11e	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
12	BEARING, CAM ECCENTRIC 26mm	190-317
13	P.ASSY, (VTM) BOLS TER SIDE PLATE L/H	908-920
13a	ALUMINIUM, (VTM) SIDE PLATE L/H	251-414
13b	BEARING, CAM 26mm	190-318
13c	WASHER, M10 FORM A BZP	160-006
13d	BEAR, OILITE FLANGED ID3/4"xOD1"x3/4"	190-310
13e	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
14	WASHER, M10 FORM A BZP	160-006
15	NUT, M5 HEX FULL BZP	150-005
16	PLASTIC, THUMB SCREW M5 x 20mm	315-447
17	LABEL, (VBM) HAND CRANK DIRECTION	500-236
18	PIN, DIA 4mm x 40mm SPIROL PIN	400-357
19	NYLON, WASHER OD19mmxID13mmx1.5mmTHICK	320-323
20	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
21	P.ASSY, (VTM) LINK BLADE	908-924
21a	STEEL, (VTM) LINK RETURN BLADE	253-136
21b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
22	PART ASSY,(VTRM) CAM BLADE RETURN	909-684
23	SHAFT, (VTM) CRANK (HAND)	265-597
24	SCREW,SKT HD CAP,M5x20 HIGH TENSILE ZP	100-348
25	WASHER, M5 FORM A BZP	160-003
26	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
27	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
28	SPROCKET, (VTRM) 14T 12.7mm BORE	192-378
29	CHAIN,(VECO)8mmx42 PITCH INC. CON LINK	192-395
30	PIN, DIA 4mm x 24mm DOWEL	400-355
31	P.ASSY, (VTM) CB-6 CLUTCH SHAFT	908-923
31a	SCREW, SKT HD CAP,1/4"20UNCx1 1/4" S/S	100-320
31b	WASHER, M6 SQ.SECT.SPRING BZP	160-203
31c	WASHER, M6 FORM A BZP	160-004
31d	ST STEEL, (VTM) SPACER 12.7x6.4x16 LG	257-408
31e	SPROCKET, 29T x 8mm PLATE WHEEL	192-439
31f	CLUTCH, (VSF) CB6 CLOCKWISE 3/4" BORE	760-305
32	STEEL,KEY 3/16" SQ x24/25mm LG FLAT END	254-502
33	WASHER, M6 FORM A BZP	160-004
34	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
35	SHAFT, (VTM) TRIMMER DRIVE x 454mm LG	265-596

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 19 Base Pan Assembly

Morgana TrimMaster Pro · Поддон основания

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) BASE PAN 115V	907-328
—	P.ASSY, (VTM) BASE PAN 230V	907-329
1	SCREW, SKT HD CAP, M5 x 16mm STAINLESS	100-319
2	WASHER, M5 SQ.SECT.SPRING BZP	160-204
3	WASHER, M5 x 20mm OD	160-052
4	ST STEEL, (VTM) SPACER 25mm x 16.5mm	257-406
7a	SHAKEPROOF WASHER, M8 EXTERNAL	165-204
7b	NUT, M8 NYLOC-TYPE P BZP	150-038
7c	EL ASSEMBLY, (VTM) MOTOR 115V	905-320
7c	EL ASSEMBLY, (VTM) MOTOR 230V	905-321
7d	LABEL, 230V	500-009
7d	LABEL, 115V	500-252
7e	SHAKEPROOF WASHER, M8 EXTERNAL	165-204
7f	NUT, M8 HEX FULL BZP	150-007
7g	P.ASSY,(VTM) BASE PAN	908-917
7h	SHAKEPROOF WASHER, M10 INTERNAL BZP	165-004
7i	COACH BOLT, M8 x 35mm	115-020
15	SPROCKET, (VTM) 8mm PITCH x 20T	192-450
16	SPROCKET, (VTM) 8mm PITCH x 24T	192-449
17	P.ASSY, (VTM) BASE PAN & MOTOR 115V	907-082
25	SPROCKET, (VTM) MOTOR 8mm x 23T	192-438
26	SPROCKET, (VTM) MOTOR 8mm x 29T	192-437
27	P.ASSY, (VTM) BASE PAN & MOTOR 230V	907-083

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 20 Bolster Assy

Morgana TrimMaster Pro · Опора ножа

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) BOLSTER COMPLETE	907-333
1	STEEL, (VTM) PAPER CLAMP (BLADE)	253-134
2	NUT, M6 HEX FULL BZP	150-006
3	NYLON,SHOULDER WASHER ID 6.5mm	320-349
4	SPRING,11.25mmODx8.75mmIDx93.5mm LONG	180-326
5	SCREW, SKT HD C/S, M5 x 16	105-313
6	ST STEEL, (VTM) SPIGOT BLADE RETURN	257-407
7	P.ASSY, (VTM) BOLSTER COMPLETE	907-085
8	NYLON, WASHER OD9.5mmxID6.5mmx2.1mm	320-347
9	SCREW, SKT HD CAP, M6 x 120mmSTAINLESS	100-324

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 21 Infeed Cover Assembly

Morgana TrimMaster Pro · Крышка подачи

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VTM) TOP CONVEYOR COVER	907-309
1	P.ASSY, (VTM) DOCKING L/H	908-977
2	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
3	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
4	STEEL,(VTM) INFEED COVER STOP PLATE	253-202
5	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
6	WASHER, M5 FORM A BZP	160-003
7	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
8	NUT, M5 HEX FULL BZP	150-005
9	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
10	STEEL, (VTM) TOP CONVEYOR COVER	253-162
11	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
12	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
13	WASHER, M5 FORM A BZP	160-003
14	STEEL,(VTM) INFEED COVER STOP PLATE	253-202
15	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
16	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	NUT, M5 HEX FULL BZP	150-005
19	P.ASSY, (VTM) DOCKING R/H	908-978
20	SHAFT, (VTM) TIE BAR 8mmO/D x 388mm LG	265-611
21	LABEL, (VTM) SAFETY TOP COVER	500-249
22	P.ASSY, (VTM) MAGN ETIC STRIP & TAPE	907-189
23	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
24	NYLON, WASHER OD12mmxID6mmx0.8mm THICK	320-353
25	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
26	HAND SCREW, (VTM) M5 X 10mm LONG	148-326
27	P.ASSY, (VTM) MAGNETIC STRIP & TAPE	907-189

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 22 Outfeed Drive Assembly

Morgana TrimMaster Pro · Привод вывода

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (TMP) OUTFEED DRIVE	890-283
1	P.ASSY, (TMP) WHEEL BRACKET R/H	890-299
1a	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
1b	PART ASSY,(VSCN) PINCH ROLLER	909-969
1c	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
1d	SCREW, SKT HD BUTTON,M5x25mm STAINLESS	101-306
1e	STEEL, (VTM) WHEEL BRACKET RH	252-176
1f	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
2	P.ASSY, (TMP) WHEEL BRACKET L/H	890-300
2a	SCREW, SKT HD BUTTON,M5x25mm STAINLESS	101-306
2b	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
2c	PART ASSY,(VSCN) PINCH ROLLER	909-969
2d	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
2e	STEEL, (VTM) WHEEL BRACKET	252-168
2f	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
3	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	STEEL, (VTM) PIVOT BKT	252-121
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	ST. STEEL,SPACER OD8mm xID5.1mm x2.7mm	257-357
8	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
10	PLASTIC, SPRING LOCATION COLLAR	315-707
11	WASHER, M5 FORM A BZP	160-003
12	SCREW,SKT HD CAP,M5x16 HIGH TENSILE ZP	100-367
13	SPRING,(VSF) COMP 2N-15N E/STITCH	180-355
14	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
15	P.ASSY, (TMP) OUTFEED GUIDE	890-301
16	RUBBER MOULDING, CONVEYOR WHEEL (SOFT)	330-302
17	PL MLDING, PINCH WHEEL BUSHx16.5mm LG	310-600
18	SHAFT,(VOSC) SPACER 8mmODx5mmIDx22mm	265-445
19	SCREW, SKT HD CAP, M5 x 30mm BZP	100-365
20	P.ASSY, (TMP) TOP BRACKET	890-261

Номера в кружке — сборочные узлы (поставляются в сборе).
