Foldnak 40 — каталог запчастей

Буклетмейкер Ernst Nagel Foldnak 40 (поставлялся Morgana). Parts Book FK40, Rev 1.6 (2003).

CS01Corner Stapling (Option) — угловая сшивка (опция)
CV01Conveyor — транспортёр выкладки
EL01Electronic — электроника
FO01Folding Roller Assembly — фальцевальные валы
FO05Knife Assembly — фальцевальный нож
FO10Drive — привод
FO15Stapler — сшивающая головка
FR01Covers — облицовка
FR05Frame — рама и электрооборудование

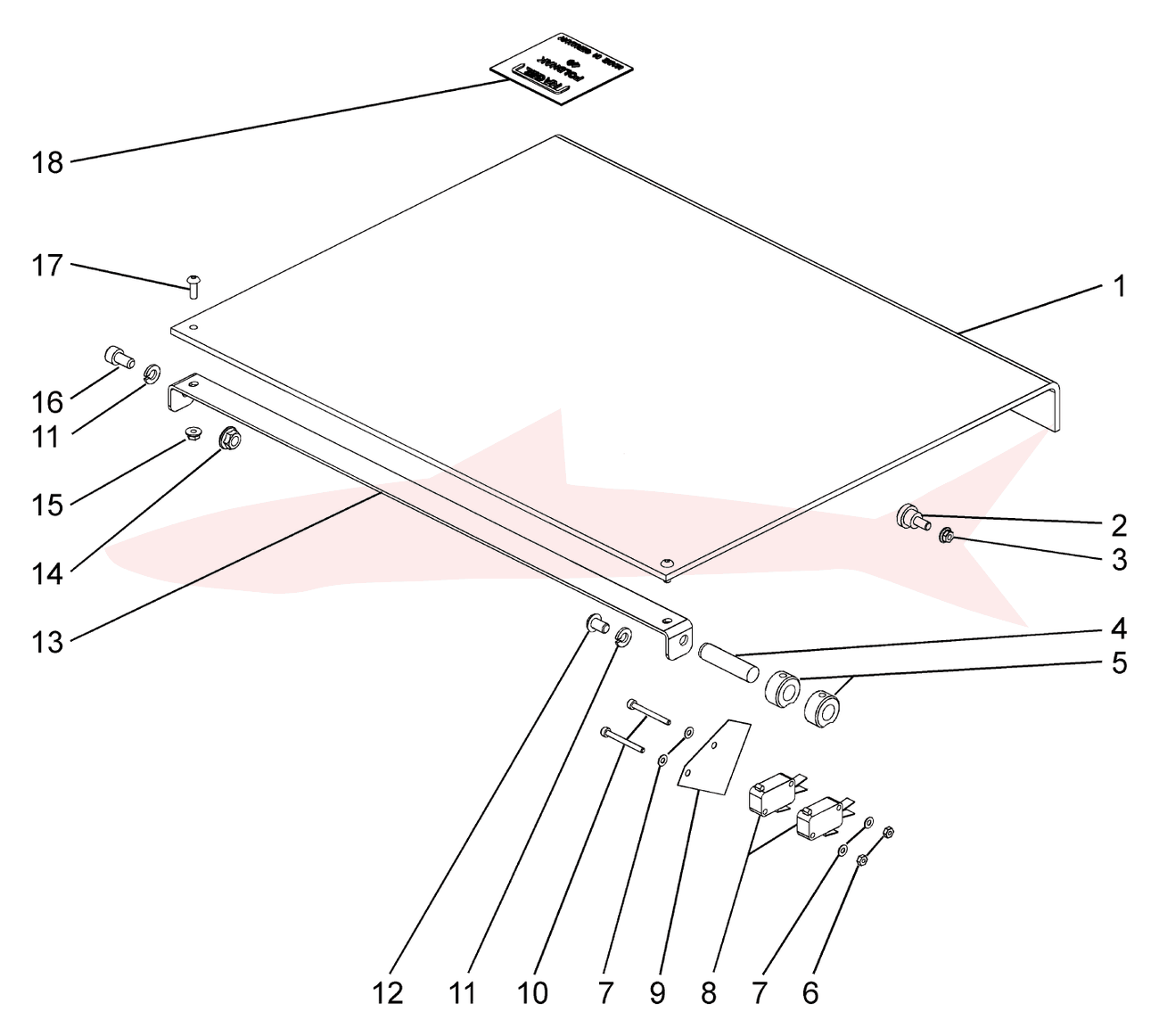

FR10Top Cover — верхняя крышка

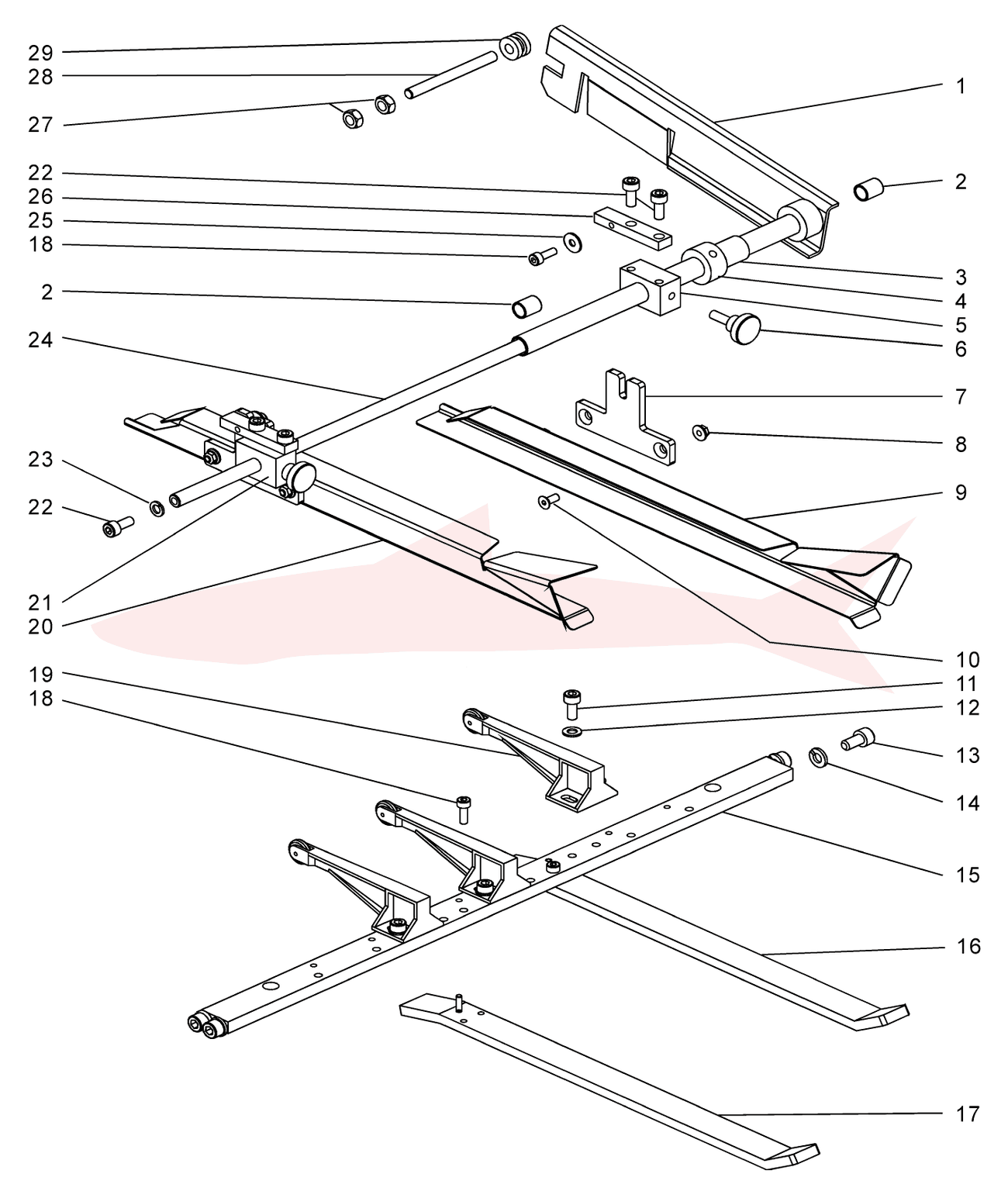

PP01Racks and Stops — упоры подачи бумаги

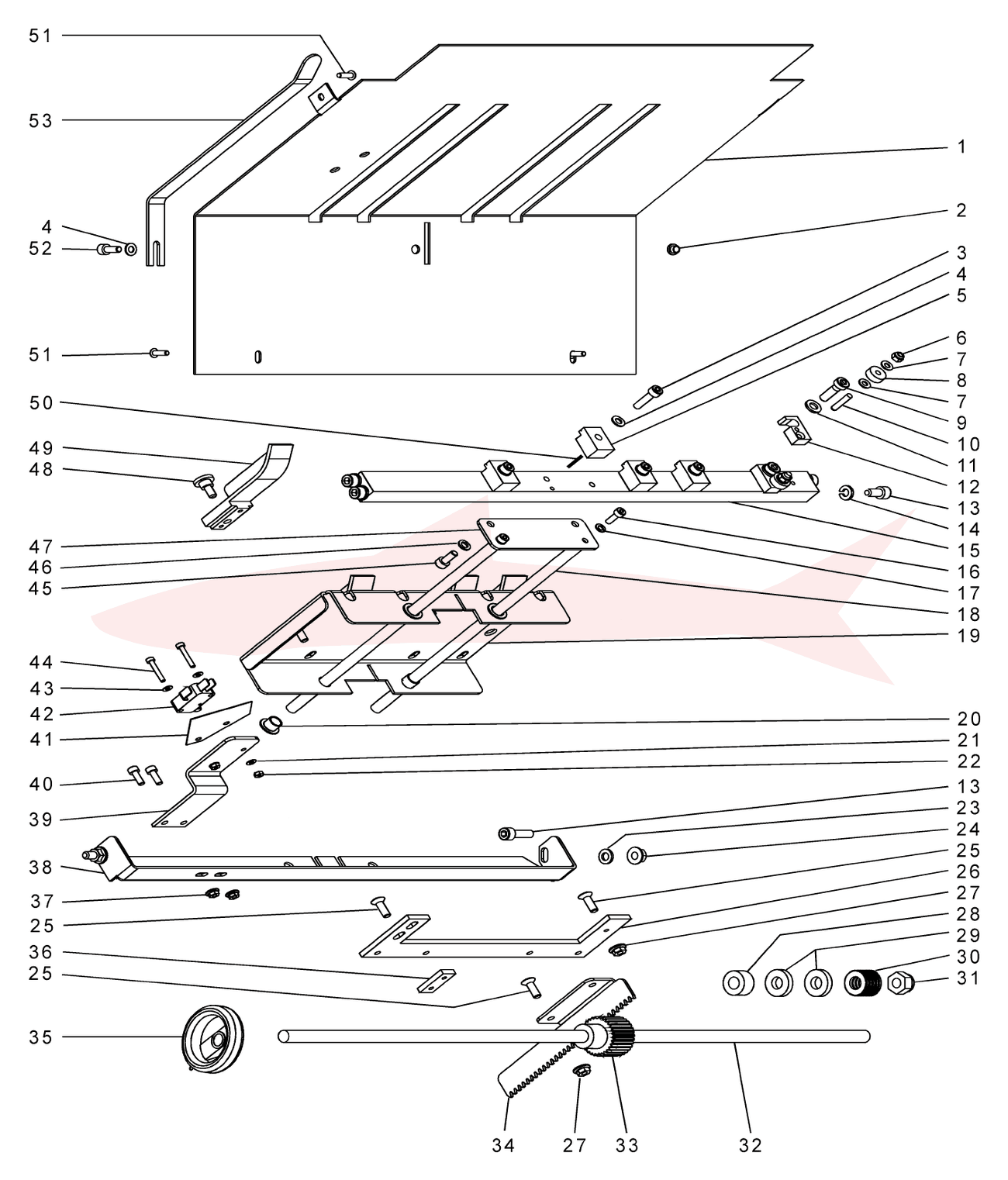

PP05Lower Staple / Fold Stops — нижние упоры сшивки и фальцовки

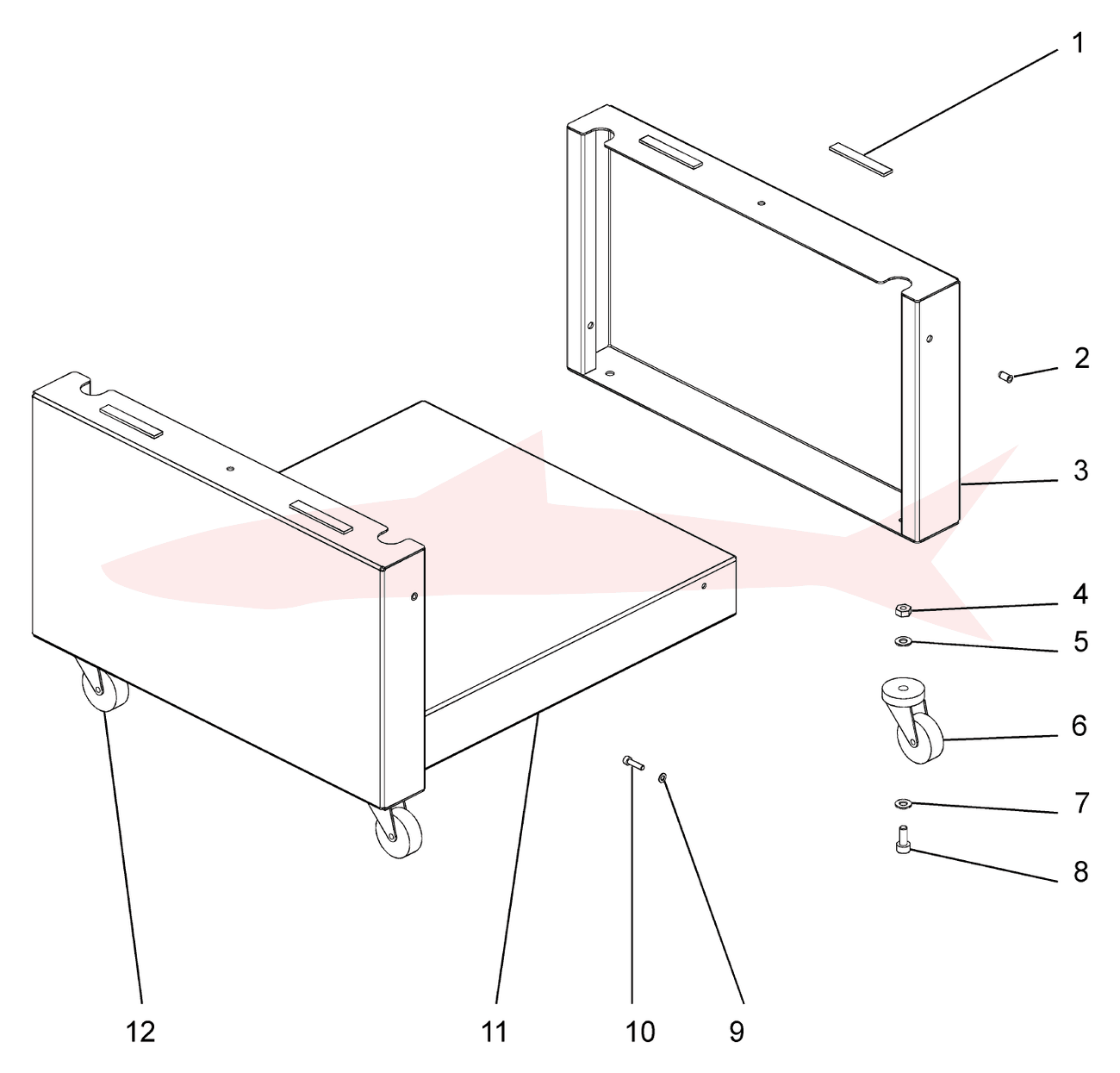

ST01Stand — подставка

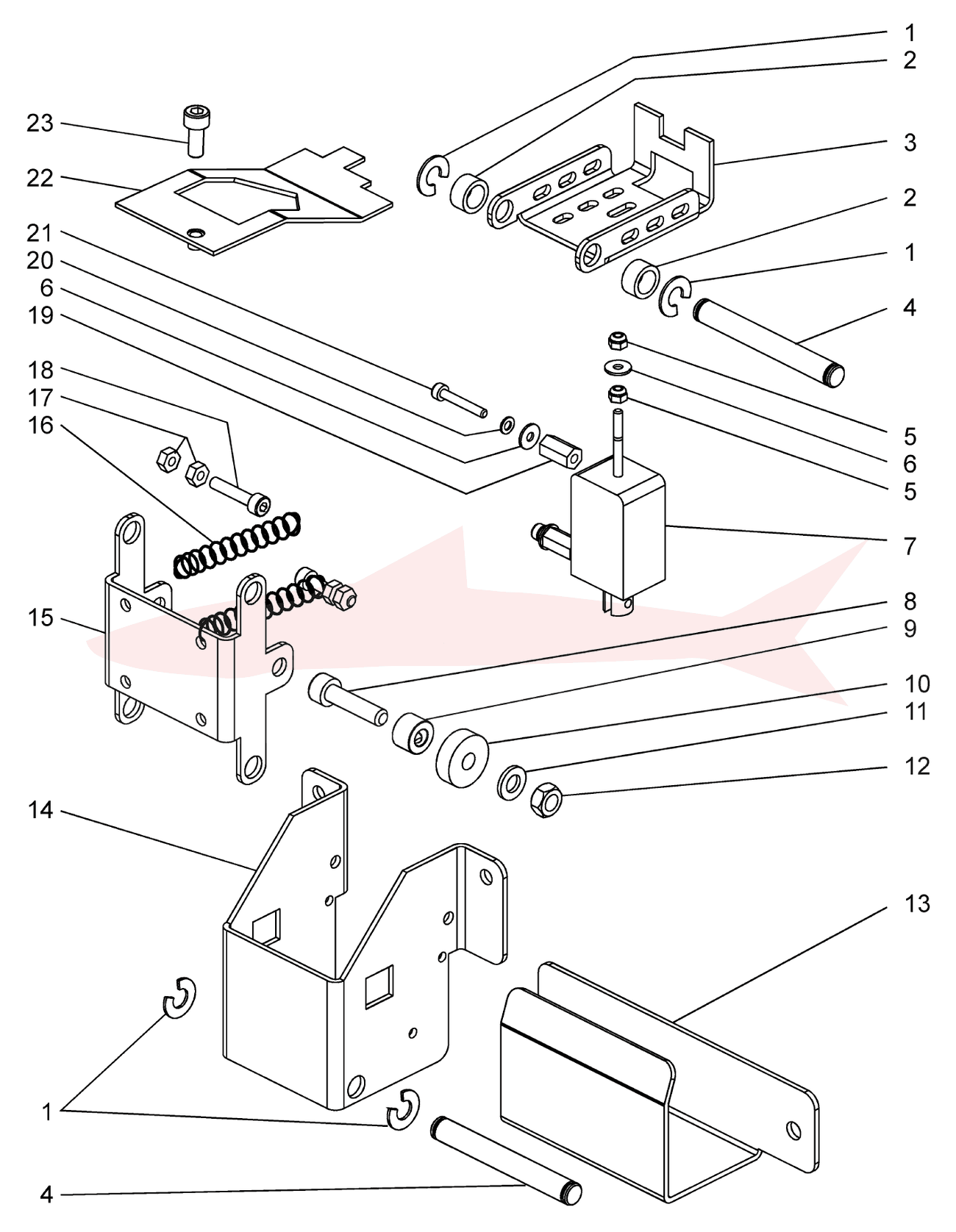

CS01 Corner Stapling (Option)

Foldnak 40 · Угловая сшивка (опция)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Retaining washer (E-clip) Gr. 7	DIN6799, Gr. 7
2	Spacer	2952638
3	Stop bracket	2956669
4	Shaft	2760602
5	Nyloc nut M3	DIN985 M3
6	Large washer ø3	DIN9021 ø3
7	Solenoid	2940552
8	Socket head cap screw M6x25	DIN912 M6x25
9	Set screw collar	9950420
10	Bearing	9950306
11	Washer ø6	DIN125B ø6
12	Hex nut M6	DIN934 M6
13	Bracket	2956641
14	Bracket	2956667
15	Bracket	2956640
16	Spring	2952679
17	Hex nut M4	DIN934 M4
18	Socket head cap screw M4x18	DIN912 M4x18
19	Spacer	2956633
20	Serrated lock washer ø3	DIN6798 ø3
21	Socket head cap screw M3x18	DIN912 M3x18
22	Guide	2956674
23	Socket head cap screw M4x12	DIN912 M4x12

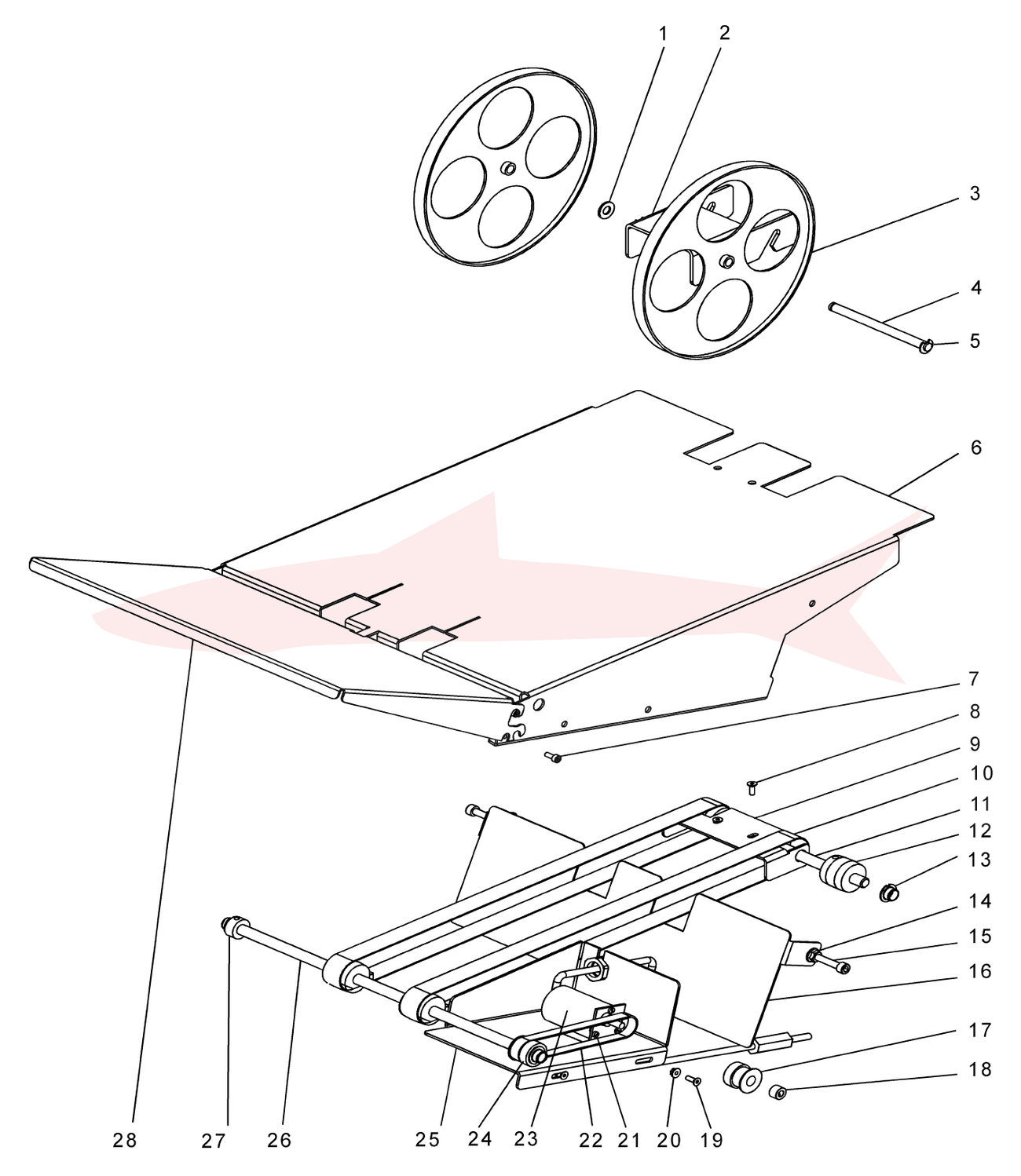

CV01 Conveyor

Foldnak 40 · Транспортёр выкладки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Washer ø8	DIN125 ø8
2	Conveyor wheel support	2956513
3	Wheel	2955713
4	Shaft	2956561
5	E-ring size 7	9950476
6	Conveyor table	2956510
7	Socket head cap screw M4x8	DIN912 M4x8
8	Countersunk socket screw M4x10	DIN7991 M4x10
9	Bracket	2940117
10	Transport belt	2953949
11	Shaft short	2940131
12	Pulley	2952511
12	Set screw, flat point M5x8 (Tuflok)	DIN913 M5x8 Tufl.
13	Bushing	2952018
14	Hex nut with flange M6	W196.2 M6
15	Socket head cap screw M6x45	DIN912 M6x45
16	Conveyor protection	2956614
17	Timing belt pulley	2953978
17	Socket head cap screw M4x12	DIN912 M4x12
18	Set screw collar	9950420
19	Countersunk socket screw M4x10	DIN7991 M4x10
20	Hex nut with flange M4	W196.2 M4
21	Thread-forming screw M3x6	FG M3x6
22	Timing belt	2956044
23	DC motor with plug	2956608
24	Timing belt pulley	2952307
24	Set screw, flat point M4x6	DIN913 M4x6
25	Conveyor cover	2956512
26	Shaft long	2956562
27	Set screw collar	9950422
28	Exit plate	2956511

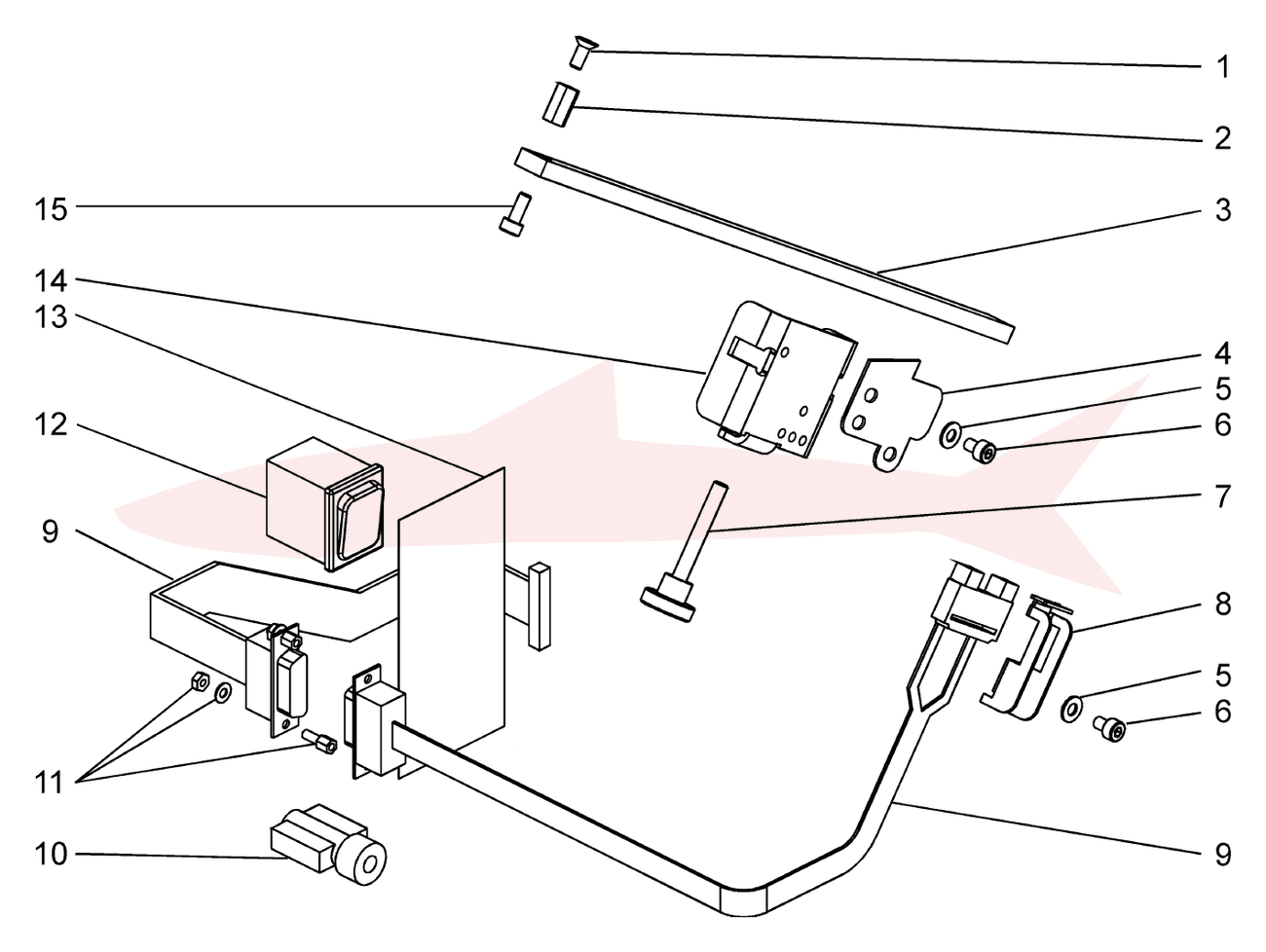

EL01 Electronic

Foldnak 40 · Электроника

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Countersunk socket screw M4x8	DIN7991 M4x8
2	Spacer	2956633
3	Bar	2956604
4	Stop	2956626
5	Washer ø4	DIN125 ø4
6	Socket head cap screw M4x6	DIN912 M4x6
7	Knurled screw	2954607
8	Angle	2956606
9	Photo cell with plug	2956601
10	Socket	2956564
11	Screw set	2957240
12	Switch	2955044
13	Label “Service”	2956622
14	Angle	2956545
15	Socket head cap screw M4x10	DIN912 M4x10

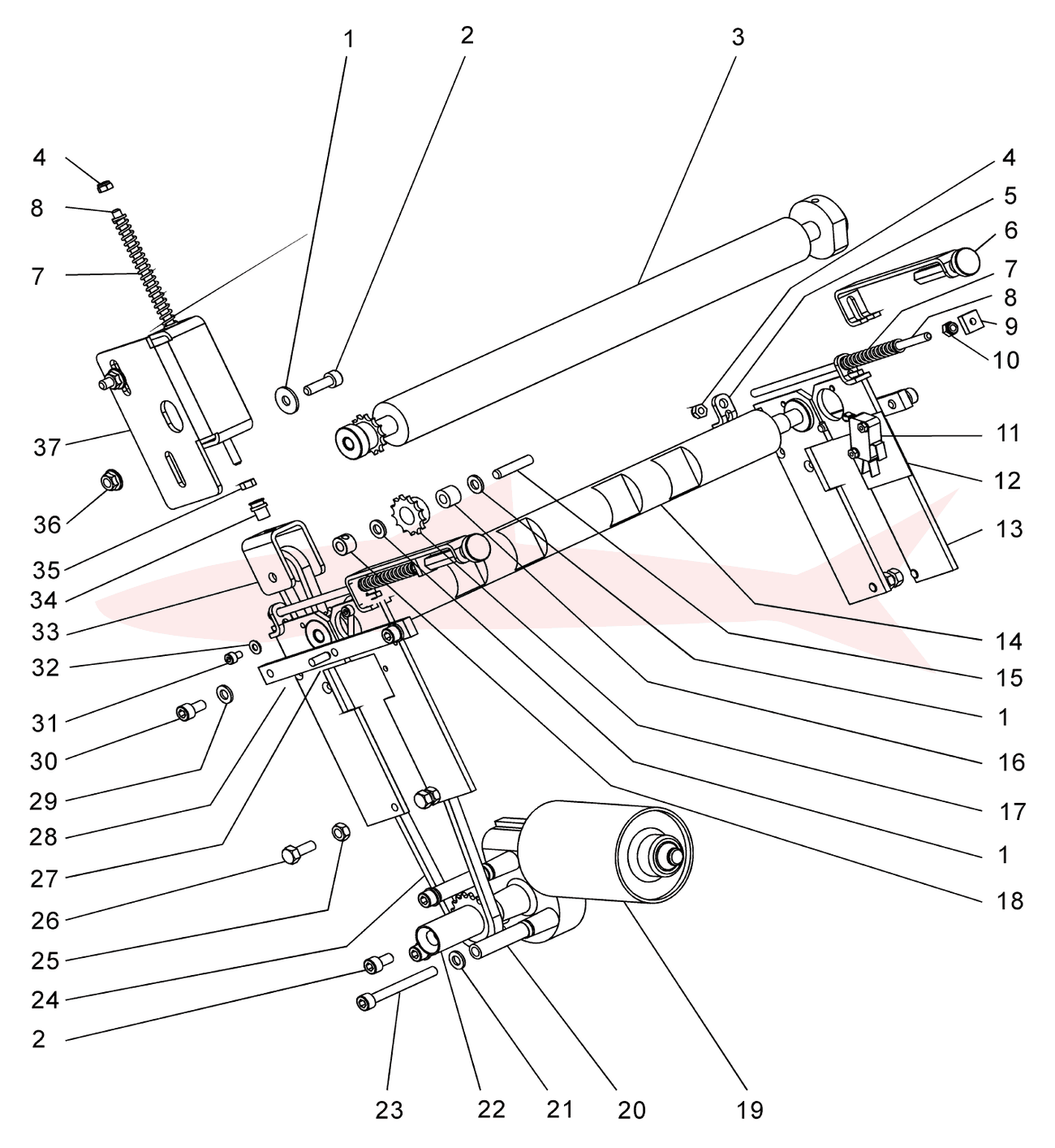

FO01 Folding Roller Assembly

Foldnak 40 · Фальцевальные валы

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Large washer ø6	DIN9021 ø6
2	Socket head cap screw M6x12	DIN912 M6x12
3	Folding roller assembly with cam	2956503
3	Set screw, flat point M5x6 (Tuflok)	DIN913 M5x6 Tufl.
4	Nyloc nut M5	DIN985 M5
5	Lever bracket	2956493
6	clasp	2956693
7	Compression spring	2956536
8	Link	2956543
9	safety nut	2956692
10	Hex nut M5	DIN934 M5
11	Micro switch	2940263
11	Serrated lock washer ø3	DIN6798 ø3
11	Countersunk socket screw M3x20	DIN7991 M3x20
11	Hex nut M3	DIN934 M3
12	Insulating plate	3950636
13	Lever	2956498
14	Folding roller assembly	2956540
15	Dowel pin ø6x30	DIN6325 ø6x30
16	Bearing	9950025
17	Sprocket	2956530
18	Set screw collar	9950420
19	DC motor	2940500
20	Spacer	2956630
21	Spring washer ø6	DIN127 ø6
22	Motor clutch	2956595
22	Set screw, flat point M5x8 (Tuflok)	DIN913 M5x8 Tufl.
23	Socket head cap screw M6x60	DIN912 M6x60
24	Chain	2956532
24	Chain lock	2958246
25	Hex nut M6	DIN934 M6
26	Hex head bolt M6x16	DIN933 M6x16
27	Spring pin ø5x10	DIN1481 ø5x10
28	Bar	2956500
29	Washer ø6	DIN125 ø6
30	Socket head cap screw M6x10	DIN912 M6x10
31	Socket head cap screw M4x5	DIN912 M4x5
32	Washer ø4	DIN125 ø4
33	Sprocket holder	2956643
34	Blind rivet nut M5	9950565
35	Hex nut M5	DIN934 M5
36	Hex nut with flange M6	W196.2 M6
37	Suspension	2956642

Номера в кружке — сборочные узлы (поставляются в сборе).

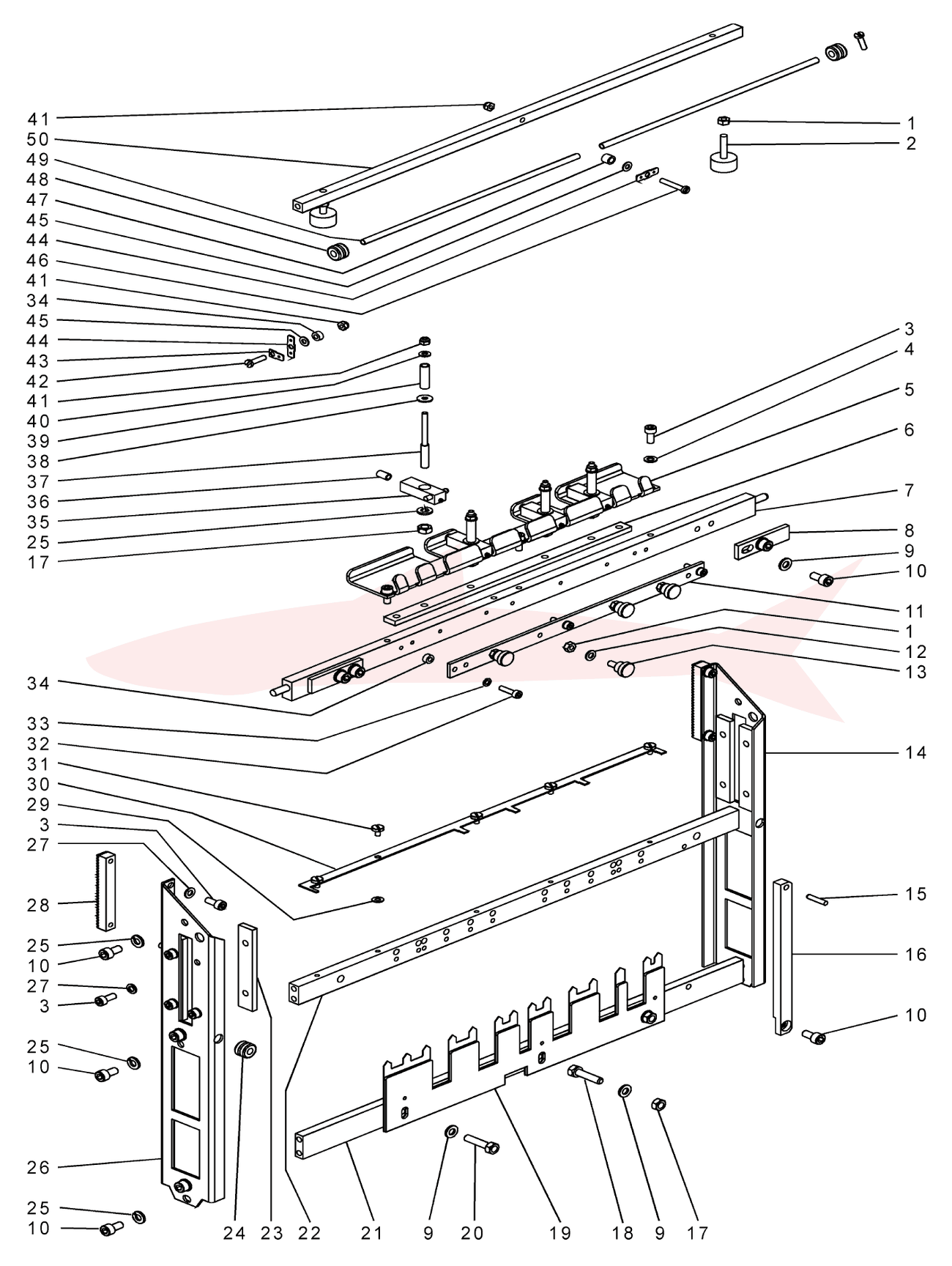

FO05 Knife Assembly

Foldnak 40 · Фальцевальный нож

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Hex nut M5	DIN934 M5
2	Rubber damper	2955936
3	Socket head cap screw M5x10	DIN912 M5x10
4	Washer ø5	DIN125 ø5
5	Plate	2955370
6	Bar	2955372
7	Driver bar	2955373
8	Holding plate	2952272
9	Washer ø6	DIN125 ø6
10	Socket head cap screw M6x12	DIN912 M6x12
11	Bar	2955371
12	Shim ring ø5xø10x0.5	DIN988 ø5xø10x0.5
13	Knurled screw	9950506
14	Frame right	2956488
15	Dowel pin ø4x24	DIN6325 ø4x24
16	Guide bar	2955894
17	Hex nut M6	DIN934 M6
18	Hex head bolt M6x35	DIN933 M6x35
19	Folding knife	2955745
19	Set screw, flat point M5x8 (Tuflok)	DIN913 M5x8 Tufl.
20	Hex head bolt M6x12	DIN933 M6x12
21	Folding knife bar	2956481
22	Staple head bar	2955306
23	Guide bar	2952007
24	Grommet	2955050
25	Spring washer ø6	DIN127 ø6
26	Frame left	2956487
27	Spring washer ø5	DIN127 ø5
28	Rack	2952020
29	Washer ø4 (polyamide)	DIN125 ø4 Poly.
30	Connection bar	2955369
31	Socket head cap screw M4x8 (polyamide)	DIN912 M4x8 Poly.
32	Socket head cap screw M4x16	DIN912 M4x16
33	Spring washer ø4	DIN127 ø4
34	Spacer	2955904
35	Pressure block	2952281
36	Spring	2952283
37	Thread bolt	2952415
38	Large washer ø4	DIN9021 ø4
39	Spring	2952234
40	Washer ø4	DIN125 ø4
41	Nyloc nut M4	DIN985 M4
42	Slotted cheese head screw M4x16 (polyamide)	DIN84 M4x16 Poly
43	Plug	2955483
44	Plug	2952265
45	Washer ø4 (polyamide)	DIN125 ø4 Poly
46	Slotted cheese head screw M4x25 (polyamide)	DIN84 M4x25 Poly
47	Spacer	2955227
48	Grommet	2955050
49	Spring	2955098
50	Cross bar	2956485

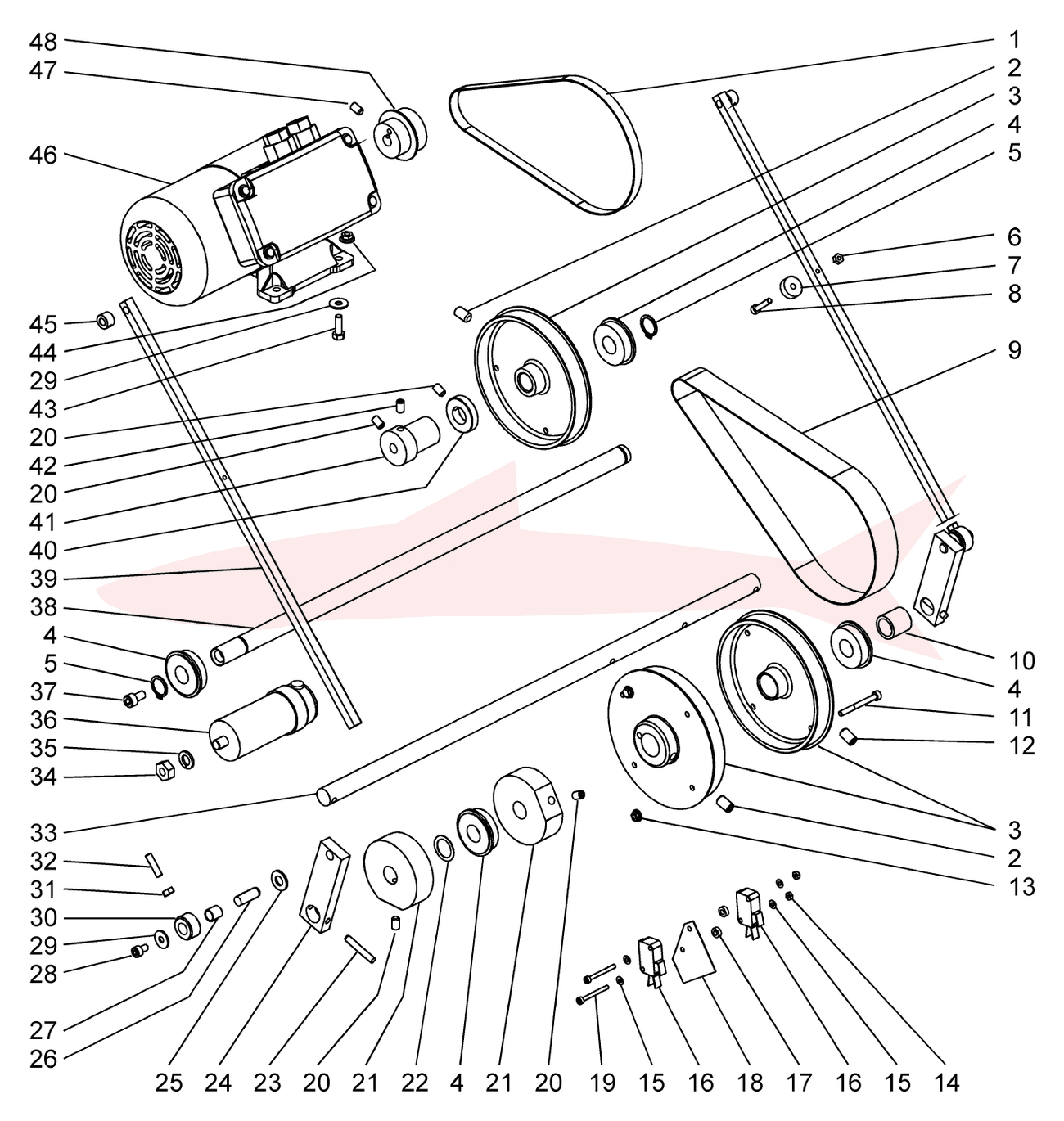

FO10 Drive

Foldnak 40 · Привод

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Timing belt	3952248
2	Set screw, dog point M8x16 (Tuflok)	DIN915 M8x16 Tufl.
3	Timing belt pulley	2952144
4	Bearing	9950267
5	Retaining washer (E-clip) ø12	DIN6799 ø12
6	Hex nut M4	DIN934 M4
7	Nylon roller	2952208
8	Socket head cap screw M4x20	DIN912 M4x20
9	Timing belt	2952158
10	Spacer	3950364
11	Socket head cap screw M4x40	DIN912 M4x40
12	Set screw, flat point M8x12 (Tuflok)	DIN913 M8x12 Tufl.
13	Hex nut with flange M4	W196.2 M4
14	Hex nut M3	DIN934 M3
15	Serrated lock washer ø3	DIN6798 ø3
16	Micro switch	3950465
17	Nylon washer	2952923
18	Insulation plate	3950636
19	Socket head cap screw M3x25	DIN912 M3x25
20	Set screw, flat point M6x8 (Tuflok)	DIN913 M6x8 Tufl.
21	Cam	2956542
22	Shim ring ø16x22x0.5	DIN988 ø16x22x0.5
23	Spiral spring pin ø5x28	DIN7343 ø5x28
24	Crank, order assy 2956698	2956673
25	Washer ø8	DIN125 ø8
26	Dowel pin, internal thread ø8x24	DIN7979 ø8x24
27	Bushing	1954703
28	Socket head cap screw M5x8	DIN912 M5x8
29	Large washer ø5	DIN9021 ø5
30	Set screw collar	9950422
31	Hex nut M5	DIN934 M5
32	Set screw, flat point M5x20	DIN913 M5x20
33	Crank shaft, order assy 2956698	2956621
34	Hex nut M8	DIN934 M8
35	Spring washer ø8	DIN127 ø8
36	Capacitor (230V)	3950479
36	Capacitor (115V)	3950495
37	Socket head cap screw M6x12	DIN912 M6x12
38	Shaft	2956529
39	Link	2956502
40	Set screw collar	2952631
41	Timing belt pulley	2952087
42	Set screw, dog point M6x10 (Tuflok)	DIN915 M6x10 Tufl.
43	Hex head bolt M5x20	DIN933 M5x20
44	Hex nut with flange M5	W196.2 M5
45	Set screw collar	9950420
46	Brake motor 230V 50 cycles	2956040
46	Brake motor 115V 60 cycles	2956041
47	Set screw, flat point M4x6 (Tuflok)	DIN913 M4x6 Tufl.
48	Pinion (115V)	2955036
48	Pinion (230V)	2956038

Номера в кружке — сборочные узлы (поставляются в сборе).

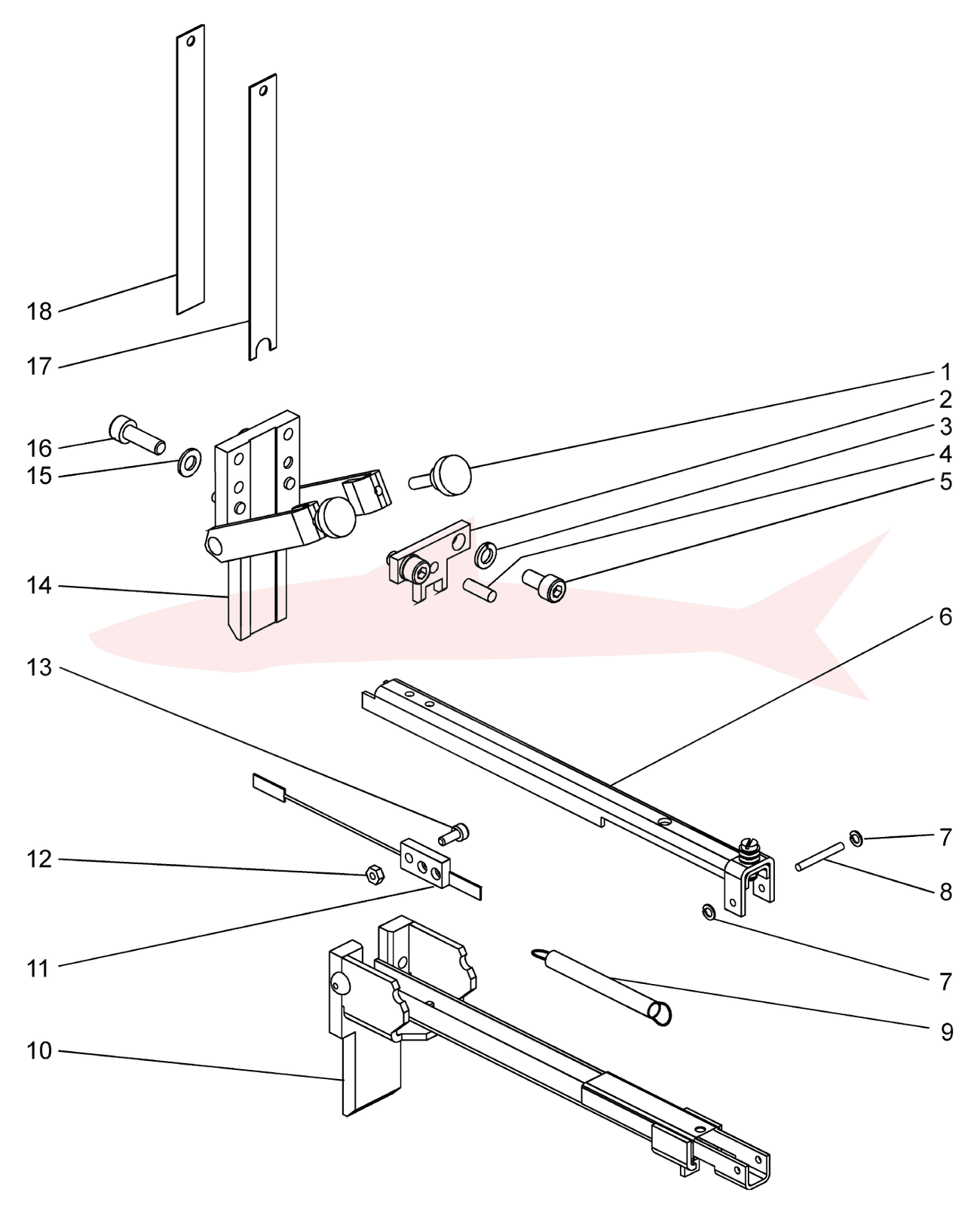

FO15 Stapler

Foldnak 40 · Сшивающая головка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Knurled screw	1950633
2	Cover plate with Pin (04)	2932635
3	Spring washer for cap screws ø5	DIN7980 ø5
4	Spring pin, light ø4x8	DIN7346 ø4x8
5	Low head socket cap screw M5x10	DIN6912 M5x10
6	Magazine cover (new w/o slide)	2952033
7	Grip ring 2.5x0.6	Seger 2.5x0.6
8	Dowel pin ø2.5x20	DIN7 ø2.5x20
9	Tension spring	3918215
10	Support	2932622
11	Contact	2932627
12	Hex nut M3	DIN934 M3
13	Slotted countersunk screw M3x10	DIN963 M3x10
14	Front plate narrow with bows	2932640
15	Washer ø5	DIN125 ø5
16	Socket head cap screw M5x16	DIN912 M5x16
17	Ring driver	2932618
18	Flat driver	2932619

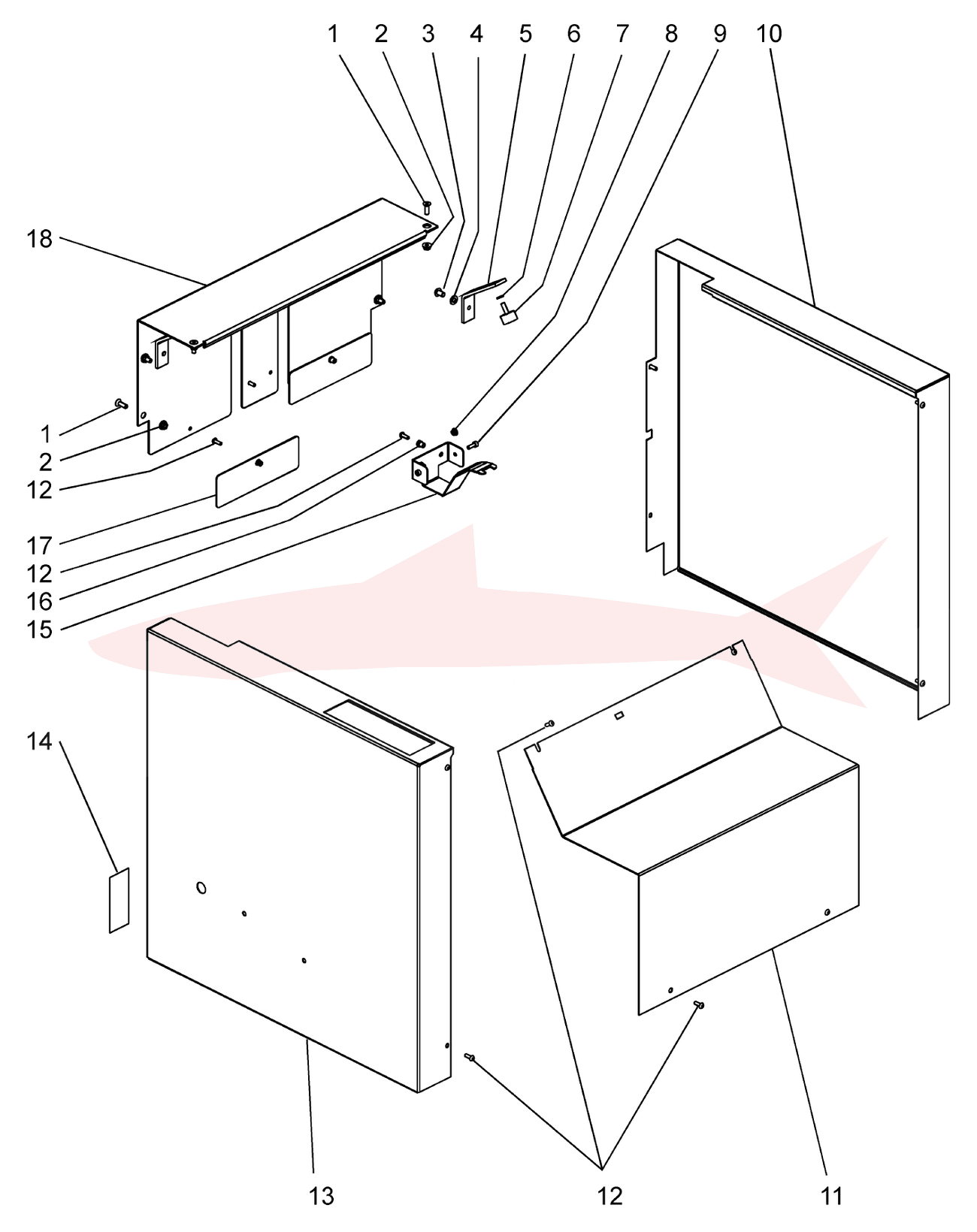

FR01 Covers

Foldnak 40 · Облицовка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Countersunk socket screw M5x10	DIN7991 M5x10
2	Hex nut with flange M5	W196.2 M5
3	Button head socket screw M6x12	ISO7380 M6x12
4	Washer ø6	DIN125 ø6
5	Damper plate	2956664
6	Spring washer ø5	DIN127 ø5
7	Rubber damper	2955019
8	Hex nut with flange M4	W196.2 M4
9	Socket head cap screw M4x12	DIN912 M4x12
10	Cover right	2956658
11	Cover	2956494
12	Button head socket screw M4x12	ISO7380 M4x12
13	Cover left	2956657
14	Label “Fuse”	2956623
15	Conveyer wheel support	2956514
16	Blind rivet nut	9950564
17	Safety plate	2956551
18	Cover plate	2956656

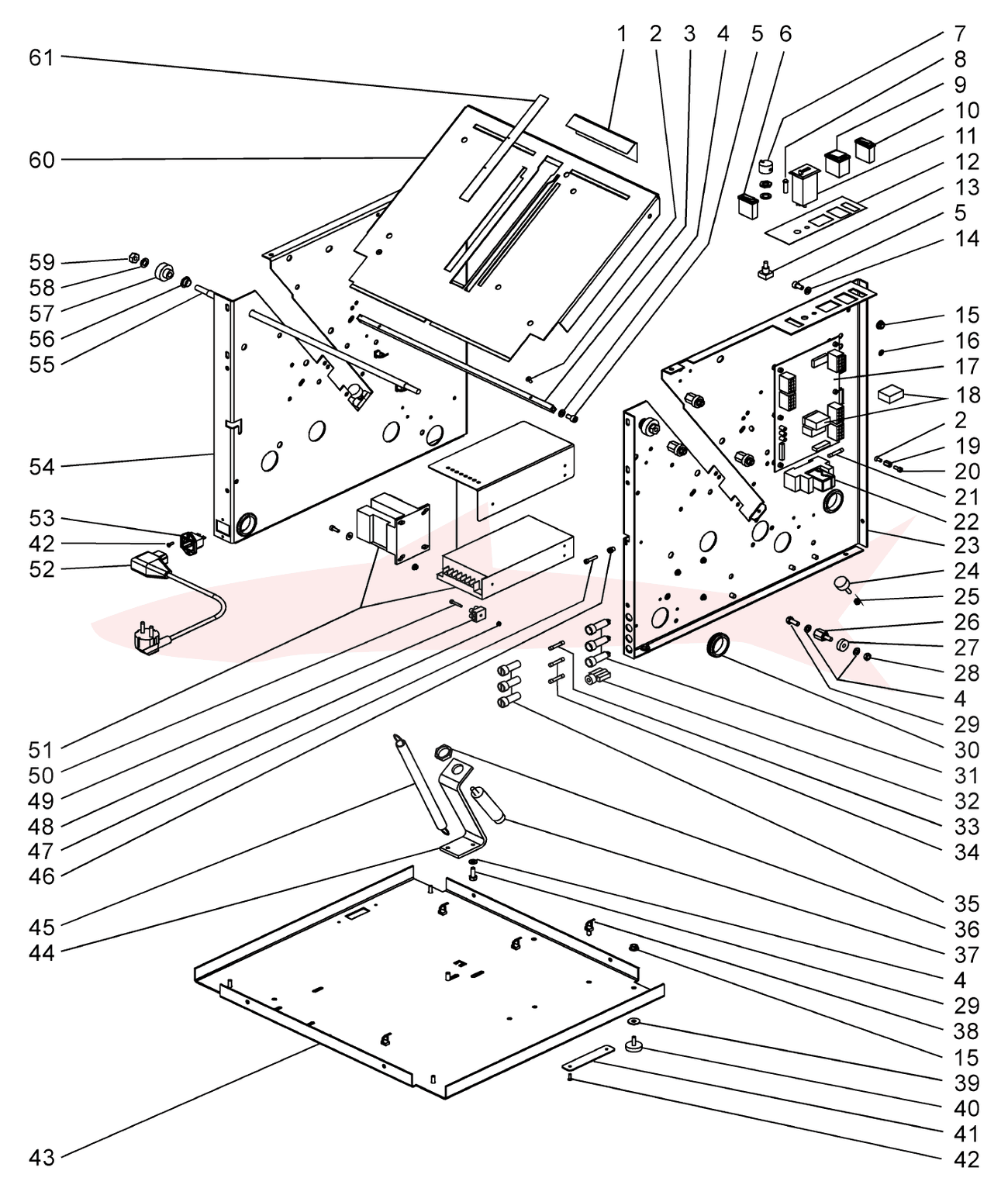

FR05 Frame

Foldnak 40 · Рама и электрооборудование

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Scale	2955033
2	Countersunk socket screw M4x10	DIN7991 M4x10
3	Support bar	2955368
4	Washer ø6	DIN125 ø6
5	Socket head cap screw M6x12	DIN912 M6x12
6	Switch (Corner stapling)	2955044
7	Knob	2955058
8	LED red	2800167
9	Switch	2958265
10	Button	2955043
11	Counter	2955937
12	Operator panel overlay	2956515
13	Potentiometer	2956653
14	Spring washer ø6	DIN127 ø6
15	Hex nut with flange M6	W196.2 M6
16	Ground sticker	9950214
17	PCB FOB-D	2955949
18	Relay 24V DC	2940547
19	Hex bolt	1954094
20	Socket head cap screw M4x6	DIN912 M4x6
21	Fuse 2 amp	2955262
22	Holding bracket (Corner stapling)	2940342
22	Relay 24V DC (Corner stapling)	2953939
22	Socket (Corner stapling)	2953945
23	Side frame left	2956654
24	Rubber damper	2955936
25	Hex nut M5	DIN934 M5
26	Excentric bolt	2952452
27	Bearing	9950306
28	Hex nut M6	DIN934 M6
29	Hex head bolt M6x12	DIN933 M6x12
30	Grommet	2955223
31	Fuse holder	3953123
32	Jack	2956564
33	Fuse 4 amp	2956625
34	Fuse 1 amp (230V)	2955261
34	Fuse 2 amp (115V)	2955262
35	Fuse cap	3953146
36	Thin hex nut M22x1.5	DIN936 M22x1.5
37	Shock absorber	2952303
38	Clamp	9950460
39	Large washer ø6	DIN9021 ø6
40	Rubber damper	1950438
41	Cover	2956632
42	Blind rivet	9950541
43	Base plate	2956486
44	Holding bracket	2955354
45	Spring	2955012
46	Blind rivet nut	9950564
47	Socket head cap screw M4x20	DIN912 M4x20
48	Nyloc nut M3	DIN985 M3
49	Wire terminal strip	9950179
50	Socket head cap screw M3x20	DIN912 M3x20
51	Cover	2956683
51	Power supply	2956780
51	Transformer	2958544
51	Large washer ø4	DIN9021 ø4
51	Socket head cap screw M4x12	DIN912 M4x12
51	Hex nut with flange M4	W196.2 M4
52	Power lead USA (115V)	2940333
52	Power lead Schuko (230V)	2941136
53	IEC inlet	1950850
54	Side frame right	2956655
55	Rod	2952017
56	Bearing	2952018
57	Gear	2952019
58	Spring washer ø8	DIN127 ø8
59	Hex nut M8	DIN934 M8
60	Table	2956563
61	Scale	2956544

FR10 Top Cover

Foldnak 40 · Верхняя крышка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Plexi cover	2956663
2	Knurled screw	9950506
3	Hex nut with flange M5	W196.2 M5
4	Dowel pin, internal thread ø10x32	DIN7979 ø10x32
5	Set screw collar	9950422
6	Hex nut M3	DIN934 M3
7	Serrated lock washer ø3	DIN6798 ø3
8	Micro switch	2940358
9	Insulating plate	3950636
10	Socket head cap screw M3x30	DIN912 M3x30
11	Spring washer ø6	DIN127 ø6
12	Button head socket screw M6x10	ISO7380 M6x10
13	Lid holder	2956659
14	Hex nut with flange M6	W196.2 M6
15	Hex nut with flange M4	W196.2 M4
16	Socket head cap screw M6x12	DIN912 M6x12
17	Button head socket screw M4x12	ISO7380 M4x12
18	Machine label	2956509

PP01 Racks and Stops

Foldnak 40 · Упоры подачи бумаги

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Plate	2955378
2	Bushing	3952429
3	Spring	1950782
4	Set screw collar	9950423
5	Adjusting block right	2955393
6	Knurled screw	9950488
7	Side stop plate	2955446
8	Hex nut with flange M4	W196.2 M4
9	Guide right	2956598
10	Countersunk socket screw M4x10	DIN7991 M4x10
11	Socket head cap screw M5x10	DIN912 M5x10
12	Washer ø5	DIN125 ø5
13	Socket head cap screw M6x12	DIN912 M6x12
14	Spring washer ø6	DIN127 ø6
15	Support	2955348
16	Guide	2955800
17	Guide with black tape	2955801
18	Socket head cap screw M4x12	DIN912 M4x12
19	Guide	2955684
20	Guide left	2956597
21	Adjusting block left	2955392
22	Socket head cap screw M5x12	DIN912 M5x12
23	Spring washer ø5	DIN127 ø5
24	Shaft	2955397
25	Large washer ø4	DIN9021 ø4
26	Bar	2956615
27	Hex nut M6	DIN934 M6
28	Pin	2955040
29	Bushing	2952350

PP05 Lower Staple / Fold Stops

Foldnak 40 · Нижние упоры сшивки и фальцовки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Table lower	2956645
2	Self clenching nut	9950479
3	Socket head cap screw M5x20	DIN912 M5x20
4	Washer ø5	DIN125 ø5
5	Anvil	2932623
6	Nyloc nut M4	DIN985 M4
7	Washer ø4	DIN125 ø4
8	Bearing	9950227
9	Low head socket cap screw M6x20	DIN6912 M6x20
10	Bolt	2952462
11	Washer, small ø6	DIN433 ø6
12	Adjustment plate	2952464
13	Socket head cap screw M6x12	DIN912 M6x12
14	Spring washer ø6	DIN127 ø6
15	Anvil bar	2956522
16	Socket head cap screw M4x10	DIN912 M4x10
17	Spring washer ø4	DIN127 ø4
18	Guiding shaft	2956582
19	Stop slide	2956646
20	Nylon bearing	1950765
21	Serrated lock washer ø3	DIN6798 ø3
22	Hex nut M3	DIN934 M3
23	Washer ø6	DIN125 ø6
24	Hex nut with flange M6	W196.2 M6
25	Countersunk socket screw M5x16	DIN7991 M5x16
26	Stop bar	2956649
27	Hex nut with flange M5	W196.2 M5
28	Set screw collar	9950422
29	Brake ring	2953459
30	Spring	2953612
31	Nyloc nut M10	DIN985 M10
32	Shaft	2956650
33	Spur gear	2940100
33	Spiral spring pin ø4x20	DIN7343 ø4x20
34	Rack	2956651
35	Hand wheel	2956673
35	Set screw, dog point M5x10 (Tuflok)	DIN915 M5x10 Tufl.
36	Nut piece	2955382
37	Hex nut with flange M4	W196.2 M4
38	Guiding bracket	2956648
39	Holding bracket	2956699
40	Socket head cap screw M4x12	DIN912 M4x12
41	Insulating plate	3950636
42	Micro switch	2940263
43	Serrated lock washer ø3	DIN6798 ø3
44	Socket head cap screw M3x16	DIN912 M3x16
45	Socket head cap screw M5x10	DIN912 M5x10
46	Spring washer ø5	DIN127 ø5
47	Guiding plate	2956647
48	Knurled screw	9950266
49	Front stop	2952650
50	Dowel pin ø3x10	DIN6325 ø3x10
51	Button head socket screw M4x12	ISO7380 M4x12
52	Socket head cap screw M5x12	DIN912 M5x12
53	Guide	2955407

ST01 Stand

Foldnak 40 · Подставка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
1	Rubber stripe 13x3	3951007
2	Blind rivet nut M5	9950565
3	Side plate Stand	2956523
4	Hex nut M8	DIN934 M8
5	Spring washer ø8	DIN127 ø8
6	Castor without brake	2955083
7	Heavy washer ø8	DIN7349 ø8
8	Socket head cap screw M8x25	DIN912 M8x25
9	Spring washer ø5	DIN127 ø5
10	Socket head cap screw M5x16	DIN912 M5x16
11	Base plate Stand	2956516
12	Castor with brake	2952972
