Morgana BookMaster Pro — каталог запчастей

Буклетмейкер Documaster (BookMaster Pro). Illustrated Parts Manual 70-076.

Fig 1BookMaster Pro Complete — машина в сборе
Fig 2BookMaster Pro & Covers — корпус и облицовка
Fig 3Staple Area — зона сшивки
Fig 4Diverter Assy — отклонитель (дивертер)
Fig 5Fold Roller Drive Assy — привод фальцевальных валов
Fig 6Fold Roller R/H Assy — фальцевальный вал, правая сторона

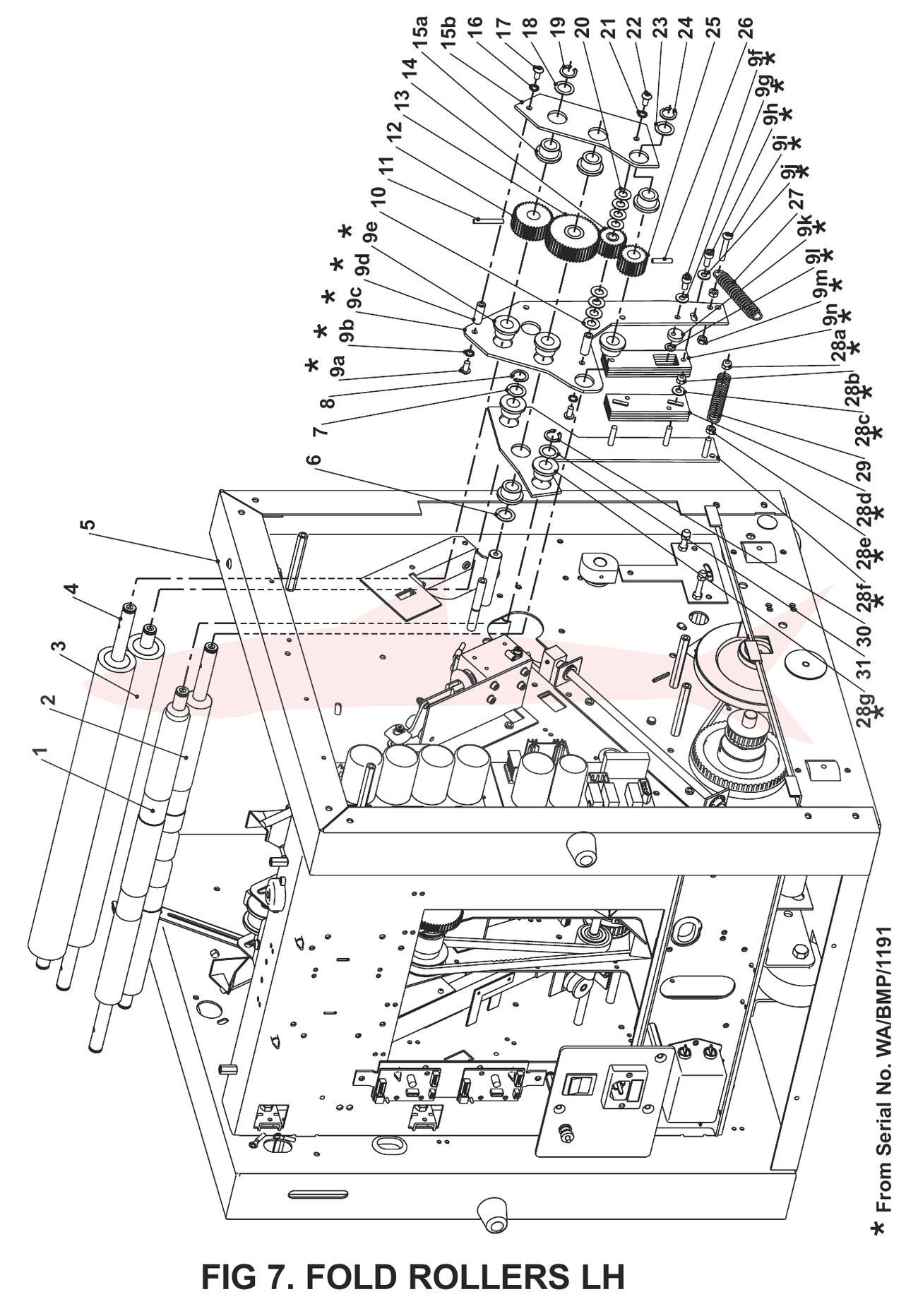

Fig 7Fold Roller L/H Assy — фальцевальный вал, левая сторона

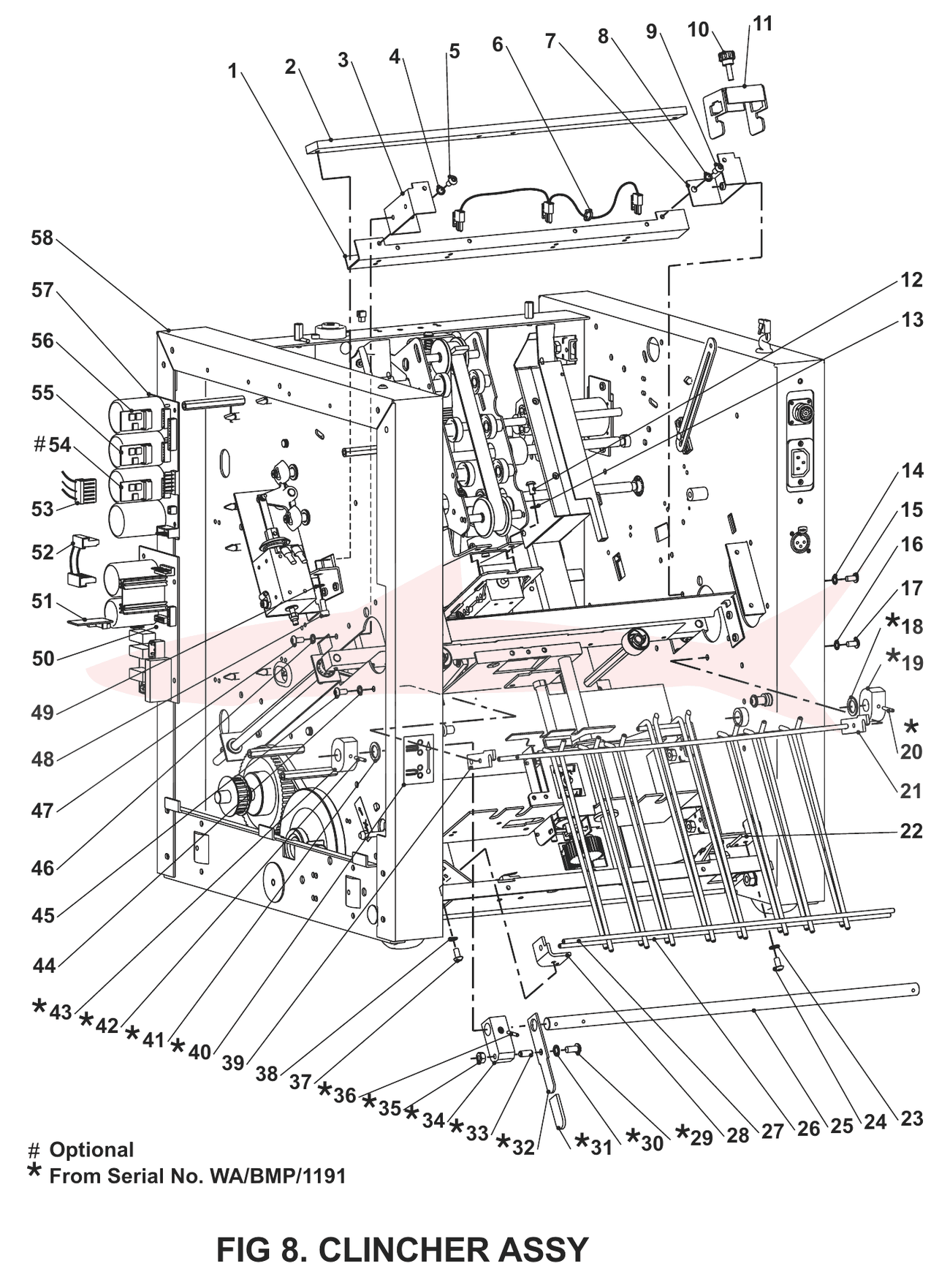

Fig 8Clincher Assy — загибатель скоб (клинчер)

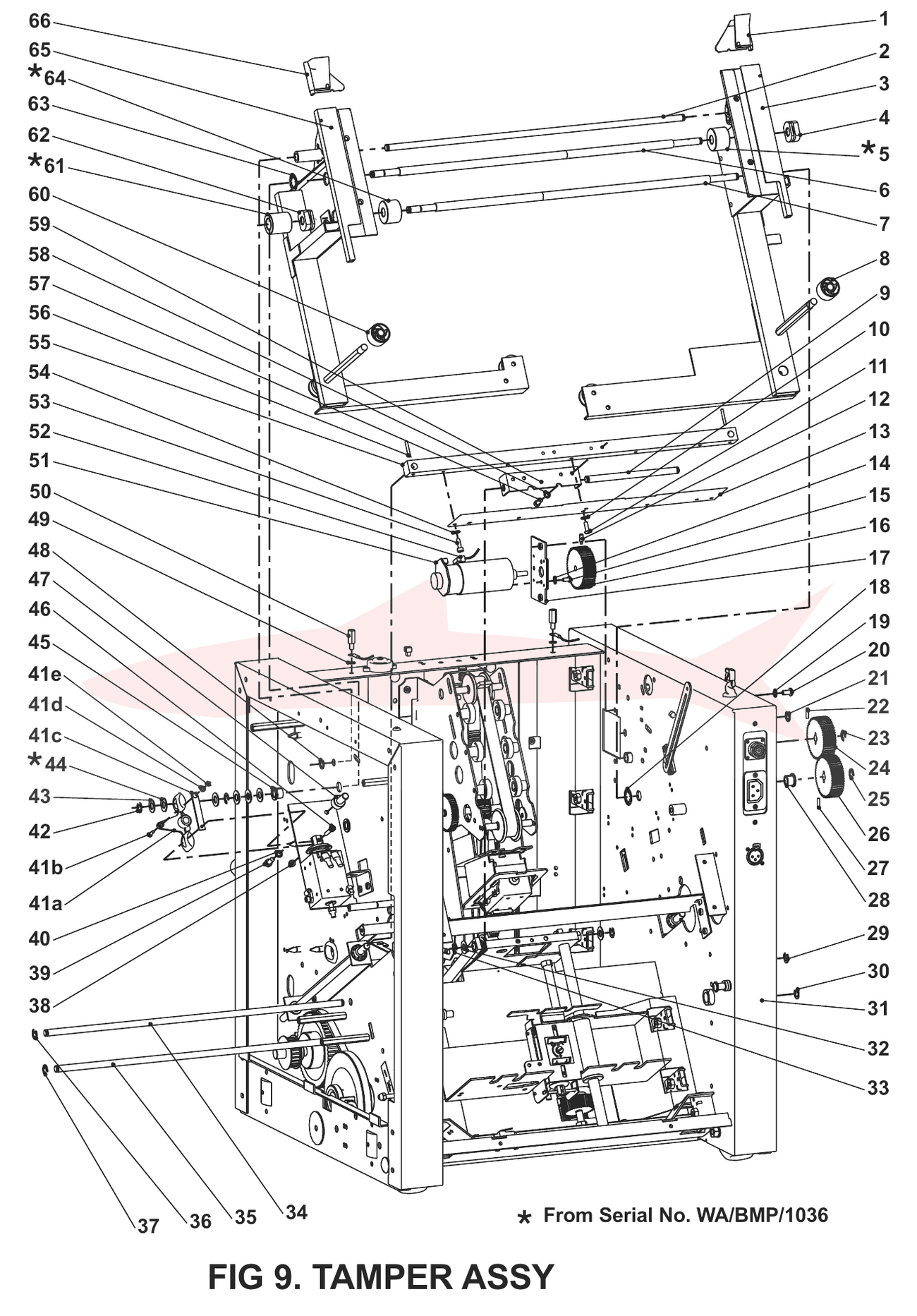

Fig 9Tamper Assy — механизм подбивки (тампер)

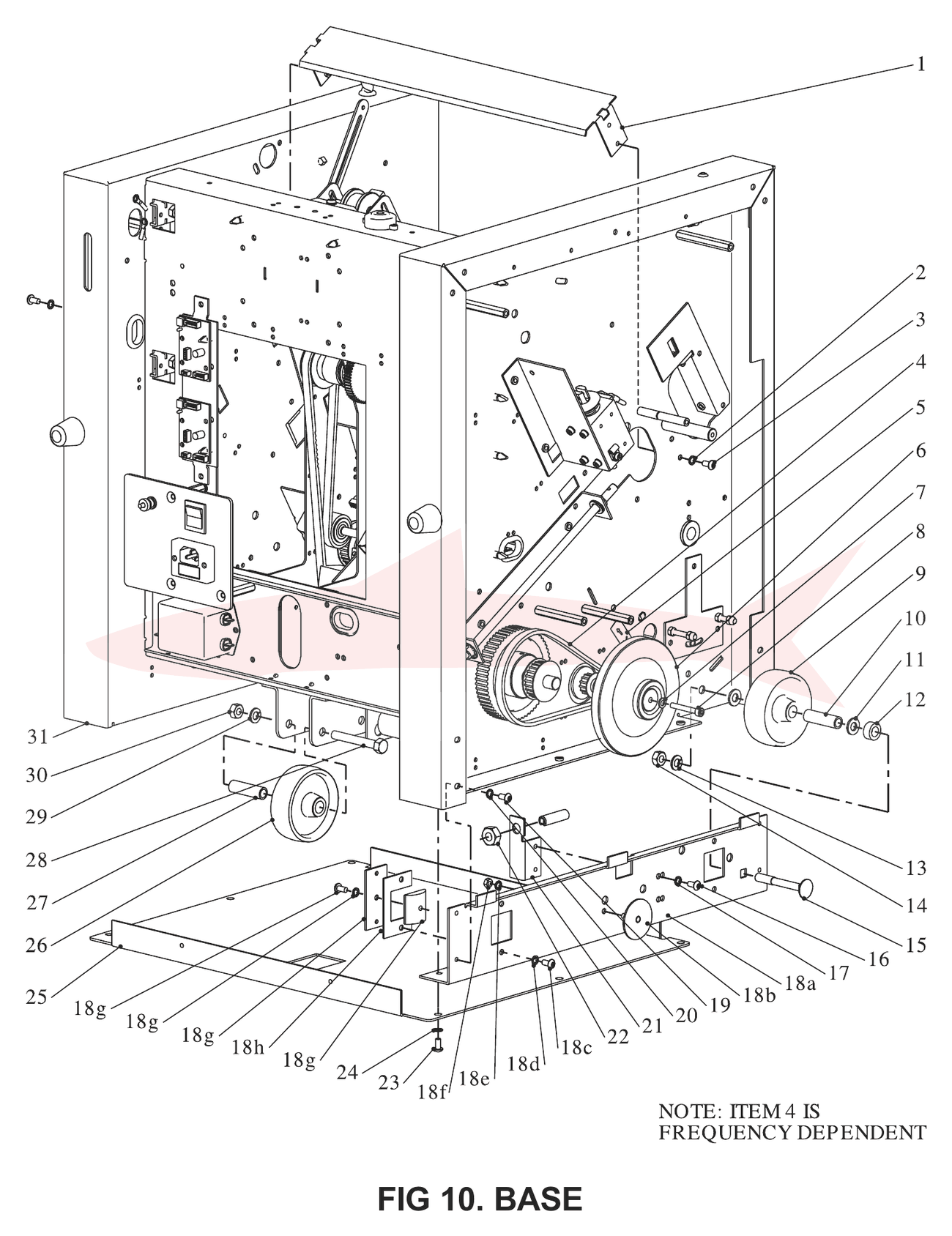

Fig 10Base Assy — основание

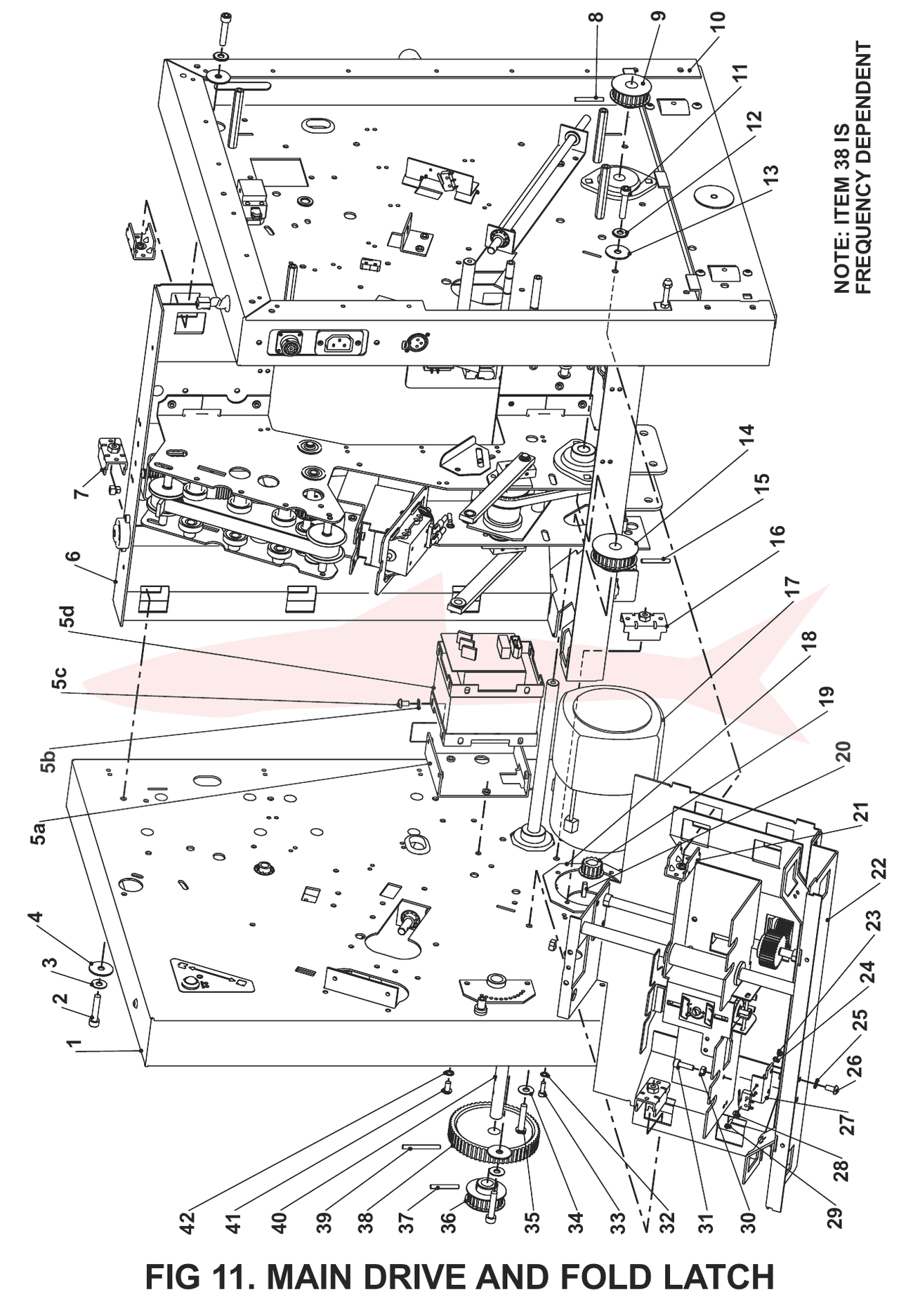

Fig 11Main Drive & Fold Latch Assy — главный привод и фиксатор фальцовки

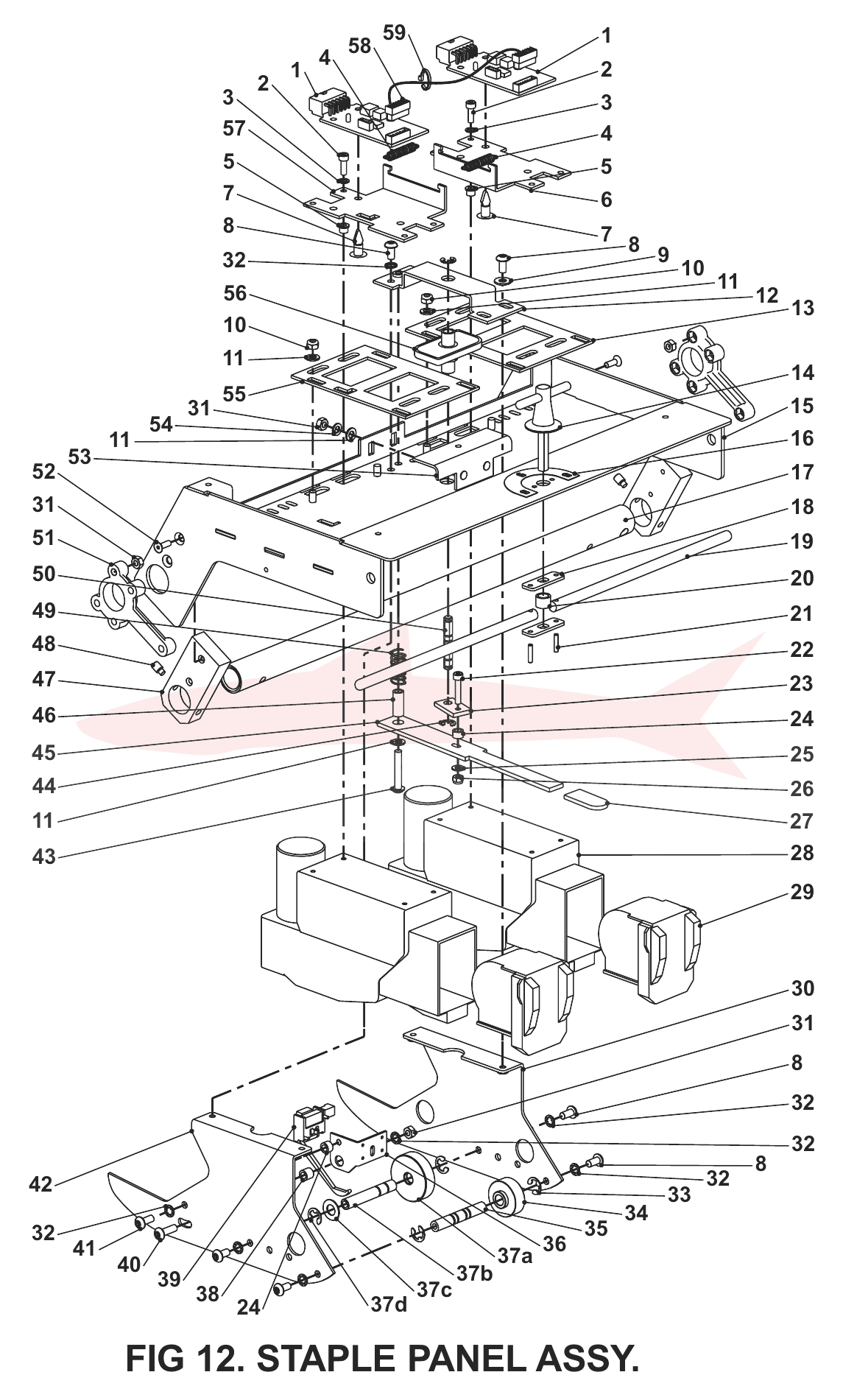

Fig 12Staple Panel Assy — панель сшивки

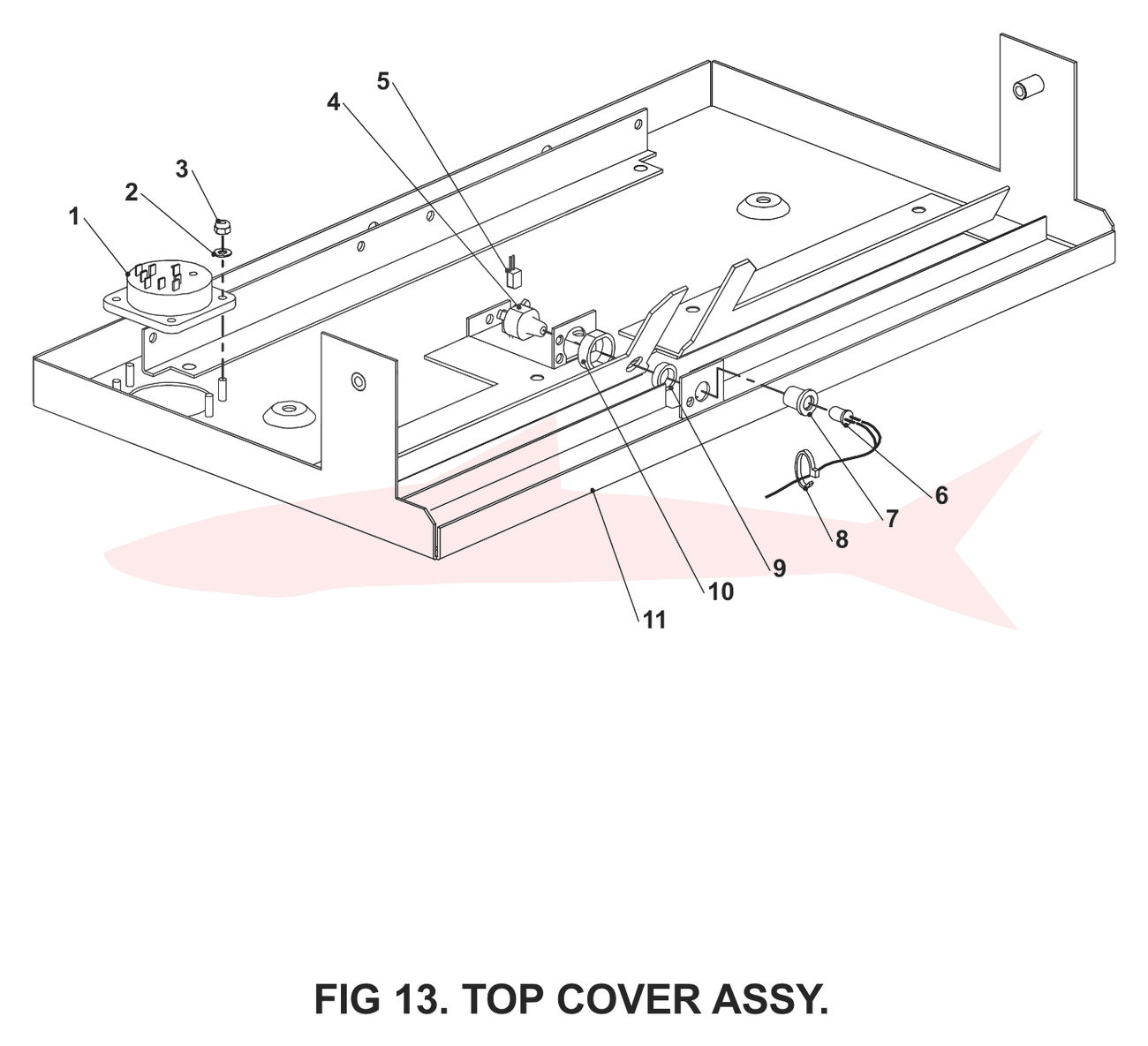

Fig 13Top Cover Assy — верхняя крышка

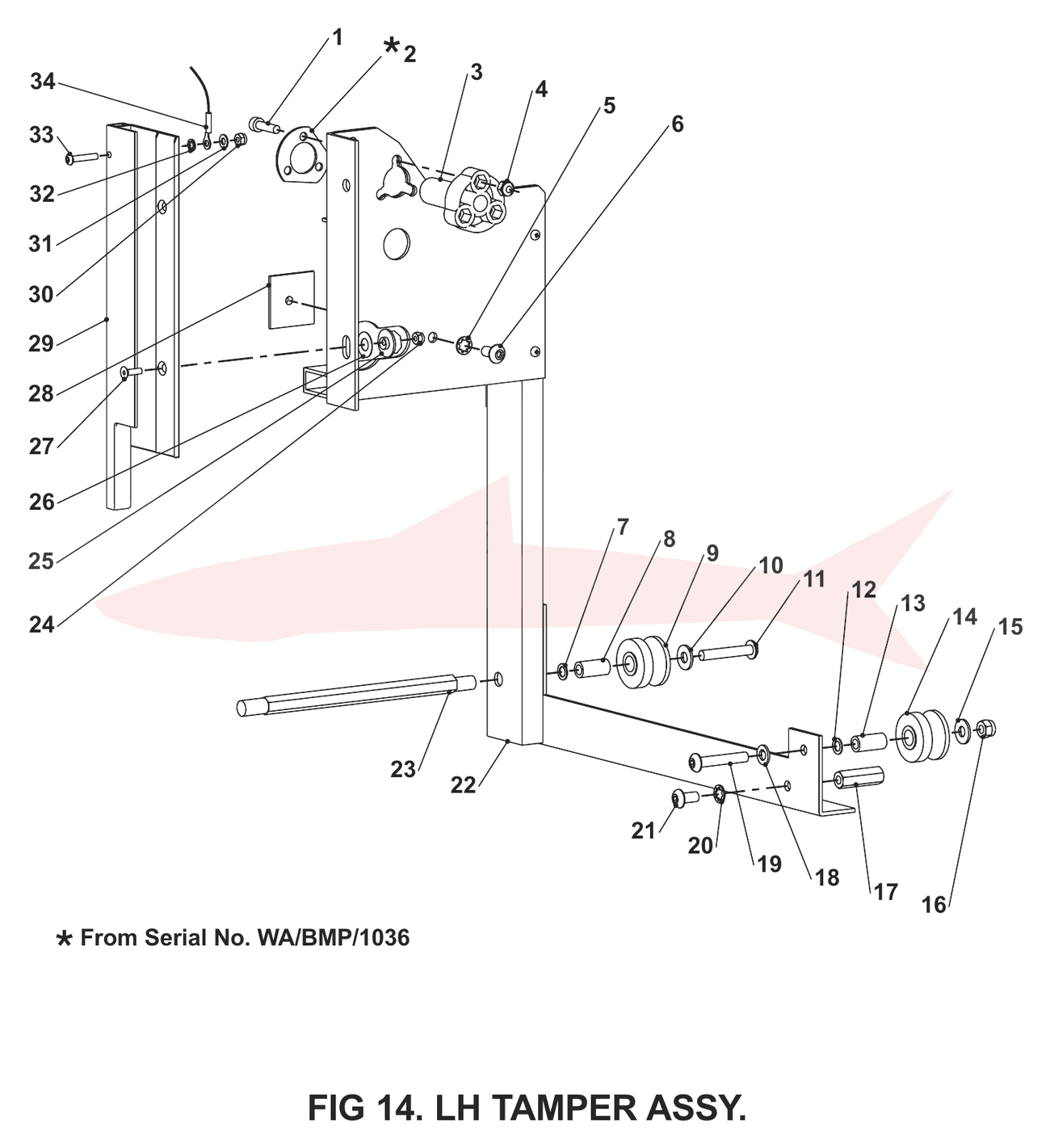

Fig 14Tamper Carriage L/H — каретка тампера, левая

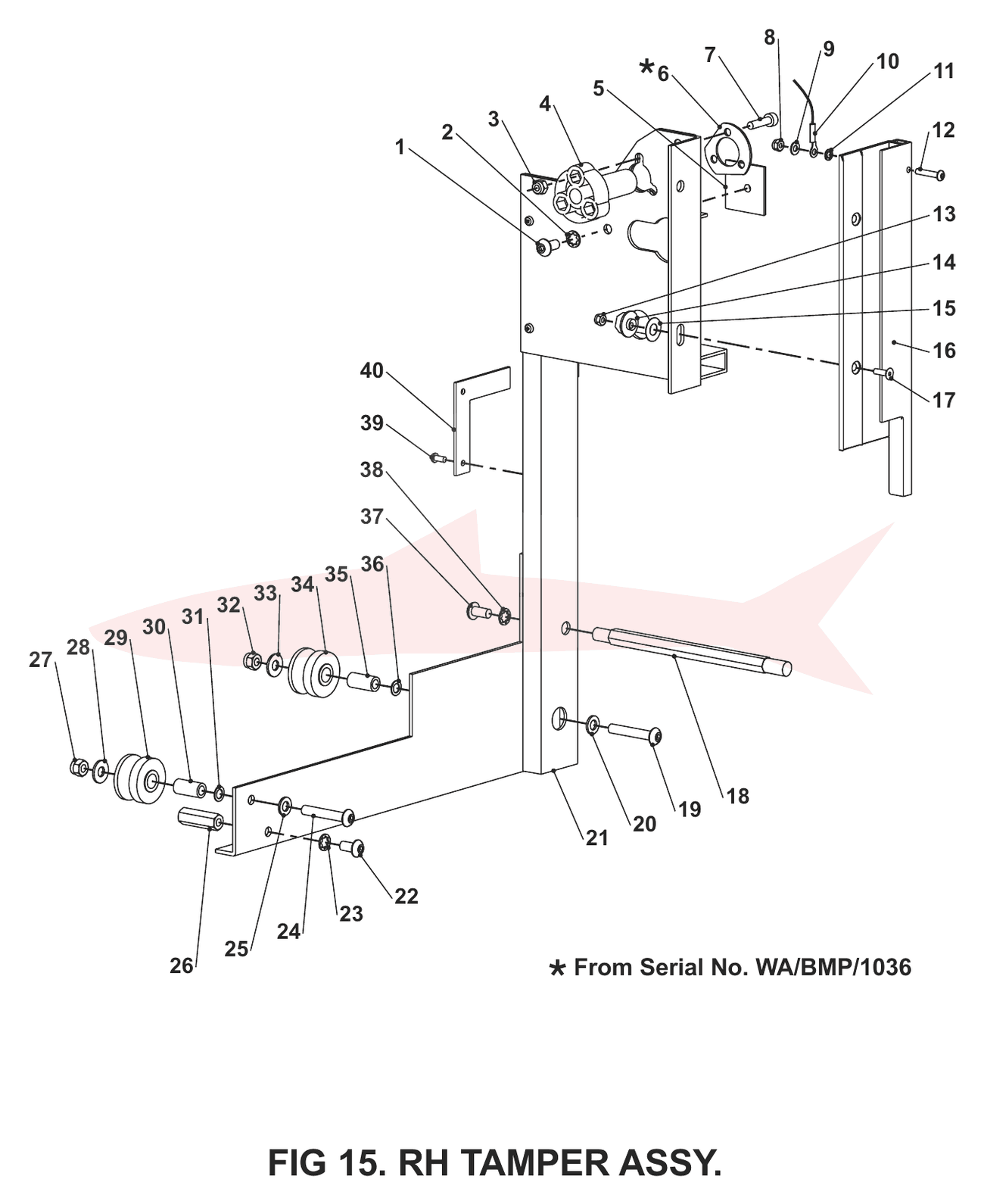

Fig 15Tamper Carriage R/H — каретка тампера, правая

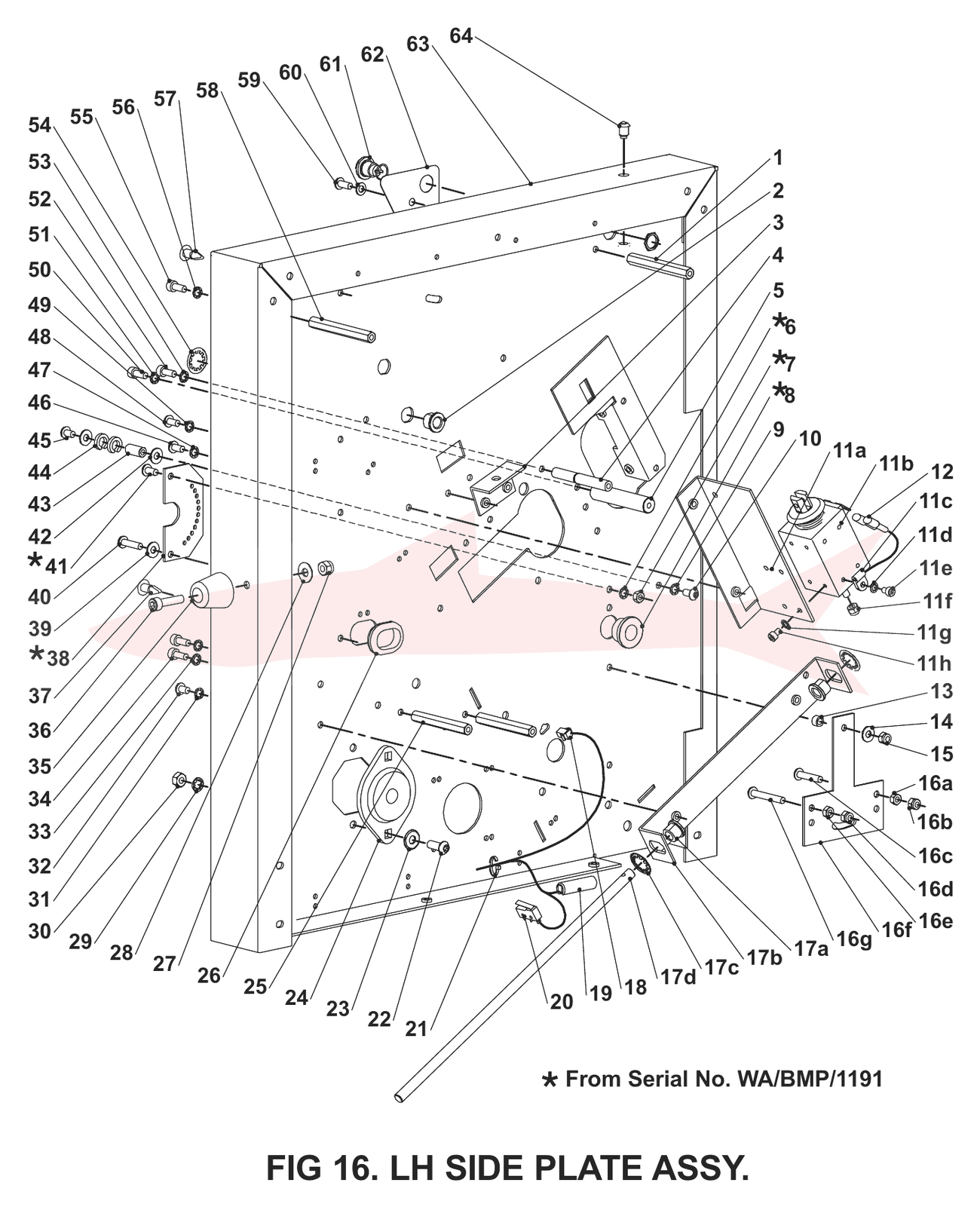

Fig 16L/H Side Plate Assy — левая боковина

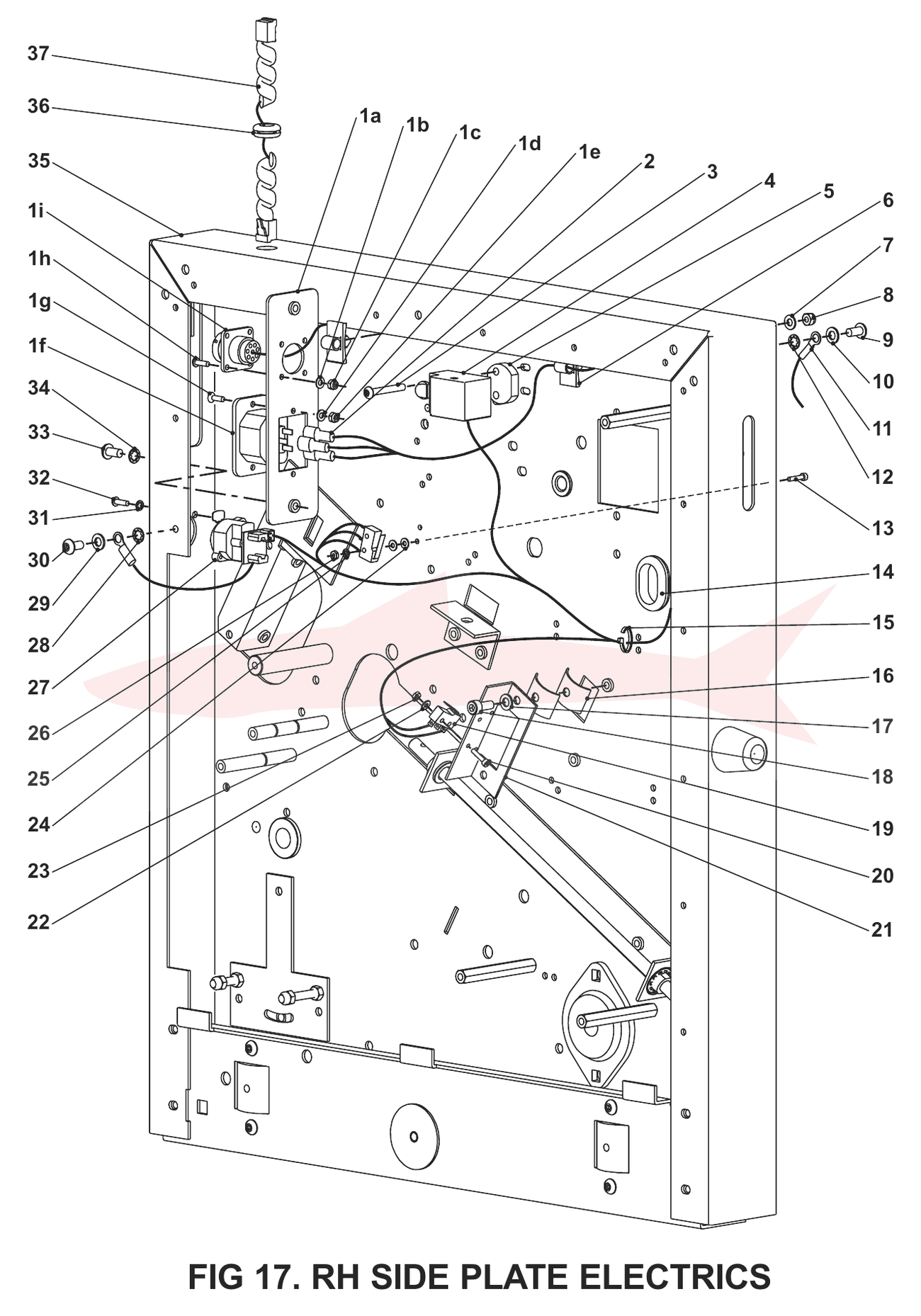

Fig 17R/H Side Plate Electrics — электрика правой боковины

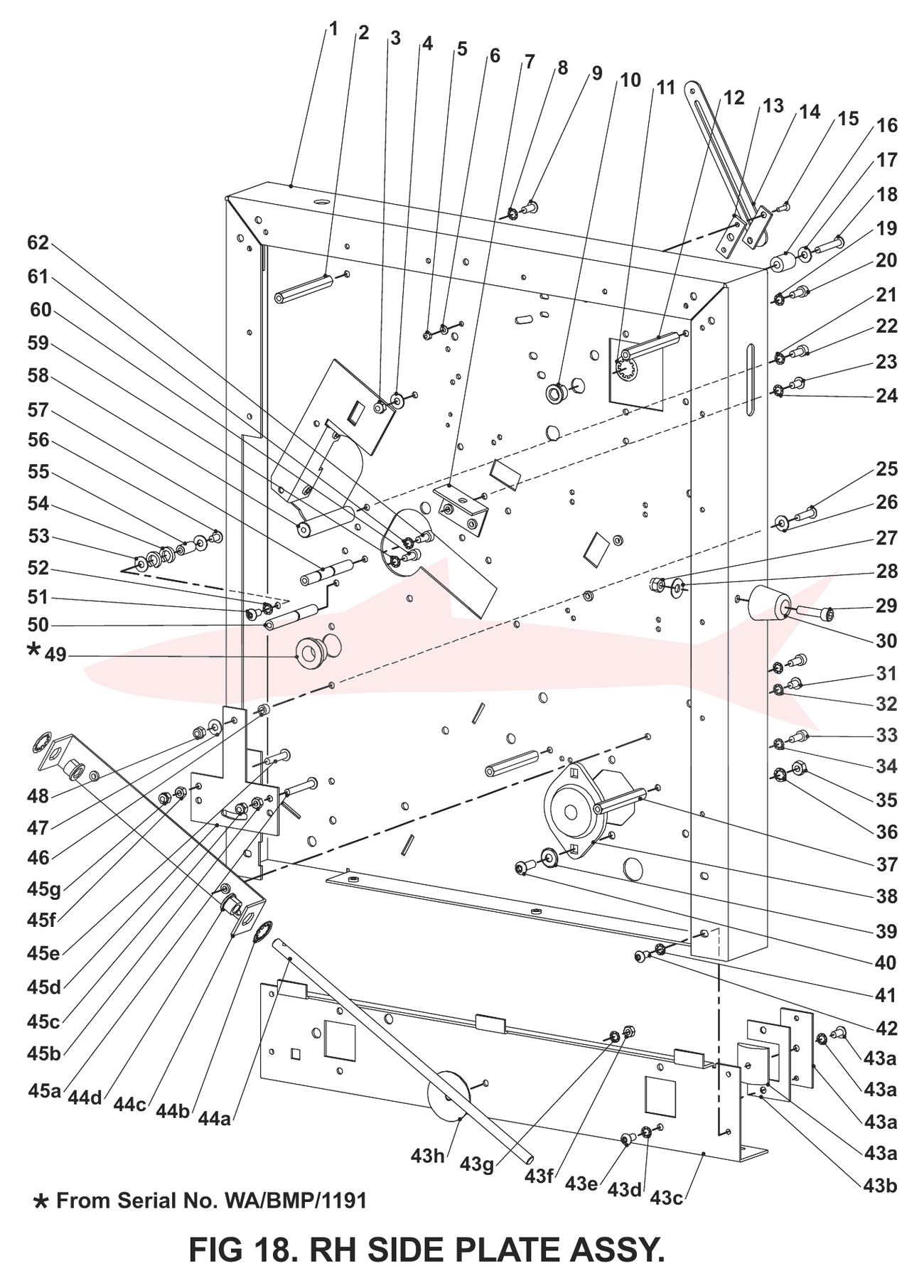

Fig 18R/H Side Plate Assy — правая боковина

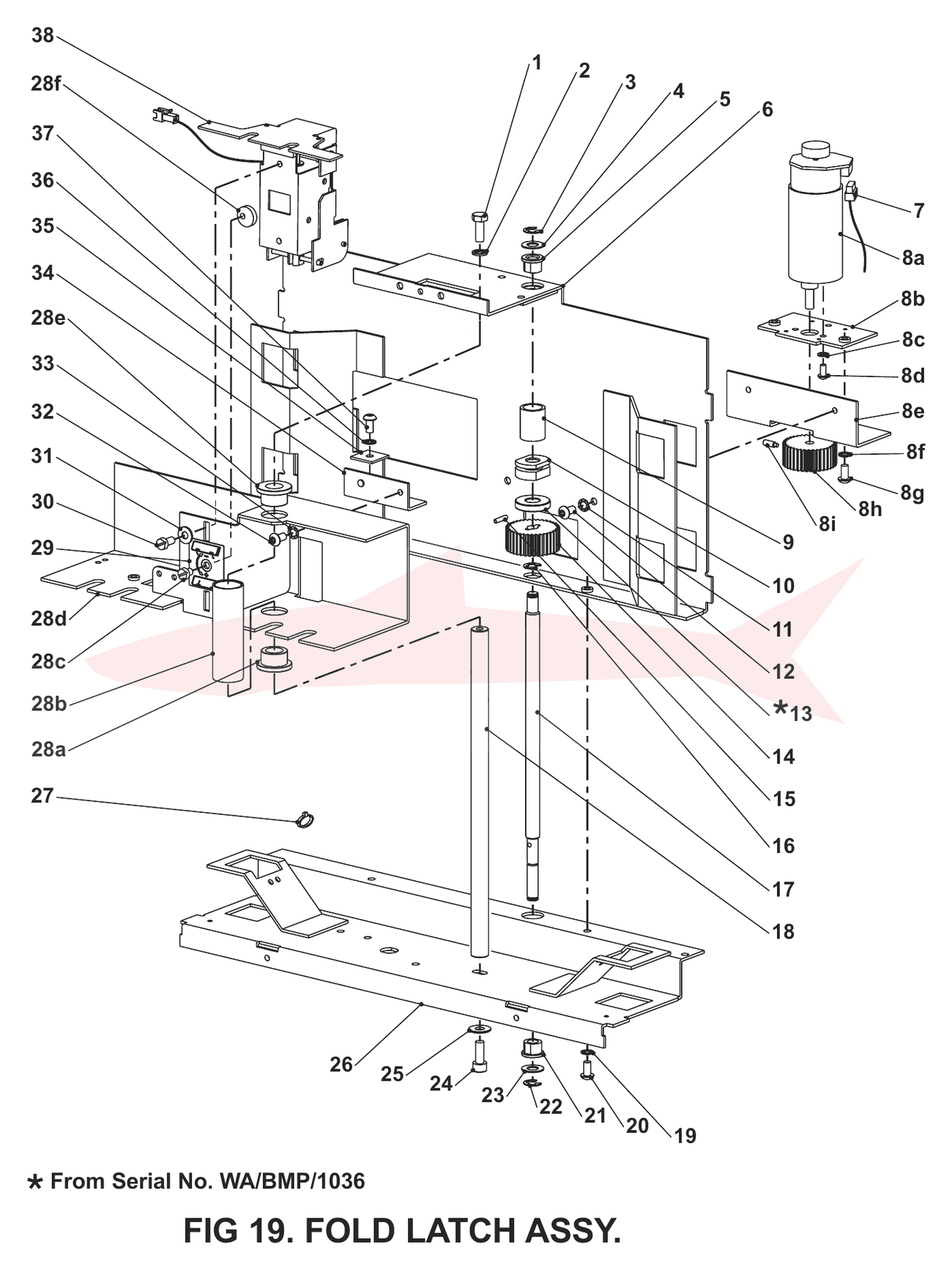

Fig 19Fold Latch Assembly — фиксатор фальцовки

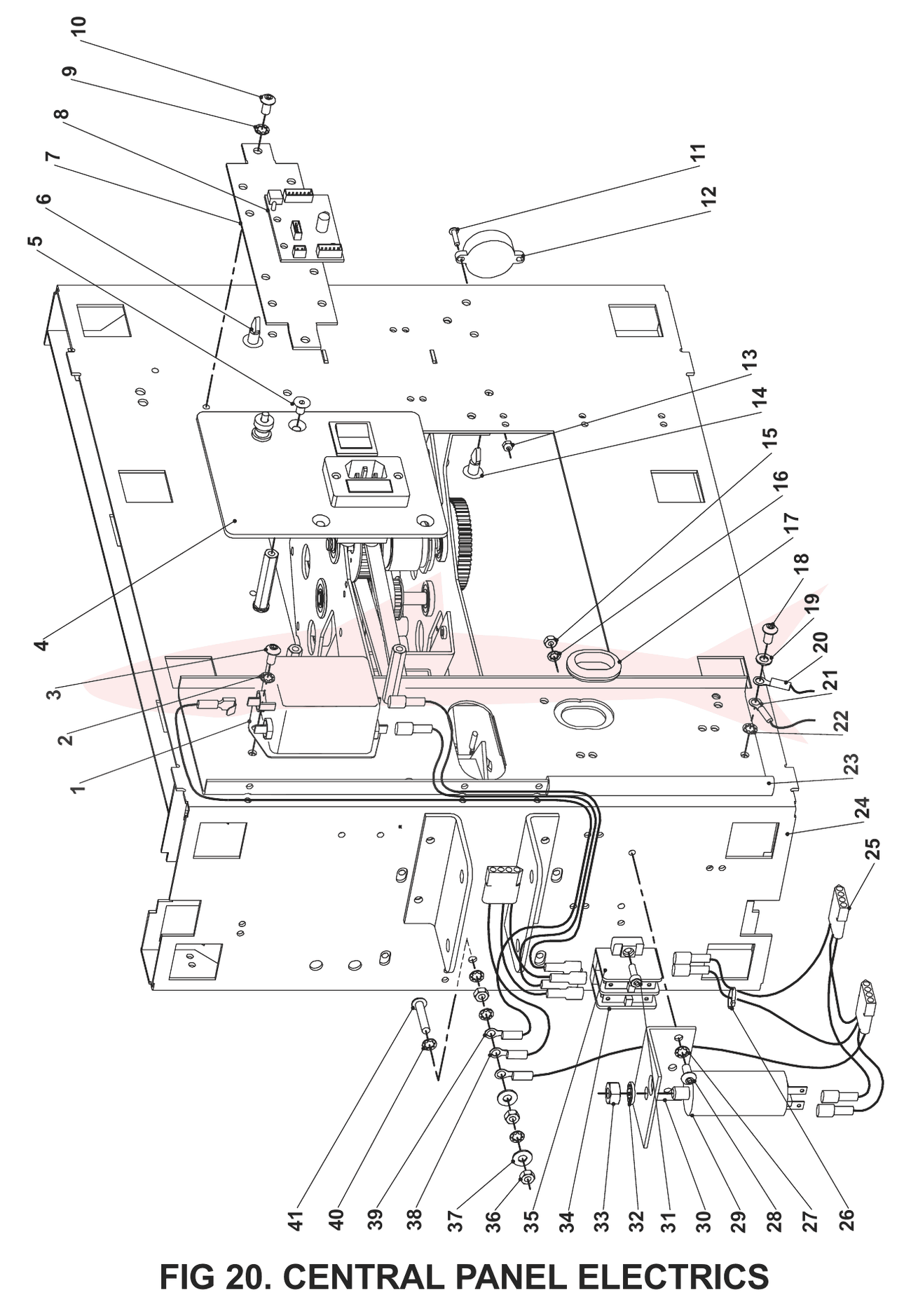

Fig 20Central Panel Electrics — электрика центральной панели

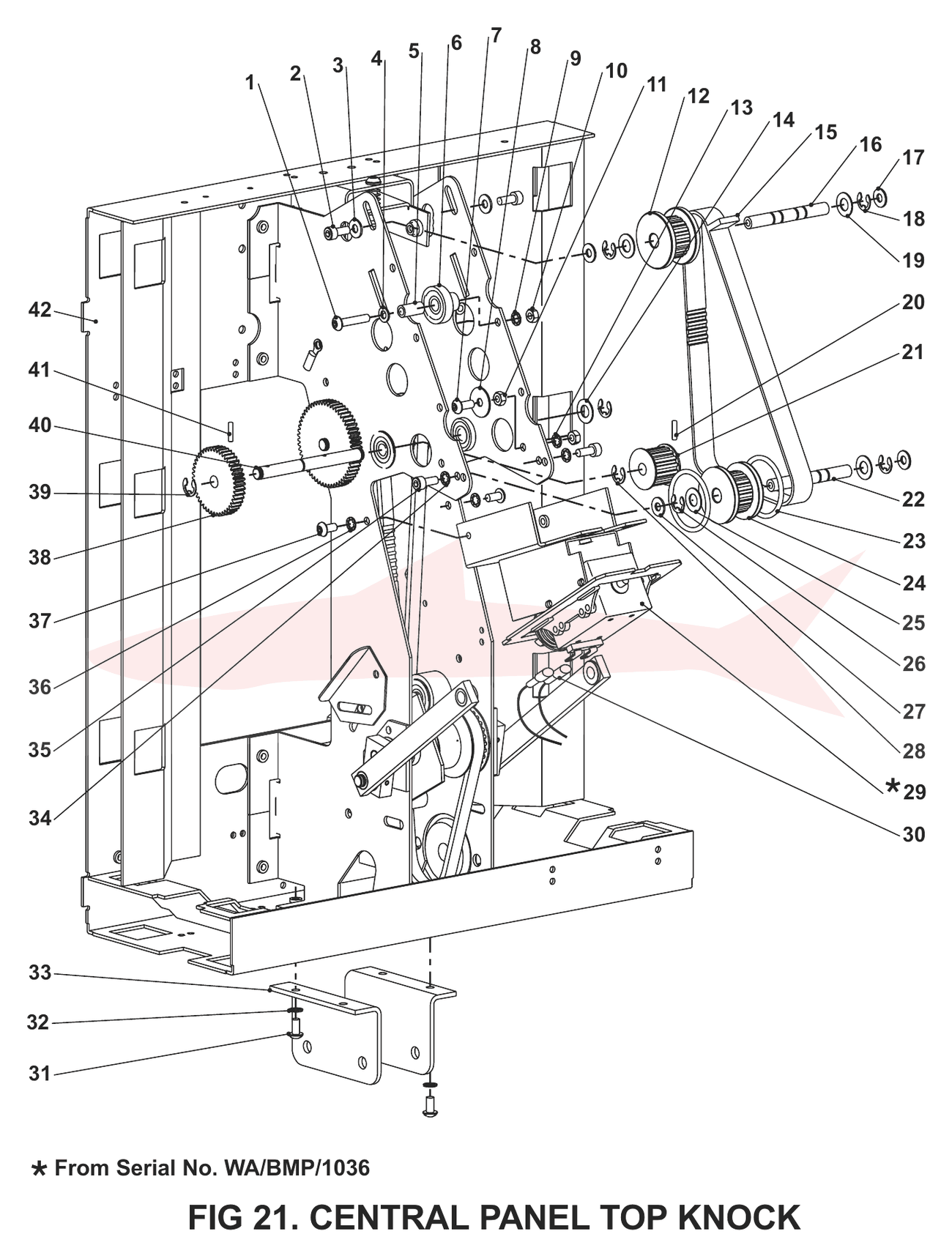

Fig 21Central Panel Top Knock — центральная панель, верхний упор

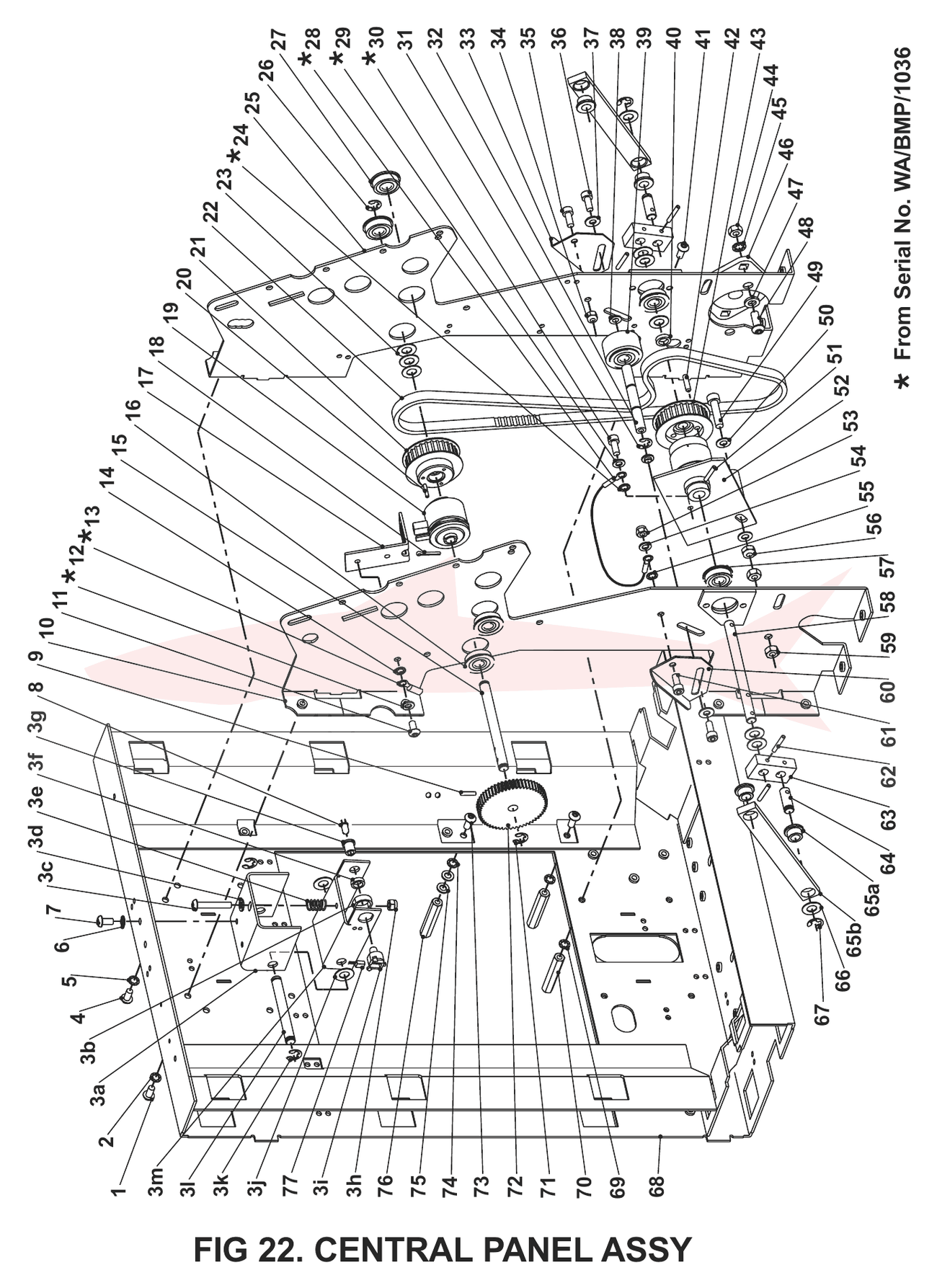

Fig 22Central Panel Assembly — центральная панель

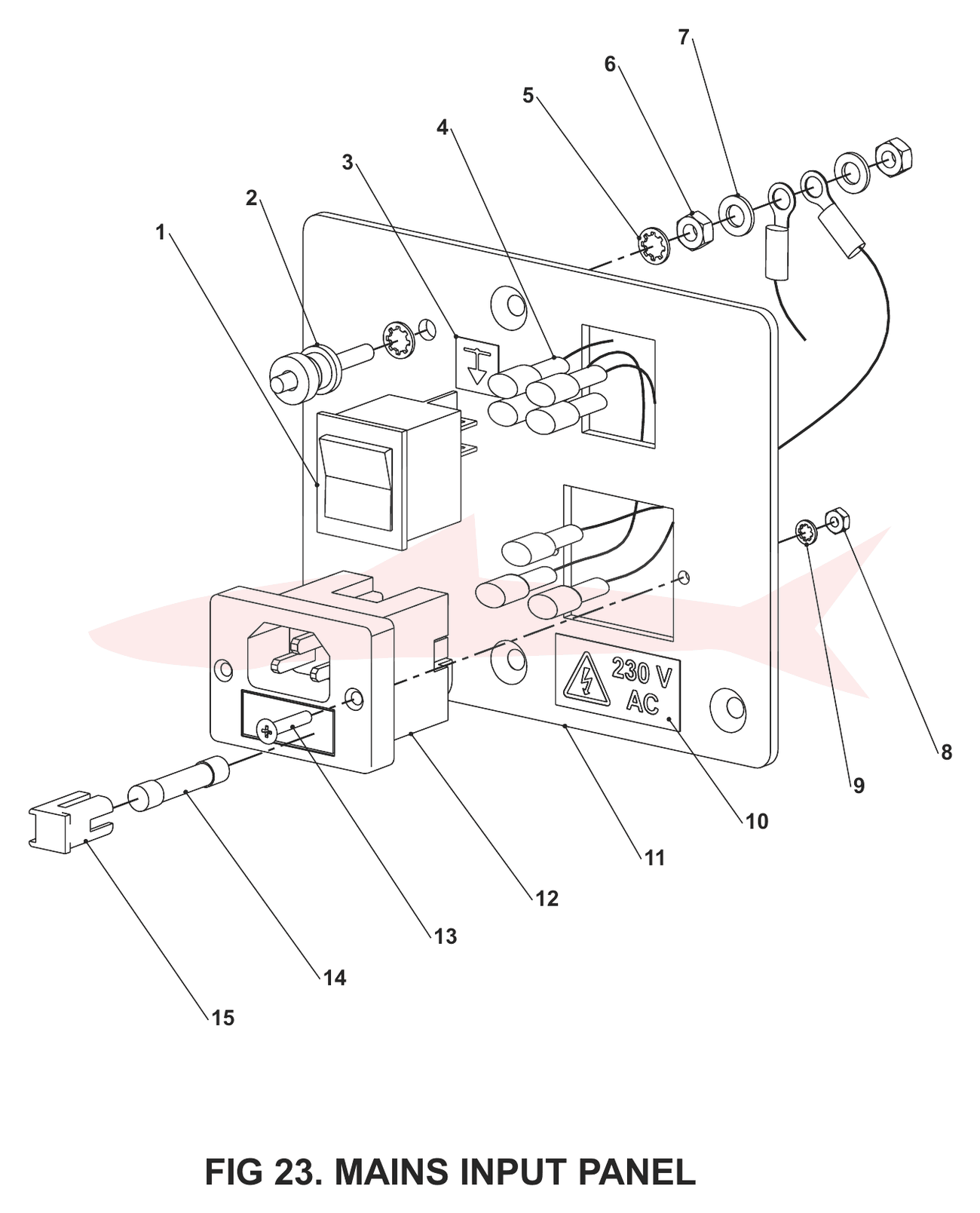

Fig 23Mains Input Panel — панель сетевого ввода

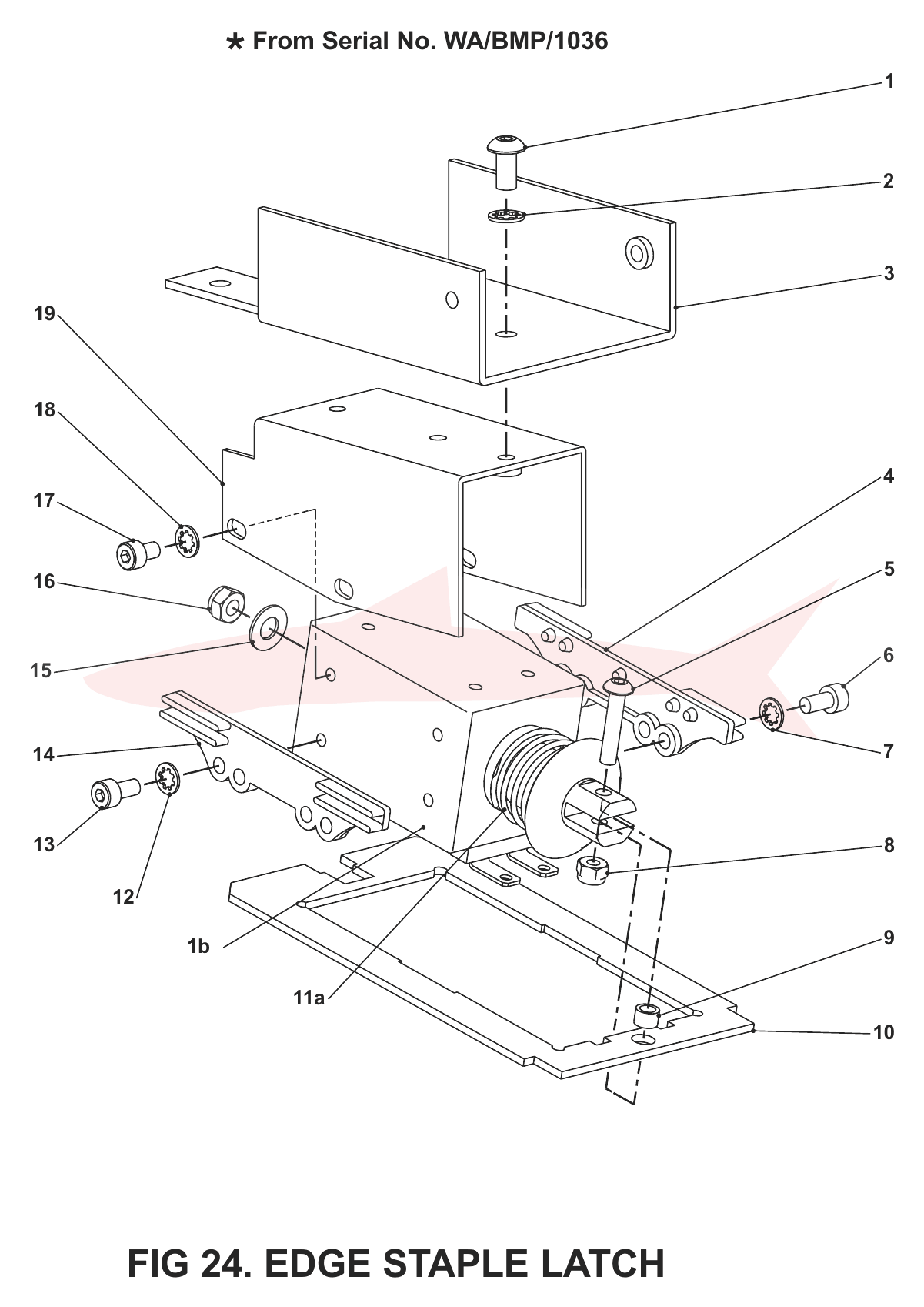

Fig 24Edge Staple Latch (S/N 1036+) — фиксатор сшивки по кромке (с серийного № 1036)

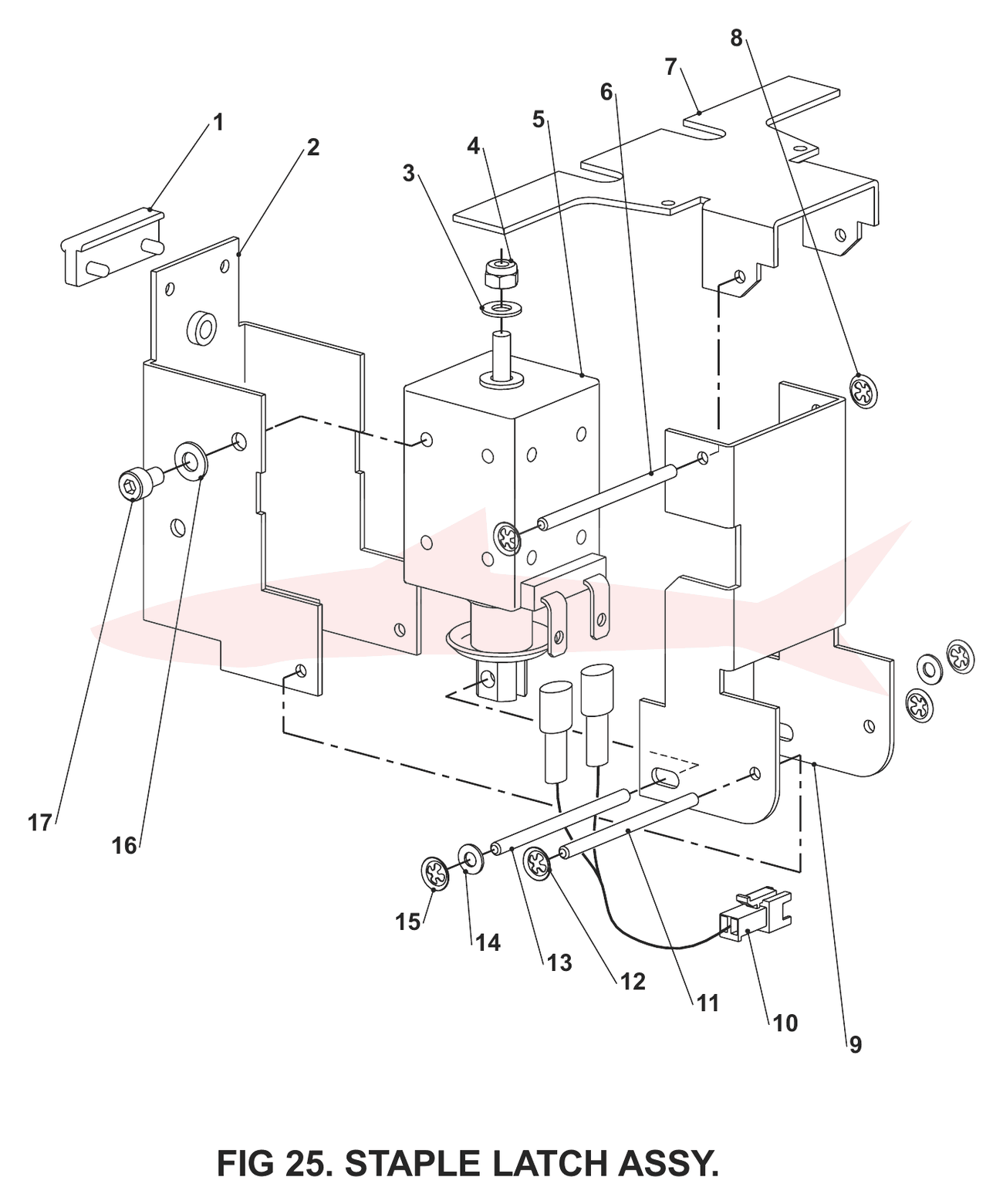

Fig 25Staple Latch Assy — фиксатор сшивки

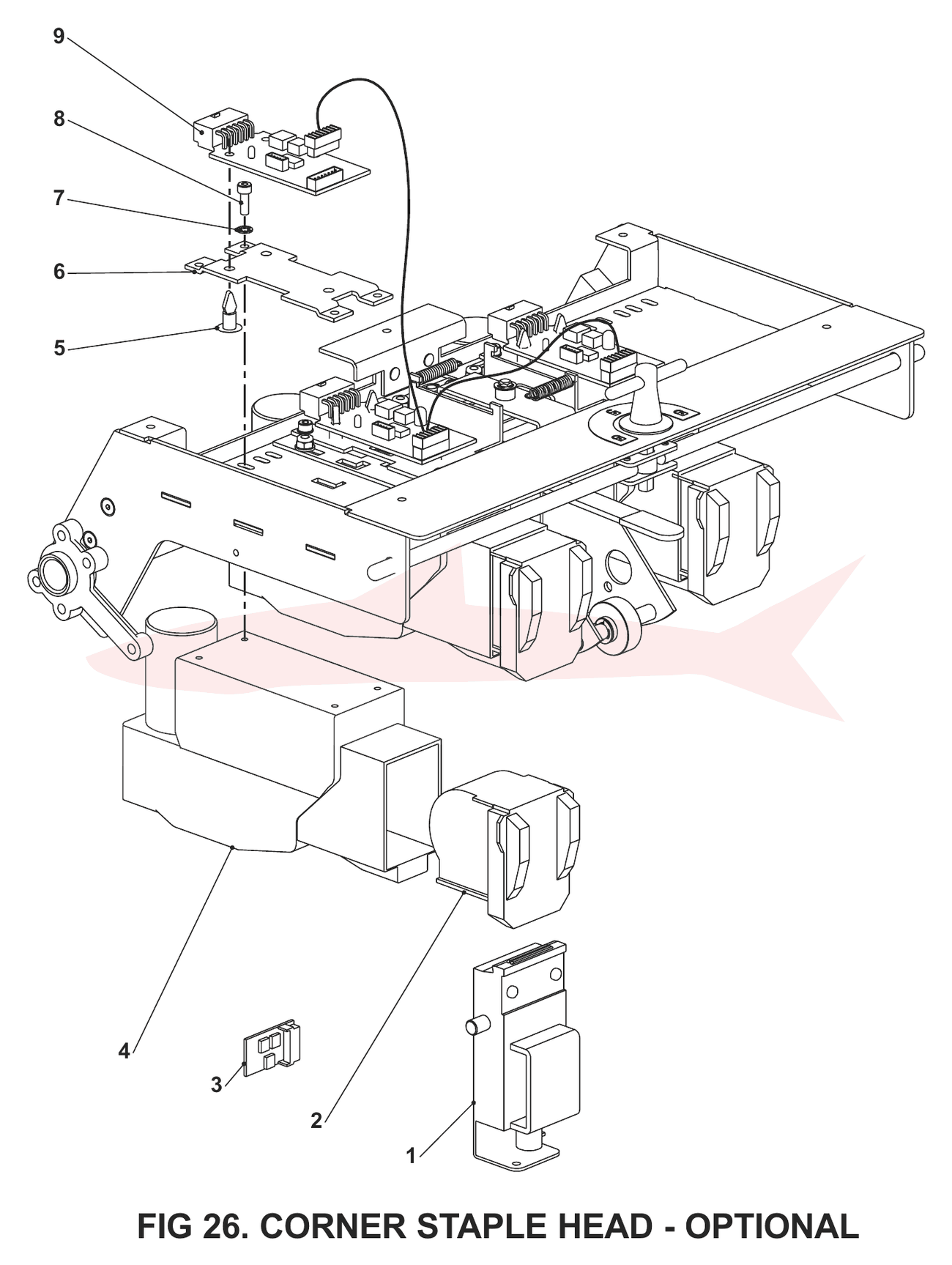

Fig 26Corner Staple Head (Optional) — головка угловой сшивки (опция)

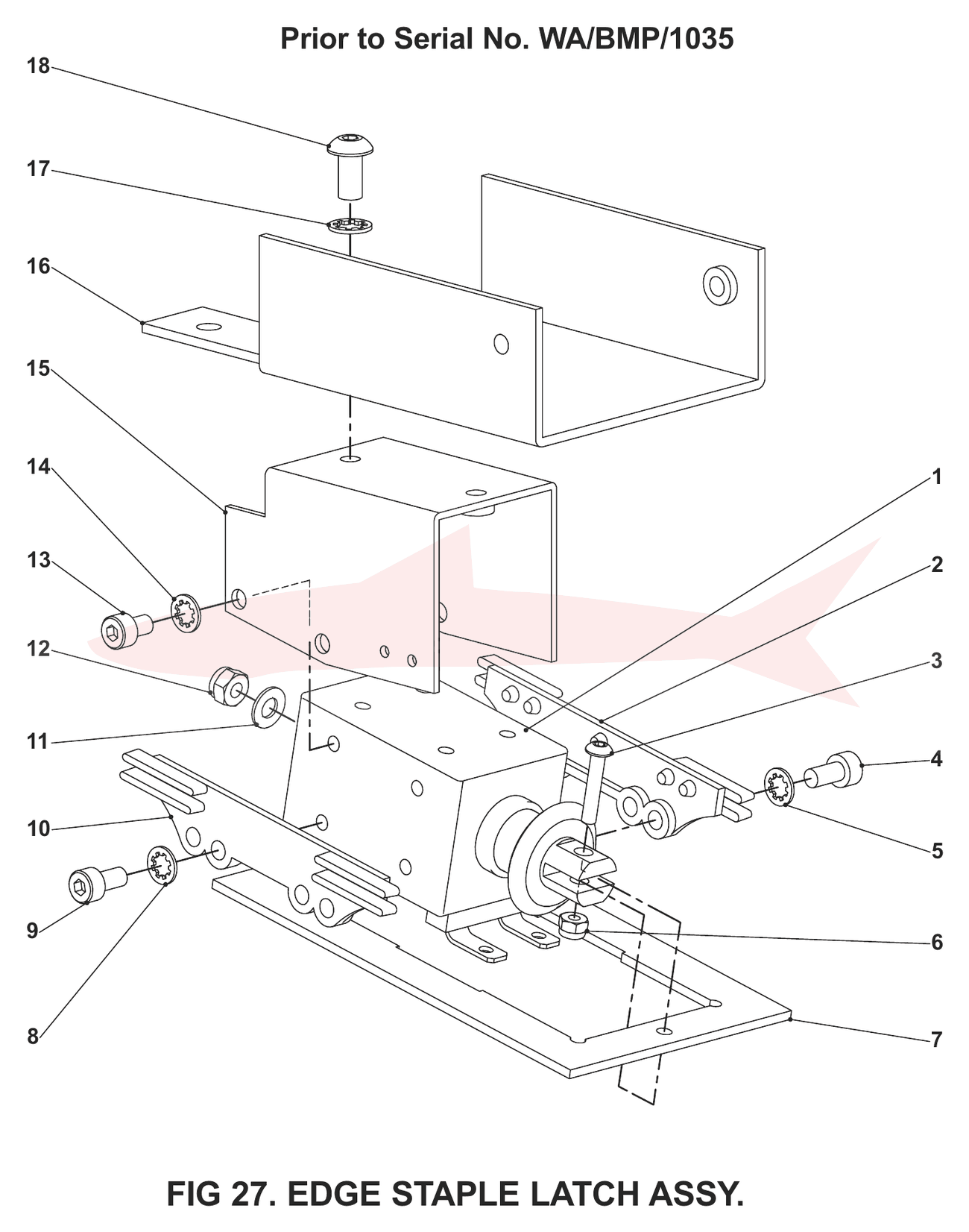

Fig 27Edge Staple Latch (S/N up to 1035) — фиксатор сшивки по кромке (до серийного № 1035)

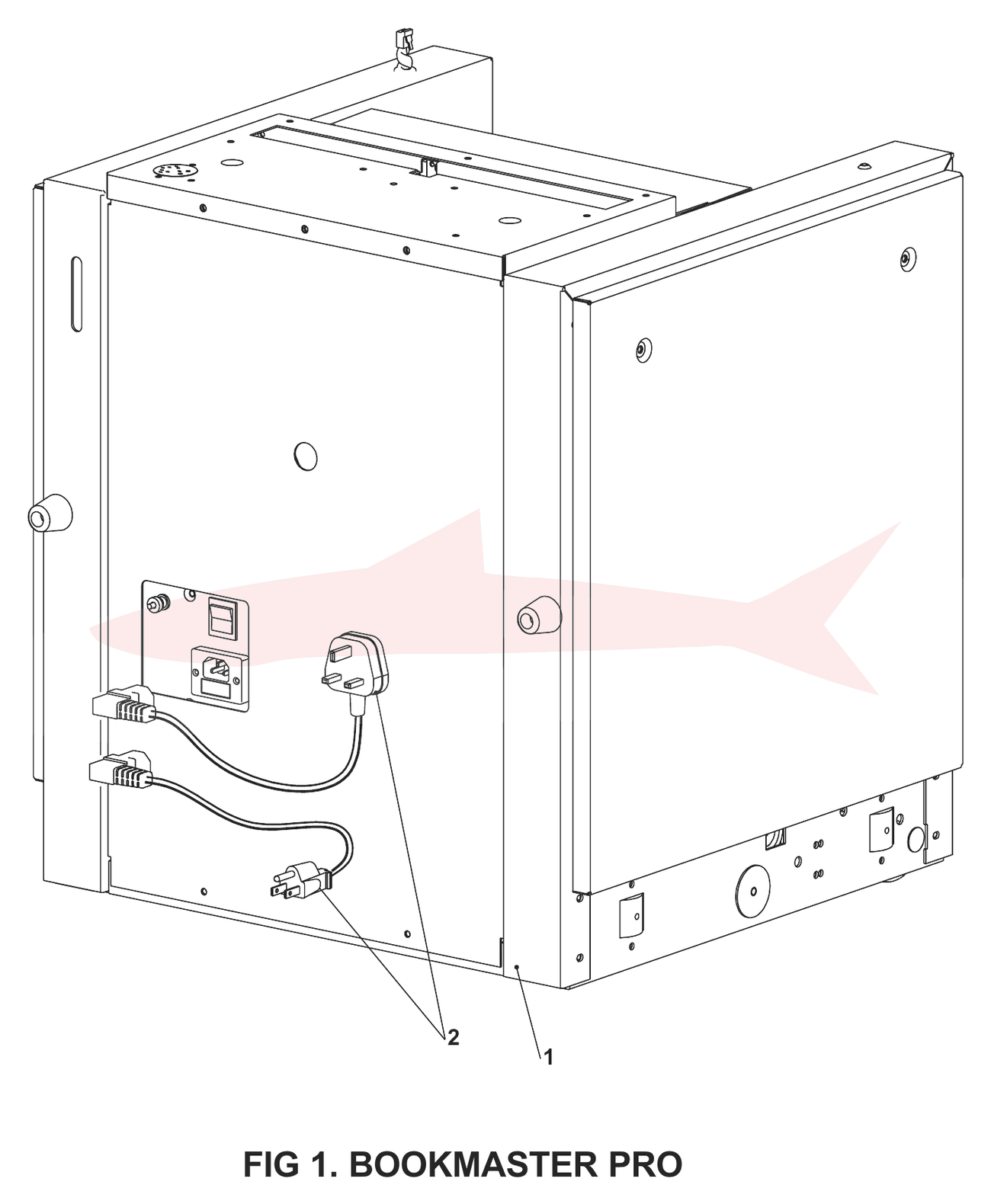

Fig 1 BookMaster Pro Complete

Morgana BookMaster Pro · Машина в сборе

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	VARIO, BOOKMASTER PRO 115V 60Hz	41-561
—	VARIO, BOOKMASTER PRO 230V 50Hz	41-562
1	P.ASSY, (VBM) BOOKMASTER & COVERS 115V → рис. 2	907-211
1	P.ASSY, (VBM) BOOKMASTER & COVERS 230V → рис. 2	907-212
2	WIRE, MAINS,UK PL UG/2M5/IEC R/A SOCKET	740-003
2	WIRE, MAINS,USA PLUG/2M5/IEC R/A SOCK	740-006

Номера в кружке — сборочные узлы (поставляются в сборе).

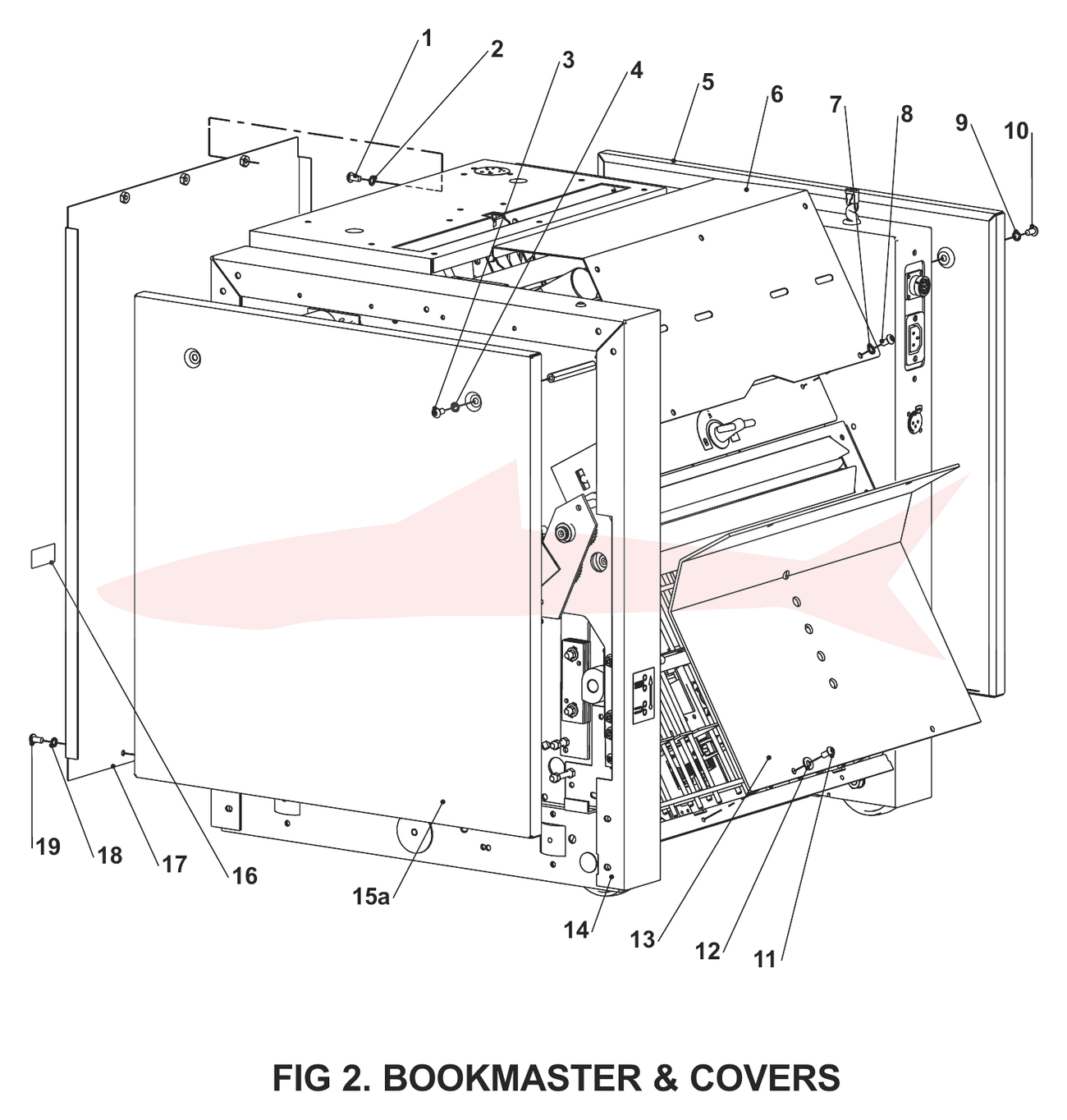

Fig 2 BookMaster Pro & Covers

Morgana BookMaster Pro · Корпус и облицовка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) BOOKMASTER & COVERS 115V	907-211
—	P.ASSY, (VBM) BOOKMASTER & COVERS 230V	907-212
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	STEEL, (VBM) SIDE COVER PANEL	253-079
6	P.ASSY, (VBM) STAPLER COVER PANEL	907-145
7	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
8	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
9	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
11	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
12	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
13	PLASTIC, (VBM) FOLD LATCH COVER PANEL	315-554
14	P.ASSY,BOOKMASTER PRO STAPLE AREA 115V → рис. 3	907-213
14	P.ASSY,BOOKMASTER PRO STAPLE AREA 230V → рис. 3	907-214
15	P.ASSY, (VBM) SIDE COVER & LABEL	907-069
15a	STEEL, (VBM) SIDE COVER PANEL	253-079
16	LABEL, 230V	500-009
16	LABEL, 115V	500-252
17	P.ASSY, (VBM) REAR PANEL	908-900
18	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
19	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301

Номера в кружке — сборочные узлы (поставляются в сборе).

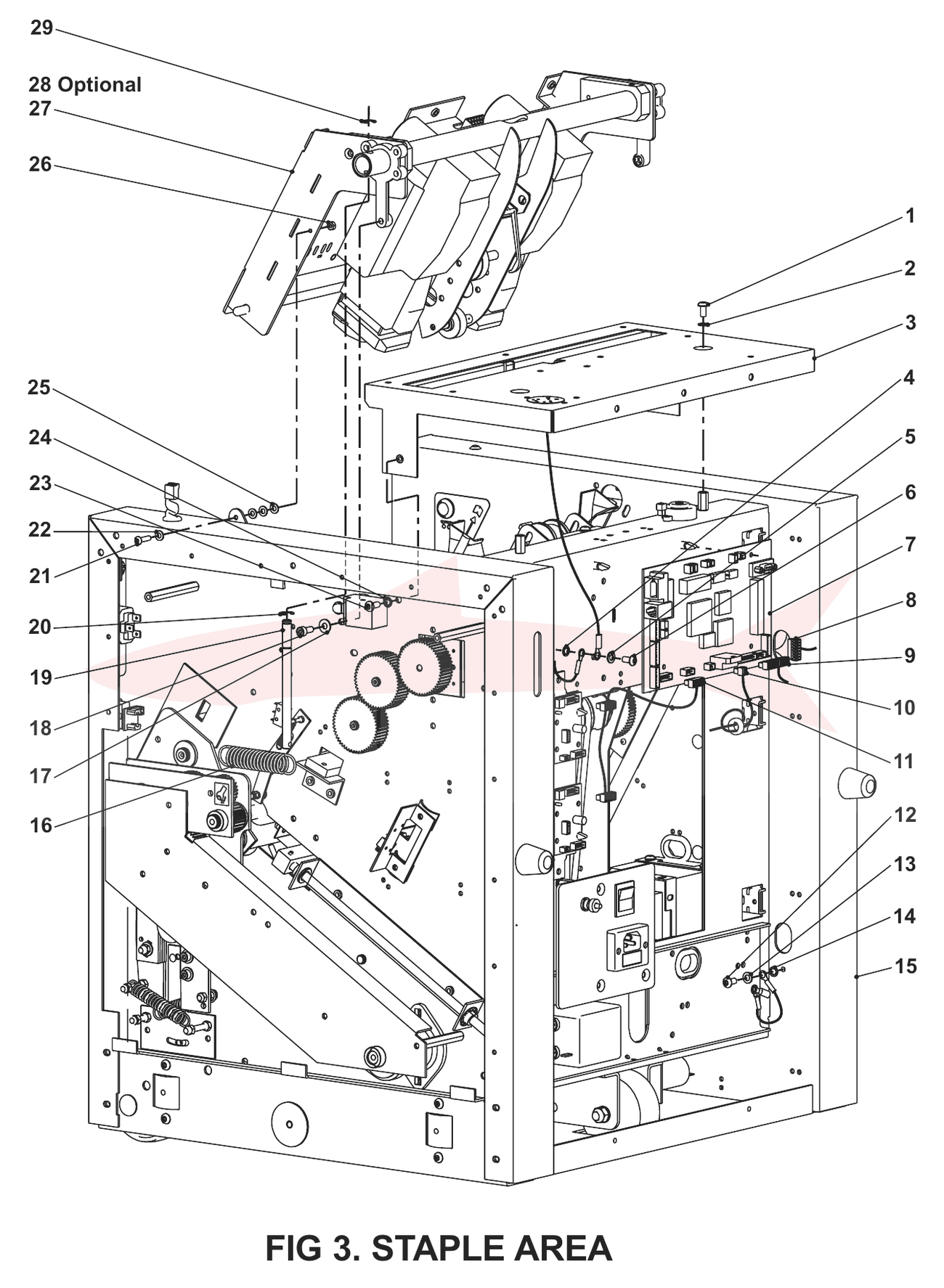

Fig 3 Staple Area

Morgana BookMaster Pro · Зона сшивки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,BOOKMASTER PRO STAPLE AREA 115V	907-213
—	P.ASSY,BOOKMASTER PRO STAPLE AREA 230V	907-214
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	P.ASSY, BOOKMASTER TOP COVER → рис. 13	907-218
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	WASHER, M5 FORM A BZP	160-003
6	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
7	PCB ASSEMBLY, BOOKMASTER PRO CONTROL	900-157
8	CABLE ASSY,(VBM) POWER -> CTL LINK	742-380
9	CABLE ASSY,(VBM) INTERFACE -> CTL LINK	742-378
10	EL ASSY, EC20 LEAD SET & FERRITE RING	905-325
11	CABLE ASSY, (VBM) AXIS MOTOR CONTROL	742-382
12	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
13	WASHER, M5 FORM A BZP	160-003
14	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
15	P.ASSY, BOOKMASTER PRO DIVERTER 115V → рис. 4	907-215
15	P.ASSY, BOOKMASTER PRO DIVERTER 230V → рис. 4	907-216
16	SPRING, (VBM) STAPLER DOOR LIFT	180-369
17	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
18	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
19	SHAFT, (VBM) SPR ING CONNECTING BAR	265-584
20	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
21	SCREW, SKT HD BU TTON,M4x16mm STAINLESS	101-323
22	WASHER, M4 FORM A BZP	160-001
23	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
24	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
25	WASHER, M4 FORM A BZP	160-001
26	NUT, M4 HEX FULL BZP	150-004
27	P.ASSY, BOOKMASTER STAPLE PANEL REV.B → рис. 12	890-112
28	KIT, BOOKMASTER STAPLER HEAD (OPT.)	914-414
29	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302

Номера в кружке — сборочные узлы (поставляются в сборе).

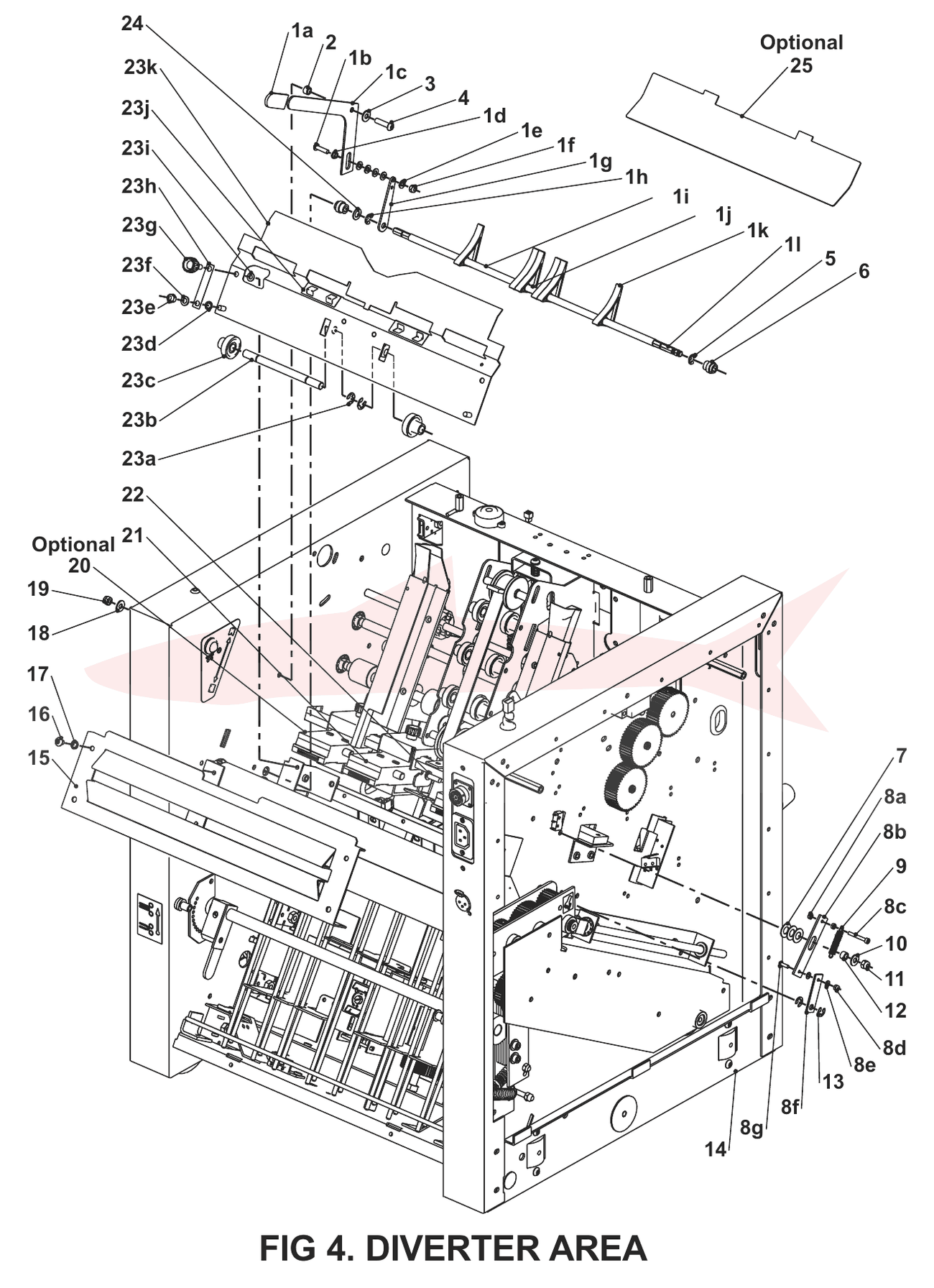

Fig 4 Diverter Assy

Morgana BookMaster Pro · Отклонитель (дивертер)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER PRO DIVERTER 115V	907-215
—	P.ASSY, BOOKMASTER PRO DIVERTER 230V	907-216
1	P.ASSY, (VBM) DIVERTER SHAFT	907-021
1a	RUBBER,(VBM) END CAP 1.6x15.9x35mm LG	330-461
1b	SCREW, SKT HD BUTTON,M4x16mm STAINLESS	101-323
1c	STEEL, (VBM) EDGE STITCH LEVER	253-056
1d	SHAFT, (VBM) TOP HAT SPACER	265-595
1e	WASHER, M4 FORM A BZP	160-001
1f	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
1g	STEEL, (VBM) DIVERT LEVER	253-297
1h	CIRCLIP 6mm SHAFT 0.69mm WIDE	180-303
1i	PLASTIC, SLEEVING 7.5mmO/D x 16mm LG	315-571
1j	PLASTIC, SLEEVING 7.5mmO/D x 72mm LG	315-572
1k	PL MLDING, EDGESTITCH DEFLECTOR	310-629
1l	SHAFT, (VBM) DEFLECTOR x 409mm LONG	265-580
2	SHAFT,(VSF)CONVEYOR CLAMP SPACER	265-371
3	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
4	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
5	CIRCLIP 6mm SHAFT 0.69mm WIDE	180-303
6	PLASTIC MOULD,BEAR ING BUSH 6mm AF Hex	310-413
7	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
8	P.ASSY, BOOKMASTER EDGE STITCH LEVER	907-251
8a	NUT, M3 HEX FULL BZP	150-002
8b	STEEL, (VBM) EDGE STITCH LEVER	253-051
8c	SCREW, SKT HD CAP, M3 x 25mm STAINLESS	100-311
8d	NUT, M3 NYLOC-TYPE T BZP	150-033
8e	WASHER, M3 FORM A BZP	160-002
8f	STEEL,AER BIN CONNECTING LEVER-SHORT	255-590
8g	SCREW, SKT HD BUTTON,M3x10mm STAINLESS	101-314
9	SPRING, (VBM) EDGE STITCH LATCH	180-371
10	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
11	NUT, M5 NYLOC-TYPE P BZP	150-035
12	SHAFT,(VSF)CONVEYO R CLAMP SPACER	265-371
13	CIRCLIP 6mm SHAFT 0.69mm WIDE	180-303
14	P.ASSY, (VBM) FOLD ROLLER DRIVE 115V → рис. 5	907-219
14	P.ASSY, (VBM) FOLD ROLLER DRIVE 230V → рис. 5	907-220
15	P.ASSY, (VBM) OUTFEED PLATE	907-184
16	SCREW, SKT HD BUTTON, M5 x 6mm BZP	101-023
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
19	NUT, M5 NYLOC-TYPE P BZP	150-035
20	BOOKMASTER, STAPLE CLINCHER	810-021
21	BOOKMASTER, STAPLE CLINCHER	810-021
22	SCREW, SKT HD BU TTON,M5x16mm STAINLESS	101-307
23	P.ASSY, (VBM) DEFLEC TOR GUIDE	907-338
23a	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
23b	SHAFT, (VBM) DEFLECTOR WHEEL	265-653
23c	PL MLDING, (VBM) INFEED WHEEL	310-639
23d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
23e	NUT, M5 NYLOC-TYPE P BZP	150-035
23f	WASHER, M5 FORM A BZP	160-003
23g	HAND SCREW, (VTM) M5 X 10mm LONG	148-326
23h	ST STEEL, (VBM) EARTH STRIP 50mm	257-434
23i	NYLON, M4 WASHER (9mm dia)	320-001
23j	LABEL, (VBM) CLINCH POSITION	500-238
23k	P.ASSY, (VBM) DEFLECTOR PLATE	907-336
24	NYLON, WASHER OD12.7mmxID7.15mmx0.76mm	320-320
25	P.ASSY, (VBM) EDGE STITCH ASSISTOR	907-442

Номера в кружке — сборочные узлы (поставляются в сборе).

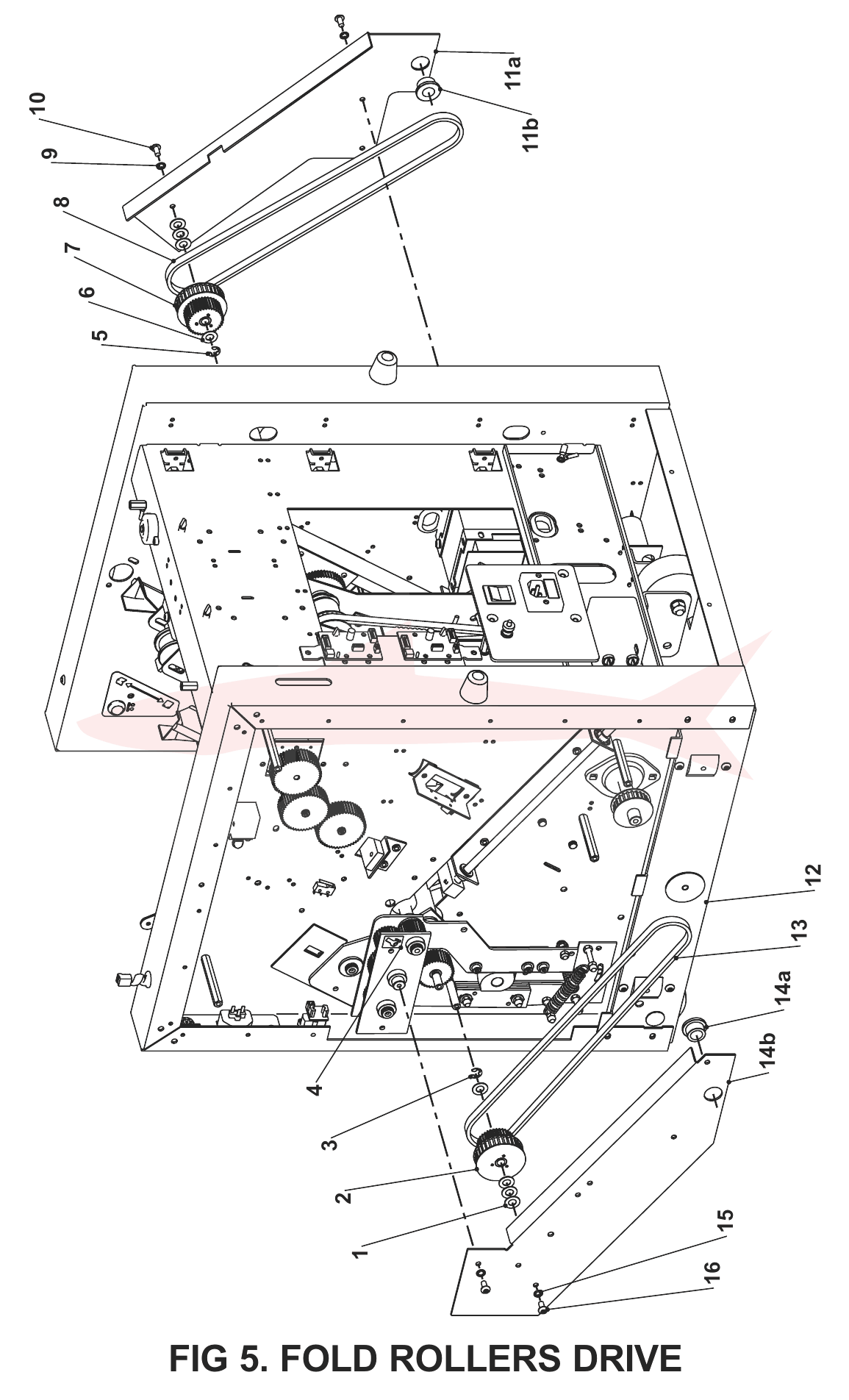

Fig 5 Fold Roller Drive Assy

Morgana BookMaster Pro · Привод фальцевальных валов

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) FOLD ROLLER DRIVE 115V	907-219
—	P.ASSY, (VBM) FOLD ROLLER DRIVE 230V	907-220
1	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
2	P.ASSY, (VBM) FOLD ROLLER DRIVE GEAR	907-142
3	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
4	LABEL, (VBM) HAND CRANK DIRECTION	500-236
5	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
6	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
7	P.ASSY, (VBM) FOLD ROLLER DRIVE GEAR	907-142
8	BELT, HTD 750-5M-9	914-398
9	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
11	P.ASSY,(VBM) BELT TENSION PLATE L/H	908-899
11a	STEEL, (VBM) BELT TENSION PLATE L/H	253-040
11b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
12	P.ASSY, (VBM) FOLD ROLLER R/H 115V → рис. 6	907-221
12	P.ASSY, (VBM) FOLD ROLLER R/H 230V → рис. 6	907-222
13	BELT, HTD 750-5M-9	914-398
14	P.ASSY,(VBM) BELT TENSION PLATE R/H	908-898
14a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
14b	STEEL, (VBM) BELT TENSION PLATE R/H	253-039
15	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
16	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301

Номера в кружке — сборочные узлы (поставляются в сборе).

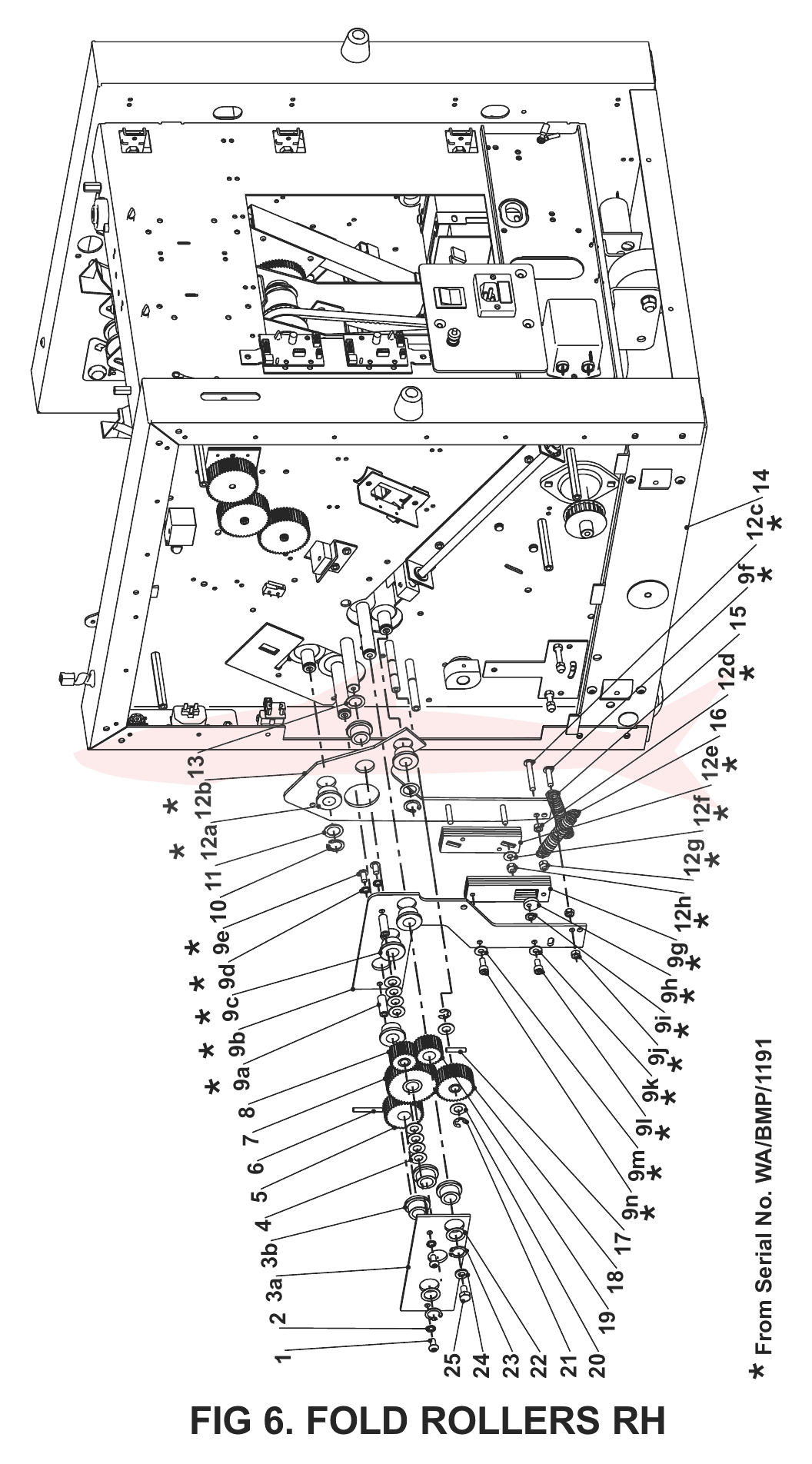

Fig 6 Fold Roller R/H Assy

Morgana BookMaster Pro · Фальцевальный вал, правая сторона

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) FOLD ROLLER R/H 115V	907-221
—	P.ASSY, (VBM) FOLD ROLLER R/H 230V	907-222
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	P.ASSY,(VBM) GEAR PLATE R/H	908-895
3a	STEEL, (VBM) GEAR PLATE R/H	253-110
3b	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
4	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
5	GEAR,(VBM) 37T x 16mm WIDE (+PIN HOLE)	192-425
6	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
7	GEAR, (VBM) 50T x 16mm WIDE (+BEARING)	192-424
8	GEAR,(VBM) 26T x 16mm WIDE (+BEARING)	192-426
9	P.ASSY, (VBM) ROLLER LEVER RH (OUTER)	907-447
9a	SHAFT, (VBM) SCISSOR SPACER x 23mm LG	265-566
9b	STEEL,(VBM) FOLD ROLLER LEVER RH-OUTER	253-399
9c	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
9d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9e	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
9f	SCREW, SKT HD BUTTON,M5x20mm STAINLESS	101-305
9g	P.ASSY, (VBM) FIXED CAM FOLLOWER	907-444
9h	SHAFT, (VBM) CAM ADJUSTER	265-555
9i	WASHER, M5 FORM A BZP	160-003
9j	NUT, M5 HEX FULL BZP	150-005
9k	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9l	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
9m	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9n	SCREW,SKT HD CAP,M5x12 HIGH TENSILE ZP	100-347
10	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
11	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
12	P.ASSY, (VBM) ROLLER LEVER RH (INNER)	907-449
12a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
12b	P.ASSY, (VBM) FOLD LEVER R/H INNER	907-452
12c	SCREW, SKT HD BUTTON,M5x35mm STAINLESS	101-315
12d	NUT, M5 HEX FULL BZP	150-005
12e	P.ASSY, (VBM) ADJUSTABLE CAM FOLLOWER	907-445
12f	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
12g	NUT, M5 NYLOC-TYPE P BZP	150-035
12h	NUT, M5 NYLOC-TYPE P BZP	150-035
13	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
14	P.ASSY, (VBM) FOLD ROLLER L/H 115V → рис. 7	907-223
14	P.ASSY, (VBM) FOLD ROLLER L/H 230V → рис. 7	907-224
15	SPRING, (VBM) FOLD ROLLER	180-372
16	SPRING, (VBM) FOLD ROLLER	180-372
17	PIN,DIA 4mmx20mm SPIROL PIN HEAVY DUTY	400-371
18	GEAR,(VBM) 26T x 16mm WIDE (+PIN HOLE)	192-427
19	GEAR,(VBM) 37T x 16mm WIDE (+BEARING)	192-428
20	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
21	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
22	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
23	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
24	WASHER, M6 FORM A BZP	160-004
25	HEX HEAD BOLT, M6 x 10mm H TENSILE BZP	113-305

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 7 Fold Roller L/H Assy

Morgana BookMaster Pro · Фальцевальный вал, левая сторона

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) FOLD ROLLER L/H 115V	907-223
—	P.ASSY, (VBM) FOLD ROLLER L/H 230V	907-224
1	SHAFT, (VBM) PRE-FOLD ROLLER (PLAIN)	265-543
2	SHAFT, (VBM) PRE-FOLD ROLLER & GROOVES	265-542
3	SHAFT, (VBM) RUBBER FEED ROLLER	265-592
4	SHAFT, (VBM) RUBBER FEED ROLLER	265-592
5	P.ASSY, BOOKMASTER CLINCHER 115V → рис. 8	907-225
5	P.ASSY, BOOKMASTER CLINCHER 230V → рис. 8	907-226
6	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
7	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
8	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
9	P.ASSY, (VBM) ROLLER LEVER LH (OUTER	907-446
9a	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
9b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9c	STEEL,(VBM) FOLD ROLLER LEVER LH-OUTER	253-400
9d	SHAFT, (VBM) SCISSOR SPACER x 23mm LG	265-566
9e	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
9f	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
9g	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9h	SCREW,SKT HD CAP,M5x10 HIGH TENSILE ZP	100-094
9i	SCREW, SKT HD BUTTON,M5x25mm STAINLESS	101-306
9j	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
9k	SHAFT, (VBM) CAM ADJUSTER	265-555
9l	WASHER, M5 FORM A BZP	160-003
9m	NUT, M5 HEX FULL BZP	150-005
9n	P.ASSY, (VBM) FIXED CAM FOLLOWER	907-444
10	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
11	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
12	GEAR,(VBM) 37T x 16mm WIDE (+PIN HOLE)	192-425
13	GEAR, (VBM) 50T x 16mm WIDE (+BEARING)	192-424
14	GEAR,(VBM) 26T x 16mm WIDE (+BEARING)	192-426
15	P.ASSY,(VBM) GEAR PLATE L/H	908-894
15a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
15b	STEEL, (VBM) GEAR PLATE L/H	253-111
16	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
17	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
18	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
19	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
20	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
21	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
22	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
23	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342
24	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
25	GEAR,(VBM) 26T x 16mm WIDE (+PIN HOLE)	192-427
26	PIN,DIA 4mmx20mm SPIROL PIN HEAVY DUTY	400-371
27	SPRING, (VBM) FOLD ROLLER	180-372
28	P.ASSY, (VBM) ROLLER LEVER LH (INNER)	907-448
28a	NUT, M5 NYLOC-TYPE P BZP	150-035
28b	NUT, M5 NYLOC-TYPE P BZP	150-035
28c	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
28d	P.ASSY, (VBM) ADJUSTABLE CAM FOLLOWER	907-445
28e	NUT, M5 HEX FULL BZP	150-005
28f	P.ASSY, (VBM) FOLD LEVER L/H INNER	907-453
28g	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
29	SPRING, (VBM) FOLD ROLLER	180-372
30	SPRING, CIRCLIP 12.7mm SHAFT 1mm WIDE	180-099
31	NYLON, WASHER OD 19mmxID13mmx0.80mm	320-342

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 8 Clincher Assy

Morgana BookMaster Pro · Загибатель скоб (клинчер)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER CLINCHER 115V	907-225
—	P.ASSY, BOOKMASTER CLINCHER 230V	907-226
1	STEEL, (VBM) CABLE CHANNEL	253-054
2	SHAFT, (VBM) CLINCH MOUNTING BAR	265-561
3	STEEL, (VBM) GUIDE PLATE BRACKET L/H	253-053
4	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
6	ELEC-HARDWARE, CABLE TIE-small	710-016
7	STEEL, (VBM) GUIDE PLATE BRACKET R/H	253-052
8	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
10	HAND SCREW, M5x16mm GRIP KNOB-ORANGE	148-307
11	STEEL, (VBM) CLINCHER MOUNTING CLAMP	253-045
12	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
13	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
14	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
15	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
16	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
17	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
18	NYLON, WASHER OD19mmxID13mmx1.5mmTHCK	320-323
19	ACETAL, (VBM) FOLD ROLLER CAM	315-618
20	PIN, M3 x 20 SPIROL	400-391
21	STEEL,(VBM) FOLD PLATE GRID BRKT TOP	253-070
22	STEEL,(VBM)FOLD PLATE GRID BRKT R/H	253-140
23	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
24	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
25	SHAFT, (VBM) ADJUSTER	265-692
26	WIRE FRAME,(VBM) FOLD LATCH - REAR	262-265
27	WIRE FRAME,(VBM) FOLD LATCH - FRONT	262-266
28	STEEL,(VBM)FOLD PLATE GRID BRKT L/H	253-069
29	SCREW, SKT HD BU TTON,M6x12mm STAINLESS	101-308
30	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
31	RUBBER,(VBM) END CAP 1.6x15.9x35mm LG	330-461
32	STEEL, ROLL ADJUSTOR LEVER	253-402
33	SPRING, (VBM) M6 SPRING PLUNGER	180-388
34	STEEL, (VBM) CAM ADJUSTER BLOCK	253-405
35	NUT, M6 HEX FULL BZP	150-006
36	PIN, M3 x 20 SPIROL	400-391
37	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
38	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
39	STEEL,(VBM) FOLD PLATE GRID BRKT TOP	253-070
40	LABEL, BMP ADJUSTABLE FOLD ROLLER	500-263
41	NYLON, WASHER OD19mmxID13mmx1.5mmTHICK	320-323
42	PIN, M3 x 20 SPIROL	400-391
43	ACETAL, (VBM) FOLD ROLLER CAM	315-618
44	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
45	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
46	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
47	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
48	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
49	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
50	PCB ASSEMBLY, POWER INTERFACE (ECO)	900-141
51	PCB ASSEMBLY, VARIO ZERO-CROSS.DETECT	900-100
52	CABLE ASSY,(VBM) POWER->INTERFACE LINK	742-379
53	CABLE ASSY,(VBM) INTERFACE > CLINCHERS	742-374
54	PCB ASSEMBLY, CLINCH DRIVE	900-165
55	PCB ASSEMBLY, CLINCH DRIVE	900-165
56	PCB ASSEMBLY, CLINCH DRIVE	900-165
57	PCB ASSEMBLY, BOOKMASTER INTERFACE	900-164
58	P.ASSY, BOOKMASTER TAMPER 115V → рис. 9	907-227
58	P.ASSY, BOOKMASTER TAMPER 230V → рис. 9	907-228

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 9 Tamper Assy

Morgana BookMaster Pro · Механизм подбивки (тампер)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER TAMPER 115V	907-227
—	P.ASSY, BOOKMASTER TAMPER 230V	907-228
1	PL MOULD,(VSF)TAMPER PAPER GUIDE R/H	310-530
2	SHAFT, TAMPER RAIL (2 GROOVES)	265-530
3	P.ASSY, (VBM) TAMPER CARRIAGE R/H → рис. 15	907-231
4	NUT, (VBM) ADJUSTER M10 (SHORT)	150-318
5	PLASTIC, (VBM) TAMPER STOP (INBOARD)	315-573
6	SHAFT, (VBM) ADJUSTER - TOP	265-570
7	SHAFT, (VBM) ADJUSTER BOTTOM	265-569
8	PLASTIC MOULD, (V) PINCH WHEEL	310-377
9	SHAFT, (VBM) ARM LINK PIN	265-588
10	WASHER, M4 FORM A BZP	160-001
11	SCREW, SKT HD BU TTON,M4x12mm STAINLESS	101-331
12	GRUB SCREW, M4 x 12mm DOG POINT BLACK	149-205
13	ST STEEL, (VBM) FOLD BLADE	257-405
14	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
15	SCREW, SKT HD BU TTON,M4x 8mm STAINLESS	101-320
16	GEAR, 50T dia 6mm BORE x 16mm WIDE	192-421
17	STEEL, (VBM) MOTOR MOUNTING BRACKET	253-128
18	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
19	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
20	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
21	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
22	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
23	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
24	GEAR, (VGBM) 50T x 16mm WIDE (1mod)	192-408
25	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
26	GEAR, (VGBM) 50T x 16mm WIDE (1mod)	192-408
27	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
28	PL MOULDING, (VBM) BEARING BUSH (MOD)	310-646
29	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
30	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
31	P.ASSY, BOOKMASTER BASE 115V → рис. 10	907-229
31	P.ASSY, BOOKMASTER BASE 230V → рис. 10	907-230
32	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
33	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
34	SHAFT, TAMPER RAIL (2 GROOVES)	265-530
35	SHAFT, TAMPER RAIL (2 GROOVES)	265-530
36	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
37	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
38	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
39	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
40	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
41	P.ASSY, (VBM) SOLENOID ACTUATOR	908-886
41a	PL MLDING, (VATR) SOLENOID ACTUATOR	310-624
41b	SCREW, SKT HD BUTTON,M3x10mm STAINLESS	101-314
41c	STEEL, (VGBM) SOLENOID LINK	254-133
41d	WASHER, M3 FORM A BZP	160-002
41e	NUT, M3 NYLOC-TYPE T BZP	150-033
42	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
43	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
44	WASHER, M8 FORM B BZP	160-011
45	PL MOULDING, (VBM) BEARING BUSH (MOD)	310-646
46	SCREW, SKT HD C AP, M4 X 20 STAINLESS	100-342
47	S.STEEL, (VGBM) ACTUATOR PIVOT	256-106
48	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
49	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
50	SHAFT, STAND OFF POST - TOP PLATE	265-573
51	ELEC ASSY, MOTOR, AXIS DRIVE	905-126
52	CABLE ASSY, (VB M) SIDE AXIS MOTOR LINK	742-383
53	SCREW, SKT HD CAP, M4 x 12mm STAINLESS	100-338
54	WASHER, M4 FORM A BZP	160-001
55	SHAFT, (VBM) FOLD BAR	265-568
56	PIN, M3 x 20 SPIROL	400-391
57	SCREW, SKT HD CAP, M4 x 12mm STAINLESS	100-338
58	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
59	STEEL, (VBM) FOLD BAR CONNECTING BRKT	253-123
60	PLASTIC MOULD, (V) PINCH WHEEL	310-377
61	PLASTIC, (VBM) TAMPER STOP (OUTBOARD)	315-574
62	NUT, (VBM) ADJUSTER M10 (SHORT)	150-318
63	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
64	PLASTIC, (VBM) TAMPER STOP (INBOARD)	315-573
65	P.ASSY, (VBM) TAMPER CARRIAGE L/H → рис. 14	907-232
66	PL MOULD,(VSF)TAMPER PAPER GUIDE L/H	310-529

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 10 Base Assy

Morgana BookMaster Pro · Основание

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER BASE 115V	907-229
—	P.ASSY, BOOKMASTER BASE 230V	907-230
1	STEEL, (VBM) ROLLER DEFLECTOR PLATE	253-116
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
4	DRIVE BELT (VECO) HTD 450-5M-09 (230V)	914-341
4	BELT, HTD 475-5M-9 (115V)	914-399
5	LABEL, (VBM) FLY WHEEL DIRECTION	500-237
6	P.ASSY, (VBM) FLYW HEEL MOTOR & MAGNET	909-989
7	WASHER, M5 FORM A BZP	160-003
8	SCREW,SKT HD CAP, M5x35 H TENSILE BZP	100-352
9	NYLON, (VFLR) WHEEL O/D 75mm	320-311
10	SHAFT, BUSH 12mmODx8.6mmIDx41.2mm LG	265-220
11	WASHER, M8 FORM C BZP	160-212
12	PLASTIC,(XBA)SPAC ER 17.5 X 10.2 IDX8LG	315-503
13	WASHER, M8 SQ. SECT.SPRING BZP	160-206
14	NUT, M8 HEX FULL BZP	150-007
15	COACH BOLT, M8 x 65mm ZINC PLATED	115-021
16	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	P.ASSY, (VBM) WHEEL PLATE L/H	908-883
18a	STEEL, (VBM) WHEEL PLATE L/H	253-036
18b	P.ASSY, (VASF) EARTHING PLATE & STUD	908-802
18c	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
18d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18e	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18f	NUT, M5 HEX FULL BZP	150-005
18g	P.ASSY, (VBM) PLASTIC LOCATION BLOCK	908-914
18h	STEEL,(VBM)LOCATION BLOCK SPACER PLATE	253-041
19	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	STEEL, (VBM) TACHO MOUNTING BRACKET	253-088
22	NUT, M10 FULL-PLASTIC	150-301
23	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
24	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
25	STEEL, (VBM) BASE PLATE	253-038
26	NYLON, (VFLR) WHEEL O/D 75mm	320-311
27	SHAFT, BUSH 12mmODx8.6mmIDx41.2mm LG	265-220
28	HEX HEAD BOLT, M8 x 60mm	113-302
29	WASHER, M8 SQ. SECT.SPRING BZP	160-206
30	NUT, M8 HEX FULL BZP	150-007
31	P.ASSY,(VBM)MAIN DRIVE & FOLD LATCH 115V → рис. 11	907-233
31	P.ASSY,(VBM)MAIN DRIVE & FOLD LATCH 230V → рис. 11	907-234

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 11 Main Drive & Fold Latch Assy

Morgana BookMaster Pro · Главный привод и фиксатор фальцовки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VBM)MAIN DRIVE & FOLD LATCH 115V	907-233
—	P.ASSY,(VBM)MAIN DRIVE & FOLD LATCH 230V	907-234
1	P.ASSY, BOOKMASTER L/H SIDE PLATE → рис. 16	907-235
2	SCREW,SKT HD CAP,M6x30 HIGH TENSILE ZP	100-335
3	WASHER, M6 T4HPTC BZP	160-040
4	WASHER, REPAIR (M6 x 25mm OD) BZP	160-014
5	P.ASSY, (VBM) TRANSFORMER & BRACKET	908-882
5a	STEEL, (VBM) TRANSFORMER BRACKET	253-089
5b	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
5c	SCREW, SKT HD BUTTON,M5x 8mm STAINLESS	101-300
5d	ELECT.ASSY, VARIO INPUT TRANS.100-240V	905-154
6	P.ASSY,(VBM)CENTRAL PANEL ELECT. 115V → рис. 20	907-238
6	P.ASSY,(VBM)CENTRAL PANEL ELECT. 230V → рис. 20	907-239
7	P.ASSY, (VBM) CLAMP BRACKET	908-905
8	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
9	PULLEY, (VBM) DRIVE HTD24T-5M-9F	192-435
10	P.ASSY,(VBM) R/H SIDE PLATE ELECTRICS → рис. 17	907-236
11	SCREW,SKT HD CAP,M6x30 HIGH TENSILE ZP	100-335
12	WASHER, M6 T4HPTC BZP	160-040
13	WASHER, REPAIR (M6 x 25mm OD) BZP	160-014
14	PULLEY,(VBM) HTD-28T-5M-09	192-432
15	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
16	P.ASSY, (VBM) CLAMP BRACKET	908-905
17	ELECT.ASSY, DRIVE MOTOR 230V 50Hz	905-230
17	ELECT.ASSY, DRIVE MOTOR 115V 60Hz	905-231
18	STEEL,(VBM) MOTOR SPACER PLATE	253-042
19	PULLEY, HTD 14-5M-09F STEEL	192-420
20	STEEL, KEY 4mm x 4mm x 16mm LONG	254-597
21	P.ASSY, (VBM) CLAMP BRACKET	908-905
22	P.ASSY, BOOKMASTER FOLD LATCH → рис. 19	907-237
23	NUT, M2.5 HEX FULL BZP	150-302
24	SHAKEPROOF WASHER, M2.5 INTERNAL BZP	165-201
25	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
26	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
27	STEEL, (VBM) FOLD PLATE SWITCH BRACKET	253-068
28	WASHER, M2.5 FORM A BZP	160-202
29	SCREW, SKT HD CAP, M2.5x12mm STAINLESS	100-341
30	NUT, M5 HEX FULL BZP	150-005
31	SCREW, SKT HD CAP, M5 x 16mm STAINLESS	100-319
32	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
33	SCREW, SKT HD CAP, M4 x 10 ZP HT	100-375
34	WASHER, M6 T4HPTC BZP	160-040
35	SCREW,SKT HD BUTTON,M6x30 HIGH TENSILE	101-333
36	PULLEY, (VBM) DRIVE HTD24T-5M-9F	192-435
37	PIN, DIA 4mm x 30mm LONG ROLL PIN	400-392
38	PULLEY,(VBM) HTD-60T-5M-09 (230V)	192-431
38	PULLEY, (VBM) HTD-72T-5M-09 (115V)	192-434
39	PIN, DIA 4mm x 40mm SPIROL PIN	400-357
40	SHAFT, (VBM) MAIN DRIVE x 540mm LONG	265-551
41	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
42	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 12 Staple Panel Assy

Morgana BookMaster Pro · Панель сшивки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER STAPLE PANEL REV.B	890-112
1	PCB ASSEMBLY, STAPLE HEAD CONTROL	900-156
2	SCREW, SKT HD CAP, M4 x 12mm STAINLESS	100-338
3	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
4	SPRING, (VBM) STAPLER PANEL	180-370
5	SHAFT, (VBM) TOP HAT SPACER	265-848
6	STEEL, (VBM) PCB PLATE R/H	253-880
7	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
8	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
9	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
10	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
11	WASHER, M5 FORM A BZP	160-003
12	STEEL,(VBM) ADJUSTER SHAFT SUPPORT BKT	253-106
13	STEEL, (VBM) STAPLE ADJUSTER PLATE	253-882
14	HAND SCREW, T-HANDLE	148-324
15	P.ASSY, (VBM) STAPLE MOUNTING PANEL	907-841
16	LABEL, (VBM) TOP LID LOCK	500-239
17	SHAFT, (VBM) PIVOT TUBE	265-579
18	STEEL, (VBM) 2 BAR LATCH PLATE	253-077
19	SHAFT, (VBM) TWO BAR LATCH ROD	265-546
20	SHAFT, (VBM) EDGE STITCH SPACER	265-590
21	PIN, SPIROL M3 x 14mm (STD DUTY)	400-402
22	SCREW, SKT HD C AP, M4 X 20 STAINLESS	100-342
23	STEEL, (VBM) CAM LEVER	253-105
24	SHAFT,(VSF)CONVEYO R CLAMP SPACER	265-371
25	WASHER, M4 FORM A BZP	160-001
26	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
27	RUBBER,(VBM) END CAP 1.6x15.9x35mm LG	330-461
28	BOOKMASTER, STAPLE HEAD	810-020
29	VBM, STAPLE CASSETTE (5000), PACK of 3	810-022
30	STEEL, (VBM) PAPER GUIDE BRACKET R/H	253-098
31	NUT, M5 HEX FULL BZP	150-005
32	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
33	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
34	PLASTIC, (VBM) EDGE STITCH WHEEL	315-668
35	SHAFT,(VBM) EDGE STITCH STOP WEIGHT	265-591
36	STEEL,(VSF) INFEED BRACKET SENSOR	254-508
37	P.ASSY, (VBM) PRESSURE WHEEL	890-107
37a	P.ASSY, (VBM) WHEEL	890-106
37b	SHAFT, (VBM) AXLE 8mm x 52mm	265-880
37c	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
37d	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
38	SHAFT, SPACER 8 mmOD x 5.1mmID x 7mm LG	265-646
39	SWITCH, LEVER ARM - HAMLIN	700-402
40	SCREW, SKT HD BU TTON,M5x16mm STAINLESS	101-307
41	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
42	STEEL, (VBM) PAPER GUIDE BRACKET L/H	253-097
43	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
44	CIRCLIP 6mm SHAFT 0.69mm WIDE	180-303
45	STEEL, (VBM) ADJUSTER LEVER	253-104
46	SHAFT(VTRM)STANDOFF 0D8mmxID5.1mmx19mm	265-345
47	STEEL, (VBM) STAPLE DOOR PIVOT BLOCK	253-235
48	GRUB SCREW, M6 x 10 DOG POINT	149-206
49	SPRING, COMPRESSION, 25.4mm x 11.5mm	180-012
50	SHAFT, (VBM) STITCH ADJUSTOR PIVOT	265-559
51	PL MLDING,(VBM) PIVOT BLOCK (MODIFIED)	310-653
52	SCREW, SKT HD C/S, M4 x 12mm STAINLESS	105-302
53	P.ASSY, (VBM) STAPLER FIXING BRACKET	890-256
54	WASHER, M5 SQ. SECT.SPRING BZP	160-204
55	STEEL, (VBM) STAPLE ADJUSTER PLATE	253-878
56	PL MLDING, (VBM) STAPLE CAM	310-652
57	STEEL, (VBM) PCB PLATE L/H	253-881
58	CABLE ASSEMBLY, (VBM) STAPLE HEAD CTL	742-373
59	ELEC-HARDWARE, CABLE TIE-small	710-016

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 13 Top Cover Assy

Morgana BookMaster Pro · Верхняя крышка

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER TO P COVER	907-218
1	CABLE ASSY,10WAY INTERFACE SKT SQUAR E	742-519
2	WASHER, M3 FORM A BZP	160-002
3	NUT, M3 NYLOC-TYPE T BZP	150-033
4	PL MLDING, SENSOR HOUSING	310-627
5	ELECT.ASSY, (VBM) INFEED, IR SENSOR	905-314
6	ELECT.ASSY, (VBM) INFEED, IR EMITTER	905-313
7	PL MLDING, EMITTER HOUSING	310-625
8	ELEC-HARDWARE, CABLE TIE-small	710-016
9	PL MLDING, EMITTER HOUSING CLAMP RING	310-626
10	PL MLDING, SENSOR HOUSING CLAMP RING	310-628
11	P.ASSY, (VBM) TOP COVER	908-901

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 14 Tamper Carriage L/H

Morgana BookMaster Pro · Каретка тампера, левая

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) TAMPER CARRIAGE L/H	907-232
1	SCREW, SKT HD CAP, M4 x 16mm STAINLESS	100-317
2	ST STEEL, (VBM) TAMPER WASHER	257-427
3	PL MOULDING, (VBM) TAMPER GUIDE SLEEVE	310-641
4	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
7	ST ST, WASHER 8.5O/Dx5.2I/Dx0.5 THICK	257-409
8	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
9	PLASTIC, (VASF) CARRIAGE WHEEL	315-549
10	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
11	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
12	ST ST, WASHER 8.5O/Dx5.2I/Dx0.5 THICK	257-409
13	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
14	PLASTIC, (VASF) CARRIAGE WHEEL	315-549
15	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
16	NUT, M5 NYLOC-TYPE P BZP	150-035
17	SHAFT, HEX.SPACER BRASS N/PLAT M5x25mm	265-251
18	WASHER, M5 FORM A BZP	160-003
19	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
20	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
21	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
22	P.ASSY, (VBM) TAMPER CARRIAGE L/H	907-240
23	SHAFT, (VBM) TAMPER WHEEL POST - LONG	265-593
24	NUT, M3 NYLOC-TYPE T BZP	150-033
25	PL MLDING, (VBMP) TAMPER MOUNTING NUT	310-637
26	ST STEEL, SHIM OD13mmxID6.2mmx0.25mm	257-362
27	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
28	STEEL, (VBMP) LOCKING PLATE	253-124
29	ALUMINIUM, (VBM) TAMPER CHANNEL L/H	251-398
30	NUT, M3 NYLOC-TYPE T BZP	150-033
31	WASHER, M3 FORM A BZP	160-002
32	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
33	SCREW, SKT HD BU TTON,M3x16mm STAINLESS	101-311
34	WIRE,ASSY EARTH-2BA/BRAID140mm/6BA	740-136

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 15 Tamper Carriage R/H

Morgana BookMaster Pro · Каретка тампера, правая

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) TAMPER CARRIAGE R/H	907-231
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
4	PL MOULDING, (VBM) TAMPER GUIDE SLEEVE	310-641
5	STEEL, (VBMP) LOCKING PLATE	253-124
6	ST STEEL, (VBM) TAMPER WASHER	257-427
7	SCREW, SKT HD CAP, M4 x 16mm STAINLESS	100-317
8	NUT, M3 NYLOC-TYPE T BZP	150-033
9	WASHER, M3 FORM A BZP	160-002
10	WIRE,ASSY EARTH-2BA/BRAID140mm/6BA	740-136
11	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
12	SCREW, SKT HD BU TTON,M3x16mm STAINLESS	101-311
13	NUT, M3 NYLOC-TYPE T BZP	150-033
14	PL MLDING, (VBMP) TAMPER MOUNTING NUT	310-637
15	ST STEEL, SHIM OD13mmxID6.2mmx0.25mm	257-362
16	ALUMINIUM, (VBM) TAMPER CHANNEL R/H	251-399
17	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
18	SHAFT, (VBM) TAMPER WHEEL POST - SHORT	265-594
19	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
20	WASHER, M5 FORM A BZP	160-003
21	P.ASSY, (VBM) TAMPER CARRIAGE R/H	907-241
22	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
23	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
24	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
25	WASHER, M5 FORM A BZP	160-003
26	SHAFT, HEX.SPACER BRASS N/PLAT M5x25mm	265-251
27	NUT, M5 NYLOC-TYPE P BZP	150-035
28	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
29	PLASTIC, (VASF) CARRIAGE WHEEL	315-549
30	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
31	ST ST, WASHER 8.5O/Dx5.2I/Dx0.5 THICK	257-409
32	NUT, M5 NYLOC-TYPE P BZP	150-035
33	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
34	PLASTIC, (VASF) CARRIAGE WHEEL	315-549
35	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
36	ST ST, WASHER 8.5O/Dx5.2I/Dx0.5 THICK	257-409
37	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
38	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
39	SCREW,POZI SELF-TAP,No4x1/4" BZP	130-002
40	ST STEEL, (VBM) SWITCH BRACKET	257-404

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 16 L/H Side Plate Assy

Morgana BookMaster Pro · Левая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER L/H SIDE PLATE	907-235
1	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
2	PL MOULDING, (VBM) BEARING BUSH (MOD)	310-646
3	STEEL, (VBM) CLINCH BAR BRACKET L/H	253-047
4	SHAFT, (VBM) STAND OFF POST (1 GROOVE)	265-574
5	SHAFT, (VBM) SCI SSOR PIVOT x 63mm LG	265-565
6	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
7	NUT, M5 HEX FULL BZP	150-005
8	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
9	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
11	P.ASSY, (VBM) SOLENOID	908-995
11a	STEEL,(VGBM)SOLENOID MOUNTING BRACKET	254-120
11b	P.ASSY, (VATR) SOLENOID & SPRING	908-810
11c	ELEC-HARDWARE, CABLE CLAMP 3.2 dia	710-307
11d	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
11e	SCREW, SKT HD CAP, M4 x 6mm STAINLESS	100-305
11f	NUT, M5 NYLOC-TYPE P BZP	150-035
11g	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
11h	SCREW, SKT HD CAP, M4 x 6mm STAINLESS	100-305
12	CABLE ASSY, (VBM) SIDE KNOCK SOLENOID	742-375
13	SHAFT,(VSF)CONVEYO R CLAMP SPACER	265-371
14	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
15	NUT, M5 NYLOC-TYPE P BZP	150-035
16	P.ASSY, (VBM) FOLD ROLLER BIAS PLATE	908-996
16a	NUT, M5 HEX FULL BZP	150-005
16b	NUT, M5 NYLOC-TYPE P BZP	150-035
16c	SCREW, SKT HD BUTTON,M5x25mm STAINLESS	101-306
16d	NUT, M5 NYLOC-TYPE P BZP	150-035
16e	NUT, M5 HEX FULL BZP	150-005
16f	STEEL, (VBM)FOLD ROLLER BIAS PLATE	253-109
16g	SCREW, SKT HD BUTTON,M5x35mm STAINLESS	101-315
17	P.ASSY, (VBM) FOLD BLADE GUIDE ROD	908-997
17a	PLASTIC MLDG,BEARING BUSH (8mm SHAFT)	310-351
17b	STEEL, (VBM) GUIDE ROD BRACKET	253-120
17c	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
17d	SHAFT, (VBM) FOLD BLADE GUIDE ROD	265-548
18	CABLE ASSY, (VB M) BOTTOM LATCH SOCKET	742-376
19	ELECT.ASSY, HALL EFF.SENSOR - 1020mm	905-308
20	ELECT ASSY, (VBM) FOLD AXIS HOME SW	905-316
21	ELEC-HARDWARE, CABLE TIE-small	710-016
22	SCREW, SKT HD BU TTON,M6x16mm STAINLESS	101-310
23	WASHER, M6 T4HPTC BZP	160-040
24	BEARING, FLANGED SELF ALIGNING 1/2"	190-080
25	SHAFT, (VBM) STAND OFF POST x 63mm LG	265-552
26	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
27	NUT, M6 NYLOC-TYPE P BZP	150-036
28	WASHER, M6 T4HPTC BZP	160-040
29	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
30	NUT, M6 HEX FULL BZP	150-006
31	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
32	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
33	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
34	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
35	PLASTIC, (VBM) BUMP STOP	315-556
36	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
37	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
38	STEEL, (VBM) INDICATOR PLATE	253-401
39	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
40	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
41	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
42	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
43	SHAFT,(VBM)SPACER 8mmO/Dx16.5lg TAPPED	265-644
44	PLASTIC, FIXING RING dia 8mm SHAFT	315-462
45	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
46	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
47	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
48	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
49	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
50	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
51	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
52	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
53	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
54	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
55	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
56	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
57	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
58	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
59	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
60	WASHER, M5 FORM A BZP	160-003
61	ELECT.ASSY, (VB M) STAPLE SELECT SWITCH	905-309
62	LABEL, (VBM) STAPLE HEAD SELECT	500-240
63	P.ASSY, (VBM) SIDE FRAME L/H	907-209
64	INDICATOR, YELLOW LED, BLACK BEZEL	626-031

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 17 R/H Side Plate Electrics

Morgana BookMaster Pro · Электрика правой боковины

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VBM) R/H SIDE PLATE ELECTRICS	907-236
1	P.ASSY, VBM CONTROL - TRIMMER SKT	908-998
1a	STEEL, (VBM) TRIMMER SOCKET PLATE	253-087
1b	WASHER, M3 FORM A BZP	160-002
1c	NUT, M3 NYLOC-TYPE T BZP	150-033
1d	WASHER, M3 FORM A BZP	160-002
1e	NUT, M3 NYLOC-TYPE T BZP	150-033
1f	SOCKET, IEC CHASSIS Rec	722-017
1g	SCREW,SKT HD C/S,M3x10 HIGH TENSILE ZP	105-320
1h	SCREW, SKT HD BUTTON,M3x10mm STAINLESS	101-314
1i	CABLE ASSY, VBM CONTROL - TRIM SKT	742-385
2	CABLE ASSY, (VBM) TRIM POWER OUTPUT	742-386
3	SCREW, SKT HD BUTTON, M4x30 STAINLESS	101-334
4	ELECT.ASSY, (VBM) GUARD SWITCH	905-310
5	PLASTIC, (VBM) SAFE TY SWITCH SPACER	315-576
6	PLASTIC, PUSH IN CABLE CLIP 5mm	315-454
7	WASHER, M4 FORM A BZP	160-001
8	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
9	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
10	WASHER, M5 FORM A BZP	160-003
11	WIRE,ASSY EARTH - 2BA/140mmBRAID/2BA	740-130
12	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
13	SCREW, SKT HD CAP, M2.5x12mm STAINLESS	100-341
14	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
15	ELEC-HARDWARE, CABLE TIE-small	710-016
16	SPRING,(VS/F) LEAF SPRING	180-328
17	WASHER, M5 FORM A BZP	160-003
18	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
19	ELECT.ASSY, (VBM) SIDE AXIS HOME SW	905-315
20	SCREW, SKT HD CAP, M2.5x12mm STAINLESS	100-341
21	STEEL, (VBM) MICRO SWITCH MTG BRACKET	253-179
22	WASHER, M2.5 FORM A BZP	160-202
23	NUT, M2.5 HEX FULL BZP	150-302
24	WASHER, M2.5 FORM A BZP	160-202
25	SHAKEPROOF WASHER, M2.5 INTERNAL BZP	165-201
26	NUT, M2.5 HEX FULL BZP	150-302
27	PCB ASSEMBLY, FILT ERED 3PIN XLR SKT	900-169
28	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
29	WASHER, M5 FORM A BZP	160-003
30	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
31	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
32	SCREW, SKT HD BU TTON,M3x10mm STAINLESS	101-314
33	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
34	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
35	P.ASSY, BOOKMASTER R/H SIDE PLATE → рис. 18	907-242
36	RUBBER, GROMMET 9.5mm CABLE x 12.7mmOD	330-018
37	CABLE ASSY, (V) INTERFACE-COILED 6way	742-216

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 18 R/H Side Plate Assy

Morgana BookMaster Pro · Правая боковина

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER R/H SIDE PLATE	907-242
1	P.ASSY, (VBM) SIDE FRAME R/H	907-210
2	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
3	NUT, M5 NYLOC-TYPE P BZP	150-035
4	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
5	NUT, M3 NYLOC-TYPE T BZP	150-033
6	WASHER, M3 FORM A BZP	160-002
7	STEEL, (VBM) CLINCH BAR BRACKET R/H	253-044
8	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
9	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
10	PL MOULDING, (VBM) BEARING BUSH (MOD)	310-646
11	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
12	SHAFT, SIDE COVER SPACER x 70mm LONG	265-572
13	STEEL, (VBM) LID STAY SPACER	253-167
14	SPRING STRUT, (VBM) LID STAY (MOD)	180-380
15	SCREW, SKT HD C/S, M3 x 12mm STAINLESS	105-303
16	NYLON, SPACER OD12.7mmxID5.6mmx17.5mm	320-331
17	WASHER, M5 FORM C (12.5mmOD) BZP (115V)	160-005
18	SCREW, SKT HD BU TTON,M5x30mm STAINLESS	101-309
19	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
20	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
21	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
22	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
23	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
24	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
25	SCREW, SKT HD BU TTON,M5x20mm STAINLESS	101-305
26	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
27	NUT, M6 NYLOC-TYPE P BZP	150-036
28	WASHER, M6 T4HPTC BZP	160-040
29	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
30	PLASTIC, (VBM) BUMP STOP	315-556
31	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
32	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
33	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
34	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
35	NUT, M6 HEX FULL BZP	150-006
36	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
37	SHAFT, (VBM) STAND OFF POST x 63mm LG	265-552
38	BEARING, FLANGED SELF ALIGNING 1/2"	190-080
39	WASHER, M6 T4HPTC BZP	160-040
40	SCREW, SKT HD BU TTON,M6x16mm STAINLESS	101-310
41	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
42	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
43	P.ASSY, (VBM) WHEEL PLATE R/H	908-913
43a	P.ASSY, (VBM) PLASTIC LOCATION BLOCK	908-914
43b	STEEL,(VBM)LOCATION BLOCK SPACER PLATE	253-041
43c	STEEL, (VBM) WHEEL PLATE R/H	253-037
43d	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
43e	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
43f	NUT, M5 HEX FULL BZP	150-005
43g	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
43h	P.ASSY, (VASF) EARTHING PLATE & STUD	908-802
44	P.ASSY, (VBM) FOLD GUIDE BRACKET	907-012
44a	SHAFT, (VBM) FOLD BLADE GUIDE ROD	265-548
44b	SPRING, CLIP, PUSH ON. 12.5mm BAR	180-307
44c	STEEL, (VBM) GUIDE BRACKET	253-122
44d	PLASTIC MLDG,BEARING BUSH (8mm SHAFT)	310-351
45	P.ASSY,(VBM) FOLD ROLLER BIAS PLATE RH	907-243
45a	SCREW, SKT HD BUTTON,M5x35mm STAINLESS	101-315
45b	NUT, M5 HEX FULL BZP	150-005
45c	NUT, M5 NYLOC-TYPE P BZP	150-035
45d	STEEL, (VBM)FOLD ROLLER BIAS PLATE	253-109
45e	SCREW, SKT HD BUTTON,M5x25mm STAINLESS	101-306
45f	NUT, M5 HEX FULL BZP	150-005
45g	NUT, M5 NYLOC-TYPE P BZP	150-035
46	SHAFT,(VSF)CONVEYO R CLAMP SPACER	265-371
47	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
48	NUT, M5 NYLOC-TYPE P BZP	150-035
49	BEAR,OILITE FLAN GED ID1/2"xOD3/4"x1/2"	190-311
50	SHAFT, (VBM) STAND OFF POST (1 GROOVE)	265-574
51	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
52	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
53	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
54	PLASTIC, FIXING RING dia 8mm SHAFT	315-462
55	SHAFT,(VBM)SPACER 8mmO/Dx16.5lg TAPPED	265-644
56	SCREW, SKT HD BU TTON,M5x 8mm STAINLESS	101-300
57	SHAFT,(VBM) STAND OFF POST (2 GROOVES)	265-575
58	SHAFT, (VBM) SCISSOR PIVOT x 63mm LG	265-565
59	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
60	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
61	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
62	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 19 Fold Latch Assembly

Morgana BookMaster Pro · Фиксатор фальцовки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, BOOKMASTER FOLD LATCH	907-237
1	HEX HEAD BOLT, M6 x 16mm H TENSILE BZP	113-301
2	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
3	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
4	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
5	PLASTIC MLDG,BEAR ING BUSH (8mm SHAFT)	310-351
6	P.ASSY, (VBM) BACK PANEL	908-872
7	CABLE ASSY, (VBM) FOLD AXIS MOTOR LINK	742-384
8	P.ASSY, (VBM) FOLD LATCH MOTOR	907-244
8a	ELEC ASSY, MOTOR, AXIS DRIVE	905-126
8b	STEEL, (VBM)MOTOR MOUNTING BRACKET	253-128
8c	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
8d	SCREW, SKT HD BUTTON,M4x 8mm STAINLESS	101-320
8e	STEEL, (VBM)MOTOR MOUNTING BRACKET	253-076
8f	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
8g	SCREW, SKT HD BUTTON,M5x10mm STAINLESS	101-301
8h	GEAR,(VASF) 37T & M4 TAPPED HOLE DELRIN	192-413
8i	GRUB SCREW, M4 x 12mm DOG POINT BLACK	149-205
9	SHAFT, (VBMP) FOLD LATCH STOP COLLAR	265-557
10	NUT, (VBM) ADJUSTER M10 (SHORT)	150-318
11	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
12	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
13	PL, (VBM) FOLD LATCH STOP (DOWNWARD)	315-575
14	GEAR,(VASF) 37T x 16 mm WIDE DELRIN	192-415
15	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
16	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
17	SHAFT, (VBMP) ADJUSTER	265-577
18	SHAFT, (VBM) TIE BAR x 248mm LONG	265-578
19	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
20	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
21	PLASTIC MLDG,BEAR ING BUSH (8mm SHAFT)	310-351
22	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
23	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
24	SCREW, SKT HD CAP, M6 x 16mm STAINLESS	100-323
25	WASHER, M6 T4HPTC BZP	160-040
26	P.ASSY, (VBM) BOTTOM PANEL	908-873
27	ELEC-HARDWARE, CABLE TIE-small	710-016
28	P.ASSY, (VBM) FOLD LATCH ADJUSTER	907-245
28a	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
28b	SHAFT, (VATR) SLEEVE	265-525
28c	SCREW, CHEESE HD MACHINE, M5 x 6, BZP	140-203
28d	P.ASSY, (VBM) FOLD LATCH	908-874
28e	BEAR,OILITE FLANGED ID1/2"xOD3/4"x1/2"	190-311
28f	SHAFT, (VBM) CAM ADJUSTER	265-555
29	LABEL, (VBM) STAPLE LATCH ADJUSTER	500-247
30	SCREW, CHEESE HD MACHINE, M5 x 8, BZP	140-207
31	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
32	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
33	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
34	STEEL, (VBM) NUT LOCATION BRACKET	253-067
35	ST STEEL, (VBM) NUT LOCK PLATE	257-410
36	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
37	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
38	P.ASSY, (VBM) STAPLE LATCH → рис. 25	907-246

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 20 Central Panel Electrics

Morgana BookMaster Pro · Электрика центральной панели

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VBM)CENTRAL PANEL ELECT. 115V	907-238
—	P.ASSY,(VBM)CENTRAL PANEL ELECT. 230V	907-239
1	FILTER, MAINS - 110-250VAC 6AMP (230V)	640-075
1	FILTER, MAINS - 100-250V 10A 50/60Hz (115V)	640-076
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
4	P.ASSY, (VBM) MAINS INPUT PANEL 115V → рис. 23	907-014
4	P.ASSY, (VBM) MAINS INPUT PANEL 230V → рис. 23	908-910
5	SCREW, SKT HD C/S, M5 x 8mm BLACK	105-020
6	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
7	STEEL, (VBM) PCB MOUNTING PLATE	253-092
8	PCB ASSEMBLY, POSI TION MOTOR CONTROL	900-152
9	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
11	SCREW, SKT HD BUTTON, M3x12 STAINLESS	101-332
12	ELECT.ASSY, VARIO S/S ALARM & CONNECT	905-164
13	NUT, M3 HEX FULL BZP	150-002
14	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
15	NUT, M4 HEX FULL BZP	150-004
16	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
17	RUBBER,GROMMET 25.5mmOD 22mmID 16SWG	330-013
18	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
19	WASHER, M5 FORM A BZP	160-003
20	WIRE, ASSY, PUSH-ON/320mm Y&G/2BA	740-194
21	WIRE,ASSY EARTH - 2BA/140mmBRAID/2BA	740-130
22	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
23	EDGING STRIP, 145mm	335-010
24	P.ASSY, (VBM) CENTRAL PANEL TOP KNOCK → рис. 21	907-247
25	CABLE ASSY, (VBM) MOTOR SUPPLY	742-389
26	ELEC-HARDWARE, CABLE TIE-small	710-016
27	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
28	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
29	CAPACITOR, (VECO) 6uF 230V	610-108
29	EL ASSY, (VBM) CAPACITOR 20uF 115V	905-330
30	STEEL, (VBM) CAPACITOR BRACKET	253-093
31	SCREW, SKT HD CAP, M4 x 12mm STAINLESS	100-338
32	SHAKEPROOF WASHER, M8 INTERNAL BZP	165-005
33	NUT, M8 HEX FULL BZP	150-007
34	ELEC-HARDWARE,TE RMINAL BLOCK 6 TAB 16A	710-319
35	ELEC-HARDWARE,TE RMINAL BLOCK END PLATE	710-320
36	NUT, M5 HEX FULL BZP	150-005
37	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
38	CABLE ASSY, (VBM) TRANSFORMER SUPPLY	742-390
39	CABLE ASSY, (VBM) MAINS DISTRIBUTION	742-388
40	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
41	SCREW, SKT HD BU TTON,M5x25mm STAINLESS	101-306

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 21 Central Panel Top Knock

Morgana BookMaster Pro · Центральная панель, верхний упор

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) CENTRAL PANEL TOP KNOCK	907-247
1	SCREW, SKT HD BU TTON,M5x25mm STAINLESS	101-306
2	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
3	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
4	WASHER, M5 FORM A BZP	160-003
5	SHAFT,(VFCN) SPACER 8mmODx5mmIDx16.5mm	265-230
6	PL MLDING, (VBM) INFEED WHEEL	310-639
7	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
8	WASHER, M5 x 20mm OD	160-052
9	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
10	NUT, M5 HEX FULL BZP	150-005
11	NUT, M5 HEX FULL BZP	150-005
12	P.ASSY, (VBM) 18T PULLEY & CTRL DISC	907-337
13	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
14	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
15	BELT, (VBMP) TOP KNOCK BELT 16T5-510	914-397
16	SHAFT, (VBM) CONTROL DISC	265-652
17	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
18	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
19	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
20	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
21	ALUMINIUM,PULLEY T5x16T dia 8mm bore F	251-346
22	SHAFT, (VBM) CONTROL DISC	265-652
23	BELT, EDGE STITCH TYRE 3mm x 120mm JND	914-853
24	P.ASSY, (VBM) EDGE STITCH DRIVE	890-105
25	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
26	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
27	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
28	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
29	P.ASSY,(VBM) EDGE STAPLE LATCH → рис. 24	907-248
29	P.ASSY,EDGE STAPLE LATCH(TO S/No1035)	908-909
30	CABLE ASSY, (VBM) FOLD CLUTCH/EDGE SOL	742-381
31	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
32	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
33	STEEL, (VBM) WHEEL BRACKET	253-034
34	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
35	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
36	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
37	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
38	SPROCKET, (VBM) DRIVE GEAR 44T	192-423
39	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
40	SHAFT, (VBM) TO P KNOCK DRIVE x 89mm LG	265-553
41	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
42	P.ASSY, (VBM) CENTRAL PANEL → рис. 22	907-249

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 22 Central Panel Assembly

Morgana BookMaster Pro · Центральная панель

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) CENTRAL PANEL	907-249
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	P.ASSY, (VBM) SENSOR MOUNTING	908-967
3a	STEEL, (VBM) MOUNTING BRACKET	253-152
3b	PL MLDING, SENSOR HOUSING CLAMP RING	310-628
3c	SCREW, SKT HD BUTTON,M5x30mm STAINLESS	101-309
3d	WASHER, M5 FORM A BZP	160-003
3e	SPRING, (VBMP) COMPRESSION	180-375
3f	PL MLDING, EMITTER HOUSING CLAMP RING	310-626
3g	PL MLDING, EMITTER HOUSING	310-625
3h	NUT, M5 NYLOC-TYPE P BZP	150-035
3i	PL MLDING, SENSOR HOUSING	310-627
3j	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
3k	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
3l	SHAFT, (VBM) PIVOT x 66mm LONG	265-582
3m	STEEL, (VBM) PIVOT BRACKET	253-153
4	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
7	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
8	ELECT.ASSY, (VBM) TOP KNOCK HOME EMIT	905-311
9	PIN, NEEDLE ROLLER 3mm x 12.8mm	400-030
10	P.ASSY, (VBM) CENTRAL PANEL L/H	907-344
11	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
12	WASHER, M5 FORM A BZP	160-003
13	WIRE,(VBM) TOP KNOCK EARTH BRAID 90mm	740-197
14	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
15	SHAFT,(VBM) TOP KNOCK CLUTCH x 89mm LG	265-554
16	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
17	STEEL, (VBM) CLUTCH ANCHOR BRACKET	253-059
18	PIN,SPLIT,3/32" x 5/8" STAINLESS STEEL	400-311
19	CLUTCH, (VBMP) EC20 CLUTCH BRAKE	760-336
20	PIN, 3/32"x 1/2" LONG SPIROL	400-352
21	PULLEY,(VBMP)TOP KNOCK CLUTCH HTD-28T	192-430
22	BELT, HTD 800-5M-9	914-400
23	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
24	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
25	P.ASSY, (VBM) CENTRAL PANEL R/H	907-345
26	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
27	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
28	WIRE,ASSY EARTH - 2BA/140mmBRAID/2BA	740-130
29	WASHER, M5 FORM A BZP	160-003
30	SCREW, SKT HD CAP, M5 x 8 STAINLESS	100-364
31	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
32	SHAFT, (VBM) SPACER (END KNOCK)	265-549
33	STEEL, (VBMP) TENS IONER PLATE R/H	253-234
34	NUT, M5 NYLOC-TYPE P BZP	150-035
35	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
36	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
37	WASHER, M5 FORM C (12.5mmOD) BZP	160-005
38	SHAFT, (VBMP) TENSION UNIT SPACER	265-645
39	P.ASSY, (VBM) TENSION WHEEL	908-911
40	NYLON, SPACER OD 12mmxID8.2mmx3mm LONG	320-322
41	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
42	GRUB SCREW, M4x16mm CUP POINT HT	149-208
43	PULLEY,(VBM) HTD-28T-5M-09 FOLD CLUTCH	192-433
44	NUT, M6 HEX FULL BZP	150-006
45	SHAKEPROOF WASHER, M6 INTERNAL BZP	165-002
46	BEARING, FLANGED SELF ALIGNING 1/2"	190-080
47	WASHER, M6 FORM A BZP	160-004
48	SCREW, SKT HD BU TTON,M6x16mm STAINLESS	101-310
49	SCREW, SKT HD CAP, M6 x 25mm BZP	100-356
50	NYLON, WASHER OD12mmxID6mmx0.8mm THICK	320-353
51	PIN, SPIROL M3 x 18mm HEAVY DUTY	400-400
52	CLUTCH,(VBM) WRAP SPRING UNIT ASSEMBLY	760-340
53	NUT, M5 NYLOC-TYPE P BZP	150-035
54	WASHER, M5 FORM A BZP	160-003
55	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
56	NUT, M6 NYLOC-TYPE T HALF HEIGHT BZP	150-039
57	BEARING,ROLLER FLANGE 22mmODx8mmIDx7mm	190-321
58	SHAFT,(VBM) FOLD CLUTCH 8mm x 102mm LG	265-544
59	NUT, M6 HEX FULL BZP	150-006
60	STEEL, (VBMP) TENS IONER PLATE L/H	253-233
61	SCREW, SKT HD CAP, M5 x 12mm STAINLESS	100-318
62	PIN, M3 x 20 SPIROL	400-391
63	SHAFT, (VBM) FOLD CRANK ARM	265-585
64	SHAFT, (VBM) FOLD CRANK PIN	265-587
65	P.ASSY, (VBM) FOLD CONNECTING ARM	908-887
65a	BEAR,OILITE FLANGED ID8mmxOD12mmx8mm	190-313
65b	SHAFT, (VBM) FOLD CONNECTING ARM	265-586
66	NYLON, WASHER 16mmODx8.2IDx.83mm thick	320-302
67	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
68	P.ASSY, (VBM) BACK PLATE ASSY	908-870
69	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
70	SHAFT, HEX.SPACER BRASS N/PLAT M5x43mm	265-204
71	CIRCLIP 8mm SHAFT 0.66mm WIDE	180-302
72	GEAR, (VBM) DRIVE GEAR 56T	192-422
73	SCREW, SKT HD BU TTON,M5x12mm STAINLESS	101-302
74	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
75	WASHER, M5 FORM A BZP	160-003
76	SHAFT, HEX.SPACER BRASS N/PLAT M5x43mm	265-204
77	ELECT.ASSY, (VBM) TOP KNOCK HOME SENS	905-312

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 23 Mains Input Panel

Morgana BookMaster Pro · Панель сетевого ввода

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) MAINS INPUT PANEL 115V	907-014
—	P.ASSY, (VBM) MAINS INPUT PANEL 230V	908-910
1	SWITCH, ILLUM 115V RED	700-010
1	SWITCH, ILLUM 230V GREEN	700-011
2	ELEC-HARDWARE, EARTH TERMINAL POST	710-055
3	LABEL, EARTH SYMBOL	500-006
4	CABLE ASSY, (VBM) MAINS INPUT	742-387
5	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
6	NUT, M5 HEX FULL BZP	150-005
7	WASHER, M5 FORM A BZP	160-003
8	NUT, M3 HEX FULL BZP	150-002
9	SHAKEPROOF WASHER, M3 INTERNAL BZP	165-000
10	LABEL, 230V	500-009
10	LABEL, 115V	500-252
11	STEEL, (VBM) MAINS INPUT PANEL	253-091
12	PLUG, MAINS ENTRY - 10A	720-019
13	SCREW, POZI Mach C/S, M3 x 16mm BZP	145-006
14	FUSE, 1.25", 5.0A, HRC-QUICK ACTING,F (230V)	730-016
14	FUSE, 1.25",10.0A, HRC- ANTI SURGE,T (115V)	730-103
15	FUSE,1.25" HOLDER (FOR 720-016/019)	730-008

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 24 Edge Staple Latch (S/N 1036+)

Morgana BookMaster Pro · Фиксатор сшивки по кромке (с серийного № 1036)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,(VBM) EDGE STAPLE LATCH	907-248
1	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
2	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
3	STEEL, (VBM) EDGE STITCH SUPPORT BRKT	253-046
4	PL MLDING, (VGBM) PAPER CATCH GUIDE	310-630
5	SCREW, SKT HD BU TTON,M4x20mm STAINLESS	101-047
6	SCREW, SKT HD CAP, M4 x 8mm STAINLESS	100-306
7	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
8	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
9	NYLON, (VGBM) PAPER CATCH SLEEVE	320-100
10	STEEL, (VBM) STITCH LATCH PLATE	253-288
11	P.ASSY,(VBM)E/STITCH SOLENOID & SPRING	907-200
11a	SPRING,(VSF) COMP 2N-15N E/STITCH	180-355
11b	SOLENOID, GE-40.08 80% 24 FLANGED	760-339
12	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
13	SCREW, SKT HD C AP, M4 x 8mm STAINLESS	100-306
14	PL MLDING, (VGBM) PAPER CATCH GUIDE	310-630
15	NYLON, WASHER OD12mmxID6mmx0.8mm THICK	320-353
16	NUT, M5 NYLOC-TYPE T HALF HEIGHT BZP	150-315
17	SCREW, SKT HD C AP, M4 x 6mm STAINLESS	100-305
18	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
19	STEEL, (VBM) SOLENOID BRACKET	253-287

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 25 Staple Latch Assy

Morgana BookMaster Pro · Фиксатор сшивки

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY, (VBM) STAPLE LATCH	907-246
1	PL MLDING, (VBM) WEAR STRIP	310-651
2	STEEL, (VBM) SOLENOID BRACKET	253-073
3	NYLON, M4 WASHER (9mm dia)	320-001
4	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
5	SOLENOID, GE 32.06 100% 24V F 4.5mm	760-304
6	SHAFT, (VBM) PIVOT PIN x 48mm LONG	265-583
7	ST STEEL, (VBM) LATCH PLATE	257-411
8	SPRING, CLIP (PUSH ON) 3mm BAR	180-017
9	STEEL, (VBM) PIVOT PLATE	253-074
10	CABLE ASSY,(VBM) BOTTOM LATCH SOLENOID	742-377
11	SHAFT, (VBM) PIVOT PIN x 48mm LONG	265-583
12	SPRING, CLIP (PUSH ON) 3mm BAR	180-017
13	SHAFT, (VBM) PIVOT PIN x 48mm LONG	265-583
14	WASHER, M3 FORM A BZP	160-002
15	SPRING, CLIP (PUSH ON) 3mm BAR	180-017
16	WASHER, M4 FORM A BZP	160-001
17	SCREW, SKT HD C AP, M4 x 6mm STAINLESS	100-305

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 26 Corner Staple Head (Optional)

Morgana BookMaster Pro · Головка угловой сшивки (опция)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	KIT, BOOKMASTER STAPLER HEAD (OPT.)	914-414
—	INSTALL INSTRUCT. BOOKMASTER 3RD HEAD	969-307
1	BOOKMASTER, STAPLE CLINCHER	810-021
2	VBM, STAPLE CASSETTE (5000), PACK of 3	810-022
3	PCB ASSEMBLY, CLINCH DRIVE	900-165
4	BOOKMASTER, STAPLE HEAD	810-020
5	ELEC-HARDWARE, PCB PILLAR 6.4mm	710-329
6	STEEL, STAPLER PCB PLATE (OPT.)	253-238
7	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
8	SCREW, SKT HD CAP, M4 x 12mm STAINLESS	100-338
9	PCB ASSEMBLY, STAPLE HEAD CONTROL	900-156
10	P.ASSY, (VBM) EDGE STITCH ASSISTOR	907-442

Номера в кружке — сборочные узлы (поставляются в сборе).

Fig 27 Edge Staple Latch (S/N up to 1035)

Morgana BookMaster Pro · Фиксатор сшивки по кромке (до серийного № 1035)

Нажмите на схему, чтобы увеличить

№	Наименование	Артикул
—	P.ASSY,EDGE STAPLE LATCH(TO S/No1035)	908-909
1	SOLENOID, GE 32.06 100% 24V F 4.5mm	760-304
2	PL MLDING, (VGBM) PAPER CATCH GUIDE	310-630
3	SCREW, SKT HD BU TTON,M3x16mm STAINLESS	101-311
4	SCREW, SKT HD CAP, M4 x 8mm STAINLESS	100-306
5	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
6	NUT, M3 NYLOC-TYPE T BZP	150-033
7	STEEL, (VBM) STITCH LATCH PLATE	253-050
8	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
9	SCREW, SKT HD CAP, M4 x 8mm STAINLESS	100-306
10	PL MLDING, (VGBM) PAPER CATCH GUIDE	310-630
11	NYLON, M4 WASHER (9mm dia)	320-001
12	NUT, M4 NYLOC-TYPE T HALF HEIGHT BZP	150-034
13	SCREW, SKT HD C AP, M4 x 6mm STAINLESS	100-305
14	SHAKEPROOF WASHER, M4 INTERNAL BZP	165-001
15	STEEL, (VBM) SOLENOID BRACKET	253-043
16	STEEL, (VBM) EDGE STITCH SUPPORT BRKT	253-046
17	SHAKEPROOF WASHER, M5 INTERNAL BZP	165-003
18	SCREW, SKT HD BU TTON,M5x10mm STAINLESS	101-301
