Illustrated Parts List Morgana ElectroCreaser · Полный перечень деталей машины

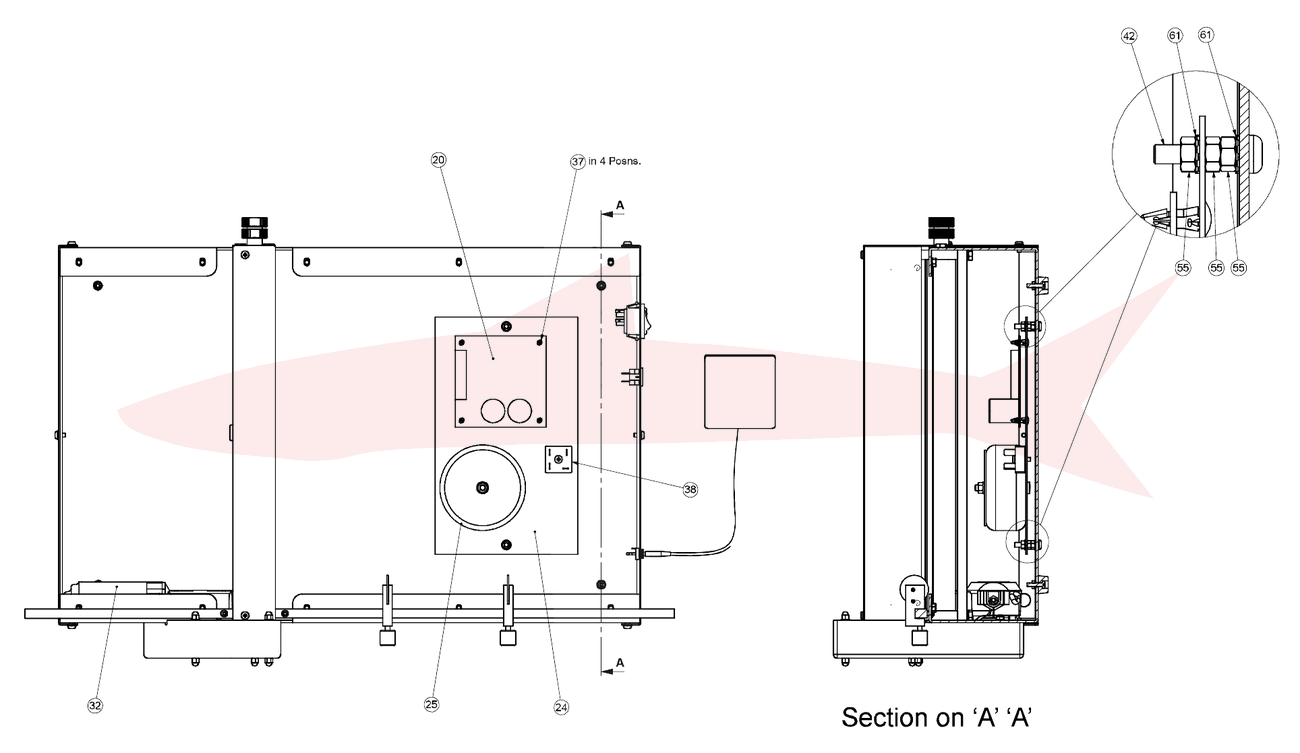

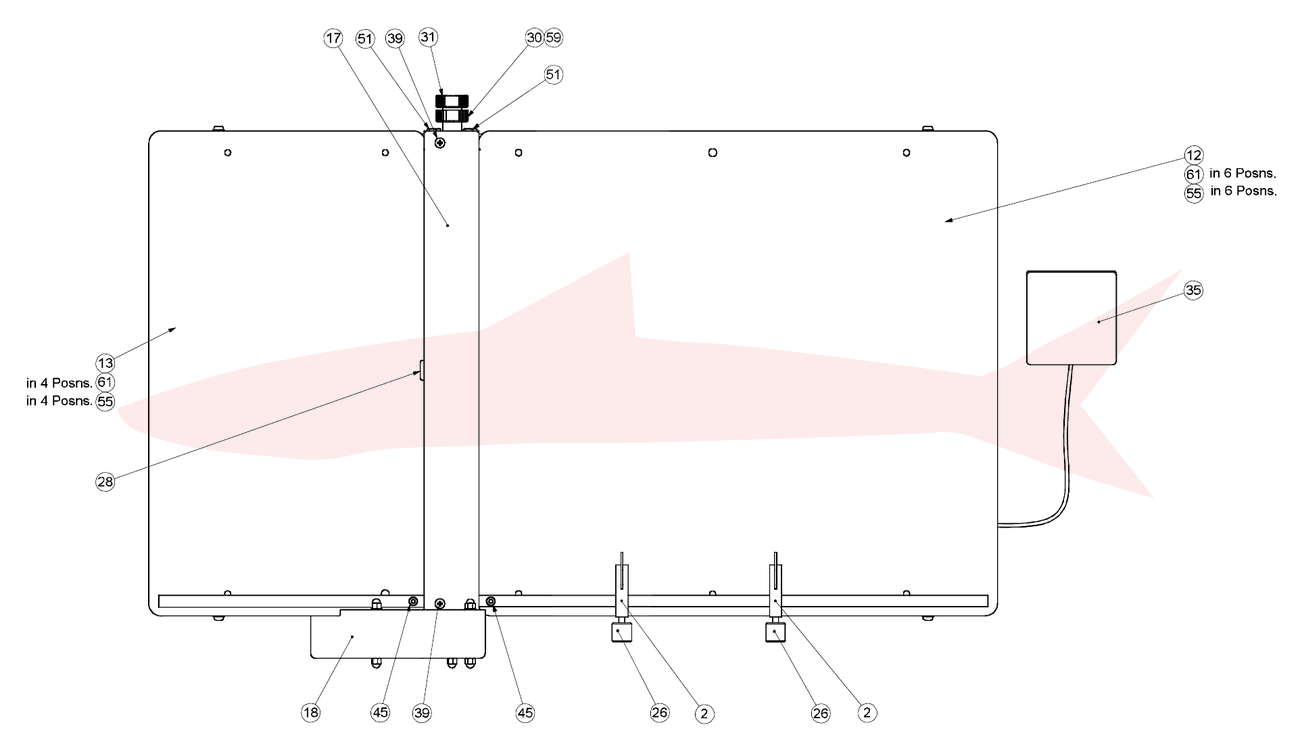

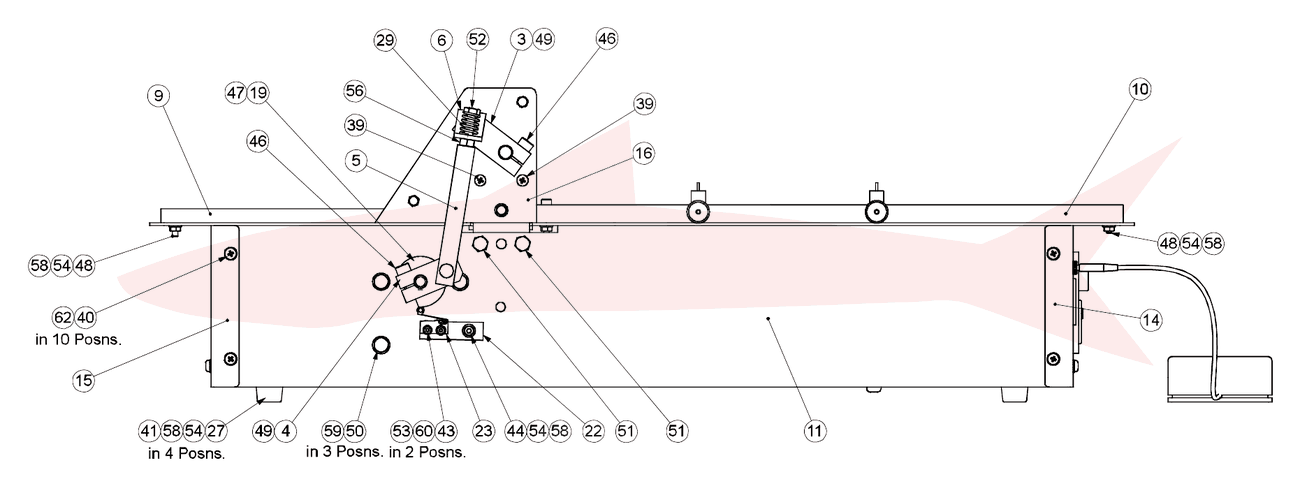

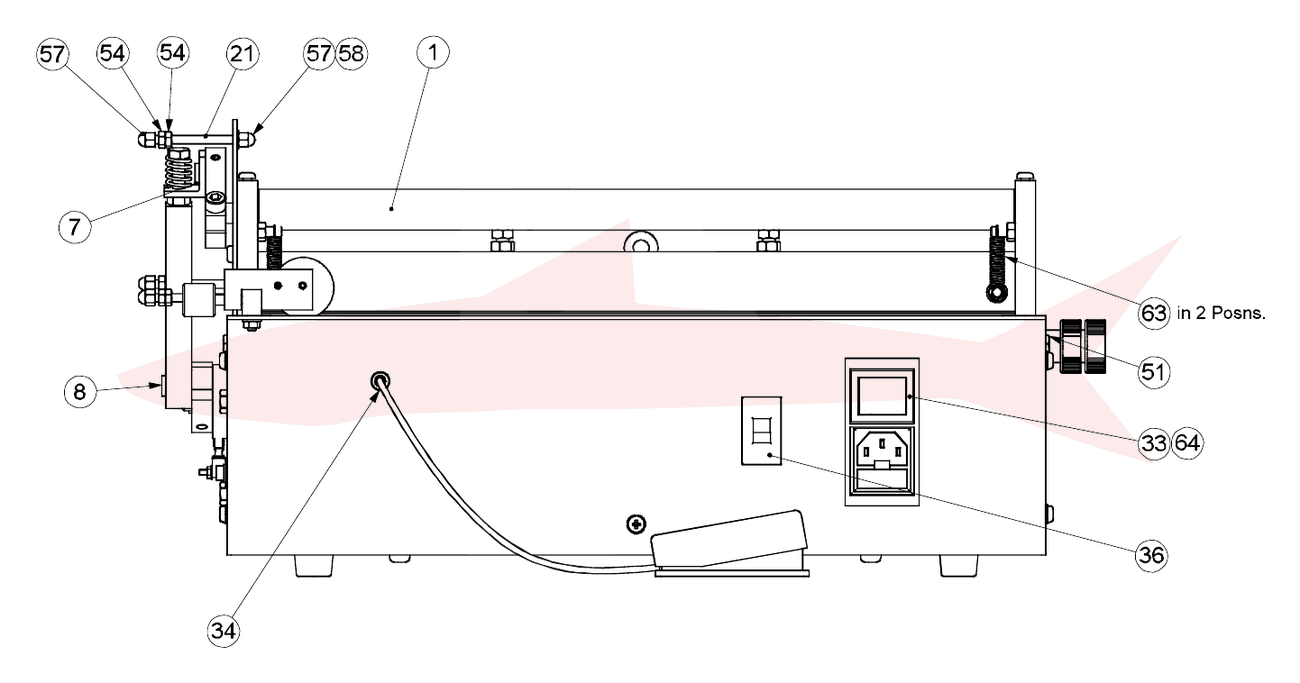

Схема: Вид 1 Вид 2 Вид 3 Вид 4
Нажмите на схему, чтобы увеличить
№ Наименование Артикул 1 CREASER MECHANISM - ElectroSpeed 47-300-01 2 Speed Stop Assy 47-301-01 3 CRANK BLOCK - Upper 47-206-01 4 CRANK BLOCK - Lower 47-207-01 5 CRANK ROD 47-208-01 6 Crank Rod Bracket 47-209-01 7 CRANK PIN - Short 47-210-01 8 CRANK PIN - Long 47-210-02 9 SIDE LAY - Short 47-212-01 10 SIDE LAY - Long 47-212-02 11 Box Base - ElectroCreaser 47-214-01 12 Table - Large 47-215-01 13 Table - Small 47-215-02 14 END PLATE - Slotted 47-217-01 15 END PLATE - Plain 47-217-02 16 END COVER PLATE 47-219-01 17 FOLDED COVER PLATE 47-220-01 18 SIDE COVER - Plastic 47-221-01 19 MOTOR CAM - ElectroCreaser 47-222-01 20 Control Board Assy 47-224-01 21 THREADED STUD - M4 47-225-01 22 BRACKET - Micro Switch 47-226-01 23 Microswitch 652-034 24 Electronics Plate 47-232-01 25 Toroidal Transformer Assembly 47-240-01 26 UNIVERSAL KNOB ASSY - M4 x 6 Lg. - Black 28-014 27 FOOT - M4 - Black 601-109 28 GROMMET 601-122 29 SPRING - Compression 604-079 30 KNURLED KNOB - Female 606-040 31 KNURLED KNOB - Male 606-041 32 Doga Motor - 116 Series 610-028 33 FUSED POWER INLET 651-094 34 Jack Socket Lead Assembly 47-241-01 35 Foot Switch 652-035 36 Switch - Voltage Selector - 120/240V 652-036 37 PCB Mounting Pillar 656-003 38 Bridge Rectifier 672-009 39 Screw - Pan Pozi Taptite - M4 x 6 Lg 401-02-040-006 40 Screw - Pan Pozi Taptite - M4 x 8 Lg 401-02-040-008 41 Screw - Pan Pozi Taptite - M4 x 16 Lg 401-02-040-016 42 Screw - Pan Pozi Taptite - M5 x 25 Lg 401-02-050-025 43 Screw - Csk Hd. Taptite - M2.5 x 16 Lg 402-02-025-016 44 Screw - Socket Cap Head - M4 x 12 Lg 403-01-040-012 45 Screw - Socket Cap Head - M4 x 20 Lg 403-01-040-020 46 Screw - Socket Cap Head - M6 x 20 Lg 403-01-060-020 47 Screw - Socket Set - Flat Point - M4 x 8 Lg 409-01-040-008 48 Screw - Socket Set - Flat Point - M4 x 16 Lg 409-01-040-016 49 Screw - Socket Set - Flat Point - M5 x 6 Lg 409-01-050-006 50 Bolt - Hexagon Head - M6 x 10 Lg 414-01-060-010 51 Screw - Hexagon Head - M6 x 12 Lg 415-01-060-012 52 Screw - Hexagon Head - M6 x 20 Lg 415-01-060-020 53 Nut - Full - M2.5 461-01-025 54 Nut - Full - M4 461-01-040 55 Nut - Full - M5 461-01-050 56 Nut - Full - M6 461-01-060 57 Domed Nut - M4 463-01-040 58 Washer - Plain - M4 481-040 59 Washer - Plain - M6 481-060 60 Washer - Plain - M2.5 481-025 61 Washer - Shakeproof - M5 485-050 62 Washer - Shakeproof - M4 485-040 63 Compression Spring 604-080 64 Fuse - 2A - 20 x 5mm - Anti-surge Ceramic (For 240V Operation) 681-013 64 Fuse - 4A - 20 x 5mm - Anti-surge Ceramic (For 110V Operation) 681-015
Номера в кружке — сборочные узлы (поставляются в сборе).
